Digi TransPort WR11 Manuale utente
1
What’sinthebox
Connect hardware
TransPort WR11 Cellular Antenna
If any item is missing or damaged, please contact your supplier. Note any damage that may have occurred during shipping and report it to the supplier.
Depending on model and configuration, the package will also contain additional cables/antennas as appropriate.
2
Power Supply
Mounting Tips: Position the Digi TransPort WR11 on a flat, level surface in a location with adequate ventilation. The unit is designed for indoor use.
Do not expose the unit to extreme heat or cold, strong magnetic fields, or liquids.
Remove the SIM door. Hold the product on a flat surface. Using a screwdriver,
firmly pull the SIM door straight up.
Insert the SIM card(s) as shown, with the notch facing the bottom-right corner of
the device. If you are using one SIM card only, insert it in the SIM 1 slot.
Re-attach the SIM cover.

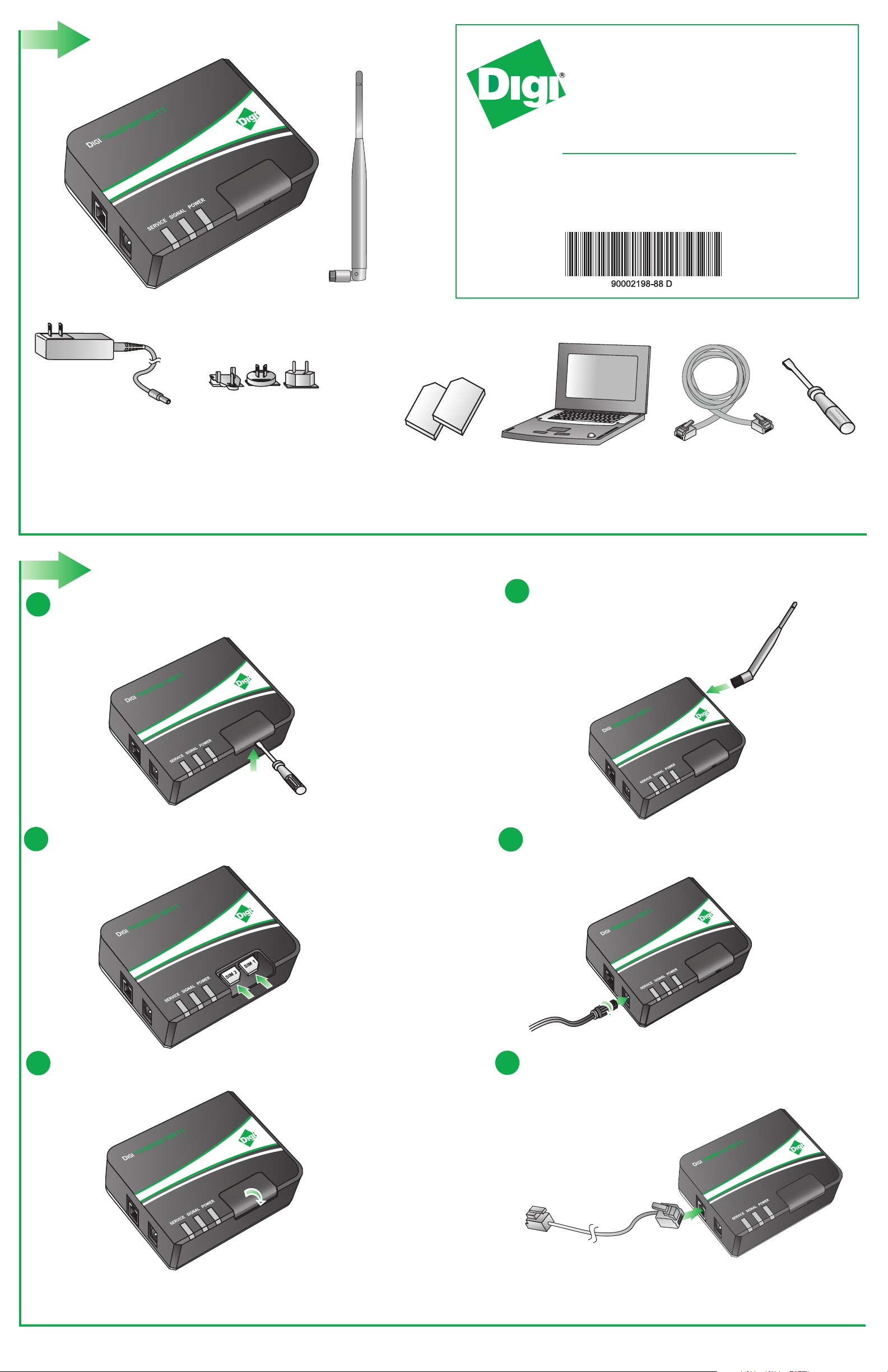

Quick Start Guide
TransPort WR11
HSPA+ Models
a
a
b
c
Requiredadditionalequipment
Shift
A personal computer Ethernet cable
Connect one end of the Ethernet cable to the Ethernet port
on the unit and the other end to an Ethernet port on a PC.
f
Connect the cellular antenna to the antenna connector on the unit.
d
Connect the plug end of the 5-volt power supply to the power
connector on the unit, and plug the other end into a wall outlet. Insert
the power supply end fully and
rotate clockwise to engage and lock.
e
ScrewdriverSIM card(s) -
Mini-SIM (2FF) size
Power Supply Adapters
(non-US models only)
© 2015 Digi International Inc. Digi TransPort and the Digi logo are trademarks or registered trademarks of Digi International Inc. in the United States and other countries worldwide. All other trademarks are the property of their respective owners.
To use your Digi TransPort WR11, you must first activate the device with your cellular carrier. This process involves supplying the carrier with the MEID number
from your device, which is printed on the label.
The first page of the Getting Started Wizard is displayed.This wizard guides you through initial configuration for your TransPort device.
Note: The default username and password to log in to the TransPort device are username and password.
- To run the wizard, click Get Started.
- To manually configure the TransPort device, click Skip Wizard.
Run the Getting Started Wizard
a
b
c
Next steps5
d
4
ViewtheTransPortLEDsandstartupstates
Enter 192.168.1.1 into the address bar of the web browser.
After the Getting Started Wizard completes, the TransPort web interface is displayed. For additional configuration, use the web interface and refer to the
Digi TransPort Users Guide and Application Notes provided on the TransPort Documentation page on the Digi website (www.digi.com/support).
If your PC is configured to automatically get an IP address, it can get an IP address from the TransPort WR11. Otherwise, make sure your PC can connect to the
network 192.168.1.0 (255.255.255.0).
3
SERVICE LED: Indicates the presence and level of cellular service running on the device.
Off: No cellular service
1 Blink: GPRS mode
2 Blinks: EDGE mode
3 Blinks: UMTS mode
4 Blinks: HSDPA mode
5 Blinks: HSUPA mode
SIGNAL LED: Indicates strength of cellular signal.
Off: Poor or No signal.
Place the device in a location where it gets a better signal.
Amber: Fair
Green: Good
POWER LED
Off: No power
Green: TransPort device is powered
