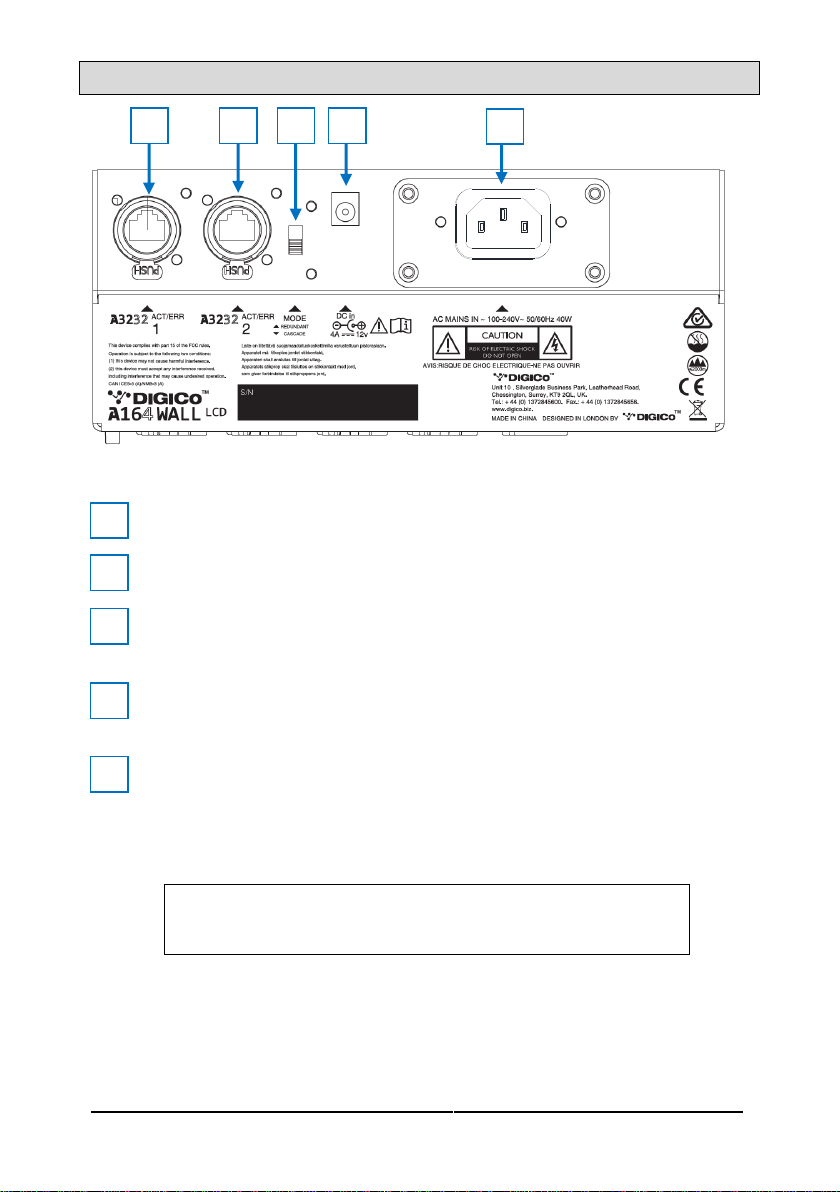

Display Mode Switch –Press once to illuminate displays, press again to
change the display mode from socket names to colour coded channel
assignment. Each subsequent press toggles the mode.
Installation –mounting
WARNING
To prevent injury, this apparatus must be securely attached to the floor/wall
in accordance with the installation instructions.
Mounting on a wall - Use the mounting frame AA11529 in the orientation shown
below. Fix the frame to the wall using appropriate fixings or screws for the type of
wall, then align the threaded inserts on the sides of the A164 WALL LCD with the
frame and secure the unit in place with the 6 x M4 T20 screws (AB11238) provided.
Flush mounting in a wall - Use the mounting frame AA11529 in the orientation
shown below. Align the threaded inserts on the sides of the A164 WALL LCD with
the frame and secure the unit in place with the 6 x M4 T20 screws provided.
Connect the power and Cat5 cable/s, then fix the assembly to the wall using
appropriate fixings or screws for the type of wall.
Mounting in a box - The A164 WALL LCD will fit a suitably sized standard
IP10/NEMA Type 1 metal box or equivalent.
