MICHELANGELO PCI

PMICHELANGELO PCI

Index

INDEX

PREFACE II

ENVIROMENTAL CONDITIONS II

CLEANING THE TERMINAL II

VIBRATIONS OR DROPPING II

WARNING II

DECLARATION CE OF CONFORMITY II

1. GENERALITY 1.1

1.1. PRODUCT FEATURES 1.1

2. HARDWARE INSTALLATION 2.1

3. SOFTWARE INSTALLATION 3.1

3.1. WINDOWS® XP, 2000, ME, 98 3.1

3.2. CHANGE THE INSTALLATION 3.4

3.3. CHANGE CONFIGURATION 3.5

3.3.1. LINE SETUP MENU 3.6

3.3.2. PROTOCOL SETUP MENU 3.7

4. UNINSTALL 4.1

5. ADSL SERVICE (PPPOA) 5.1

MICHELANGELO PCI

Preface - Declaration CE of Conformity

PREFACE

system, or trasmitted in any form or by any means, electronic, otherwise, without the

priorwritten permission of Digicom S.p.A. The contents of this booklet may be modified

withoutpriorpermission.Everypossiblecarehasbeentakenintestingandputtingtogether

all the documentation contained in this booklet, however Digicom can not take any

responsability brought by the use of this booklet.

The following installation rules should be respected in order to have the best

working order of the equipment and for the user’s safety.

ENVIROMENTAL CONDITIONS

ENVIROMENTAL TEMPERATURE RELATIVE HUMIDITY

from -5 to +45°Cfrom 20 to 80% n.c.

Rapid changes of temperature or humidity should be avoided (0,03°C/min).

This equipment, including cables, should be installed in an area free from:

Dust, humidity, heat from direct sun light.

Objects which irradiate heat. These could cause damage to the container

or other problems.

Objectswhich producea strongelecttromagnetic field(loudspeakers, etc.)

Liquids or chemical corrosive substances.

CLEANING THE TERMINAL

Use a clean and soft cloth. Wet the cloth with water or natural detergent if it

is necessary to remove any stains. Never use chemical products such as

petrol or solvents.

VIBRATIONS OR DROPPING

Caution against vibrations and dropping.

WARNING:

THIS IS A CLASS B PRODUCT.

DECLARATION OF CONFORMITY

Digicom S.p.A. viaAlessandro Volta 39 21010 Cardano al Campo-Varese-

Thisproduct satisfiesthe basicrequirements ofthe belowindicated Directive:

1999/5/CE 9th March 1999 about the telecommunications equipment

89/336/CEE 3rd May 1989 about the electromagnetic compatibility

73/23/CEE 19th February 1973 about the security

MICHELANGELO PCI

Generality

1.1

1. GENERALITY

Asymmetric Digital Subscriber Line (ADSL)

technologyprovides high-speed dataaccessover

regular phone lines. ADSL service is able to co-

existon thesame linewithyour telephoneservice.

TheADSLhas an unbalanced connection speed.

It means that you have a connection where data

arereceived atthe maximumspeedof 8Mbpsand

sent at the maximum speed of 1Mbps. The

unbalance allows to carry out connections with

top performance in Internet access or remote

accessapplications.Asymmetricoperationis ideal

for home and small office use where files and information are downloaded

more frequently than uploaded.

ADSLmodemsemployATM (AsynchronousTransferMode) framing. ATM is

aprotocol thatdividespackets intosmallfixed sizedcellsfor rapidtransmission

over high-speed networks. Several different protocols are used over ATM.

Michelangelo configuration depends on the equipment used by your service

provider:

Point to Point Protocol Over ATM (PPPoA)

Bridged/Routed Ethernet/IP overATM (PPPoE)

1.1. PRODUCT FEATURES

ADSL modem for PCI Bus

Asymmetric data speed

Downstream up to 8Mbps

Upstream up to 1Mbps

8 Mbps full rate ADSL support

1.5 Mbps G.Lite ADSL support

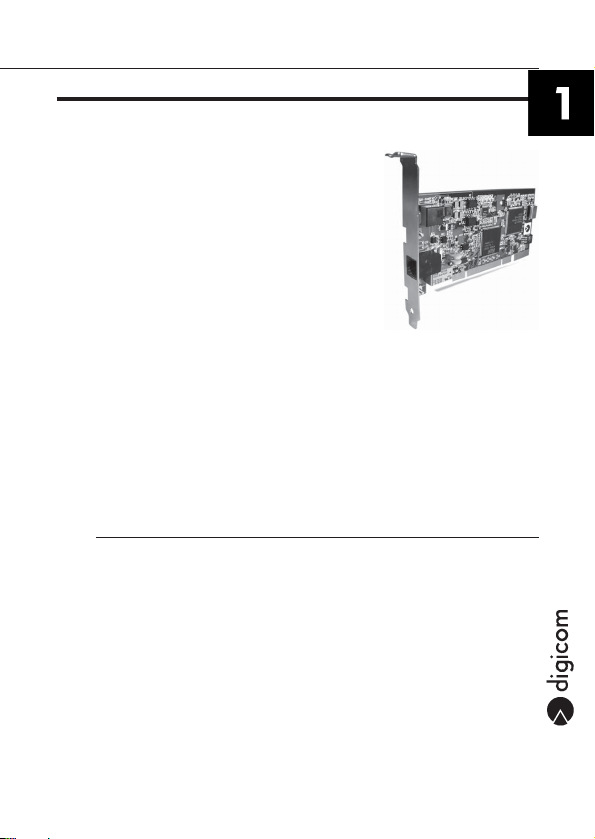

PC interface: PCI compliant with 2.2 specifications

ADSL interface: RJ11 connector

ADSLstandards : ANSIT1.413, ITUG.992.1 (G.dmt)eITUG.992.2 (G.lite)

RFC Supported:

RFC1483 (Bridged/Routed Ethernet/IP overATM)

RFC2516 (PPP over Ethernet)

RFC2364 (Point to Point Protocol Over ATM)

1.2

MICHELANGELO PCI

Generality

Windows®Plug&Play

Flash upgradable

CE mark

Driver for Windows®XP/ME/2000/98

MICHELANGELO PCI

Hardware Installation

2.1

2. HARDWARE INSTALLATION

Caution: Power off your computer and remove the plug before going on with

the following procedure:

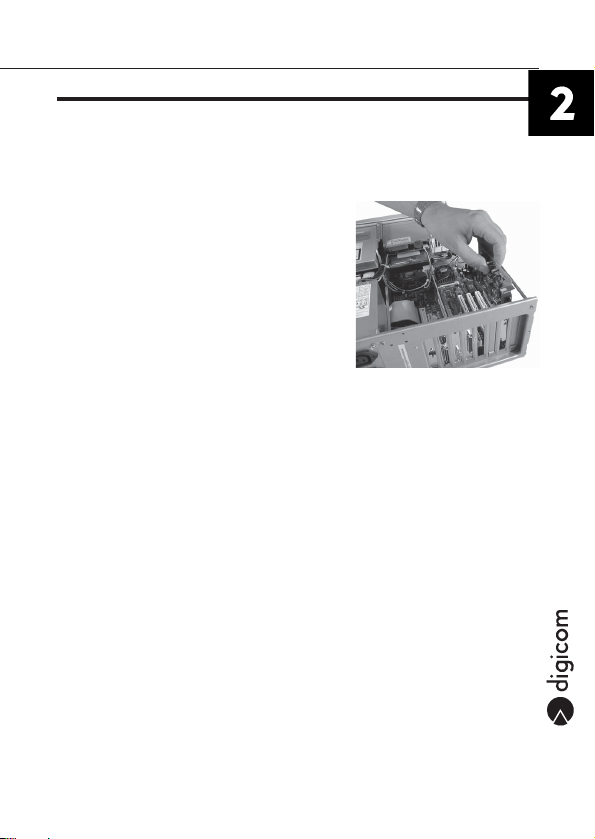

Remove the computer cover.

Choose a free PCI bus slot.

Removethe slotcoverand keepthescrew.

Carefully insert Michelangelo PCI into the

selected slot.

Secure the bracket with the screw.

Close the computer cover and plug it.

Connect the telephone cable to the ADSL line.

For the next steps see the Software Installation section.

MICHELANGELO PCI

Software Installation

3.1

3. SOFTWARE INSTALLATION

3.1. WINDOWS® XP, 2000, ME, 98

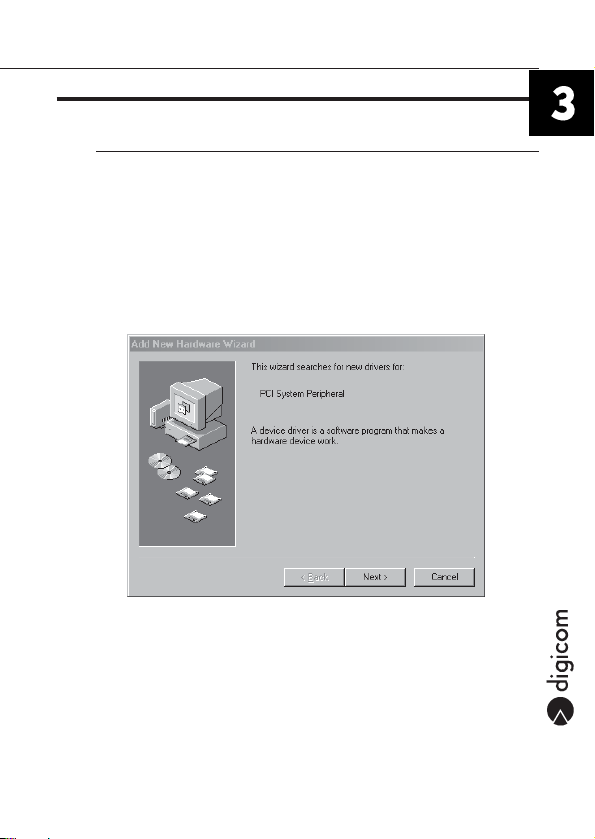

At the next reboot, Windows® (98/98SE, ME, 2000, XP) will automatically

detect a new hardware and start the driver installation process. Follow the

instructions.

For a right installation you have to cancel the driver installation and then

perform the configuration utility. This will automatically install the right driver

with your provider configuration.

Click on the “Cancel” button displayed in the PCI System Peripheral and

PCI ATM Controller windows.

In the MichelangeloPCI folder, present in the CD-Rom,

(D:\Utility\MichelangeloPCI) double click the “Setup.exe” file.

In the “Install the DSL Device” Windows click on the “Next>” button.

3.2

MICHELANGELO PCI

Software Installation

You have to select the right configuration. Ask your Provider for the profile

to be used.

Name Protocols Default

PPPoA PPPoATM VCMUX (RFC2364) 

PPPoATM LLC (RFC2364)

PPPoE PPPoEthernet VCMUX (RFC2516)

PPPoEthernet LLCSNAP (RFC2516) 

EoA Bridge IP overATM VCMUX (RFC1483)

Routed IP overATM VCMUX (RFC1483)

Bridge IP overATM LLCSNAP (RFC1483) 

Routed IP overATM LLCSNAP (RFC1483)

Theinstallation willinstall the defaultprotocol. Inorder tochange theprotocol

refer to paragraph 3.3.

Click on the “Next” button to continue the installation.
