Digiever DS-8300-RM Pro+ Series Manuale utente

Network Video Recorder

Quick Installation Guide

DS-8300-RM UHD Series

1.2.0.6

Information in this document is subject to change without notice.


1

Table of Contents
Safety Notice ........................................................................................................ 2
Pre-installation Notice........................................................................................... 3
Remote PC System Requirements....................................................................... 3
Package Contents ................................................................................................ 5
Hardware Description ........................................................................................... 6
Hard Disk Installation............................................................................................ 7
Connection to DIGIEVER NVR............................................................................. 8
Quick Configuration ............................................................................................ 11
Appendix
LED Indicators on Front Panel.................................................................................. 12
LED Indicators at Rear Panel................................................................................... 13



Quick Installation Guide

Thank you for choosing DIGIEVER Network Video Recorder. The following quick

guide will lead you to complete the installation and configuration of the NVR. Please

read the following description carefully.

Safety Notice

The following safety precautions will increase the life of the NVR. Follow all

precautions and instructions.

Electrical Safety

Unplug this product from the power source before cleaning.

Use only the bundled power adapter. Using other power adapters may damage your

device.

Ensure that you plug the power adapter to the correct power input rating. Check the

label on the power adapter for the power rating.

Caution: Power cord(s) must be plugged into a socket-outlet with earthing connection.

Operation Safety

DO NOT place this product in a location where it may get wet.

Place this product on a flat and stable surface.

Use this product in environments with an ambient temperature between 0°C and 45°C.

DO NOT block the air vents on the case of this product. Always provide proper

ventilation for this product.

DO NOT insert any object or spill liquid into the air vents. If you encounter technical

problems with this product, contact a qualified service technician or your retailer. DO

NOT attempt to repair this product yourself.

Caution: There is a risk of explosion if the battery is replaced with an incorrect type.

Dispose of used batteries appropriately.

Caution: Slide-rail-mounted equipment is not to be used as a shelf or a work space.

Pre-installation Notice

Please make sure the following items are prepared for installing DIGIEVER NVR

DS-8300-RM UHD Series.

Network connection

Configuration of network cameras

Compatibility of network cameras

Computer for configuring DIGIEVER NVR

1-8 hard disks

Compatibility of hard disk with DIGIEVER NVR

1 slotted screwdriver and 1 Philips screwdriver

*For camera compatibility, please check our website http://www.digiever.com/support/compatibility.php

Remote PC System Requirements

The following are minimum system requirements for a personal computer to operate

the DIGIEVER in better performance:

Operating System

Microsoft®Windows®Vista/7/8/10/11 (32 and 64-bit)

Browsers (32-bit) in Windows OS

Microsoft® Internet Explorer 10.0 or above, Chrome 56.0.29 or above, Firefox

51.0.1 or above, Opera 43.0.2 or above

CPU

Intel®i7 CPU or above

Network

Minimum 10/100/1000 Ethernet (Gigabit Ethernet is recommended)

Note: It is suggested to connect cameras and NVR with Gigabit switch.

Memory

16G or above

Graphics Adapter

AGP or PCI-Express, minimum 1024×768, 16bit colors, 1G memory or above

Note: It is highly recommended to use a graphics adaptor which

provides higher than resolutions 1024 x 768 in order to experience the

full benefits of the software.

Make sure the display DPI setting is set to default at 96DPI

To set DPI value, right-click on desktop, choose “Settings” tab >>

“Advanced” >> “General.”

CD-ROM Drive

It is necessary to read the operating instructions in the provided CD-ROM.

Adobe Reader

It is necessary to read the operating instructions in the provided CD-ROM.

The audio function will not work if a sound card is not installed in the PC.

Audio may be interrupted depending on network traffic.

Package Contents

 NVR Network Video Recorder

 Power Cord

 Ethernet Cable

 Screw Bag

 Product CD

Hardware Description

Front View Rear View

1. HDD LED indicator

2. Network LED indicator: LAN 1, LAN 2

3. Power LED indicator

4. One-touch backup button with LED indicator

5. 2 x USB3.2 Gen 1x1(Front)

6~13. HDD 1 to HDD 8

14. Reset button

15. DI/DO (4 x in, 4 x out)

(L) (R)

(L) Max24V, DI_GND, DI-4, DI-3, DI-2, DI-1, OCOM, DO4, DO3, DO2, DO1 (R)

16. 2 x 2.5 Gigabit Lan ports

17. 4 x USB 3.2 Gen 1x1 (Rear)

18. 2 x HDMI 2.0a

19. Power switch

20. Power connector

Hard Disk Installation

Please follow the steps as illustrated below to install the hardware:

 Take out the disk tray from NVR.

 Connect the Ethernet cable to the port

of 2.5 Gigabit LAN.

 Install the hard disk in each tray and

lock the disk with four screws. Ensure

the disk holes match the holes at the

base of disk tray.

 Connect the power cord to power

connector.

 Insert the disk tray into NVR and push

it to the end.

 Turn on the server and there is a beep

to indicate the NVR is in booting

process. Please wait for minutes until

NVR beeps another time. The

installation of NVR is complete right

now.

Connection to DIGIEVER NVR

Please insert the product CD-ROM on a PC to install NVR Search and NVR

Decoder. Finally, you can start Quick Configuration on a web page.

①Install NVR Search for finding NVR in the network.

②Install NVR Decoder.

③Connect to the configured NVR, download and install NVR-Client.exe

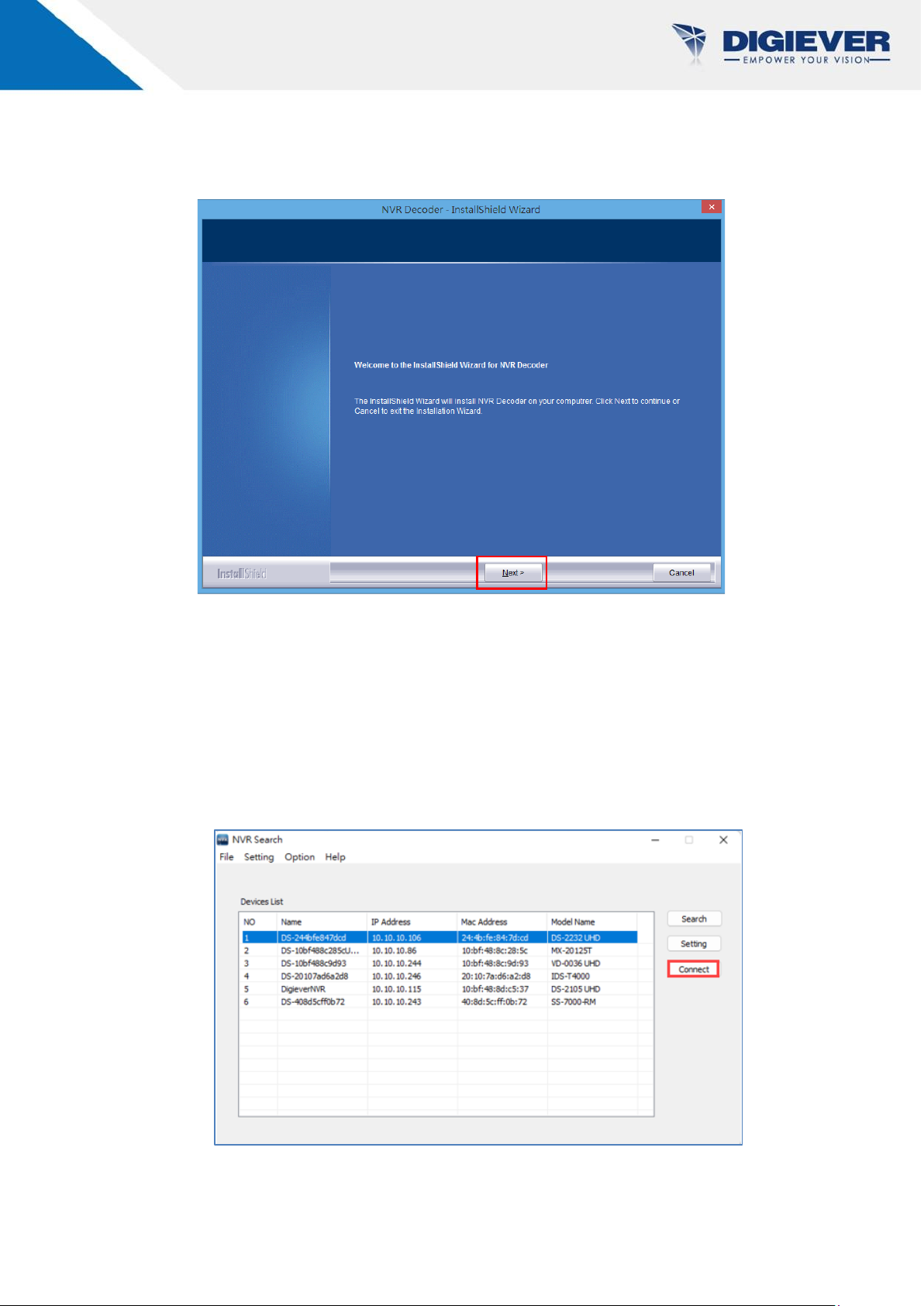

Install NVR Search

Please execute the product CD and click “Install NVR Search.”

Follow the instructions to install and the NVR Search will run automatically.

Install NVR Decoder

Click “Install NVR Decoder” and follow the instructions to setup.

Connect to NVR

1. Connect to DIGIEVER NVR

After setting the NVR Search and NVR Decoder, the user can connect to the

monitoring page by the following two options:

1) NVR Search

Once you click “Connect” or double click the selected NVR list, the IE

browser will pop up automatically.
