Light Level Sensor
with three in uts for PIR Sensors
Designed in Australia to
meet Australian Standards
and installation conditions
RAPIX Lighting Control System RAPIX Light Level Sensor
2
1. Product Item
This guide provides user operation and product specification information for the RAPIX Light Level Sensor item
number DGOZ-LLS-M.
2. Product ackage contents
The Light Level Sensor package includes the following.
•1 x Light Level Sensor
•1 x Light Level Sensor patch lead
•1 x eHub patch lead
•3 x PIR Occupancy Sensor patch leads
3. Im ortant notes and safety information
•The Light Level Sensor is only suitable for use with the RAPIX eHub (item Number DGOZ-EHUB-4G-2S)
•The Light Level Sensor does not have a mains su ly connection
•The Light Level Sensor is owered via a RAPIX eHub (12Vdc)
•There are no user serviceable arts inside the Light Level Sensor. Do not attempt to disassemble or
operate the device with any covers removed
•The Light Level Sensor is intended for indoor use only.
If you require information or assistance regarding the installation configuration or operation of the Light Level
Sensor contact Technical Services at Diginet Control Systems. Contact details are provided on the back cover of
this guide and also at www.diginet.net.au
4. Product summary and ca abilities
The Light Level Sensor (DGOZ-LLS-M) can be used as part of a RAPIX Lighting Control System to control a space
based on ambient light measurement.
The RAPIX Light Level Sensor connects directly to an eHub and is used to measure light levels in a space and send
this information to the eHub for logic processing. The required operation of the Light Level Sensor/eHub is
configured in the RAPIX Integrator software package.
Up to three RAPIX PIR occupancy sensors can optionally be directly connected to the Light Level Sensor.
5. Product Features
•Connects to and powered from a RAPIX eHub.
•0 to 4000 Lux sensing range.
•Allows connection to three PIR sensors.
•Fits standard Australian wall plate aperture.
•Suitable for ceiling and wall mount.
RAPIX Lighting Control System RAPIX Light Level Sensor
3
6.
Possible o erational setu s:
• ‘Daylight harvesting’ where DALI luminaires connected to a RAPIX Lighting Control System are dimmed up or
down to maintain a required illuminance (Lux) level on a desktop.
• Set PIR sensor operation based on Light Level for example: movement detected by PIR turns a RAPIX Zone on
but only in dark; or movement detected by PIR turns a RAPIX Zone on but only in light.
• Stepped light level response to allow different events to occur on a RAPIX Lighting Control System at different
light levels.
• Sunset/sunrise switch operation. For example light switches on at low light/night/dusk and off for sunrise
/daylight.
• Enable/disable the Light Level Sensor.
• Enable/disable PIR’s connected to the Light Level Sensor.
7.
Mounting the Light Level Sensor
The RAPIX Light Level Sensor can be mounted in any electrical accessory plate than accepts standard
Australian/New Zealand electrical accessory plates with a standard Australian mechanism aperture. For example
Clipsal 2000™ or C2000™.

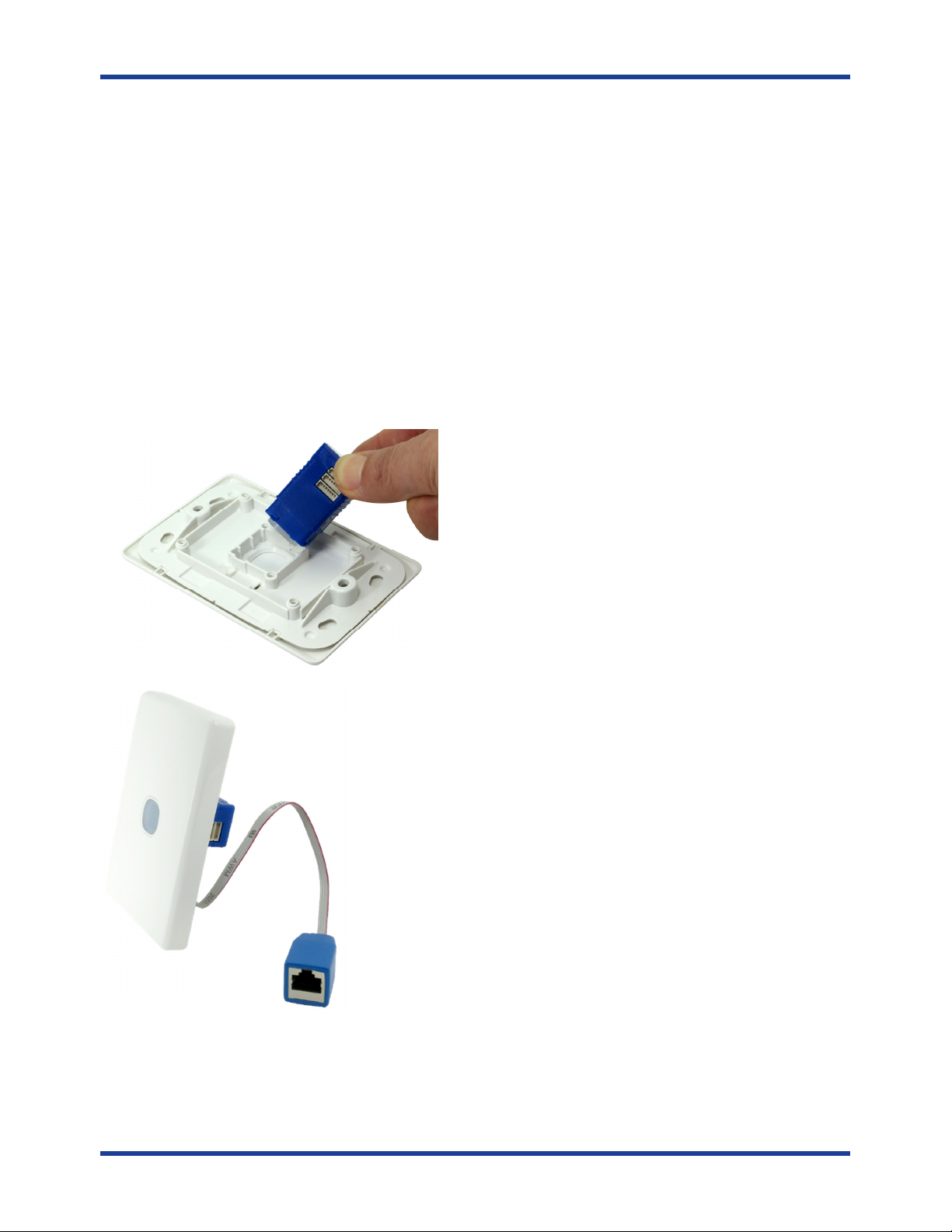

RAPIX Light Level Sensor can be installed into any electrical
accessory with a standard Australian plate aperture
Light Level Sensor installed in Australian wall
plate
RAPIX Lighting Control System RAPIX Light Level Sensor
4
8.
Connecting the Light Level Sensor to a RAPIX eHub
The Light Level Sensor is only suitable for use with the RAPIX eHub.
The Light Level Sensor can be connected and powered from any of the four eHub smart channel inputs.
Patch leads are provided to connect the Light Level Sensor to the eHub as shown below.
9.
Connecting a PIR sensor to the Light Level Sensor
Up to three RAPIX PIR sensors can be connected to a Light Level Sensor as shown below.
RAPIX PIR occupancy sensor
RAPIX PIR
occupancy
sensor
connections
RAPIX Light
Level Sensor
Up to 25m
Patch
lead
Note: The 3 x sensor connections can also be used as dry
contact input connections to an eHub.
The dry contact should be connected across the ‘S’ and ‘+’
terminals of the patch lead terminals shown above.
RAPIX Lighting Control System RAPIX Light Level Sensor
5
10.
Configuration
The RAPIX Light Level Sensor is configured using ‘RAPIX Integrator’ PC software.
11.
S ecifications
Input Voltage
12Vdc (supplied via RAPIX eHub)
Input current
10 mA
with no PIRS.
Up to 160 mA fully populated with PIR’s.
Each PIR should have a current draw < 50 mA.
A suitably sized eHub power supply should be
used that can handle the total number of PIRs.
Light Level Measurement Range
1 to 4000 Lux
Automatic Light
Level Maintenance Range
100 to 1000 Lux when used with
RAPIX
eHub
Automatic Light Level Maintenance Tolerance
10%
Light Level sensor Field of view
180°
Operating Temp
0
-
50°C
Number of PIR connections supported
3
Maximum distance between eHub and LLS
100
m
Maximum distance between LLS and a PIR
25
m
using cat5/cat5e/cat6 cable
IP Rating
IP20
Identification
LED
indicator colour
Red
12.
Product dimensions
RAPIX Lighting Control System RAPIX Light Level Sensor
6
13.
Standards and com liance
The product is designed to meet/exceed the following Australian and International standards:
Australian/New Zealand EMC and Electrical Safety Frameworks and Standards
Regulation
Standard
Title
EMC
AS/NZS CISPR 22:2009
CISPR15
Information Technology Equipment
–
Radio
Disturbance Characteristics – Limits and Methods of
Measurement
AS/NZS CISPR 22
-
A:2010
The product is in conformity with the essential requirements of the following EC Directives and accordingly carries
the CE marking.
EC Council Directive
Title
2004/108/EC Electromagnetic Compatibility (EMC)
2011/65/EU
Restriction of Hazardous Substances (RoHS) in Electrical and Electronic Equipment
RAPIX Lighting Control System RAPIX Light Level Sensor
7
14.
Product warranty
The Light Level Sensor has a two-year warranty against manufacturing defects in accordance with the following terms:
1. Nothing in this Warranty affects any person's rights under the Australian Consumer Law. The benefits to any person under the
Gerard Lighting Warranty are in addition to the rights and remedies available under any Consumer Guarantees.
2. Subject to the other clauses of this Warranty Gerard Lighting warrants that the Goods will be free of manufacturing defects
and will perform to Gerard Lighting's specifications.
3. The benefit of the Gerard Lighting Warranty extends only to the owner of the property in which the Goods are installed (the
Owner) for two (2) years after the date of purchase (Warranty Period).
4. If within the Warranty Period the Goods fail to perform to Gerard Lighting's specifications as a result of some defect in material
or workmanship in the Goods (Defect) then Gerard Lighting will at its option repair the Goods or supply replacement Goods
free of charge.
5. The Gerard Lighting Warranty will not apply to Goods:
5.1. installed by any person other than a qualified tradesperson; or
5.2. subjected to misuse neglect negligence or accidental damage; or
5.3. operated in any way contrary to any operating or maintenance instructions; or
5.4. improperly handled installed or maintained; or
5.5. altered or modified prior to or after installation.
6. The Gerard Lighting Warranty does not apply to faulty or defective design of Goods unless Gerard Lighting has designed the
Goods and Gerard Lighting expressly accepts responsibility for such design in writing.
7. In order to make a claim under the Gerard Lighting Warranty the Owner must:
7.1. contact Gerard Lighting to obtain a Returned Goods Authorisation Number for the Goods and to be notified of Gerard
Lighting's return address for the Goods by:
7.1.1. freecall 1300 95 DALI (3254); or
7.1.2. post to PO Box 314, Padstow NSW 2211; or
7.1.3. fax to 1300 95 3257; or
7.1.4. email to sales@diginet.net.au.
7.2. return the Goods at the Owners expense to the return address notified by Gerard Lighting together with all
accessories instructions specifications or other material supplied with the Goods and a notice in writing:
7.2.1. stating the Returned Goods Authorisation Number for the Goods;
7.2.2. describing in detail the defect or fault in the Goods;
7.2.3. setting out the Owner's contact details (including postal address email address and telephone numbers at
which the Owner can be contacted during usual business hours).
7.3. Gerard Lighting will not accept any returned Goods which have not been returned strictly in accordance with the
above instructions.
8. Gerard Lighting will examine any returned Goods and if Gerard Lighting determines that they are defective through no fault of
the Owner and are otherwise undamaged Gerard Lighting will repair or replace the Goods free of charge.
9. Gerard Lighting will notify the Owner whether it accepts the Goods are defective within a reasonable time of return.
10. Gerard Lighting will not be responsible for any costs of de-installation re-installation returning Goods or for redelivery of the
Goods (whether original or repaired and/or replacement Goods) by Gerard Lighting and any other related expenses of the
Owner in claiming under the Gerard Lighting Warranty.
11. Gerard Lighting will not be responsible for any loss or damage to the Goods occurring while the Goods are in transit (either on
return to Gerard Lighting or upon redelivery to the Owner of the original or repaired and/or replacement Goods).
12. Gerard Lighting will not be responsible (whether arising in contract or tort (including negligence) or under any statute) for any
special indirect incidental consequential or economic losses or damages (including loss of data business profits revenue
anticipated savings bargain opportunity or goodwill) whether or not the possibility of those losses or damages being suffered
had been brought to the attention of Gerard Lighting.
The Australian Consumer Law requires the inclusion of the following statement with the Gerard Lighting Warranty:
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement
or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major
failure.
