Upgrade Instructions

Part Number: EK–MX34S–IN. A01

MicroVAX 3100 Model

30 to DEC 3000 Model

400S AXP

MLO-010669

Can Cannot

Upgrade Upgrade

Drives: RZ23L, 24L RZ22

RZ24, 25, 26 RZ23

RZ55* RZ27

RZ56* RZ35

RZ58* RZ57

RX26 RZ59

TZK10 RX23

RRD42** RX33

TLZ04* TK50Z

TLZ06** DSSI Devices

TZ85*

TZ86***

TZ30****

Expansion

Boxes: SZ03

SZ12

SZ16

Memory: None

Communication

Options: DHW42

DSW41

*External device support only.

**External device (including tabletop) support only.

***Support planned for external device.

****Latest version of TZ30 only.

Options You Can Upgrade

Your shipment should contain the following

two kits.

If you are missing any of these components,

contact your Digital sales representative.

Check Components Shipped

Antistatic

Wrist Strap

System Power

Cord

Modem Loopback

Connector

Screwdriver

System Unit

Documentation

Ethernet Loopback

Connector

Printer Port

Terminator

SCSI

Terminator

Network

Label

System Kit:

Accessory Kit:

xxxxxxx

xxxxxxxxxxx

xxx

Upgrade

Card

MLO-010670

Return

Address Label

Rubber

Grommets

TZ30 RFI

Shield

RX26 Brackets

Metal Support

Plate

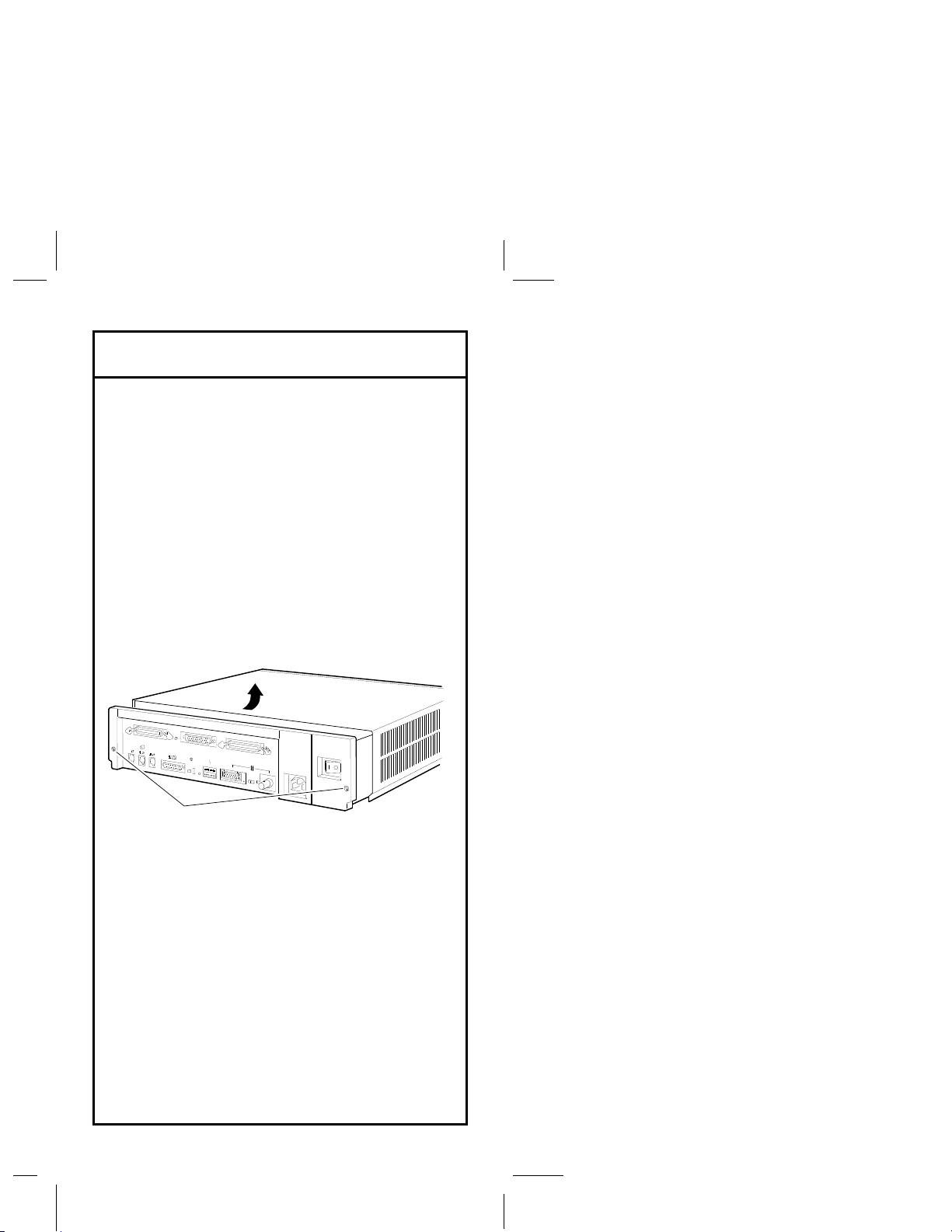

Follow these steps to remove the system unit

cover:

1. Turn off the system by pressing the

on/off switch to the off (O) position.

2. Disconnect the cables, connectors, and

terminators from the system unit.

3. Loosen the two captive screws on the

back of the system unit.

4. Slide the cover forward and lift it up

from the system unit. Set the cover

aside.

Remove the System Unit Cover

Captive

Screws MLO-010741

Note: The DEC 3000 system can hold two

fixed disk drives and one removable-media

drive.

1. Press and hold the spring clip that locks

the disk drive in position.

2. Push the disk drive towards the spring

clip until the rubber grommets under the

disk drive release from the cutouts in the

drive mounting shelf.

3. Lift the disk drive up from the drive

mounting shelf and release the spring

clip.

4. Disconnect the SCSI and power cables

from the back of the drive.

5. Set the drive aside on an antistatic mat.

Remove Fixed Disk Drives

MLO-010742

Spring Clip

Follow these steps to remove a removable-

media drive from the lower drive shelf:

1. Loosen the captive screw that secures the

drive mounting bracket to the drive shelf.

2. Lift the left side of the drive until the tabs

on the right side clear the cutouts in the

drive shelf.

3. Disconnect the SCSI and power cables

from the back of the drive.

4. Set the drive aside on an antistatic mat.

Remove Diskette/CD/Tape Drive

Captive Screw

MLO-010743

Each device in your system must have its

own unique SCSI ID setting. If your DEC

3000 system has a factory-installed drive, it

is set to SCSI ID 3.

You can check the SCSI ID settings on your

drives by referring to the DEC 3000 Model

400/400S AXP Options Guide. The RZ23L

and RZ24 SCSI ID settings (not covered in

the guide) are shown here.

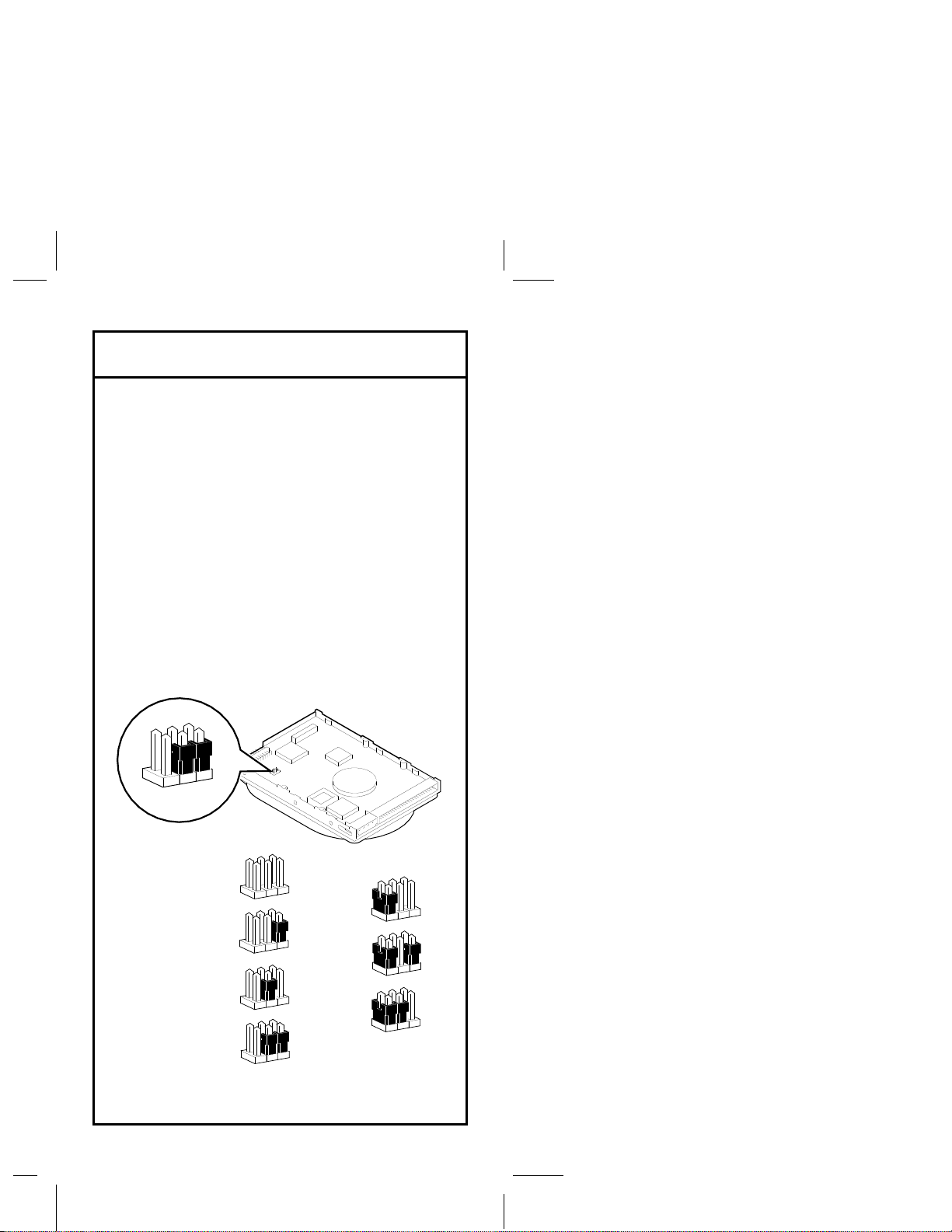

RZ23L Drive SCSI ID Settings:

Check the SCSI ID Settings

MLO-010587

SCSI

Settings:

E2 E1

RZ24 Drive SCSI ID Settings:

Check the SCSI ID Settings

MLO-010586

SCSI

Settings:

E2 E3

Remove the mounting brackets from all the

drives you are upgrading, unless you are

upgrading an RZ23L or RZ24 drive that has

the support plate shown below.

To attach the support plate (from the acces-

sory kit) to your drives:

1. Place the metal support plate on the disk

drive as shown.

2. Screw the four rubber grommets into

the plate and the drive until the plate is

secure.

Install New Mounting Brackets

Metal Support

Plate

MLO-010588

Rubber

Grommets

Install the RX26 bracket extensions as

shown below:

The DEC 3000 Model 400/400S AXP

Options Guide explains how to attach the

RFI shield to the TZ30 drive, and how to

mount a removable-media drive in the

system mounting bracket.

Other Accessory Brackets

MLO-010719
