User Manual
9
Troubleshooting
When the screen is cracked or HDMI input noise is generated.
►A low-priced (or uncertified) HDMI cable may cause a data loss at more than 1080i resolution.
The verification method is to check the video quality of more than 1080i resolution on the monitor in direct
connection between a problematic HDMI cable and video display unit NOT as via X_MC.
If the HDMI cable is the cause, the display keeps showing the same symptom.
Therefore, Genuine HDMI cable is recommended.
When Analog audio is off.
►Please check the condition of Audio at Video Output of the SDI or HDMI which contains Audio
data. If the checked Audio is normal, it may be a temporary symptom by ESD(Electrostatic
Discharge)
In this case, please reboot the product as turning OFF and ON the product : forced RESET
Bridge X_MC
10

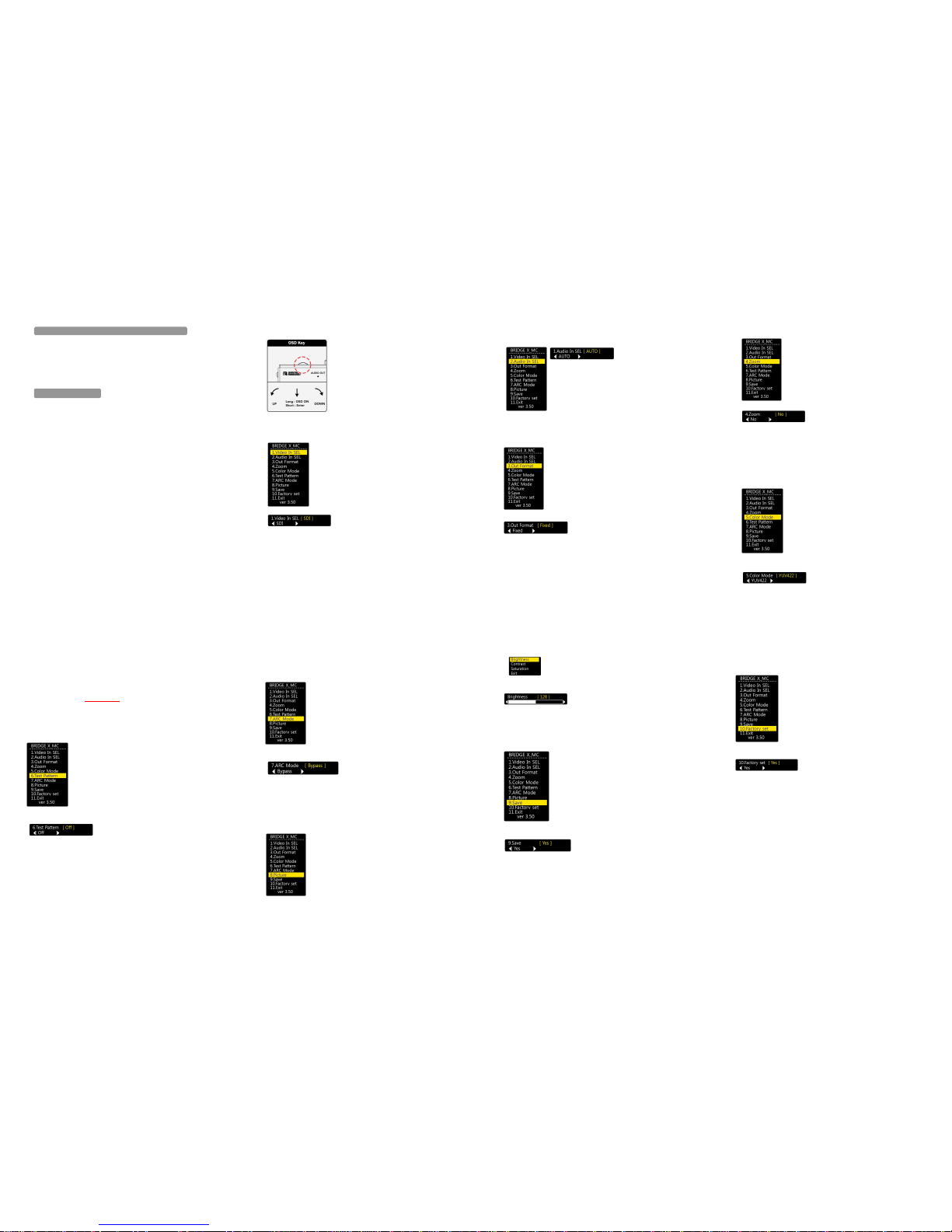

How to use OSD Menu
The OSD key (switch) is located on the top left of the product.
Selecting the input port
1. Press the OSD key and hold on for a while. Then OSD menu will appear like below.
2. When selecting ""Video In SEL", the following sub-menu is displayed.
3. The OSD key enables the user to select a needed Video Input type.
Optional : COMPONENT, HDMI, SDI, COMPOSITE, VGA
When the selection is made, the relevant Input LED is ON.
※
Notes
To use the COMPONENT, VGA, the input port must be equipped with an additional gender.
User Manual
11
4. "Audio In SEL" menu shows the selectable Audio inputs.
When "AUTO" is selected, the Audio input of the related Video is selected.
In other words, the video of SDI, HDMI contains Audio data.
If the other types of video input are selected, AnalogAudio input is selected accordingly.
Optional : AUTO,Analog, AES / EBU
Selecting the resolution
1. Press the OSD key and hold on for a while in order to show the initial display menu.
And move to 3. Out Format.
2. When "Out Format" menu is selected, the following menu will be displayed.
3. A needed resolution can be selected by using OSD key.
4. "By pass" mode provides the same resolution of the input, excluding the PC resolution.
"Fixed 1080i" is fixed as the output resolution of 1080i (1080i50 or 1080i59, will be displayed depending on the
frequency)
Selectable Resolutions :
Bypass, 480i_NTSC, 576i_PAL, 720p50, 720p59, 720p60, 1080i50, 1080i59, 1080i60, 1080p24, 1080p25,
1080p30, 1080p50, 1080p59, 1080p60,
640x480p60,
800x600p60,
1024x768p60,
1280x1024p60,
1360x768p60,
1600x1200p60,
1440x900p60, Fixed 1080i
Bridge X_MC
12
Magnifying the Screen
1. Press the OSD key and hold on for a while in order to show the initial display menu.
And move to 4. Zoom.
2. When "Zoom" menu is selected, the following menu will be displayed.
3. The OSD key enables the user to select the following values
Selectable : No Zoom, 5%, 10%, 15%, 20%, 25%, 30%, 35%
Selecting the output Color
1. Press the OSD key and hold on for a while in order to show the initial display menu.
And move to 5. Color Mode.
2. When "Color Mode" menu is selected, the following menu will be displayed.
User Manual
13
3. The OSD key enables the user to select the following mode.
Optional : YUV422, RGB444
※
Notes
This feature can be used only available for VGA output
In case of selecting RGB444 mode for SDI, CVBS, and COMPONENT, the output mode will be abnormally
displayed, because those support YUV422 mode only.
Display Test Pattern
1. Press the OSD key and hold on for a while in order to show the initial display menu.
And move to 6. Test Pattern.
2. When "Test Pattern" menu is selected, the following menu will be displayed.
3. The OSD key enables the user to select whether to output.
Selectable : On, Off
The output screen display the Color bar, and the -20dB of Tone signal is contained in Audio 1 group consisting
of 2ch.
Bridge X_MC
14
Aspect Ratio Converter
1. Press the OSD key and hold on for a while in order to show the initial display menu.
And move to 7. ARC Mode.
2. When "ARC Mode" menu is selected, the following menu will be displayed.
3. The OSD key enables the user to select whether to output.
Selectable : Bypass, 4:3, 16:9
Adjusting the Screen
1. Press the OSD key and hold on for a while in order to show the initial display menu.
And move to 8. Picture.
User Manual
15
2. When " Brightness " menu is selected, the following menu will be displayed.
3. The OSD key enables the user to select the following values of "Brightness"output
The OSD key operation enables the user to change its value
The remaining "Contrast" and "Saturation" can be adjusted in the same way.
SAVE
1. Press the OSD key and hold on for a while in order to show the initial display menu
And move to 9. Save
2. When "Save" menu is selected, the following menu will be displayed.
3. The OSD key enables the user to select whether to save the changed configuration.
Choices: Yes, No
※
In spite of not saving through "SAVE" menu,
the changed setting is automatically saved when OSD menu disappears.
Bridge X_MC
16
Initialize
1. Press the OSD key and hold on for a while in order to show the initial display menu. And move to 10. Factory
Set.
2. When "Factory Set" menu is selected, the following menu will be displayed.
3. The OSD key to select whether to initialize the entire setting.
Choices: Yes, No
