Digital Touch Systems TILTED TABLE KIT Manuale utente
Touch Screen Kiosk
TILTED TABLE KIT
Assembly instructions
-2-Tilted Table Kit- Assembly Instructions DigitalTouch Systems
Cover tray
Parts:
Screen
Top pan
Tilt brackets
Base
Legs

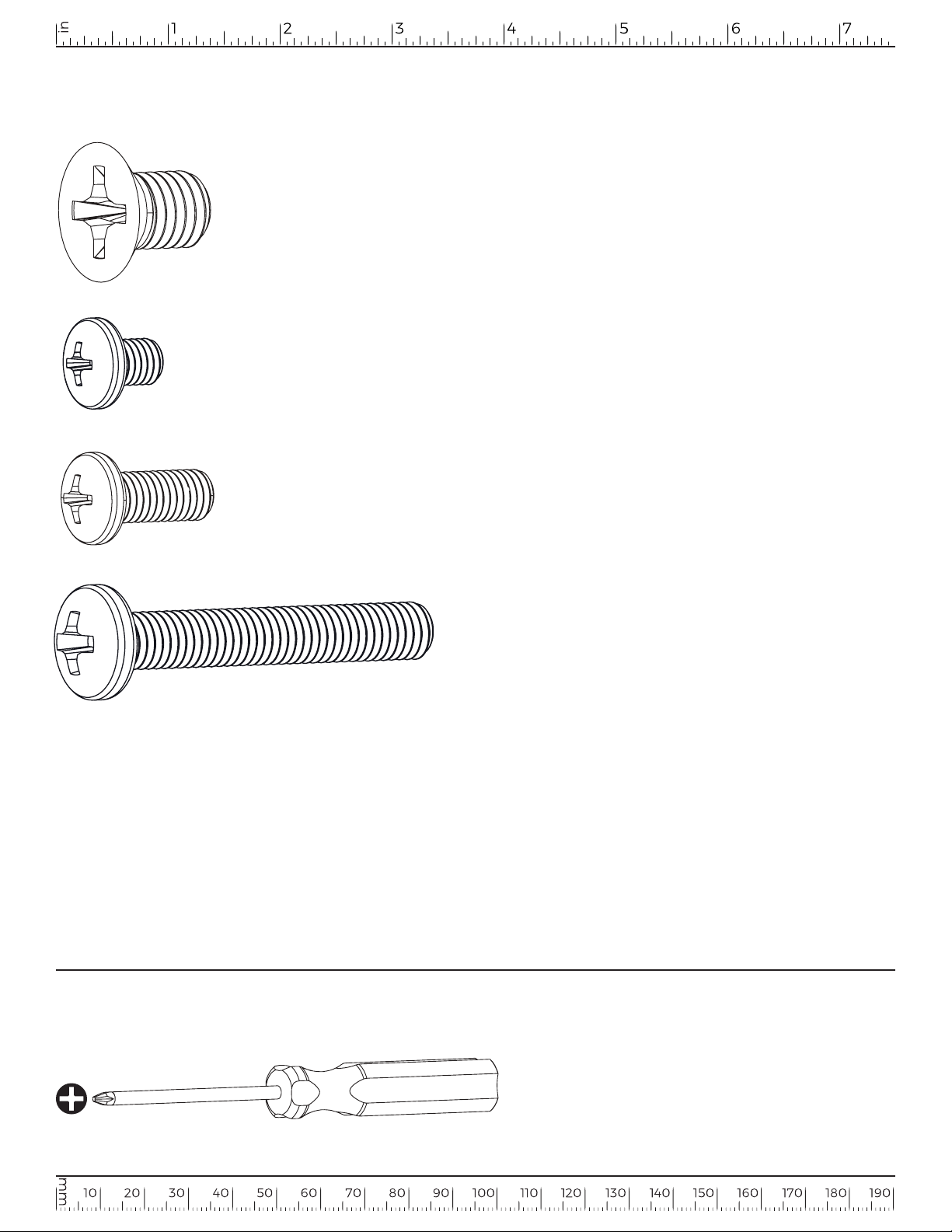

Hardware Included:
Tools needed:
#2 Philips Head Screwdriver
¼-20x1” Countersunk Machine Screw x6
¼-20x1” Panhead Machine Screw x8
10-32 x 1/4” Panhead Machine Screw x2
M6x40 Panhead Machine Screw x4
-4-Tilted Table Kit- Assembly Instructions DigitalTouch Systems

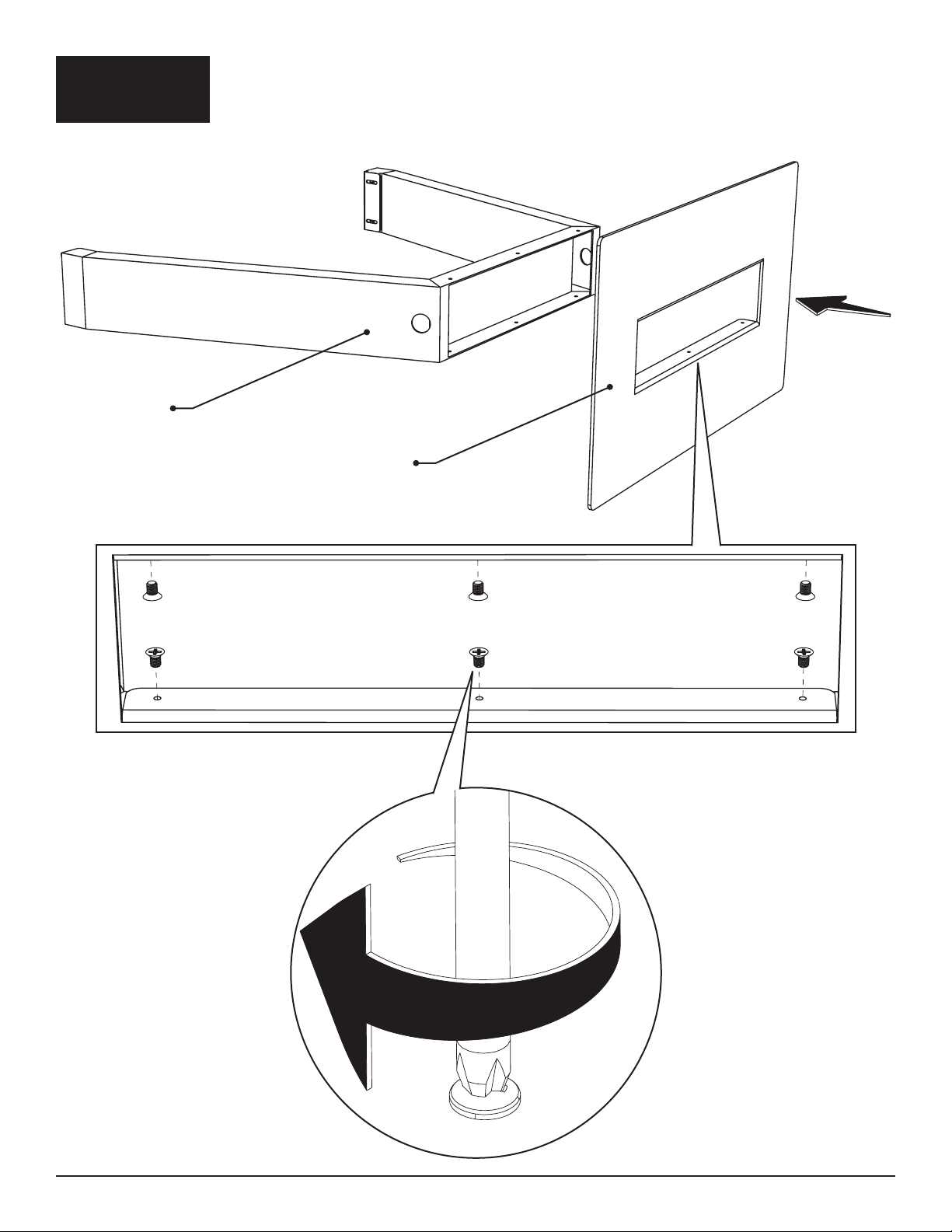

Step 1 Attach Base to the Legs using the 6 ¼-20 x6 undercut screws provided.
Baseplate
Legs
-5-Tilted Table Kit- Assembly Instructions DigitalTouch Systems
Step 2 Attach the Tilt brackets to the Top pan by using 4of the ¼-20 panhead
screws provided.
Top pan
Tilt bracket
Tilt bracket
-6-Tilted Table Kit- Assembly Instructions DigitalTouch Systems
Step 3 Run HDMI, Monitor Power, and USB cables out from the PC tray through
the center hole and then out through the cutout on the side of the tray
as illustrated by the arrows #1. The main power cable will need to be run
through the Tilt bracket and into the PC tray as shown by the arrows #2.
Monitor
Power CableHDMI CableUSB Cable
Top pan
1
1
2
2
Tilt bracket
Main
Power Cable
-7-Tilted Table Kit- Assembly Instructions DigitalTouch Systems

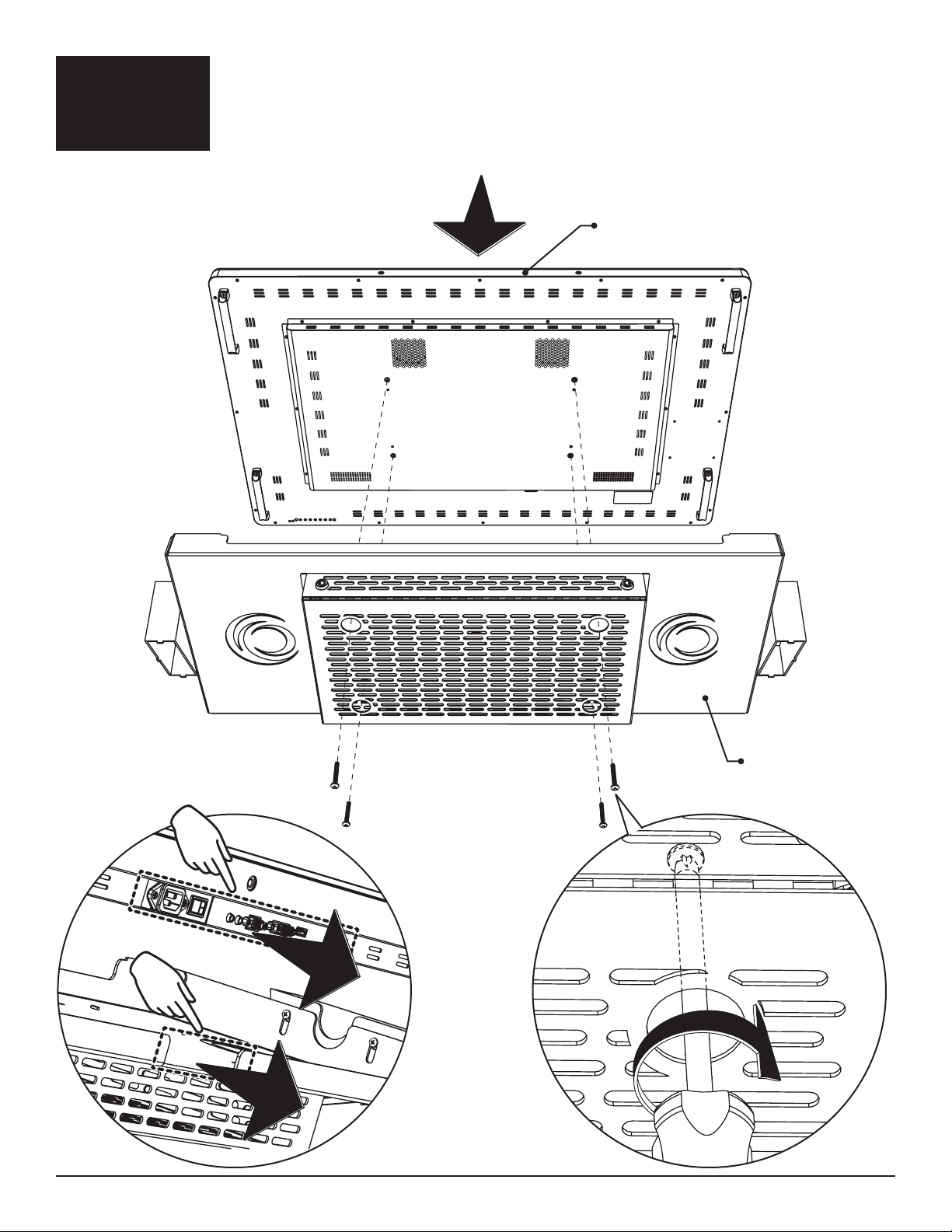

Step 4 Install the Top pan to the Screen using the 4 M6 machine screws. There are
4 cut outs in the PC tray to allow access for this process. Make sure to install
the wire cut out of the Top pan in the direction of the I/O’s on the Screen as
seen in the illustration below.
Top pan
Screen
-8-Tilted Table Kit- Assembly Instructions DigitalTouch Systems

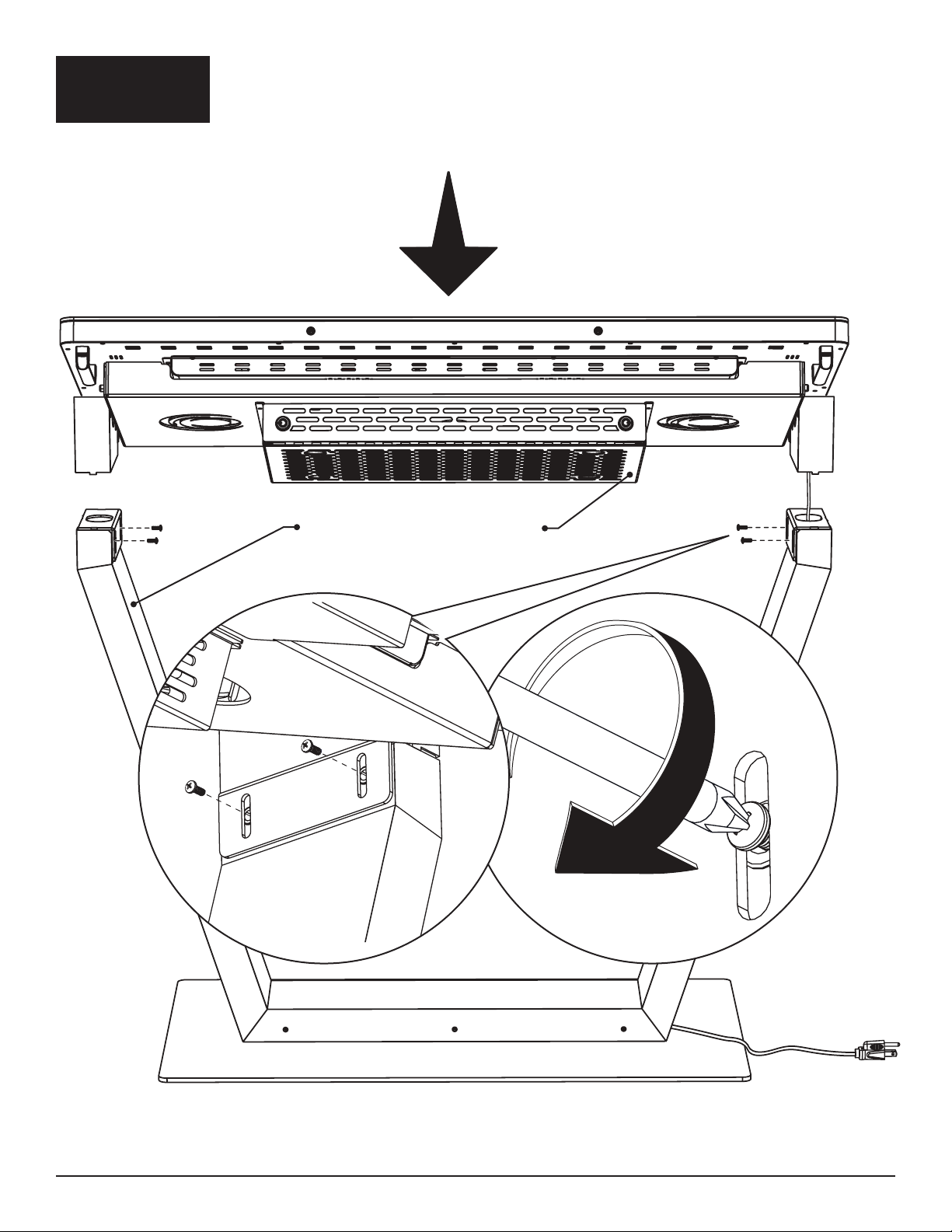

Step 5 With 2 people attach the Screen, Top pan, and Tilt assembly to the Legs and
Base by resting the assembly onto the Legs and installing the remaining 4
¼-20 pan heads onto either side of the Legs as shown in the illustration.
Legs Top pan
-9-Tilted Table Kit- Assembly Instructions DigitalTouch Systems

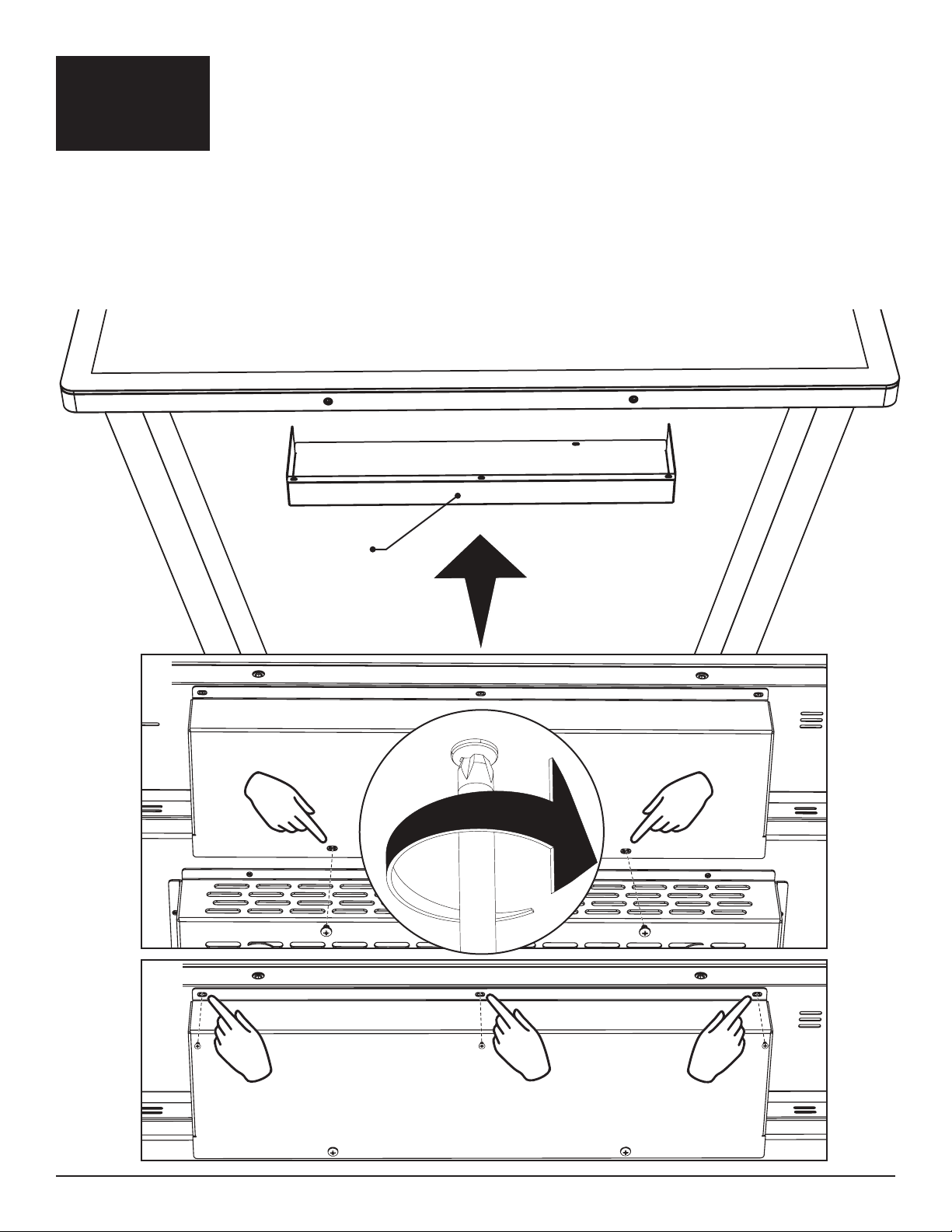

Once everything is connected properly, please test the touch screen to make
sure everything is fully functional. Now you’re ready to install the Cover tray,
which will cover up any exposed cables after all cable management has been
done & everything has been tested completely.
Line up the cable Cover tray with the two holes on the Top pan.
For the three holes on the opposite side of the tray, you will use the three screws on the back of
the Screen that line up with these holes. Please remove these three screws from the back of the
screen BEFORE installing this part.
The side of the tray that is secured to the Top pan will be installed using the two size 10-32 x 1/4
inch screws. Install the two screws on the side that is secured to the Top pan first, then install the
three screws on the side of the tray that is secured to the back of the Screen.
Cover tray
1
2
Step 6
support@digitaltouchsystems.com digitaltouchsystems.com1(512) 600-0461
