Digital Watchdog DWC-D1363D922 Guida

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Indoor Dome Camera

DWC-D1363D

DWC-D1363D922

07132012

PRECAUTIONS

Do not open or modify.

Do not open the case except during maintenence and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning:

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface:

The material of the mounting surface must be strong enough to support the camera.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference, when the equipment is operated in a residential environment. This

equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in

accordance with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

TABLE OF CONTENTS

Introduction

Installation

Module OSD Menu

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Inside the Box

Mount Installation Instructions

Connecting to Monitors

Adjusting the Camera Lens

8-9

13-24

26-27

28-29

Adjusting the 3-Axis Gimbal 12

FEATURES*

1/3” CCD

620 TV Lines (B&W), 600 TV Lines (Color)

3.3~12mm Varifocal Auto Iris Lens [DWC-D1363D Only]

9~22mm Varifocal Auto Iris Lens [DWC-D1363D922 Only]

Electronic Day and Night

Smart DNR (Digital Noise Reduction)

DRC (Dynamic Range Compressor)

Star-Light (Super Low Light Technology)

HME (Highlight Masking Exposure)

Programmable Privacy Zones & Motion Detection

Easy Icon Driven OSD Menu with Built-In Joystick

Auto Sensing 12VDC or 24VAC with Line Lock

RS-485 Built-in

Secondary Video-BNC Output

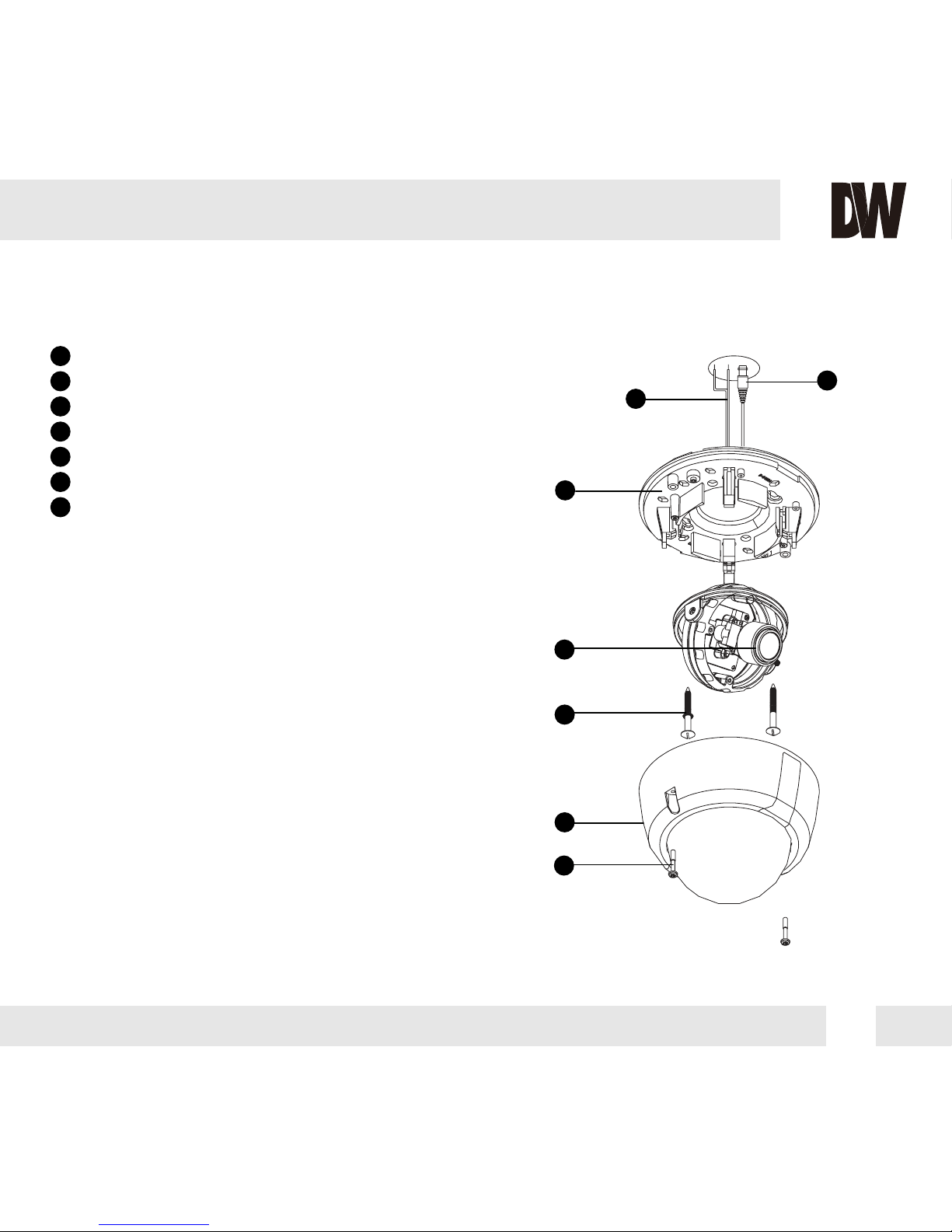

PARTS & DESCRIPTION*

1Lens

Power Input Connector (12VDC/24VAC)

Primary Video-BNC Output Connector

Bottom Case

Mounting Screws

Outer Dome Cover

Assembly Screws

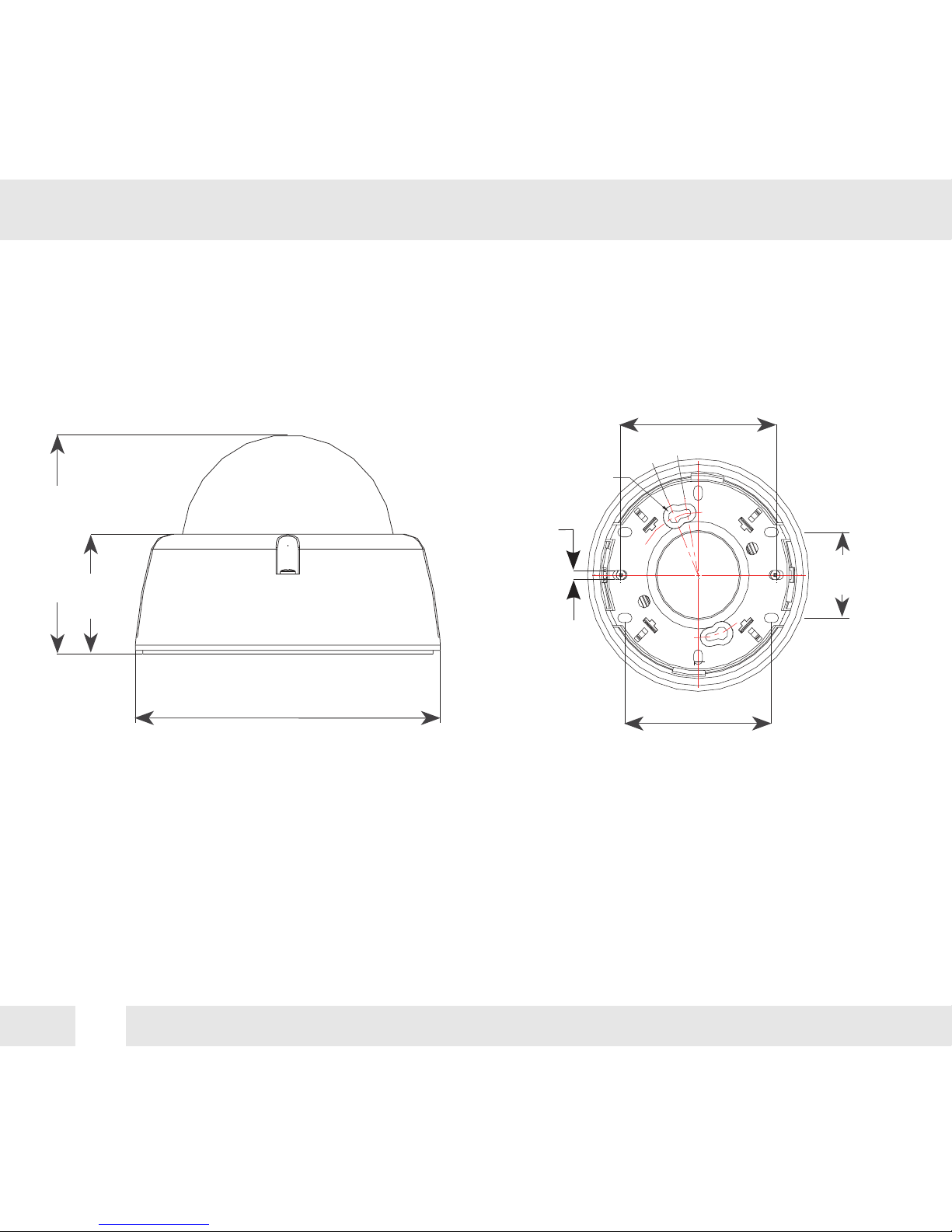

DIMENSIONS IN MILLIMETERS (IN)*

85.0(3.35”)

46.5

(1.83”)

123.8(4.9”) 82.5(3.25”)

88.0(3.46”)

5.0(0.2”)

7.0(0.28”)

46.5

(1.83”)

INSIDE THE BOX*

Included with D1 Indoor Dome Camera

User Manual

Mounting Template

2 Machine Screw and 2 Dry Wall Anchors

Miniature TORX Driver

L-Key

Secondary Video-BNC Cable

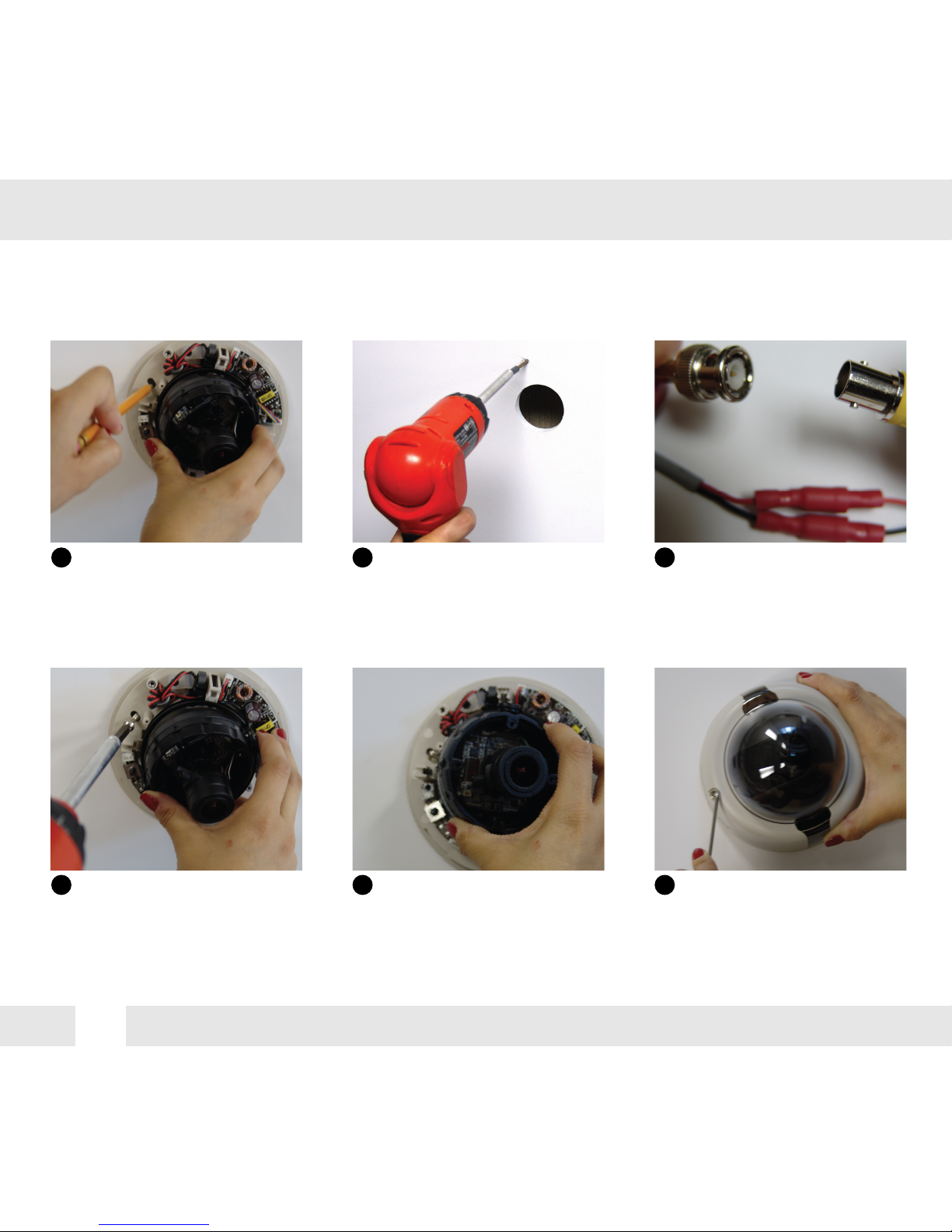

CAMERA INSTALLATION*

Cut a hole in the ceiling for

routing the cables. Use your

mounting template to mark

the screw holes.

Drill holes into the drywall

and insert the drywall

mounts into the holes.

Pull wires through and

make connections.

Mount and secure the

camera to the surface

using the machine screws.

1 2 3

4Position the lens and

adjust the zoom and focus.

5Assemble the outer dome

cover with the camera

module.

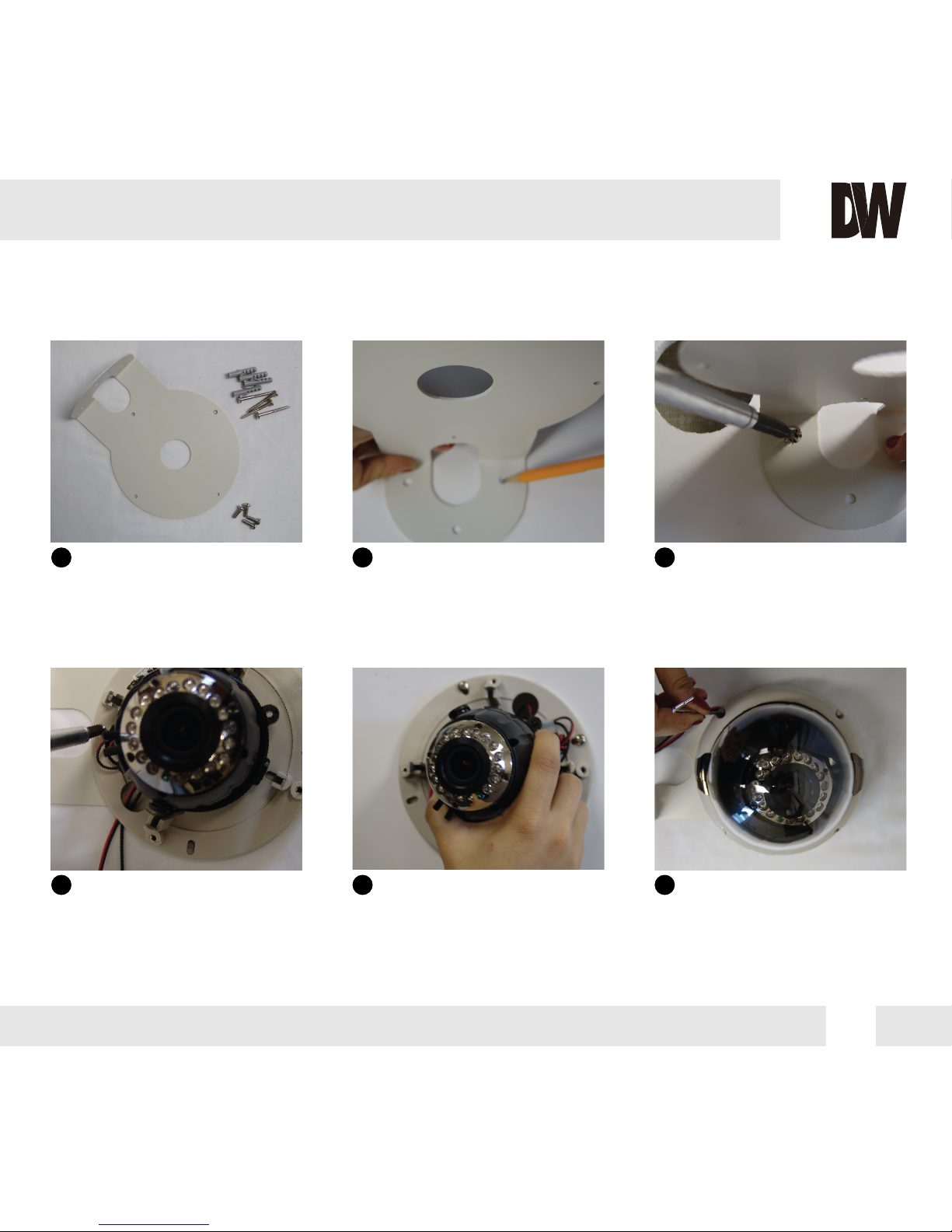

WALL MOUNT INSTALLATION*

Check to see all parts are

in the box.

Use the mount to mark the

pilot holes are required. Drill

holes into the drywall and

insert the drywall mounts.

Secure the wall mount to the

wall using the mounting

screws.

Attach the base of the camera

to the wall mount with the

smaller machine screws.

1 2 3

4Position the lens and

adjust the zoom and focus.

5Assemble the outer dome

cover with the camera

module.

CONNECTING TO MONITORS*

Video Output BNC Cable

Main Monitor

DC12V / AC24V
