Digital Watchdog DWC-MC355T Manuale utente

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

DWC-MC355T

Micro Dome Camera

User Manual

03212011

PRECAUTIONS

FCC COMPLIANCE

WARNING : Changes or modifications are not expressly approved by the manufacturer.

Do not open or modify.

Do not open the case except during maintenence and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits,

or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of kitchen or a boiler room, as the temperature may rise to

high levels.

Cleaning

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface.

The material of the mounting surface must be strong enough to support the camera.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC rules. These limits are designed to Provide reasonable protection against harmful

interference. when the equipment is operated in a residential environment. This equipment generates, uses,

and radiates radio frequency energy; and if it is not installed and used in accordance with the instruction

manual, it may cause harmful interference to radio communications.

TROUBLESHOOTING

No VIDEO

Out-of-Focus VIDEO

Before sending your camera for repair, check the following or contact our technical specialist.

Check the coaxial cable and make sure it is connected securely.

Check the lens’ iris adjustment at the menu setup of the camera.

Check the power supply and make sure the camera has the proper voltage and current.

Check the clear dome cover and the lens for dirt or fingerprints. Use a soft cloth and gently clean.

Check the lens manual focal and zoom adjustment. Field test monitor is recommended.

DIMENSIONS IN MILLIMETERS*

INSTALLATION*

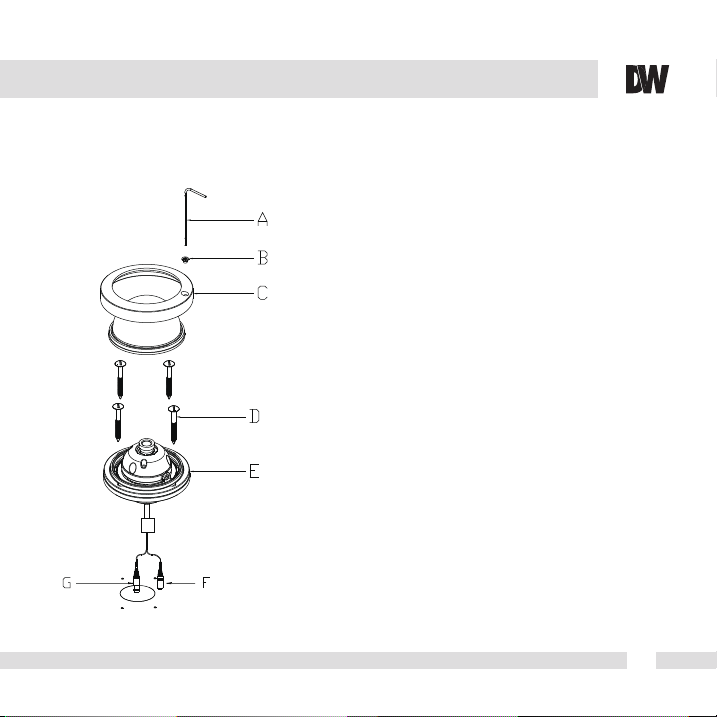

1. Remove the 1 STOP SCREW(B) on UPPER CASE(C),

using the L-WRENCH(A).

2. Separate UPPER CASE(C) from BOTTOM CASE(E).

3. Make the 4 mounting screw holes on the ceiling/wall.

The holes of BOTTOM CASE(E) can help locate the

correct hole locations.

4. Put POWER CABLE(F) AND VIDEO CABLE(G) into

the ceiling/wall.

5. Fix the BOTTOM CASE(E) onto the ceiling/wall, using

the SCREWS(D)

6. Camera adjustment and setting.

(Referance - “CAMERA SETTING”)

7. Connect UPPER CASE(C) and BOTTOM CASE(E).

8. Tighten the STOP SCREW(B) on UPPER CASE(C),

using the L-WRENCH(A).

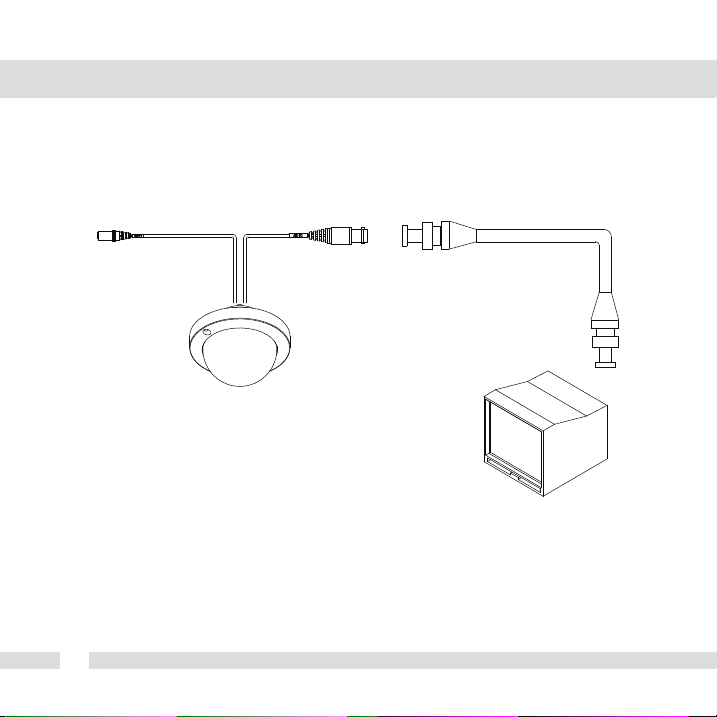

CONNECTIONS*

12VDC VIDEO OUT

CAUTION :

Check for polarity when using a DC 12V.

LENS ADJUSTMENTS*

Adjust the pan (360º) and tilt (70º) position.

CAMERA SETTINGS*

Camera Position Adjustment :

(1) Loosen the SCREW(B) on the UPPER CASE(C), using L-WRENCH(A).

(2) Separate BOTTOM CASE(E) from UPPER CASE(C) by twisting UPPER CASE(C) to the right.

(3) Separate CLEAR DOME(D) from BOTTOM CASE(E).

(4) Fix the camera gimbal located in the BOTTOM CASE(E).

(5) Assemble CLEAR DOME(D) and UPPER CASE(C) with BOTTOM CASE(E).

(6) Tighten SCREW(B) onto UPPER CASE(C), using L-WRENCH(A).

WARRANTY INFORMATION*

Digital Watchdog (referred to as “the Warrantor”)

warrants Camera Series against defects in

materials or workmanship as follows.

LABOR : For the initial five (5) years and one (1) year on LED

from the date of original purchase, if the camera is determined to be defective,

the Warrantor will repair or replace the unit, with new or refurbished

product at its option, at no charge.

PARTS : In addition, the Warrantor will supply

replacement parts for the initial five (5) years and one (1) year on LED.

To obtain warranty or out of warranty service,

please contact a Technical Support Representative at

1-866-446-3595 Monday through Friday from 8:30AM to 8:00PM Eastern.

A purchase receipt or other proof of the original purchase date is required

before warranty service is rendered. This warranty only covers failures due to

defects in materials and workmanship which arise during normal use.

This warranty does not cover damage that occurs in shipment or failures

caused by products not supplied by the Warrantor or failures

which result from accident, misuse, abuse, neglect, mishandling,

misapplication, alteration, modification, faulty installation, set-up adjustments,

improper antenna, inadequate signal pickup, maladjustment of consumer controls,

improper operation, power line surge, improper voltage supply, lightning damage,

rental use of the product or service by anyone other than an authorized repair

facility or damage that is attributable to acts of God.

LIMITS AND EXCLUSIONS*

There are no express warranties except as listed above.

The Warrantor will not be liable for incidental or consequential

damages (including without limitation and damage to recording media)

resulting from the use of these products, or arising out of any breach

of the warranty. All express and implied warranties, including the

warranties of merchantability and fitness for particular purpose,

are limited to the applicable warranty period set forth above.

Some states do not allow the exclusion or limitation of incidental

or consequential damages, or limitations on how long an implied

warranty lasts, so the above exclusions or limitations may not

apply to you. This warranty gives you specific legal rights, and you

may also have other rights that vary from state to state.

If the problem is not handled to your satisfaction,

then write to the Address listed on the back page.

Service calls which do not involve defective materials or

workmanship as determined by the Warrantor in its sole

discretion are not covered. Costs of such service calls are

the responsibility of the purchaser.
