Digital Watchdog MEGApix DWC-MD724V Manuale utente

DWC-MD724V DWC-MD72i4V

Step 1 – PREPARING TO MOUNT THE CAMERA

Step 3 – INSTALLING THE CAMERA

Step 2 – CABLING THE CAMERA TO EXTERNAL DEVICES

1. The mounting surface must bear ve times the weight of your camera.

2. Do not let the cables get caught in improper places or the electric line cover to

be damaged. This may cause a breakdown or re.

3. For the installation process,

remove the dome cover from the

camera module. Insert a coin or

screwdriver between the camera’s

base and dome and twist to pry

the dome cover open.

4. Using the mounting template sheet

or the camera itself, mark and drill

the necessary holes in the wall or

ceiling.

6. Use the camera’s 3-Axis gimbal to adjust the camera’s tilt and angle. The

camera’s maximum tilting angle is 70.

7. Assemble the dome cover over the camera body and detach the protecting lm

from the dome bubble.

5. Pass the wires through the mount bracket and make all necessary connections.

a. NETWORK CONNECTIONS – If you are using a PoE Switch, connect the

camera using an Ethernet cable for both data and power.

b. NETWORK CONNECTIONS – If you are using a non-PoE switch, connect

the camera to the switch using an Ethernet cable for data transmission and

use a power adapter to power the camera.

Power Requirements

DC 12V

PoE IEEE 802.3atPoE+ / PoE Class 2

Power Consumption

LED Off: 1.92W, 160mA

LED On: 2.7W, 230mA (IR models only)

NETWORK

CONNECTION

POWER

Template

Sheet

Reset

Button

Quick Start Guide Quick Start Guide

Username: admin Password: admin

Attention: This document is intended to serve as a quick reference page for initial set-up.

It is recommended that the user read the entire instruction manual for complete and proper

camera usage.

Tel: 866-446-3595 / 813-888-9555

Technical Support Hours:

9:00AM – 8:00PM EST, Monday thru Friday

digital-watchdog.com

Resetting the camera: To reset the camera, use the tip of a paper clip or

a pencil and press the reset button. Pressing the button for ve (5) seconds

will initiate a camera-wide reset of all the settings, including network settings.

WHAT’S IN THE BOX

QSG Manual 1 Set

Template Sheet

for installing by

Bolt & Nut

1 Set

Manual CD 1 Set Screw & Plastic

Anchor – 3pcs 1 Set

Step 6 – WEB VIEWER

Once the camera’s network settings have been setup properly, you can access the

camera’s web viewer using the DW IP Finder™. To open the camera’s web viewer:

1. Find the camera using the DW IP Finder™.

2. Double-click on the camera’s view in the results table.

3. Press the ‘View Camera Website’. The camera’s web viewer will open up in

your default web browser.

4. Enter the camera’s username and password (default are admin / admin).

5. If you are accessing the camera for the rst time, install the VLC les in

order to view video from the camera.

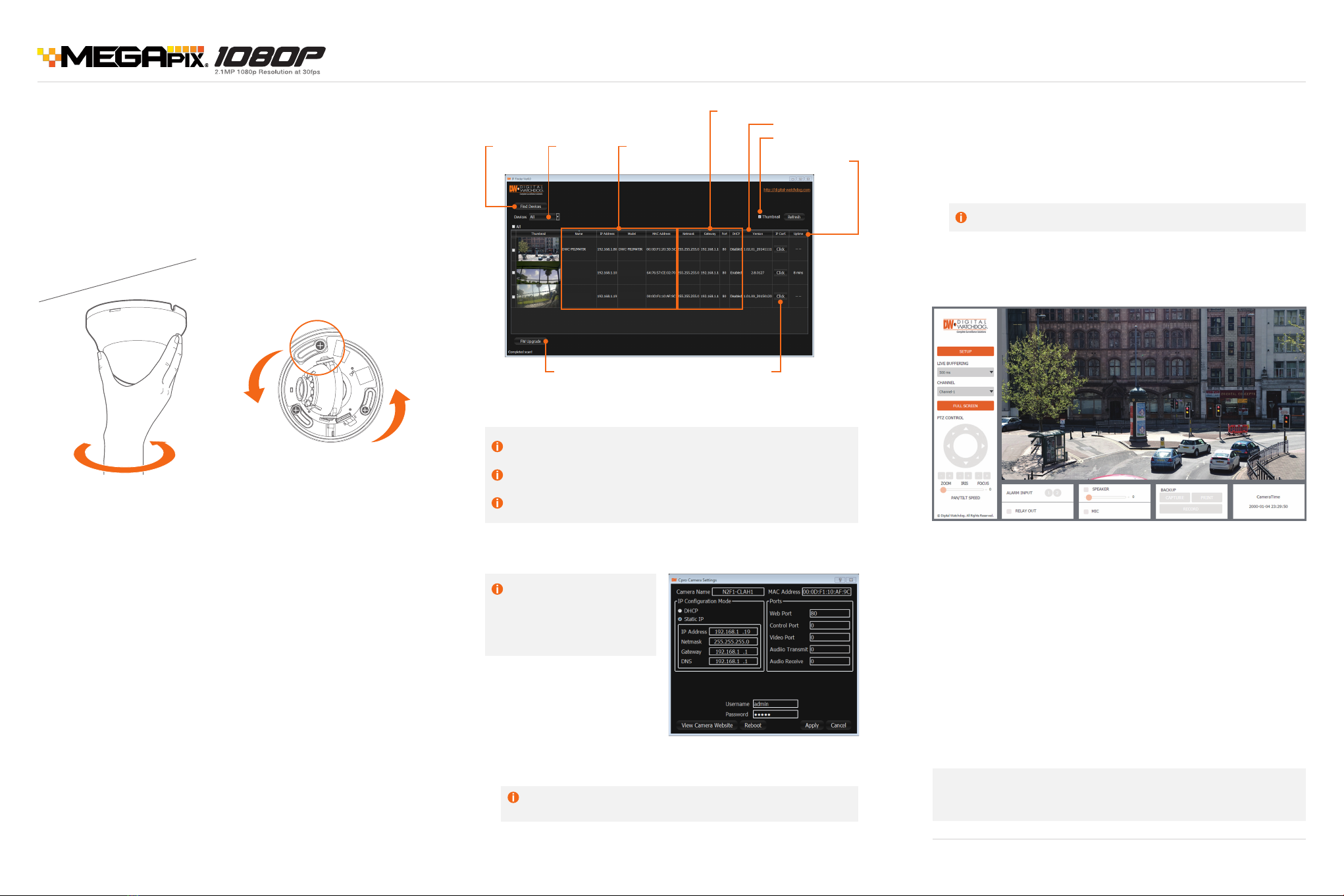

Step 4 – EASY DISMOUNTING

To unmount the camera:

1. Hold the camera’s dome rmly and turn it clockwise.

2. The camera’s screw mechanism will allow you to remove the camera from

the mounting quickly and easily.

Quick Start Guide

4. The camera’s default network information is:

Network Setup

1. Run the CD included with the camera and click on the DW IP Finder™le.

2. The software will scan your network for all supported cameras and display the

results in the table. Allow up to 5 seconds for the IP Finder to nd the camera on

the network.

3. Select a camera from the list by double-clicking on the camera’s image or

clicking on the ‘Click’ button under the IP Conf. column. The camera’s network

information will appear. If necessary, you can adjust the camera’s network type.

Select DHCP if the internet service is dynamic IP. This will allow the camera to

receive its IP address from the DHCP server.

Select STATIC to manually enter the camera’s IP address, subnet mask,

Gateway and DNS information.

Contact your network administrator for more information.

Default TCP/IP information

• IP: 192.168.1.80

• Subnet Mask: 255.255.255.0

• Gateway: 192.168 .1.1

• DNS: 16 8.126.6 3.1

6. To save the changes made to the camera’s settings, input the ID and PW of the

camera for authentication and click ‘Save’.

7. If the camera needs to be rebooted after the settings were changed, press the

‘Reboot’ button. The camera will cycle power and will appear back in the search

results once the reboot is complete.

5. To view the camera’s web viewer, click on ‘View Camera Website’.

‘Port Forwarding’ has to be set in your network’s router for external access

to the camera.

Default ID / PW : admin / admin

Rev Date: 03/16

and pricing are subject to change without notice.

Note: Please see the full product manual for web viewer setup, functions

and camera settings options.

Step 5 – DW IP FINDER™

Use the DW IP Finder™included in the camera’s accessory CD to scan the network

and detect all MEGApix®cameras, set the camera’s network settings, perform

rmware upgrade or access the camera’s web client.

DWCMF10M28T

DWCMF21M4TIR

DWCMF10M28T

DWCMF21M4TIR

Firmware Upgrade Open Camera's IP

Conguration Screen

Camera Uptime

Camera Name,

Model, IP Address,

and MAC Address

Camera's Firmware

Search for

Cameras

View Camera's

Thumbnail View

Camera's Network Settings

Filter Search

Results
