Digital Watchdog Star-Light Plus DWC-B6563WTIRW Manuale utente

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

User Manual ver.: 10/22

stalling and using the camera, please read this manual carefully

o keep it hand

for future reference.

Star-Light Plus™ 5MP Universal

HD over Coax® bullet camera

DWC-B6563WTIR – gray housing

DWC-B6563WTIRW – white housing

Contents

Safety information

Features

Product and accessories

Parts names

Dimensions

Installation

Connecting the camera to monitors

Control board

Adjusting the camera's angle

APPENDIX

Troubleshooting

Product Specifications

Limits and exclusions

Warranty

OSD MENU

Menu tree

OSD menu - Exposure

OSD menu - Color

OSD menu - Day and night

OSD menu - Function

OSD menu - Motion

OSD menu - Privacy

OSD menu - Setup

OSD menu - Exit

INSTALLATION

INTRODUCTION

CAUTION

RISK OF ELECTRIC

SHOCK. DO NOT OPEN

This symbol indicates that dangerous voltage

consisting a risk of electric shock is present

within this unit.

This exclamation point symbol is intended to alert

the user to the presence of important operating

and maintenance (servicing) instructions in the

literature accompanying the appliance

To prevent damage which may result in ﬁre or electric shock hazard, do not expose this

appliance to rain or moisture.

1. Be sure to use only the standard adapter that is speciﬁed in the speciﬁcation sheet.

Using any other adapter could cause ﬁre, electrical shock, or damage to the product.

2. Incorrectly connecting the power supply or replacing battery may cause explosion, ﬁre,

electric shock, or damage to the product.

3. Do not connect multiple cameras to a single adapter.

Exceeding the capacity may cause abnormal heat generation or ﬁre.

4. Securely plug the power cord into the power receptacle. Insecure connection may cause

ﬁre.

5. When installing the camera, fasten it securely and ﬁrmly.

A falling camera may cause personal injury.

6. Do not place conductive objects (e.g. screw drivers, coins, metal things, etc.) or containers

ﬁlled with water on top of the camera. Doing so may cause personal injury due to ﬁre,

electric shock, or falling objects.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING

Safety Information

7. Do not install the unit in humid, dusty, or sooty locations.

Doing so may cause ﬁre or electric shock.

8. If any unusual smells or smoke come from the unit, stop using the product.

In such case, immediately disconnect the power source and contact the service

center. Continued use in such a condition may cause ﬁre or electric shock.

9. If this product fails to operate normally, contact the nearest service center.

Never disassemble or modify this product in any way.

10.When cleaning, do not spray water directly onto parts of the product.

Doing so may cause ﬁre or electric shock.

Operating

. Before using, make sure power supply and all other parts are properly connected.

. While operating, if any abnormal condition or malfunction is observed, stop using the

camera immediately and contact your dealer.

Handling

. Do not disassemble or tamper with parts inside the camera.

. Do not drop the camera or subject it to shock or vibration as this can damage the camera.

. Clean the clear Lens cover with extra care. Scratches and dust can ruin the quality of the camera image.

Installation and Storage

. Do not install the camera in areas of extreme temperature, exceeding the allowed range.

. Avoid installing in humid or dusty environments.

. Avoid installing in places where radiation is present.

. Avoid installing in places where there are strong magnetic ﬁelds and electric signals.

. Avoid installing in places where the camera would be subject to strong vibrations.

. Never expose the camera to rain or water.

PRECAUTION

Safety Information

1. Read these instructions.

- All these safety and operating instructions should be read before the product is installed or operated.

2. Keep these instructions.

- The safety, operating and use instructions should be retained for future reference.

3. Heed all warnings.

- All warnings on the product and in the operating instructions should be adhered to.

4. Follow all instructions.

- All operating and use instructions should be followed.

5. Do not use this device near water.

- For example : near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement, near a

swimming pool, etc.

6. Clean only with dry cloth.

- Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

- Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the

product, and to protect it from over-heating. The openings should never be blocked by placing the

product on bed, sofa, rug or other similar surface. This product should not be placed in a built-in

installation such as a bookcase or rack unless proper ventilation is provided and the manufacturer’s

instructions have been adhere to.

8. Do not install near any heat sources such as radiators, heat registers, or other apparatus

(including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding type plug has two blades and a third grounding

prong. The wide blade or the third prong are provided for your safety. If the provided plug does not

ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

Important Safety Instructions

11. Only use attachments/accessories speciﬁed by the manufacturer.

12. Use only with cart, stand, tripod, bracket, or table speciﬁed by the

manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart / apparatus

combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has

been damaged in any way, such as power supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped.

Important Safety Instructions

1. When this crossed-out wheel bin symbol is attached to a product it

means the product is covered by the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately

form the municipal waste stream in accordance to laws designated

by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential

negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance,

please contact your city oﬃce, waste disposal service or the shop

where you purchased the product.

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in

which case the user will be required to correct the interferenece at his own expense.

Disposal of Old Appliances

Universal HD over Coax® technology with HD-Analog,

HD-TVI, HD-CVI and all analog to 960H signal support

Star-Light Plus™ color in darkness technology

1/2.8" image sensor

5MP at 20fps, 4MP at real-time 30fps

2.7~13.5mm vari-focal p-iris lens

True wide dynamic range (WDR)

OSD control via coaxial (UTC)

100' Smart IR™ with intelligent camera sync

Smart DNR™ 3D digital noise reduction

True day/night mechanical IR cut filter

De-Fog™ extreme weather image compensation Auto

sensing 24VAC/12VDC with line lock

Easy icon driven OSD menu with built-in joystick

Programmable privacy zones

Auto gain control (AGC)

Backlight compensation (BLC)

Auto white balance (AWB)

1 alarm output

IP66 environmental-rated dust-tight and water-resistant

5 year warranty

█

Features

█

Camera

Torque wrench DC plug cable Test video cable

Quick Setup

Guide

Mounting template Screw and

plastic anchors

-4pcs

Moisture absorber and

absorber guide

Sunshield cover and

adjusting screw

Product and Accessories

NOTE : The test video cable should be used to test the camera by connecting to a portable display.

Please check if all the camera and accessories are included in the package.

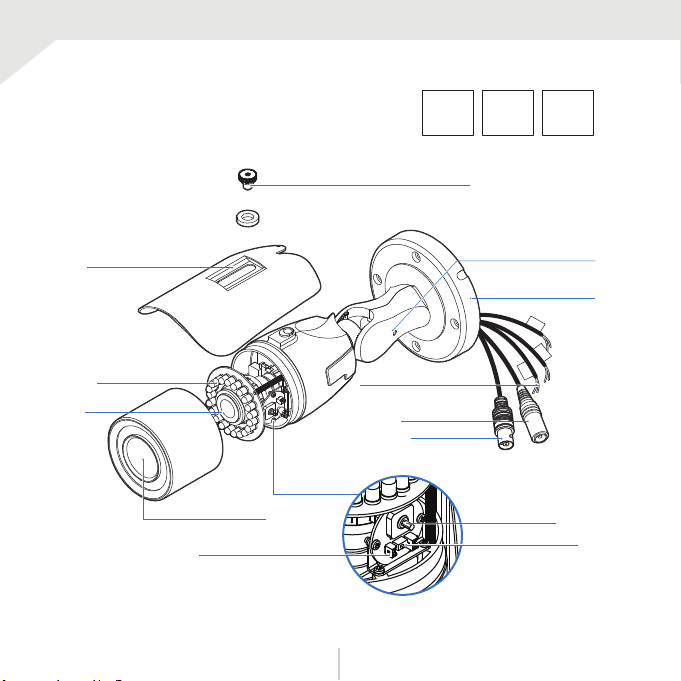

RS485, UTP, alarm

Mounting bracket

Front case

Sunshield adjusting screw

IR module

Lens

BNC cable

Power cable

Sunshield cover

Test video output

OSD joystick

UTP/coax switch

Pan, tilt and rotate

stopper screw

RS 485

BK D+

WH D-

UTP

BLUE +

WHITE -

ALARM

Parts Names
