DigitalHome Smart Lock LS100 Manuale utente
www.digitalhome.ph
3.
Installation Diagram
Step 1 Hole Size
Step 2 Install Sliding Screw Casing
Step 3 Connect Front and Back Panels
Step 4 Install Back Panel
Step 5 Install the Battery
Step6 Install gusset
N
o
t
e
：
1.
The distance should be
controlled at about 2.5mm.
2.
If the distance is large,
the lock tongue will not
buckle the box
3.
If the spacing is small, the
back panel will be stuck
www.digitalhome.ph
4.
Specifications
Suitable for Models
Q20
Materials
Zinc Alloy

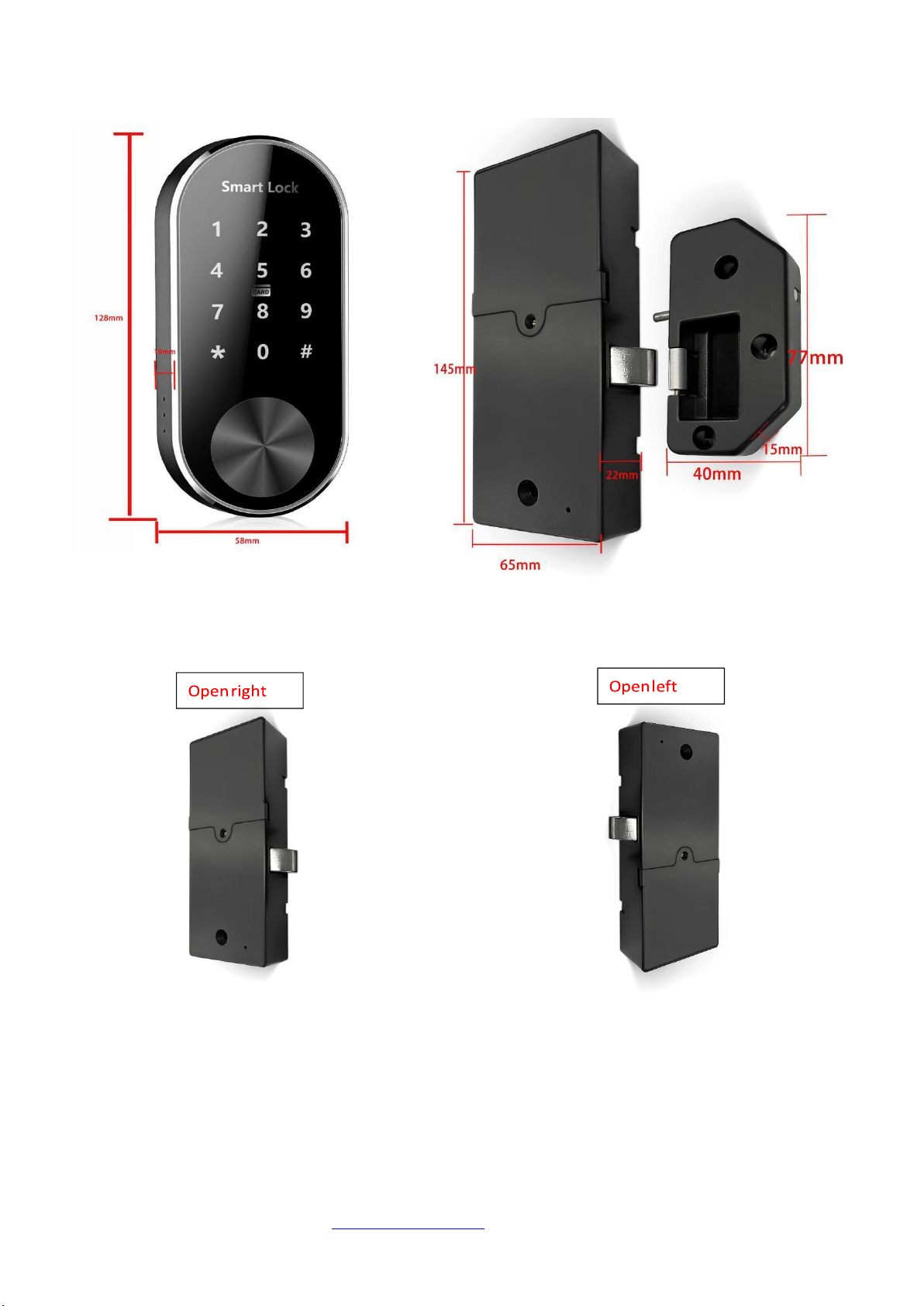

Front Panel Lock Size
125*58*19mm
Base:58mm
Back Panel Lock Size
145*65*22 mm
Base:22mm
Lock Weight
2.5KG
Unlocking Way
Bluetooth
Password
Card
Gateway(option)
Color
Black
Doors Applicable
Aluminum door
Wooden door
Working Voltage
6V/4x AA Batteries
Door Thickness to Fit
10-25MM
Data Capacity
150 pcs passcode
200 pcs Card
200 pcs fingerprint
Working Temperature
-25℃-60℃
Working Humidity
20%-90%
Low Wattage Alarm
Less than 4.5V
www.digitalhome.ph
5.1
Connect lock to the phone
1)
Android mobile phone, please scan the left QR code as above
2)
Apple mobile phone, please scan the right QR code as above
3)

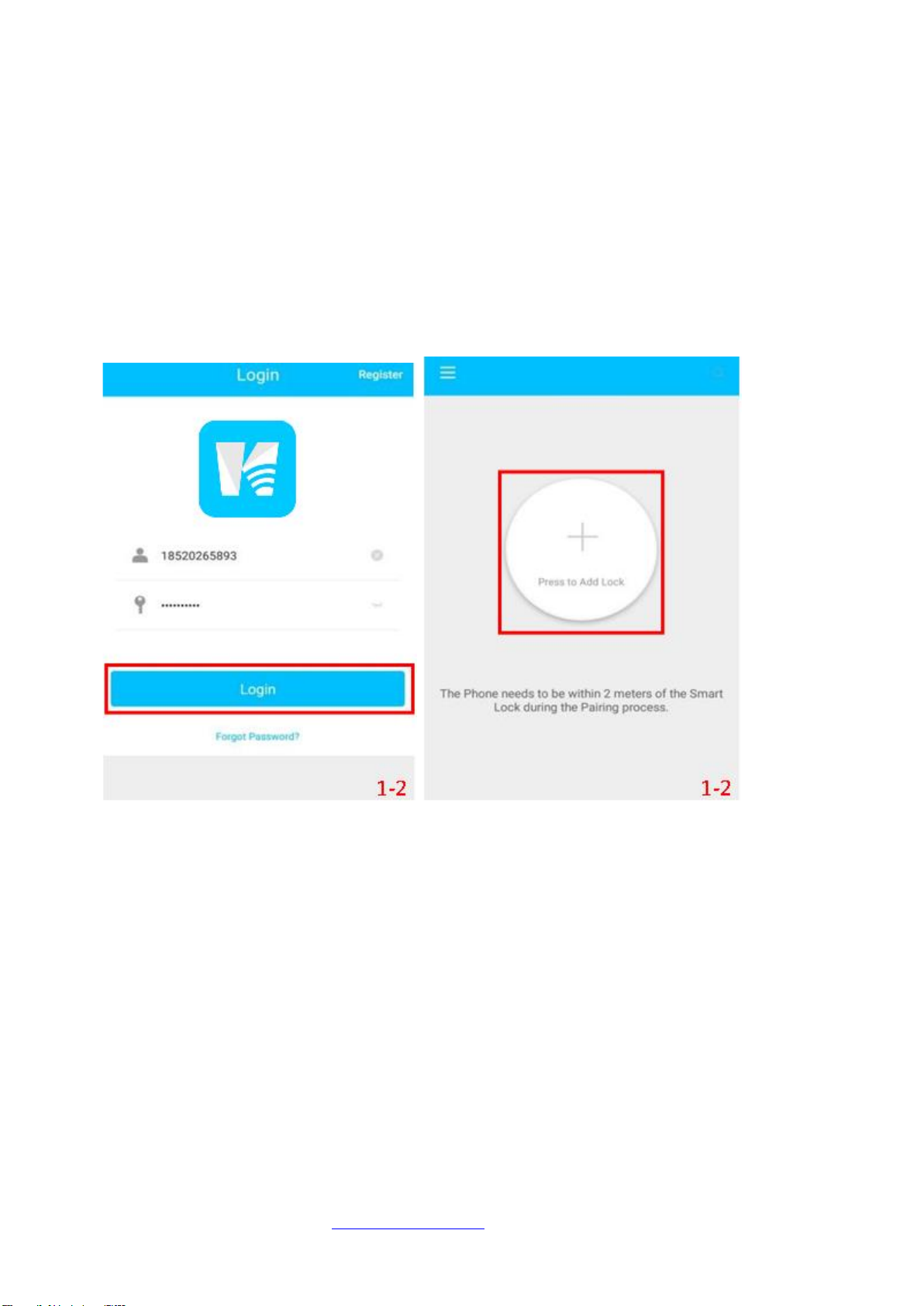

Register a new account (phone number or email) or loginwith an existing account.
4)
Touch the lock screen to light, and click"+” Add Lock
5)
The lock nearby will appear on the phone screen, Click "+"
6)
Re-name the lock
7)
The lock added successfully
1-1
www.digitalhome.ph
5.2 User Management
5.2.1 Bluetooth management

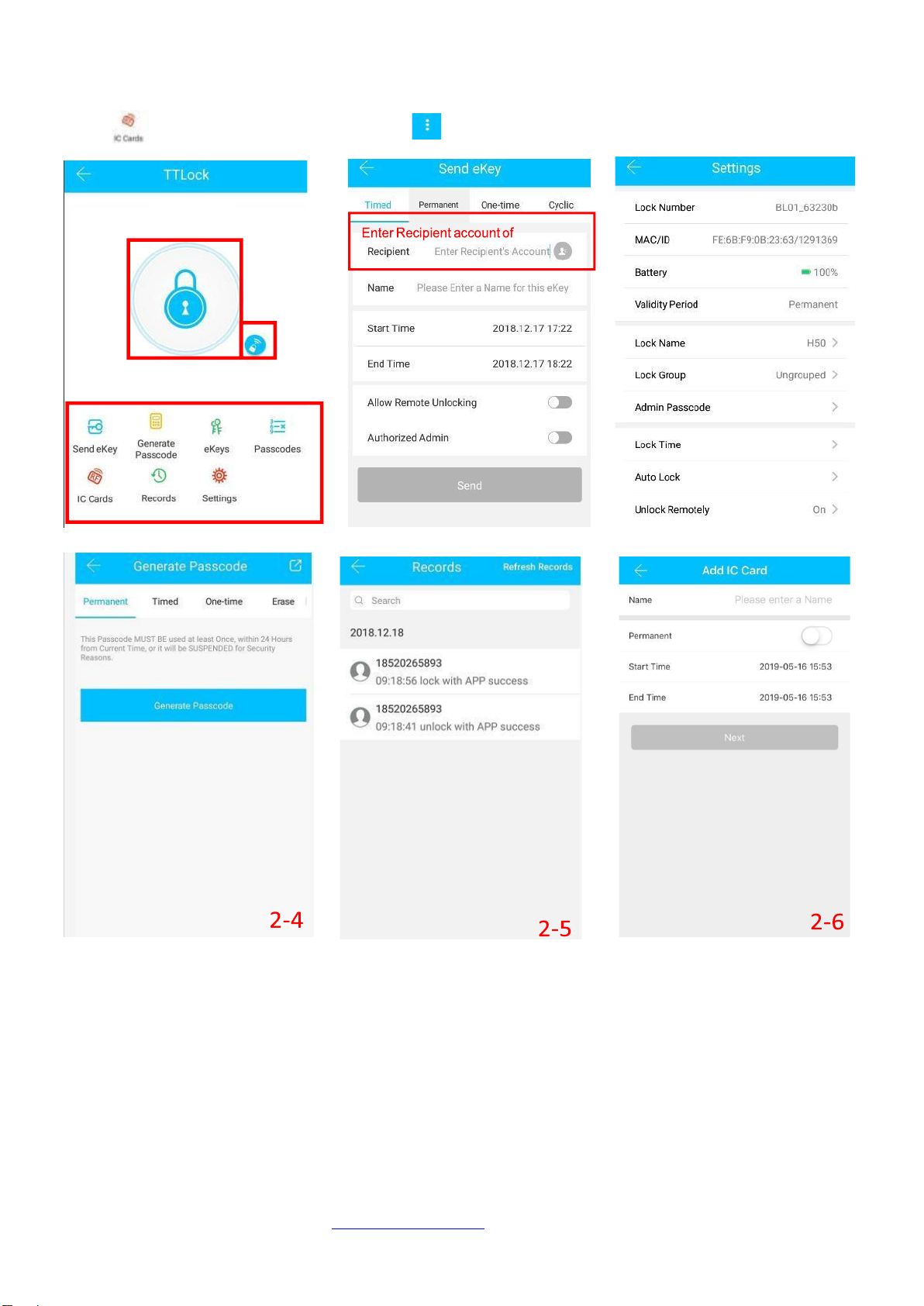

Aftermobilephoneanddoor lockconnected,Click" "asshowasfigure2-1tounlock.(thephoneis
within 5meters from the door lock)
5.2.2 Remote control management(Option)
Afterconfirmingthatyourphoneanddoorlockareconnectedtothegateway,Click" "asshowas
figure 2-1 to unlock.You can unlock it anywhere you have a network.(How to set up the gateway to
connect to your phone refer to step5.3)
5.2.3 e-Key management
Click on the " " as shown in figure 2-1,you can send the eKey to other users of SCIENER
to
a
u
t
h
o
r
ize
t
h
e
un
l
o
ck
（
t
h
e
r
e
c
eive
r
m
u
s
t
b
e
do
wn
l
o
a
d
t
h
e
A
PP
a
n
d
r
e
s
i
t
e
r
a
n
acc
o
un
t
）
→
E
n
t
e
r
r
e
c
i
p
ie
n
t
'
s
account of SCIENER,set the name and effective time of the eKey as shown in figure 2-2→Send→
The recipient's account has bluetooth unlockpermission
5.2.4 The Admin password management
Click "
"asshowninfigure2-1→SeeAdminPasscodeasshowninfinger2-3→inputPasscodeon
the keypad of lock →“#”to unlock.
5.2.5 Dynamic password management
Click"
"asshowninfinger2-1→finger2-4Youcansettheeffectivetimeandeffectivenumberof
passwords→Generate password→Input password tounlock.
5.2.6 Unlock records
Click " "as shown infinger 2-1→you can query your unlock record as shownin finger 2-5
