Digitools DigiSound-4.1 Manuale utente

User Manual

DigiSound-4.1, -4.2, -4.3,

DigiSound-5.1, -5.2, -5.3, -5.5, -5.6,

DigiSound-5.7, -5.8

Document version: 20230311

Decoder software version (CV7 value): 40 or higher

Content

KEY FEATURES: ........................................................................................................................................ 4

MAIN PARAMETERS: ................................................................................................................................ 6

INSTALLING THE DECODER: ....................................................................................................................... 7

DigiSound-x.1: ................................................................................................................................. 8

DigiSound-x.2: ................................................................................................................................. 9

DigiSound-x.3: ............................................................................................................................... 10

DigiSound-x.4: ............................................................................................................................... 11

DigiSound-x.5 and DigiSound-x.6: ................................................................................................ 12

DigiSound-x.7: …………………………………………………………………………………………………………………………13

DigiSound-x.8: ............................................................................................................................. 124

INSTALLATION: .................................................................................................................................... 155

MOTOR CONTROL INTERFACE: ............................................................................................................... 155

Setting the load control: ............................................................................................................... 15

SETTING THE SPEED OF THE LOCOMOTIVE: ............................................................................................... 167

3-point speed curve: ..................................................................................................................... 17

28-POINT SPEED CURVE: .................................................................................................................... 18

Speed set point multiplier: ........................................................................................................... 18

Setting acceleration and deceleration: ...................................................................................... 199

FUNCTION OUTPUTS: ............................................................................................................................. 20

FUNCTION OUTPUT REGISTERS: ............................................................................................................ 22

FUNCTION OUTPUT MODE AND „BRIGHTNESS” SETTING: .......................................................................... 24

INTERPRETATION OF MODE 1 REGISTERS: .............................................................................................. 24

INTERPRETATION OF MODE 2 REGISTERS: .............................................................................................. 27

BASIC "BRIGHTNESS": ........................................................................................................................ 28

DIMMING "BRIGHTNESS": .................................................................................................................. 28

OTHER FUNCTIONS: ............................................................................................................................. 299

Shunting mode: .......................................................................................................................... 299

Disabling acceleration and deceleration: ................................................................................... 299

DIMMING "BRIGHTNESS": ................................................................................................................ 299

Locomotive DRIVER mode: ............................................................................................................. 30

Analogue mode: ........................................................................................................................... 31

Operation on track controlled by break module: ....................... Hiba! A könyvjelző nem létezik.2

ABC mode: .................................................................................................................................... 32

RailCom: ........................................................................................................................................ 34

Multi locomotive operation (consist mode): ................................................................................ 36

Disconnecting function: ................................................................................................................ 38

SUSI interface: .............................................................................................................................. 40

Saving function button status: ................................................................................................... 411

Heavy vehicle function: ................................................................................................................ 41

Energy supply (DigiCap, DigiPack): ............................................................................................... 42

Config registers (CV29, CV49): .................................................................................................... 424

SOUND SETTINGS: ................................................................................................................................ 455

Volume settings ............................................................................................................................ 46

Setting volume of different sounds .............................................................................................. 46

16-bit sounds .............................................................................................................................. 477

Delaying acceleration ................................................................................................................... 47

Steam locomotive mode .............................................................................................................. 47

Synchronous sign input ................................................................................................................ 48

Multichannel steam locomotive sound ...................................................................................... 489

Randomly starting sounds ............................................................................................................ 49

Lowering volume .......................................................................................................................... 50

Running in neutral gear ................................................................................................................ 50

Muting function: ........................................................................................................................... 51

Disabling sound controlled acceleration: ..................................................................................... 51

Select sound starter function button with CV register: ............................................................... 51

PROGRAMMING: ................................................................................................................................. 533

ACK impulse: ............................................................................................................................... 533

Resetting CV registers to default and saving: ............................................................................. 533

Counting long address: ................................................................................................................. 53

Default settings of function buttons: ........................................................................................... 54

CV REGISTERS: ...................................................................................................................................... 55

Thank you for choosing the product developed and manufactured by

the Hungarian DigiTools Electronics Ltd.

Key features:

The main purpose of this user manual is to introduce the operation and settings of the

DigiSound-4.x and DigiSound-5.x combined locomotive decoder. The serial no. 4 and 5

sound decoders are the same in terms of functions and settings, they only differ in the size

of the sound storing memory.

Hardware changes of DigiSound-x.x decoders compared to serial 3:

- The capacity of the built-in capacitors has been doubled to diminish the risk of con-

tact problems.

- DigiSound-x.1 (8-pin NEM652) decoder has 2 additional function outputs.

- The height of the DigiSound-x.1 decoder has decreased: 11.2 * 24.0 * 3.2 mm.

- The size of the DigiSound-4.5 decoder (Plux22) has been significantly reduced:

15.1 * 25.4 * 4 mm.

- The DigiSound-4.5 decoder has 7 pcs. of function outputs on top of the 2 lighting

outputs. The TTL GPIO points of the PluX22 interface, can be the CV register’s pro-

grammable output and input (AUX8 - AUX10).

- The DigiSound-4.5 decoder has SUSI interface for communicating with external de-

vices (dynamic smoke, Brawa Traxx lighting, evaluating the position).

- Preparation of our newly emerging DigiPack2 energy storing device.

- The DigiSound-4.x 64Mbit (8MB) audio memory can store 3-6 mins of audio depend-

ing on the resolution.

- The DigiSound-5.x 128Mbit (16MB) audio memory can store 6-12 mins of audio de-

pending on the resolution.

The length of the stored audio depends on the resolution of the sounds.

Changes in version v35-36 software:

- Handling trigger sign separately as a channel, correcting “csi-hu” timing.

- Correcting sound sample loop checking in trigger mode.

- Setting P element overflow issue.

- Setting Aux5-10 interfaces PWM 100% filling issues.

Changes in v37 software:

- Setting Hm_out_false condition issue.

- Setting Trigger sign at start issue.

- Expanding the function of „phase” bit in function outputs.

- „Wheel sparks”, neon1, neon2, impulse mode at function interfaces.

Changes in v38 software (19.10.2021.):

- Running after Z21 emergency stop error- resolved.

Changes in v39 software (29.05.2022.):

- Heavy vehicle acceleration cannot be adjusted - resolved.

Changes in v40 software (20.10.2022.):

- Sound function button mapping by writing CV registers.

- SUSI function button mapping by writing CV registers.

- Decoder needs to be reset after update (CV8=0)! Saved CV settings must not be re-

loaded (CV8=8).

Changes in v41 software (24.11.2022.):

- Slowdown of motor output short circuit detection.

Main parameters:

o Communication by NMRA DCC standard

o 28, 128 speed rates, programmable speed graph

o Address range 1-9999

o Maximum 1 A engine output

o Load control (can be enabled/disabled via the CV register)

o 20 kHz motor PWM frequency

o 2+4 (NEM652) or 2+4 (MTC) 2+7+3 (PLUX) pcs. short circuit protected function

interface

o Analogue mode

o Asymmetric DCC sign detection (ABC mode)

o Permanent break distance in ABC mode

o RailCom

o Consist (multi-locomotive) operation

o FL, F1-F28 function handling

o Adjustable light intensity

o Shunting mode

o Acceleration, deceleration modes can be switched on and off

o Locomotive driver function

o Disconnecting function

o 3 or 28-point adjustable speed graph

o Different interfaces for the different standards

o Sound playing features:

o 4Ω - 8Ω speaker output

o D class sound terminal stage, 2,7Watt performance on 4 Ω

o 8 or 16 bit resolution, 22,05kHz sampling frequency

o 8 independent soundtracks played at the same time

o The speaker output is not short circuit protected!

Installing the Decoder:

Before installation, it is recommened to do as follows:

o if you are digitizing your existing analogue system check if there is an integrated

buffer capacitor remaining on the rail!

o when digitizing old, not prepared locomotives it is essential to check if the value

of the buffering capacitor is not higher than 47nF. If there is no reactor coil

between the motor and the decoder, do not leave the capacitor on the output

of the motor. Remove any capacitor between the two motor leads and the

frame,

o clean all the current collector skates and the wheels of the locomotive,

o run the motor starting from ~5-10V in neutral gear, while measuring the cur-

rent consumption. If it takes more than 200mA, check the state of the motor

brush and the commutator and if necessary sweep out the coal powder from

the gaps between the bites,

o check the light bulbs, if necessary change them into higher voltage ones. The

new bulbs should have at least 16V,

o check the insulations. In case of locomotives, where one of the poles of the rail

is the metal body itself it is important to check if the motor’s insulation is ade-

quate,

o check the condition of the engine in terms of running and lubrication.

The decoder is available with several, different standard specific connectors.

DigiSound-x.1:

The outputs of the decoder have the standard NEM652 interface.

When attaching the decoder be careful to link the orange output of the interface to pin 1

on the printed circuit, which is usually indicated with an asterisk.

In the event of an incorrect attachment, no damage is done, but the locomotive will go in

the opposite direction and the lighting function will not work.

The standard length of the cable is 8 cm, but different cable lengths are available for indi-

vidual orders!

DigiSound-5.1 decoder with outputs for extra functions

Sizes: 11.2 mm x 24.0 mm x 3.2 mm

DigiSound-x.2:

The outputs of the decoder have the standard 6-pole NEM651 interface.

It is available in two different sizes:

 straight interface

 90° interface

DigiSound-5.2 with 90° interface

In the event of an incorrect attachment, no damage is done, but the locomotive will not

work. In this case connect the device the opposite way around.

Sizes: 11.2 mm x 24.0 mm x 3.2 mm

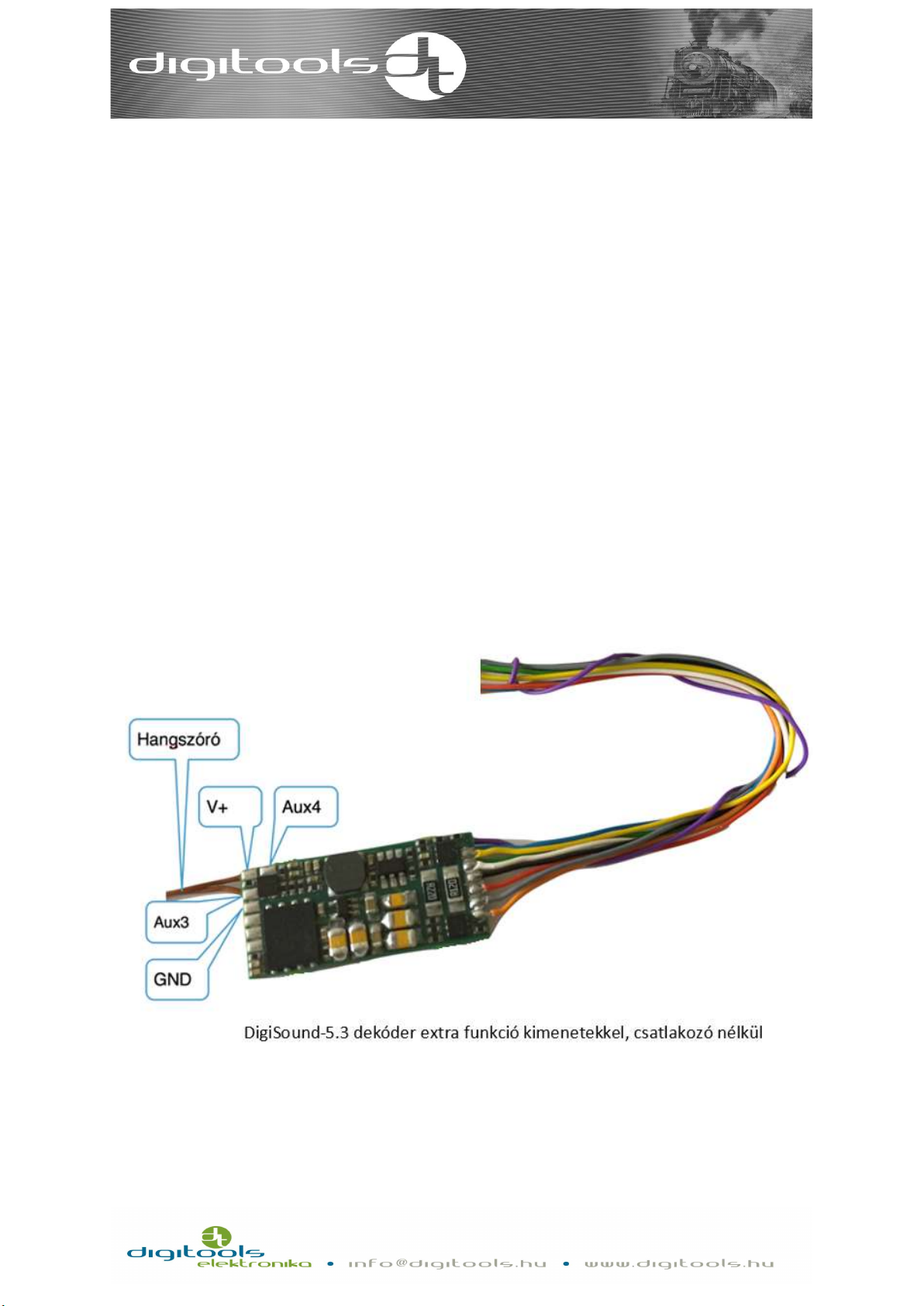

DigiSound-x.3:

The decoder outputs are equipped with 8cm cables without connectors.

This type is ideal for digitizing old models which do not have a printed circuit.

The list below will help with installation:

o Orange: Right motor terminal

o Yellow: Rear light

o Green: AUX1 function output

o Red: Right track connection

o Grey: Left motor terminal

o White: Headlight

o Blue: Function interface. Common „+” pole

o Black: Left track connection

o Purple: AUX2 function output

Altri manuali per DigiSound-4.1

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Digitools Convertitore multimediale

Digitools

Digitools DigiSound-4.1 Manuale utente

Manuali Convertitore multimediale popolari di altre marche

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuale utente

SPROLINK

SPROLINK VA1 Manuale utente

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuale utente

Nikon

Nikon AF-S TC-20E III Manuale utente

Axis

Axis AXIS Q7406 Manuale utente

Omega

Omega TAC80B-J Manuale utente

Zoom

Zoom Thunderbolt TAC-2R Manuale utente

OST

OST iConverter 10/100M Manuale utente

Vertiv

Vertiv Netsure Manuale utente

birddog

birddog MINI Manuale utente

Roland

Roland GI-10 Manuale utente

Wallenstein

Wallenstein WX310 Manuale utente

Pace

Pace MSS 200-1 Manuale utente

Solar Converters

Solar Converters EQ 12/24-50 Manuale utente

CYP

CYP EL-7400V Manuale utente

TIE

TIE MIDI 1i1o Manuale utente

DCS

DCS Vivaldi Upsampler Manuale utente

Westermo

Westermo MCW-211 SERIES Manuale utente
