Digitrax DZ123M0 Manuale utente

DZ123M0

Fits MicroTrains ZGP-35 Locomotives

nDigitrax LocoMotion®System-Your locomotives look like the real thing.

The Digitrax LocoMotion System makes them run like the real thing, too!

Torque Compensation for smooth as silk silent operation.

128 Speed Step operation (14 or 28 steps can also be used).

Momentum with acceleration and deceleration.

Normal Direction of Travel is user selectable.

Switching Speed feature for easier and faster access to yard speeds.

3 Step Speed Tables set start, mid and max voltage for custom control.

28 Step Speed Tables with 256 level resolution for precise control.

nScalable Speed Stabilization (Back EMF) with simple setup & 256 level

resolution.

nSuperSonic motor drive for silent operation.

nFX3Functions for prototypical lighting effects:

Constant Brightness Lighting with directional or independent control.

Dynamic and Static Qualifiers operate functions based on direction,

F0 on or off, loco direction and F0, and whether loco is moving.

Function Remapping of 14 functions for custom function setup.

Master Light Switch turns off all lights & functions with one keystroke.

Advanced Consist Function Controls

nPlug ‘N Play design makes installation quick and easy.

nGolden-White LED for added realism.

nTransponder equipped ready for transponding on your layout.

nAll Mode Programming with Operations Mode Read Back-read back CV

values right on the mainline.

nDecoder Factory CV Reset with or without speed table initialize.

nMotor Isolation Protection prevents damage to your loco and decoder.

nBasic, Advanced & UniVersal Consisting

n2 Digit and 4 Digit Addressing

nDCC Compatible

Z Scale

Mobile Decoder

DCC Plug ‘N Play

1 Amp/1.25 Amp Peak

2 FX3Functions, 0.5 Amp

1 DZ123M0 Decoder 1 Instruction sheet

See the Digitrax Decoder Manual for complete decoder test procedures, instal-

lation instructions, programming and technical information. Digitrax manuals

and instructions are updated periodically. Please visit www.digitrax.com for the

latest versions, technical updates and additional locomotive-specific installation

instructions.

-M

P-

-3

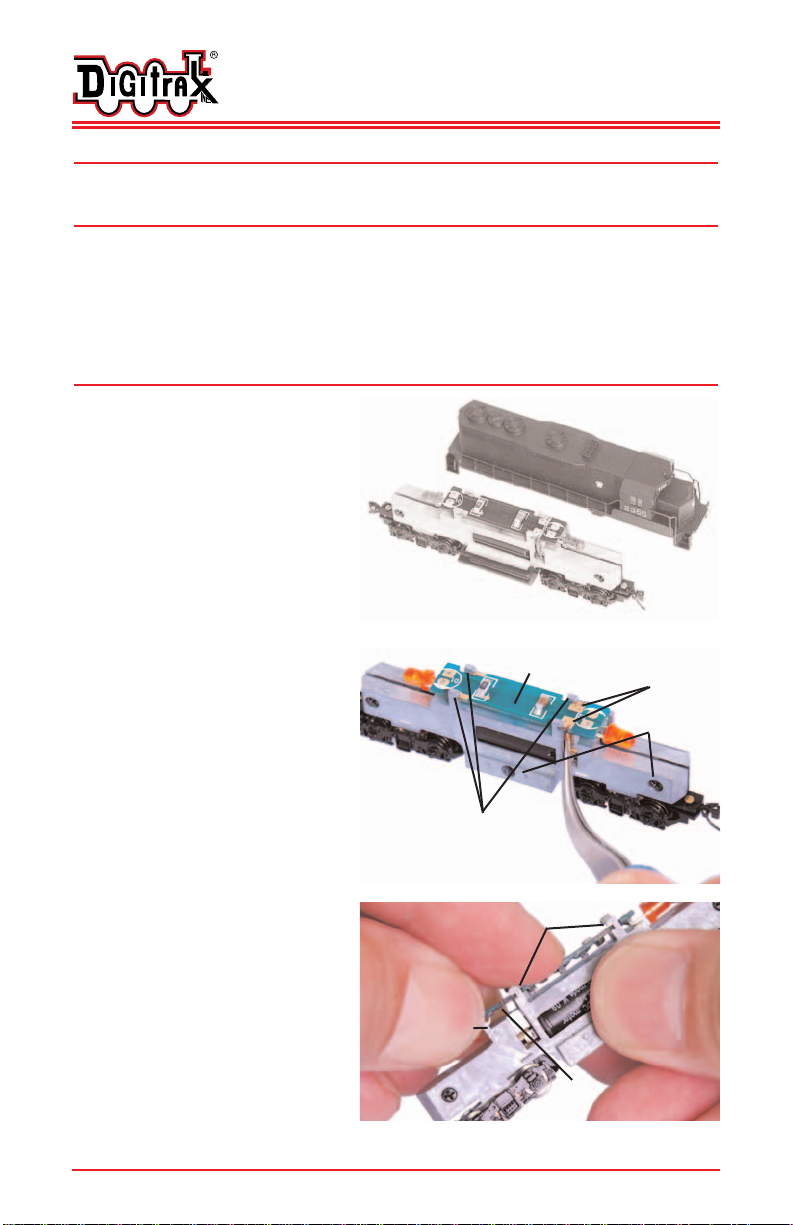

1. Carefully remove the locomo-

tive’s shell from the frame.

Notice the orientation of the

shell for reinstallation.

Figure 1.

2. Carefully remove the motor

springs with tweezers. Store

these springs in a safe place

for later re-use Figure 2.

3. Slide the factory light board

forward to release it from

under the clips on the locomo-

tive frame. Be careful not to

distort the frame clips as you

slide and lift the light board off

the frame. Figure 2.

4. Take the DZ123M0 decoder

(noting the correct orientation

of the frame pads) and slide

underneath frame clips as indi-

cated in the Figure 3. You will

need to gently flex the front of

the decoder in order to clear

the GP-35’s retaining post

(partially shown).

5. As shown in Figure 4 reinstall

the motor springs, taking care

to insure the springs do not

touch the loco frame. Finally

reinstall the locomotive shell.

6. Place the locomotive on the

track, select address 03 on

Figure 1:

Remove loco shell

Light Board

Frame Clips

Insure decoder is

firmly inserted

underneath frame clips

Figure 2: Remove two motor springs

with tweezers - store in safe place

Figure 3: Installing Decoder in frame.

Flex front of decoder

to clear front post

Spring Pads

Retaining post

Frame screws

your throttle and apply power.

If the motor does not respond

but you can control the lights,

check the installation for

motor spring short circuits.

7. Digitrax decoders are set up

with configuration variable

(CV) default values so you can

run your locomotive right

away using address 03. See the

Digitrax Decoder Manual for

complete instructions on set-

ting up the CVs for customizing your locomotive’s performance characteris-

tics.

Your Digitrax decoder is ready to run and will operate using address 03 with no

additional programming. For a more prototypical railroading experience, your

decoder can be customized for your specific locomotive by programming some

of the Configuration Variables, or CVs, available. See the Digitrax Decoder

Manual or the Digitrax web site for more information.

-4

-7

-4

-0

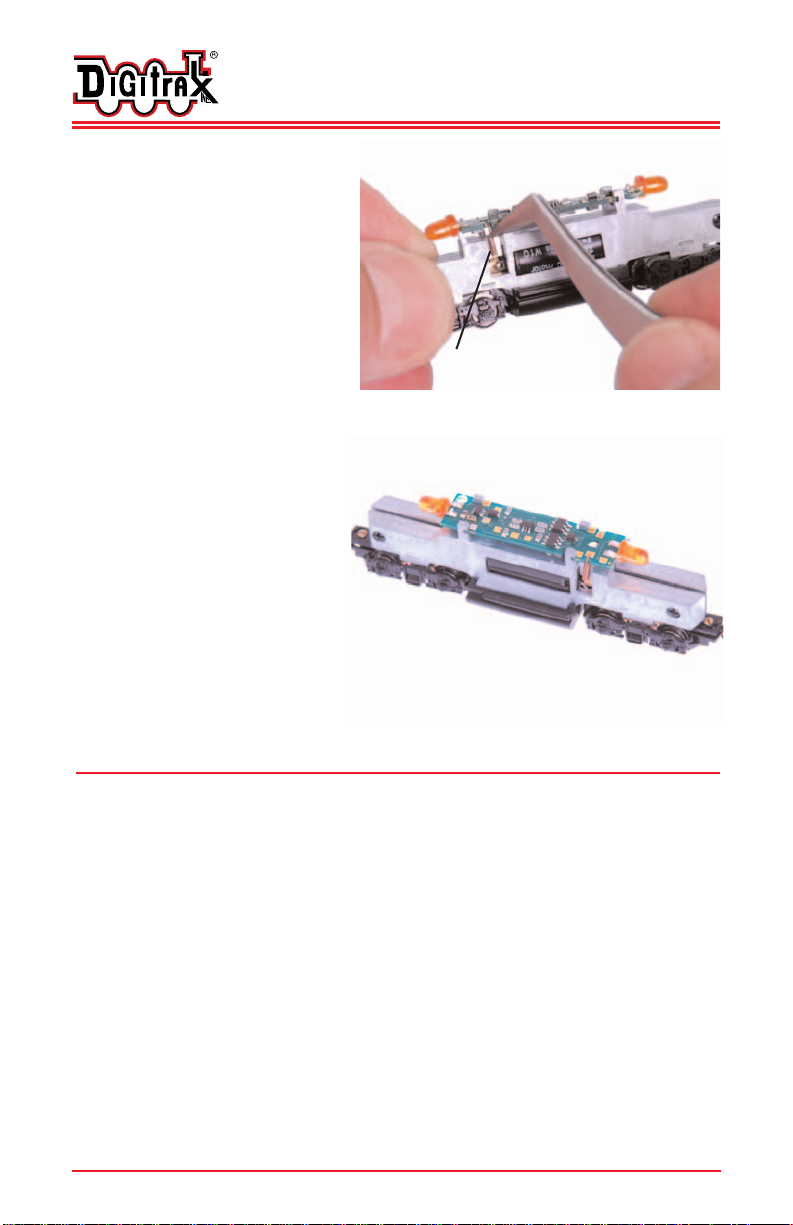

Note: Make sure the motor

springs do not touch the

locomotive’s frame

Figure 4: Re-installing springs.

Figure 5: Completed Installation.

The first CV most people change is the decoder address so that the loco can be

independently controlled with it’s own unique address. All Digitrax decoders

are shipped with CV01 (AD2), the two digit address, set to 03. See your Starter

Set Manual for complete programming instructions. Following is a brief

description of how to change the decoder address with a DT series throttles.

1. Place the loco on the programming track. Go into Program Mode on your

system. On DT400 press PROG. On DT300, DT100 & DT200 press

RUN/STOP & FN/F0.

2. Choose AD2 for 2 digit addressing or AD4 for 4 digit addressing (DT300 &

DT400). (Ad for DT100 & DT200, see set manual for 4 digit instructions).

3. Choose the address you want to set up for the decoder.

4. Complete address programming. On DT400 press ENTER. On DT300,

DT100 & DT200 press SEL.

Note: CV29 must also be programmed to enable 4 digit addressing, this is

done automatically by the DT300 & DT400 but not on earlier throttles.

Your locomotives look like the real thing, now you can make them run like the

real thing, too. Digitrax decoders incorporate torque compensation for smooth

as silk operation. You can also program CVs that control momentum, 3 step

and 128 step speed tables, switching speed, normal direction of travel,

scaleable speed stabilization and more to take full advantage of the Digitrax

LocoMotion™ System.

-C

Momentum is part of the LocoMotion™ System. Acceleration is controlled by

CV03 and deceleration by CV04. Both come from the factory set to 000/x00. A

range of 000/x00/ to 031/x1F is available for both accel and decel. We recom-

mend that you try CV03:003/x03 and CV04:000/x00 as a starting point for

experimenting with momentum.

-H

With Digitrax LocoMotion™, there are two types of speed tables: 3 Step

Tables and High Resolution 28 Step Tables. Please see your Digitrax Decoder

Manual for a discussion of the 28 Step Tables. The 3 Step Tables are set up by

programming 3 CVs: Start Voltage (CV02), Mid point Voltage (CV06) and

Max Voltage (CV05). These values are set at 000/x00 at the factory. All have a

range of values from 000/x00 to 255/xFF. We recommend the following CV

values as a starting point for experimenting with speed tables in the MicroTrain

FT locomotive.

Switching speed is controlled by CV54. The factory setting is 000/x00 for

OFF. To turn on the switching speed feature, program CV54 to a value of

001/x01. When this feature is on, use F6 to activate and deactivate switching

speed. When switching speed is ON and F6 is ON, the switching speed feature

is on. With the feature ON, the throttle’s target speed is effectively reduced by

about 50% and the effects of accel and decel programmed into the decoder are

reduced by 1/4. This is useful for yard switching operations.

Normal Direction of Travel is controlled by CV29. See your decoder manual

for additional information on the settings for CV29.

The intensity, or droop, of Scaleable Speed Stabilization (Back EMF) is con-

trolled by CV57. The factory setting for this feature is 006/x06 which is suit-

able for most locos. You can adjust this value in the range of 000/x00 for OFF

to 015/x0F for the maximum effect. Consult your Digitrax Decoder Manual for

info about CVs 55 & 56 and their effects on scaleable speed stabilization. The

factory setting for both CV55 & CV56 is 000/x00.

-4

-7

-4

-0

Loco Type V Start V Mid V Max

CV02 CV06 CV05

Switcher

Concentrated low speed. Limited top 002/x02 038/x26 064/x50

speed

Road Switcher

Prototypical top speed w/evenly 002/x02 048/x30 098/x62

distributed curve from 0 to top speed

Mainline Loco

Quick increase to cruising speed then 002/x02 128/x80 154/x9A

levels off to prototypical top speed.

The factory settings in the decoder provide silent, smooth operation of your

locomotive under most conditions. For more information about these settings,

please see the Digitrax Decoder Manual or our website.

Digitrax Transponding is controlled by CV61. The initial factory set value is

000/x00 for OFF. To turn on transponding, program CV61 to a value of

002/x02. This allows you to use Digitrax transponding to keep track of your

rolling stock. When transponding is enabled, the front light of the locomotive

will flicker slightly to indicate transponding signal is being communicated. For

optimal transponding operation, we recommend that you hook up the forward

and rear lights as shown above.

Decoder reset lets you reset all CV values to the initial factory settings. To

reset all CV values, program CV08 to a value of 008/x08. You also have the

option of resetting all values except the 28 speed step tables. To do this,

program CV08 to a value of 009/x09.

Each of the six function outputs can be programmed to turn on and off with the

F0 ON/OFF key on your throttle, creating a Master Light Switch. The CV

values for creating this effect are listed in the Digitrax Decoder Manual in the

section: Setting up FX & FX3Effects On Function Outputs.

Function remapping allows you to program the function outputs of your

decoder to be controlled by selected function keys on your throttle. Please

consult the Digitrax Decoder Manual or website for information on function

remapping.

All warranties on Digitrax products are limited to refund of purchase price,

repair or replacement at Digitrax’s sole discretion. Except as expressly stated in

the full warranty statement, there are no warranties, express or implied, includ-

ing but not limited to any warranties of merchantability or fitness for a particu-

lar purpose. For complete warranty details see www.digitrax.com.

Damaged decoders should be returned directly to Digitrax for repair.

Caution: To prevent damage to your decoder and locomotive, track voltage

used during operation must not exceed the operating parameters of the

locomotive and its lighting system in which the decoder is installed (typi-

cally this is 12V DC). For most N scale layouts, Digitrax recommends using

14 volts DCC or less for operation to avoid damage to the locomotive shell,

lamps and decoder.

Digitrax, Inc. is not responsible for unintentional

errors or omissions in this document.

-4

-7

-4

-0

Made in U.S.A.

307-DZ123M0 1K/09/06

450 Cemetery Street

Norcross, GA USA 30071

www.digitrax.com

T770-441-7992

F770-441-0759

E[email protected]

DZ123M0

Fits MicroTrains GP-35 Locomotive

Indice

Altri manuali Digitrax Convertitore multimediale

Digitrax

Digitrax DH165K1A Manuale utente

Digitrax

Digitrax DN163PS Manuale utente

Digitrax

Digitrax DS64 Manuale utente

Digitrax

Digitrax DZ125 Manuale utente

Digitrax

Digitrax DH166PS Manuale utente

Digitrax

Digitrax SoundFX SFX0416 Manuale utente

Digitrax

Digitrax DS44 Manuale utente

Digitrax

Digitrax SoundFX SDXN146K1E Manuale utente

Digitrax

Digitrax DN163I1B Manuale utente

Digitrax

Digitrax DN166I1A Manuale utente

Digitrax

Digitrax DN163I1C Manuale utente

Digitrax

Digitrax SoundFX SFX064D Manuale utente

Digitrax

Digitrax DH166MT Manuale utente

Digitrax

Digitrax DZ126Z1 Manuale utente

Digitrax

Digitrax DN163A2 Manuale utente

Digitrax

Digitrax SoundFX SFX004 Manuale utente

Digitrax

Digitrax SoundFX SDXN146K2 Manuale utente

Digitrax

Digitrax DN126M2 Manuale utente

Digitrax

Digitrax DH123PS Manuale utente

Digitrax

Digitrax DH163IP Manuale utente

Digitrax

Digitrax SDN144K1E Manuale utente

Digitrax

Digitrax DN163K1a Manuale utente

Digitrax

Digitrax DN163A3 Manuale utente

Digitrax

Digitrax SoundFX SDN144A1 Manuale utente

Manuali Convertitore multimediale popolari di altre marche

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuale utente

SPROLINK

SPROLINK VA1 Manuale utente

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuale utente

Nikon

Nikon AF-S TC-20E III Manuale utente

Axis

Axis AXIS Q7406 Manuale utente

Omega

Omega TAC80B-J Manuale utente

Zoom

Zoom Thunderbolt TAC-2R Manuale utente

OST

OST iConverter 10/100M Manuale utente

Vertiv

Vertiv Netsure Manuale utente

birddog

birddog MINI Manuale utente

Roland

Roland GI-10 Manuale utente

Wallenstein

Wallenstein WX310 Manuale utente

Pace

Pace MSS 200-1 Manuale utente

Solar Converters

Solar Converters EQ 12/24-50 Manuale utente

CYP

CYP EL-7400V Manuale utente

TIE

TIE MIDI 1i1o Manuale utente

DCS

DCS Vivaldi Upsampler Manuale utente

Westermo

Westermo MCW-211 SERIES Manuale utente
