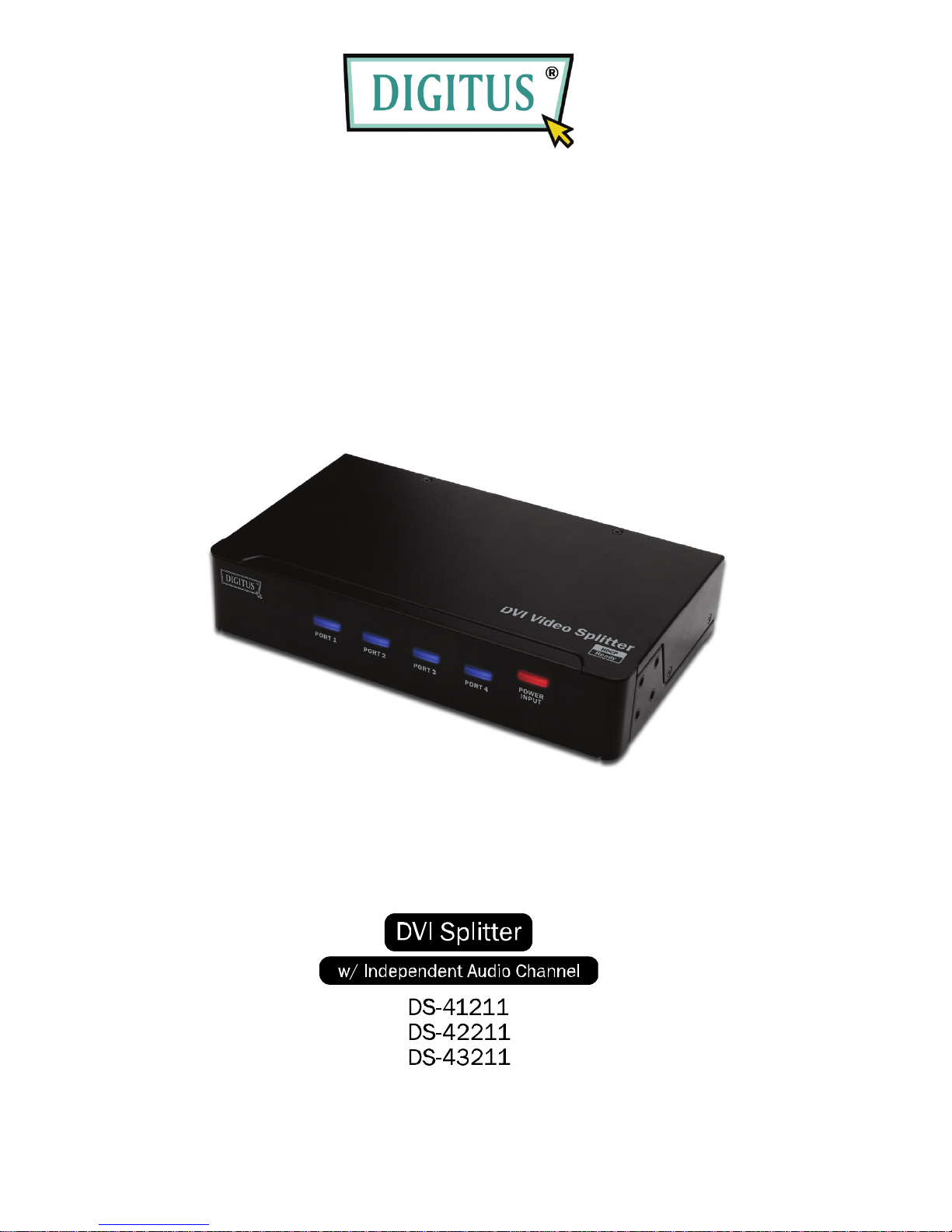

Digitus DS41211 Manuale utente

DVI / Video Splitter

Easy and affordable way to duplicate one DVI video

input to multiple DVI or HDMI outputs/monitors

User´s Manual

Table of Content

■Introduction………………………………………………….……….....1

■Features………………………………………………………………....2

■Package Content .…………………………………….……….………2

■Hardware Requirement……………………………………................3

■Installation…………………………………………………….…….......4

■Blu-ray Ready.……………..……………………………….…………..7

■Operation………………………………………………………..………7

■Specifications……….…………………………………………….…...8

■Troubleshooting…………………………………………………..…...9

Please read this manual thoroughly and follow the

Installation procedures to prevent any damage to the unit or any

connecting device. RoHS

＊

The final specifications are the actual product based.

＊

Features and functions may be added or changed since the manual was written.

Please visit our website to download the latest version of manual for reference

＊

T0 prevent damages to your installation, it is important that all devices are

properly grounded.

Introduction

Overview

The Video (+Audio) Splitters series broadcast the same video (+Audio)

signals from one video (+Audio) signal source to 2 / 4 / 8 DVI or HDMI

compatible outputs or monitors respectively, and the broadcast can be

expanded significantly when several splitters are cascaded together.

Depending on the length and cable quality, this fully HDCP compliant

splitter supports DVI / HDMI display resolutions of up to Full HD (1920 x

1080) / WUXGA (1920 x 1200) / UXGA (1600 x 1200), and is also Blu-ray

ready. There is no need for software or interface card installation. Just

connect the cables, power up the system and you are ready to have

duplicated video images for multiple monitors with excellent clarity.

Moreover, 4 / 8-ports monitors series come with mountable size and can be

easily mounted on the rack for space saving and working efficiently. This

flexible solution that accommodates multiple digital video displays is

especially suitable for applications of public broadcasting such as:

◆Presentations ◆Exhibits

◆Demonstrations ◆Trade shows

◆Monitor testing and burn-in ◆Business meetings

◆News ◆stock tickers

◆airline/train/bus schedule ◆Retail stores

Features

Easy and affordable way to duplicate one video input to multiple DVI or

HDMI outputs/monitors.

Automatic power-save when signal input is lost.

Cascaded operation for increased signal outputs.

Crisp clear video images

Support EDID, HDCP, and is Blu-ray ready for high definition display

Support DVI / HDMI display resolutions of up to UXGA (1600 x 1200),

WUXGA (1920 x 1200), Full HD 1080p (1920 x 1080)

Rack mountable ( compatible for 4- / 8-Port only )

LED indicators for signal activity monitoring

Accurate and reliable reproduction of digital video signals without

attenuation and distortion

Install in seconds

Package Content

1x Video Splitter

1x Power Adapter with EU-,UK and US plug

1x User’s Manual on CD

1x QIG

1 set of Foot Pads

1 set of Rack Mount Brackets (for 4- / 8-port model only)

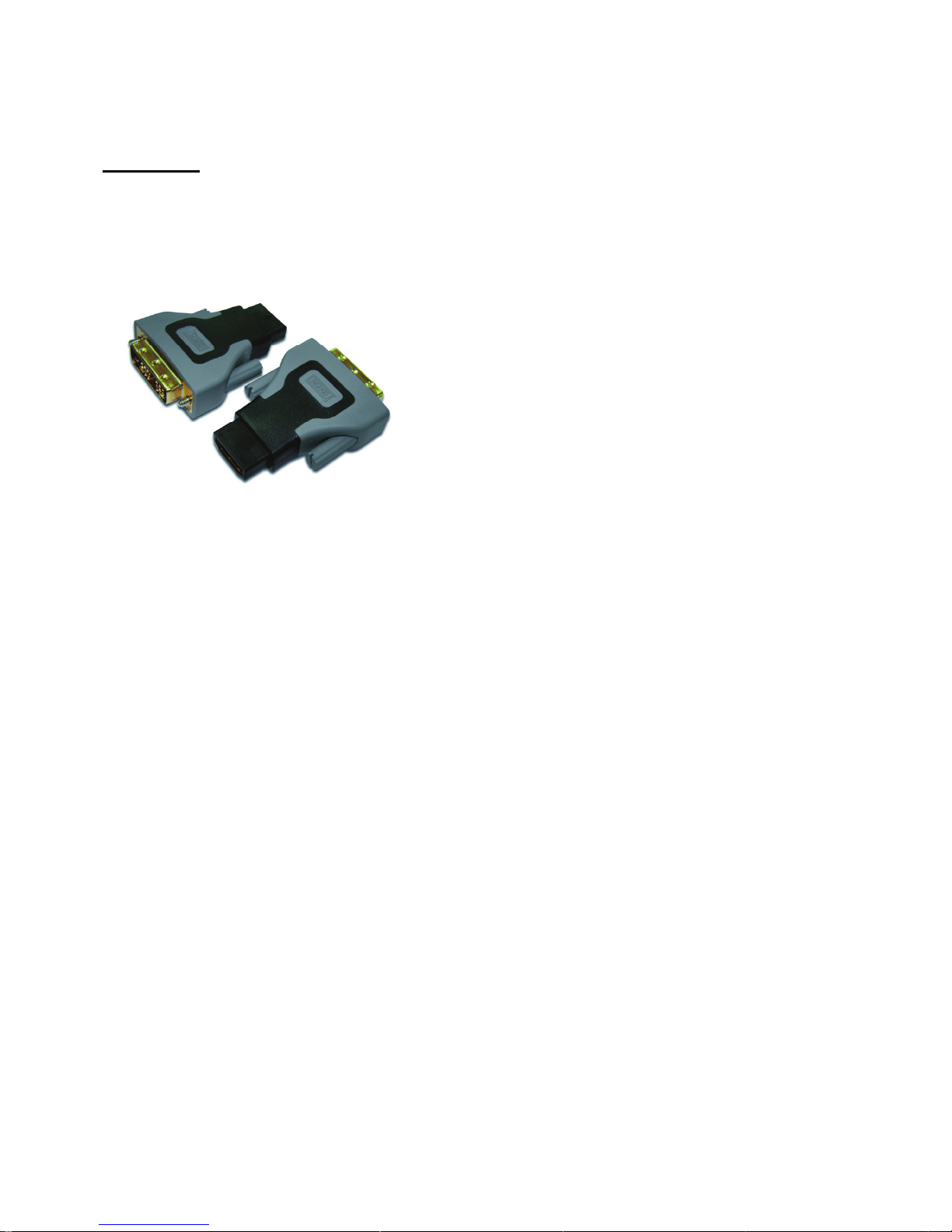

Optional

DVI-to-HDMI Adapter

(DK-408004)

Hardware Requirement

Video sources (ex. PS3, Blu-ray, DVD players, etc.), with DVI-D output, and

audio output (optional)

DVI Cables

HDCP complaint display devices (ex. TVs, monitors, projectors, etc.) for the

HDCP video source (optional)

Speakers for audio featured models (optional)

Installation

WARNING

●Prior to the installation, ensure to power off all devices that will be connected

to this system.

●Ensure that all devices you will connect are properly grounded.

●Place cables away from fluorescent lights, air conditioners, and machines

that are likely to generate electrical noise.

One piece of DVI male-to-male cable is required to connect from a video

source to the Video Splitter Input (SOURCE). Multiple monitors or TVs

should be connected to the Video Splitter's output ports as the following

figures shown.

For the model with built-in audio port, plug a set of audio jack from the

speaker to the Splitter’s audio port.

For DS-4x211 series with audio over DVI combination support, both audio

and video signals can be outputted by using a DVI-to-HDMI adapter that

combines digital video (DVI) and digital audio into HDMI to seamlessly

integrate into your modern home theater or computer systems. The

connection is as simple as connecting the optional DVI-to-HDMI

adapter(s) to the output side of the splitter, and then connect the HDMI

display or projector to the HDMI output of the DVI-to-HDMI adapter. The

adapter will convert the digital audio onto the digital video signal to

generate the HDMI signal. But please note: Not all hardware and not all

cables are supporting the audio over DVI feature!

Turn on your video source only after you've made all the connections.

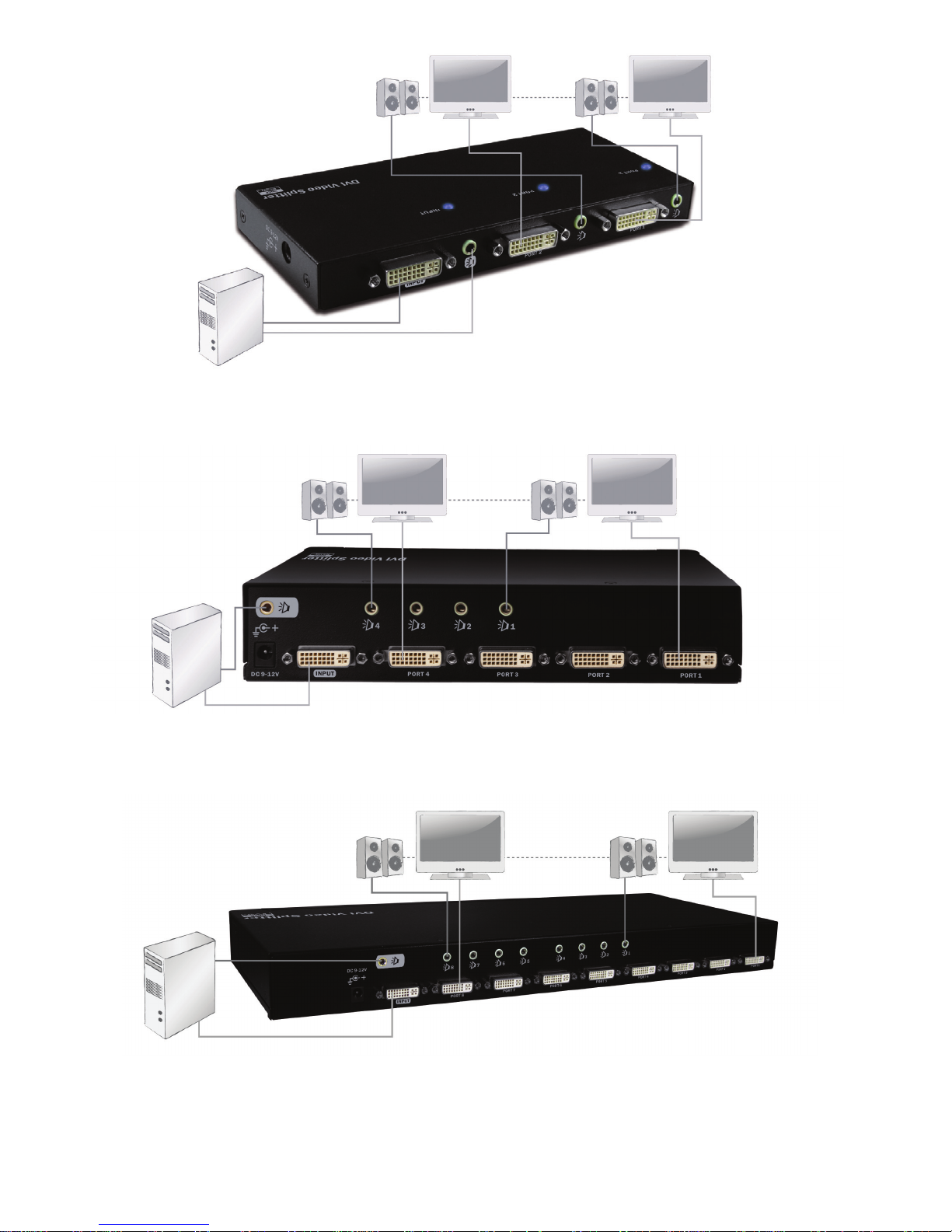

DS-41211 Connection

DS-42211 Connection

DS-43211 Connection

NOTE: At least one monitor connection to the splitter unit is required when

powering on the source device.

NOTE: The splitter unit is required to connect to the computer before the

computer powered on.

NOTE: The splitter unit is HDCP compliant and requires using a HDCP-

compliant display when it is connecting to the HDCP video source.

NOTE: Each output port on the Unit is required to apply the same connection

pattern whenever a DVI-to-HDMI (or HDMI-to-DVI) adapter is used for

HDMI (or DVI) signal conversion between the Unit and the HDMI (or

DVI) display. The mixed (HDMI and DVI) output connections (possible

examples as the following figures shown) may cause signal

degradation. For instance, a 4-Port Unit with one output connection to

a DVI monitor and another output connection to a HDMI monitor via a

HDMI-to-DVI adapter or cable, the output signal could be distorted.

Signal degradation, harmful interference, or equipment malfunction

are less likely to occur if absolute connection consistency is used.

The example of mixed connection pattern should not be used, because of

possible disturbances.

Blu-ray Ready

The Splitter Unit is able to support high definition video such as DVD or Blu-

ray and multi-channel audio, and carry the best signal from source to displays;

the high bandwidth allows for the transmission of large amounts of information

at a very high rate of speed.

Blu-ray uses a blue-violet laser to read and write data, while current

optical disc technologies such as DVD, DVD±R, DVD±RW, and DVD-

RAM rely on a red laser to read and write data. Despite the different type

of lasers used, Blu-ray uses a blue-violet laser (405nm) that it has a

shorter wavelength than a red laser (650nm), which makes it possible to

focus the laser spot with even greater precision. This allows data to be

packed more tightly and stored in less space, so it's possible to fit more

data on the disc even though it's the same size as a CD/DVD.

Operation

The quality of the output signal will depend largely upon the quality of video

source, cable and display device used. Low quality cables degrade output

signal causing elevated noise levels. Please use the proper cable and make

sure the display device is capable of handling the resolution and refresh

rate selected. Interference from nearby electrical devices can have an

adverse effect on signal quality as well.

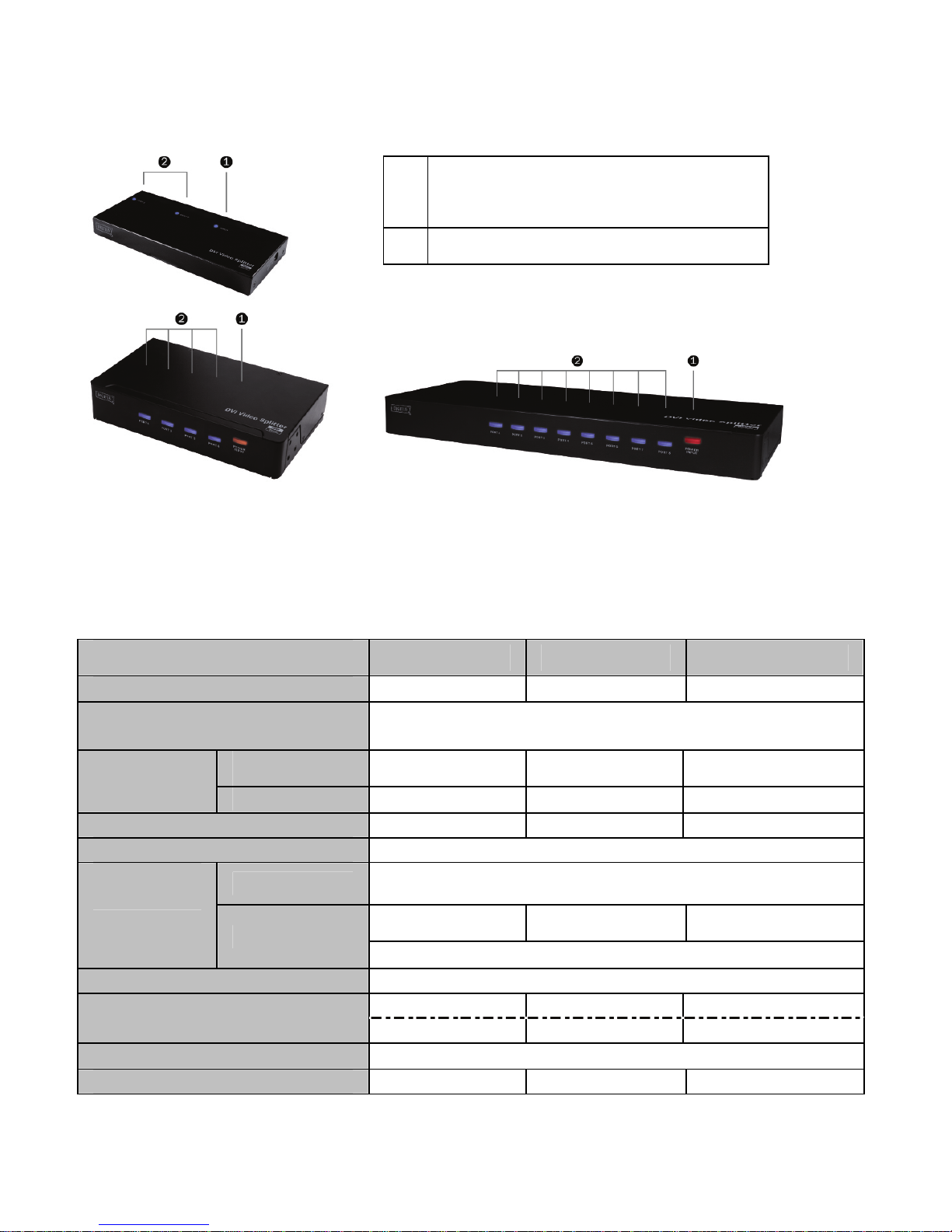

LED Display

NOTE: Please connect at least one display device to the splitter before you

powering on the source Unit.

Specifications

DS-41211 DS-42211 DS-43211

Number of

ideo Output 2 4 8

Max. Video Resolution /

Signal Type

Full HD 1080p (1920 x 1080) / VG

(640 x 480) / SXG

(1280 x

1024) / UXGA (1600 x 1200) / WUXGA (1920 x 1200)

LED

Indicators

ower ac

Video OK Dual color x 1 Dual color x 1 Dual color x 1

Video output 2 4 8

Rack Mountable (optional) N/A Yes (optional) Yes

Cable Length (Max.) 10M

Connectors Input DVI Female x 1

Audio

ack x 1 set

Output

DVI

ema

x 2

DVI

ema

x 4

DVI

ema

x 8

Audio jack x 2 / 4 / 8 sets

Enclosure Metal

Power Consumption (Max.)

2.8W 4.1W 10.2W

Operating Voltage DC 9~12V

Dimensions H X W x D (mm) 20 x 180 x 85 44 x 220 x 135 44 x 438 x 180

1 Red: Power On

Blue: Video Signal OK

2 Video Output Signal
