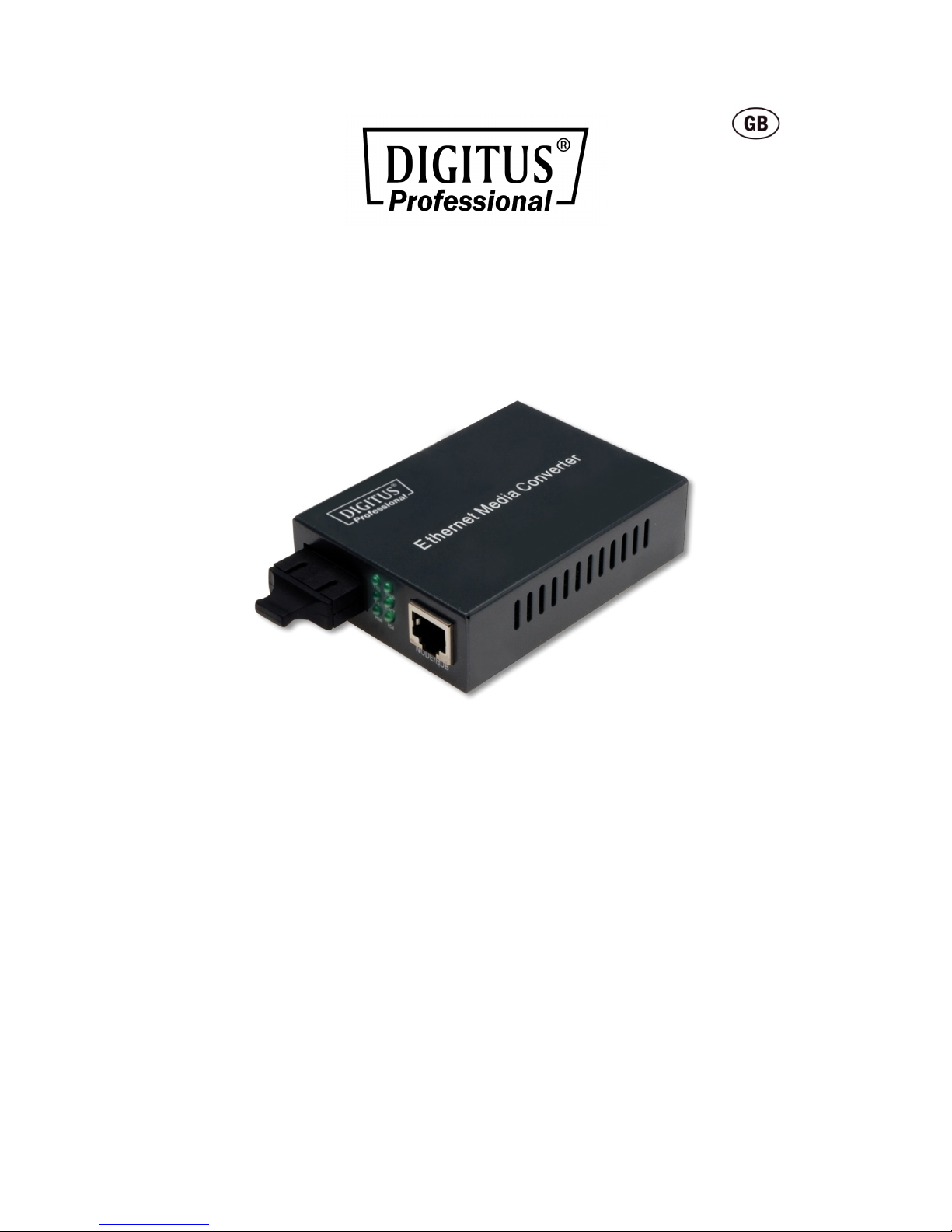

Digitus DN-82010-1 Manuale utente
10/100Base-TX to 100Base-FX
Media Converter
User’s Manual
1. Overview
IEEE802.3u Ethernet supports two types media for network connection
such as 10/100Base-TX and 100Base-FX. The bridge media converter
is designed with a switch controller and buffer memory that connects
two types segments operation smoothly. This converter can be used as
standalone unit or as slide-in module to the 483mm (19”) converter rack
Chassis for use at a central wiring closet.
2. Check List
Before you start installing the Converter, verify that the package
contains the following:
- The TP-Fiber Converter
- AC-DC Power Adapter (for external models) or Power Cord
(for internal models)
- The User’s Manual
Please notify your local sales distributor immediately if any of
the mentioned items is missing or damaged.
3. Technical Specifications
Standards IEEE802.3, IEEE802.3U, 10/100Base-TX,
100Base-FX
Media Supported
10Base-T: Cat. 3, 4, 5 UTP/STP, max 100m
100Base-TX: Cat5 UTP/STP, max 100m
Multimode fiber model: (50/125µm, 62.5/125µm)
Singlemode fiber model: (9/125µm)
TP Connector SC/ST/FC
Referenced
Transmission
Distance
Dual-fiber multimode: 2km
Dual-fiber singlemode: 20/40/60/80/l 00/120km
Single-fiber singlemode: WDM 20/40/60/80km
Data Forward Rate 10Mbps / 100Mbps
Flow Control IEEE802.3x flow control for full-duplex model
Back-pressure flow control for half-duplex mode
Power Supply 5VDC or 110~260VAC or 48VDC
Power
consumption 2.5W
Operation Temperature 0℃to 55℃
Relative Humidity 5% to 80% (non-condensation)
Feature
1. Built in 2-port switch:
-Supports modified cut-through frame forwarding for low latency
-Supports pure converter mode data forwarding for extreme low latency
-Supports flow control for full and halt duplex operation
-Bandwidth control
-Forward 1600 bytes packet for management
2. Supports 100Base-FX standard
3. Built in 128KB RAM for data buffer
4. Supports Auto MDI-MDIX function
5. Supports link fault pass through function (LFP)
6. LED display for link/activity, full/half, 10/100M
4. Installing the Converter
Standalone unit:
→Verify the AC-DC adapter conforms to your country AC power
requirement and insert the power plug
→Connect the media cable for network connection
Slide-in unit:
→The slide-in Media Converter and Converter Rack Chassis should
supplied only from the same source, both Media Converter Rack
Chassis are built to match each other at dimension, DC jack, DC
receptacle and power safety.
→Turn off the 483mm (19”) converter rack power
→Ensure that there is no activity in the network
→Locate +5V DC power jack on converter back, carefully slide in
and plug to 483mm (19”) rack +5V DC power receptacle
→Connect the media cable for network connection
→Turn on the converter rack power, the Power LED will light up
Fiber Port Attach the fiber cable, the TX, RX fiber cable must be paired at both ends.
Default: Full duplex mode
TP Port Attach TP Cat.5 cable to TP Port
Wire connection, Front and Side panel

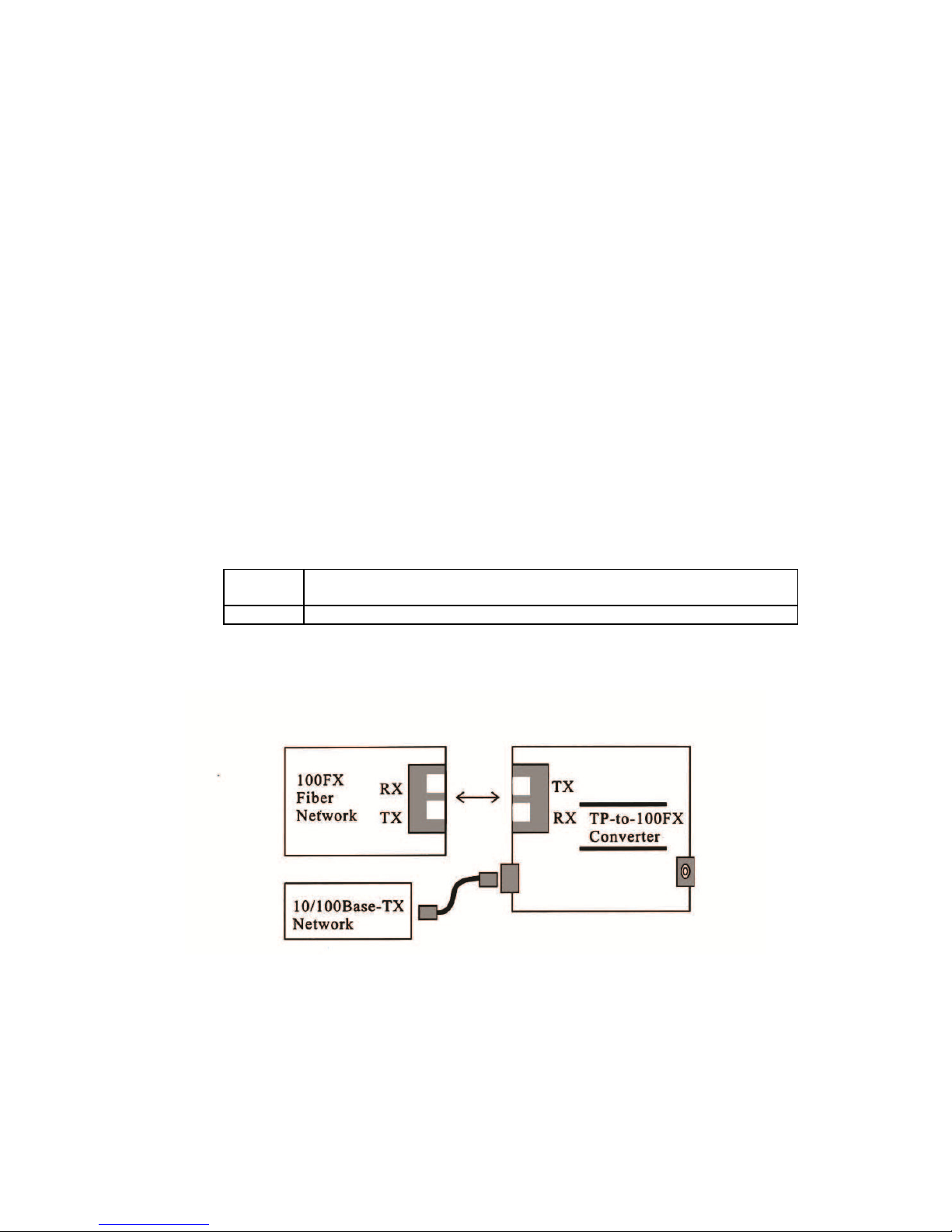

Fig. 1 Basic Network Connection

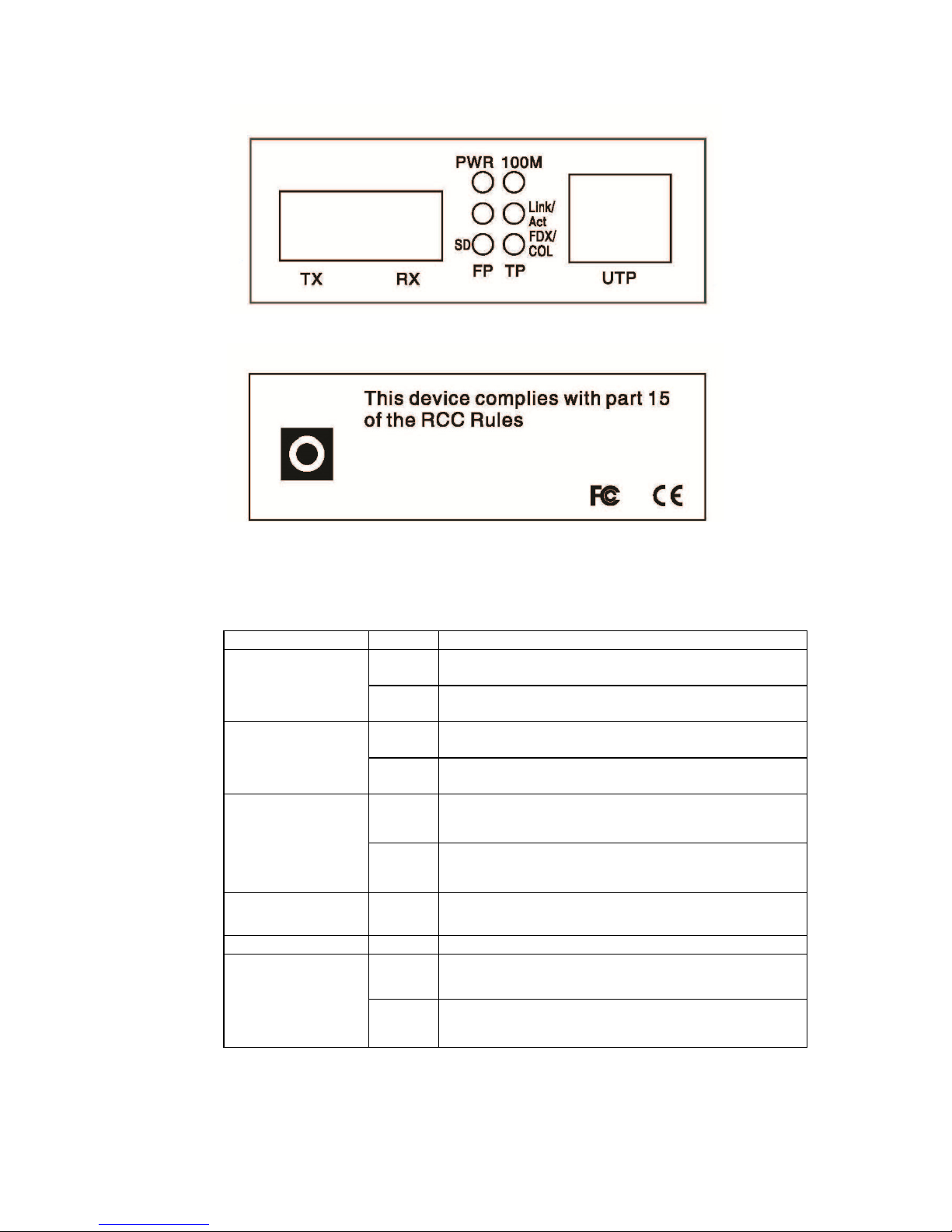

Fig. 2 Converter Front Panel for external power
Fig. 3 Rear Panel
5. LED Description
LED indicator lamp Status Description
FX Link/Act
On Connection status display for Fiber Link.
“ON” indicates that Fiber link is in correct connection.
Blink Active status display of fiber link.
“Blink” indicates packet goes through FX end.
TX Link/Act
On Connection status display for electric link.
“ON” indicates that electric link is in correct.
Blink Active Status display of fiber link
“Blink” indicates packet goes through TX end.
FDX
On Transceiver works in the full duplex mode.
Off Transceiver works in the half duplex mode.
PWR On Power is on and normal.
SD On Fiber signal is detected.
100M
On Transfer rate of electric interface is 100Mbps.
Off Rate of electric interface is 10Mbps
6. Connecting to TP, Fiber Device
Converter TP Port
10/100TX
Default: 10/100Mbps Nway
a. Auto-Negotiation for Nway TP partner
b. Half-Duplex for non-Nway TP partner, Class II hub,
or 10Base-T device
Converter Fiber Port
100FX
100Mbps with duplex mode selectable:
a. Full-duplex for 100Fdx fiber link partner
b. Half-duplex for 100Hdx fiber link partner
FX duplex mode slide switch locates on the rear panel.
7. Troubleshooting
If the media converter fails, isolate and correct the failure by determining
the answers to the following questions and then taking the indicated
action:
1. Is the power LED on the media converter illuminated?
NO
Is the power adapter the proper type of voltage and cycle frequency
for the AC outlet?
Is the power adapter properly installed in the media converter and in
the outlet?
Contact your local sales distributor for technical Support.
YES
Proceed to step 2.
2. Is the “Duplex/Link” LED illuminated on a port with twisted-pair
cable installed?
NO
Check the copper cables for proper connection.
YES
OFF = The media converter has selected half-duplex mode.
ON = The media converter has selected full-duplex mode.
If the mode is not correct, disconnect and reconnect the twisted pair
cable to restart the initialization process.
Proceed to step 3.
3. Is the ”Link action” LED illuminated on the fiber cable port?
NO
Check the fiber cables for proper connection.
Verify that the TX and RX cables are connected to the RX and TX
ports, respectively, on the 100Base-FX device.
YES
Proceed to step 4.
4. Is the “Speed” LED illuminated on a port with twisted-pair cable
installed?
NO
Check the copper cables for proper connection.
YES
OFF = The media converter has selected 10Mbps operation.
ON = The media converter has selected 100Mbps operation.
If the speed is not correct, disconnect and reconnect the twisted pair
cable to restart the initialization process.
Note: Connecting to Router, Bridge or Switch, please refer to the
device’s Technical Manual.
Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the
requirements of Directive 2014/30/EU (EMC), Directive 2014/35/EU (LVD) and the Directive
2011/65/EU for RoHS compliance. The complete declaration of conformity can be requested
by post under the below mentioned manufacturer address.
Warning:
This device is a class B product. This equipment may cause some radio interference in living
environment. In this case, the user can be requested to undertake appropriate measures to
prevent interference.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
