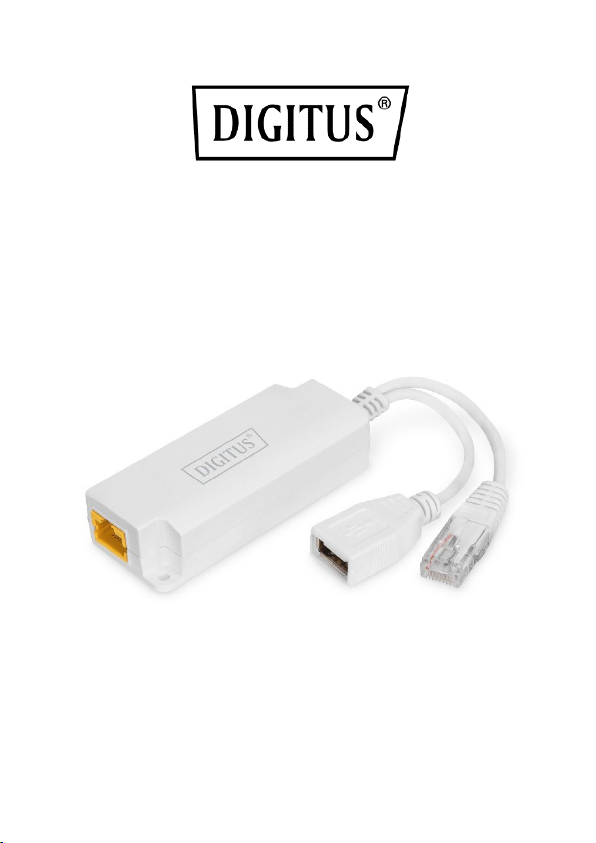

DIGITUS USB-A 5V PoE

Splitter

Quick Installation Guide

DN-95208

Table of Contents

1. Introduction ............................................................................2

2. Main Features .........................................................................2

3. Package Content......................................................................3

4. Product Profile ........................................................................3

5. Connection Diagram ................................................................4

6. Specification............................................................................4

1. Introduction

DN-95208 is an indoor rated PoE USB-A splitter specially designed for

complex backhaul and networking application. Enclosed in an IP40 fire

retardant plastic case with compact design. It works as a converter to

get power and data from PoE injector or PoE Switch of 802.3af/at over

RJ45 connector then separate power and data to PDs. The output

power is 5Vdc, 2.5A(max) via USB-A Female connector to PDs. Such as

power communication station, wireless APs, network cameras, Tablet

PC, and other USB-A devices. PoE signal into a separate data signal at

10/100Mbps. For planning purposes, the effective distance is 100

meters via Cat5e/Cat6 cables from Ethernet data source to PD.

2. Main Features

•Provide USB 5V power by PoE splitter

•PoE Input :40-57Vdc PoE 802.3af/at

•USB Power Output: 5Vdc 2.5A(max)

•Data Output Speed: 10/100Mbps (RJ45)

•Wall-moutable

•IP40 rated Protection

•Power output Indicator : Green

3. Package content

•1x USB PoE splitter

•1x Manual

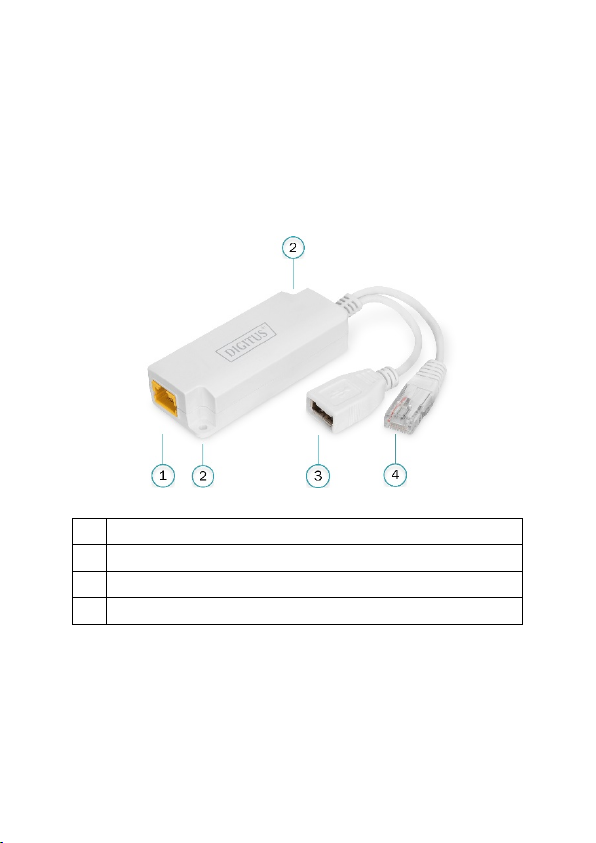

4. Product Profile

PoE: Data and Power input port

Mounting holes

USB-A jack

LAN output port

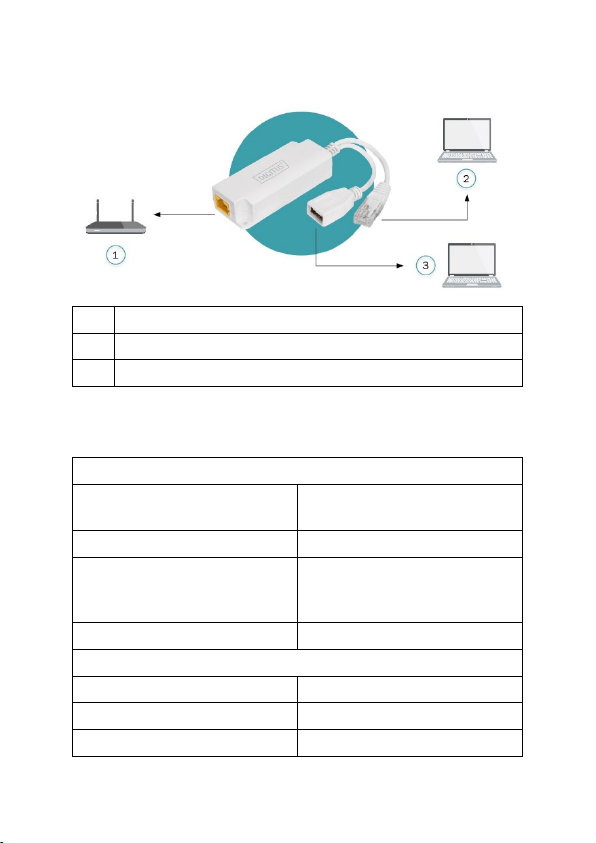

5. Connection Diagram

Wireless LAN Router

Notebook 1

Notebook 2

6. Specification

Input and Output

Input Ports

40-57Vdc PoE injector/

PoE Switch 802.3af/at

Input Power Pins

4/5(+), 7/8(-) or 3/6(+),1/2(-)

Output Ports

5Vdc 2.0A 0℃to 55℃,

5Vdc 2.5A(max) @0℃to 40℃,

Data Speed

10/100Mbps

Working Environment

Operating temperature

0℃to 40℃

Operating humidity

20% to 80%, non-condensation

Storage temperature

-20℃to 70℃

Storage humidity

10% to 90%, non-condensation

Operating altitude

Up to 2000 meters

Mechanical Characteristics

Case

Plastic

Color

white

Mounting

Wall mounted

IP Rated

IP 40

Size

(82.3+124.81) mm x 34.7mm x

19 mm

Weight

66,9 g

Connectors

1 x RJ45 Female,

1 x RJ45 Male

1 x USB-A Female

LED Indicator

Power output indicator

green

Note: Specifications are subject to change without notice.

Disclaimer

Hereby ASSMANN Electronic GmbH declares that the Declaration of

Conformity is part of the shipping content. If the Declaration of

Conformity is missing, you can request it by post under the below

mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
