Digitus DN-10131 Manuale utente
10/100/1000 MBPS
DUAL RJ-45 NETWORK PCI
EXPRESS ADAPTER
User Manual
DN-10131
2
Contents:
Chapter 1: Introduction .............................................3
1.1 Product Introduction ...........................................3
1.2 Features .............................................................4
1.3 System Requirements ........................................4
1.4 Package Contents ..............................................5
Chapter 2: Getting Started ........................................6
2.1 Hardware Layout ................................................6
2.2 Hardware Installation..........................................7
2.3.1 Installation for Windows XP/Vista/7 .............8
2.3.2 Installation for Mac OS X 10.5.x/10.6.x/10.7.x
..............................................................................9
2.4 Hardware Verify................................................10
2.4.1 Verifying for Windows XP/Vista/7...............10
2.4.2 Verifying for Mac OS X 10.5.x/10.6.x/10.7.x
............................................................................10
Chapter 3: Troubleshooting Tips ............................ 11
3
Chapter 1: Introduction
1.1 Product Introduction
PCI Express is the next revolution in I/O interconnect standards
that will deliver the bandwidth and features required by PCs,
consumer electronics and communications devices. The
architecture is a cost-effective, low-pin count, and point-to-point
technologies offering maximum bandwidth, reducing cost and
design complexity and enabling smaller form factors. This card is
the best solution for Gigabit Ethernet PCI Express and the
interface has a potential transfer rates of 2.5 Gbps using a
single-lane (or x1) PCI Express link.
This card is a 2-Port Gigabit Ethernet PCI Express Card, which is
specifically designed to plug into a desktop equipped with an
available x1, x4, x8 or x16 PCI Express slot. It supports high
performance dual channel networking and full duplex
communication to achieve up to 2000 Mbps and fast transfer
rates, yet is compatible with existing Ethernet. It comes with a
comprehensive of software drives for all desktop operating
systems, including Microsoft Windows, Linux, and Mac OS X.
4
1.2 Features
Designed to meet PCI Express Specification Revision 1.1
Single-lane (or x1) PCI Express throughput supports rate of
2.5Gbps
Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE
802.3ab
10/100/1000M data auto-negotiation
Jumbo Frame support
Support Wake On Lan (WOL) power management
(optional)
Feature full duplex mode that doubles the network
connections speed
Support Windows XP/Vista/7 (32/64 bit), Mac OS X 10.5 or
later
1.3 System Requirements
Windows®XP/Vista/7 (32/64 bit), Mac OS X 10.5 or later
PCI Express-enabled system with an available PCI Express
slot
5
1.4 Package Contents
1 x 2-Port Gigabit Ethernet PCIe Card
1 x Driver CD
1 x User Manual
1 x Low Profile Bracket
Note: Contents may vary depending on country/market.
6
Chapter 2: Getting Started
2.1 Hardware Layout
Link/Activity Indicator:
Steady green indicates good linkage between the adapter
and its supporting server or switch. Flashing green indicates
activity (transmitting or receiving) within the adapter
1000M/100M Indicator:
Green: The LED indicator lights green when a 1000 Mbps
device is connected to the adapter
7
Orange: The LED indicator lights orange when a 100 Mbps
device is connected to the adapter
2.2 Hardware Installation
1. Turn off the power to your computer.
2. Unplug the power cord and remove your computer’s cover.
3. Remove the slot bracket from an available PCIe slot.
4. To install the card, carefully align the card’s bus connector
with the selected PCIe slot on the motherboard. Push the
board down firmly.
5. Replace the slot bracket’s holding screw to secure the card.
6. Replace the computer cover and reconnect the power cord.
8
2.3 Driver Installation
The following section shows you how to install 2-Port Gigabit
Ethernet PCIe Card driver on different operating systems.
2.3.1 Installation for Windows XP/Vista/7
1. Insert the provided CD into your disk drive. The CD-ROM
will start automatically.
2. At the Windows desktop click Start, then Run.
3. Type D:\DN-10131\Windows\Setup.exe, then click OK.
(Change D:\ to match your CD-ROM drive letter)
4. Click “Next” to continue.
5. Click “Install” to continue.
Click “Finish” to end of the driver installation steps.
9
2.3.2 Installation for Mac OS X
10.5.x/10.6.x/10.7.x
1. Insert the provided CD into your CD-ROM drive.
2. Double-click the “DIGITUS” disc icon, double-click
“DN-10131” folder.
3. Double-click “Mac” folder, and then double click the “For Mac
OS X 10.4/10.5.pkg” file (For Mac OS X 10.6 OS, please
double click “For Mac OS X 10.6.mpkg” file; For Mac OS X
10.7 OS, please double click “For Mac OS X 10.7.mpkg” file)
to launch the installer.
4. Follow the instructions on screen to install the driver. After
driver installation is complete, you must restart your
computer.
10
2.4 Hardware Verify

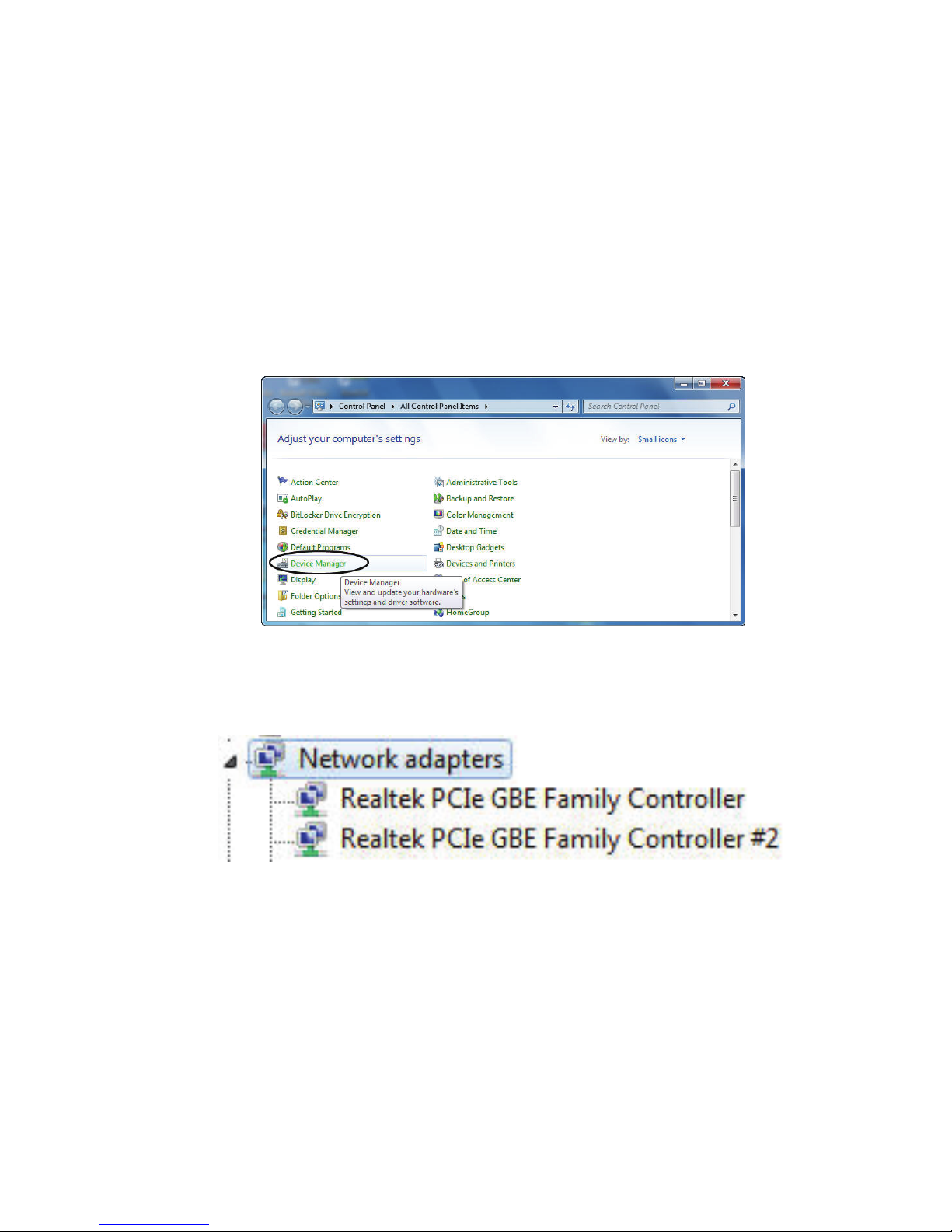

2.4.1 Verifying for Windows XP/Vista/7
1. Click on the “Device Manager” tab in the Windows Control
Panel.
Start > Control Panel > Device Manager
2. Entry “Network adapters” item, and you can read “Realtek
PCIe GBE Family Controller” in the Device Manager.
2.4.2 Verifying for Mac OS X 10.5.x/10.6.x/10.7.x
1. Choose About this Mac from the Apple menu.
2. Click on More Info…
3. In the Contents sidebar select PCI Cards from the Hardware
