1

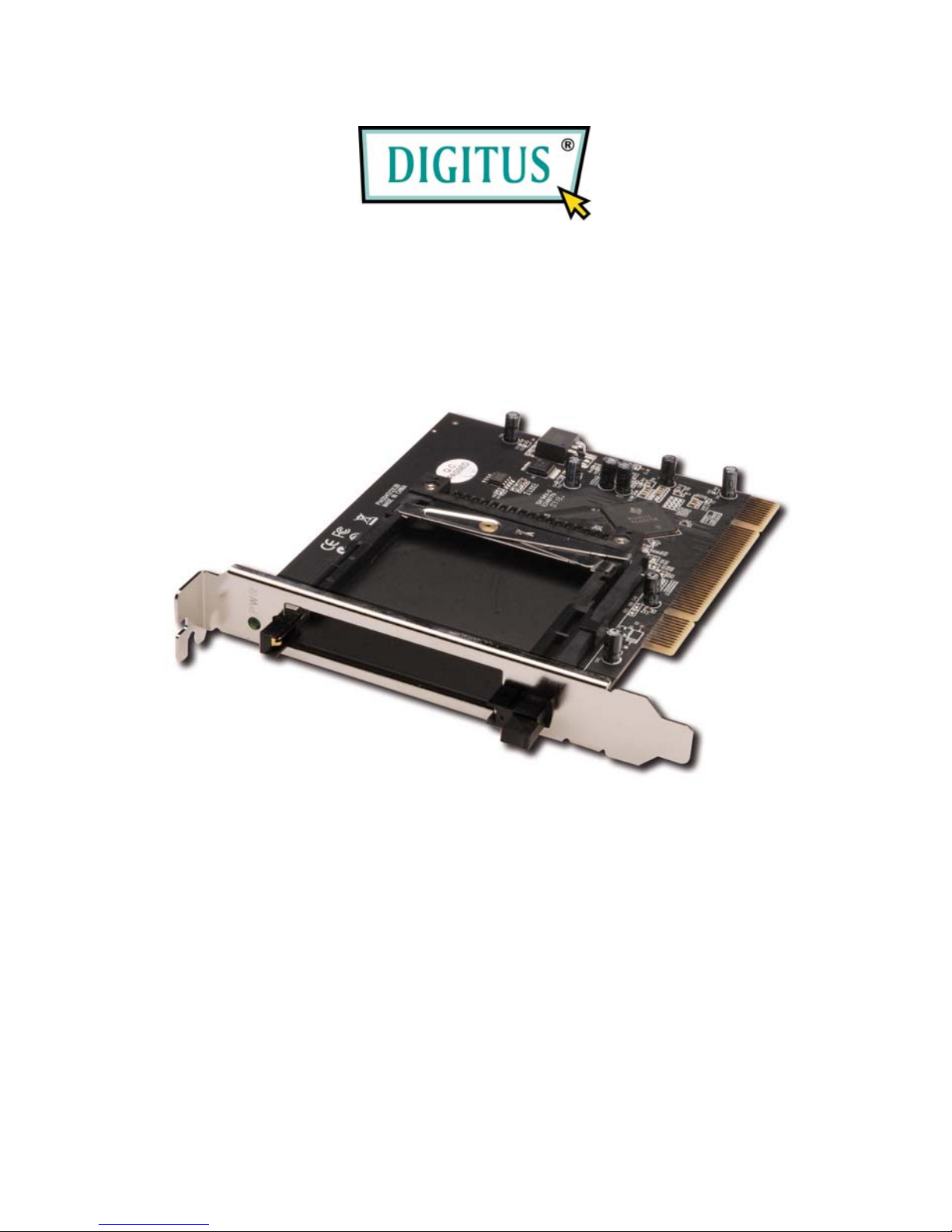

CARDBUS ADAPTER

PCI CARD

User Manual

2

Features

Compliant with PCI local bus specification 2.3

Compliant with PC card standard release 8.1 specification

Works with various types of 16 or 32-bit CardBus PC Cards

Advanced Configuration and Power Interface (ACPI)

Specification 2.0 Compliant

Bridge function between PCI bus and CardBus

Supports PC Card or CardBus with Hot Insertion and Removal

Support Windows® 2000, XP, Server 2003, Vista, 7

System Requirements

Windows® 2000/XP/Server 2003/Vista/7

Pentium or equivalent PC with an available PCI slot

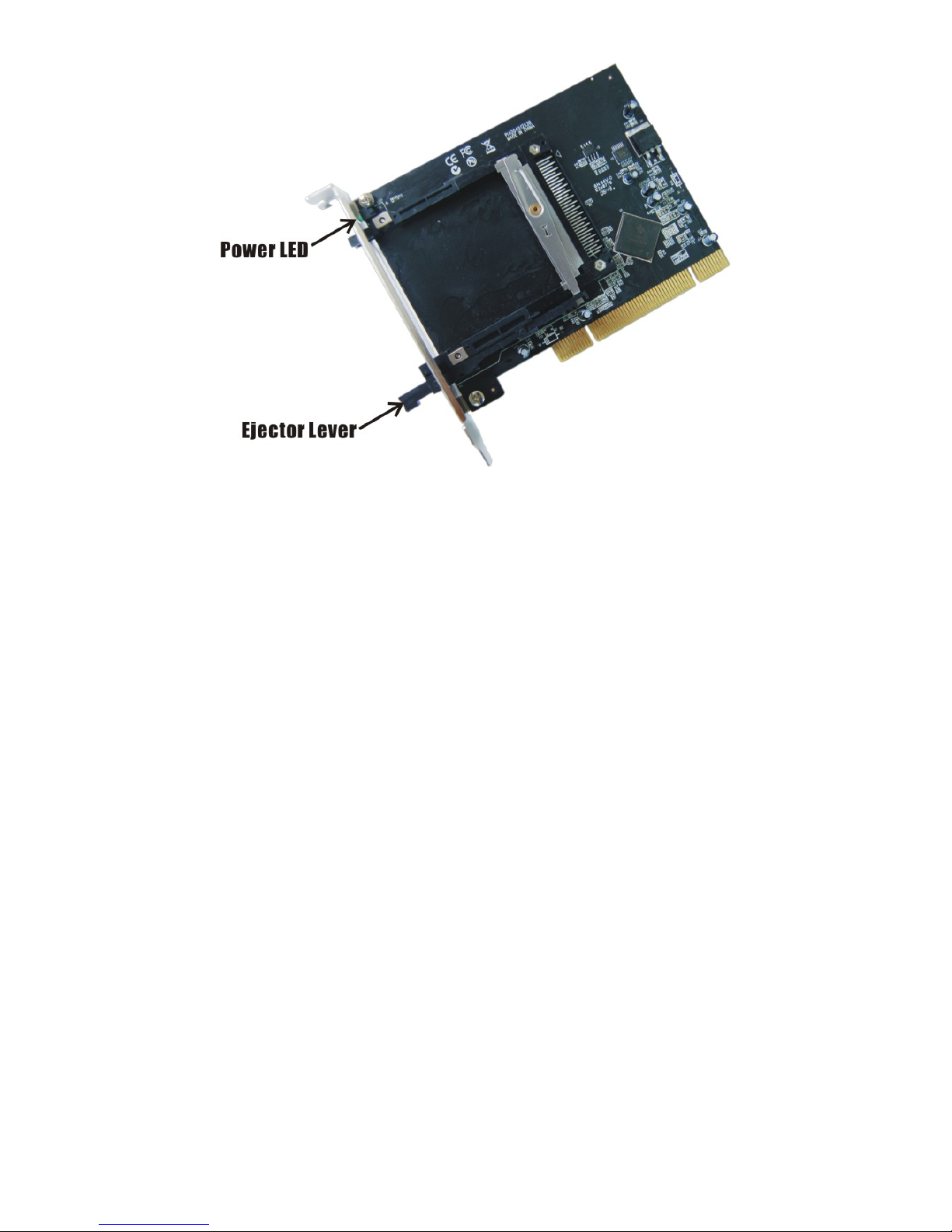

Hardware Layout

3

Note: The ejector lever can be placed in two positions,

locked and unlocked. When inserting a PC Card, the lever

can be in either position. However, the lever must be in the

unlocked position to eject a PC Card. To unlock the lever,

push it until you hear a click then release it.

Hardware Installation

General instructions for installing the card are provided below. Since

the design of computer cases and motherboards vary, refer to your

computer’s reference manual for further information, if needed.

4

1. Turn OFF the power to your computer.

2. Unplug the power cord and remove your computer’s cover.

3. Remove the slot bracket from an available PCI slot.

4. Carefully align the card to the selected PCI slot, push the board

down firmly, but gently, until it is well seated.

5. Replace the slot bracket’s holding screw to secure the card.

6. Replace the computer cover and reconnect the power cord.

Driver Installation

Please make sure the board is installed before proceeding with software

installation.

Windows® 2000/XP/Server 2003/Vista/7

Windows® 2000, XP, Server 2003 and Vista will automatically detect

and install the correct drivers for the PC Card adapter. Restart

Windows if you’re prompted to do so.

5

To Verify Driver Installation

1. Check Device Manager to verify successful driver installation.

2. Look for the following.

Windows® 2000/XP/Server 2003/7: Double click PCMCIA

adapters:

-Generic CardBus Controller should be displayed.

Windows® Vista: Double click PCMCIA adapters:

-Texas Instruments PCI-8x12/7x12/6x12 CardBus Controller

should be displayed.

3. If this entry doesn’t appear, shut down your system and make sure

the PCI board is properly seated. Or install the PC Card adapter

into another PCI slot and try again.

6

Inserting/Removing the PC Cards

Inserting the PC Card: There’s only one way the PC Card can be

inserted into the slot. Do not try to force it in if you meet some

resistance.

Removing the PC Card: Simply push the ejector lever and the

PC Card will slide out from the card slot.
