Digitus DN-95624 Manuale utente

Smart Power Distribution Unit

QIG

DN-95624/ DN-95625/ DN-95628/ DN-95632/ DN-95634/

DN-95640/ DN-95641/ DN-95642/ DN-95643

Safety and Grounding:

Read the following information before installing or operating your DIGITUS Power

Distribution Unit:

This PDU is intended for indoor use only.

This PDU must not be operated one behind the other!

Operation only in dry and closed rooms.

This PDU may not be operated covered. Always ensure free accessibility.

The maximum power stated on the rating plate must not be exceeded.

Plug this PDU into a three-wire, grounded power outlet only. The power outlet must be

connected to appropriate branch circuit/ mains protection (fuse or circuit breaker).

Connection to any other type of

power outlet may result in a shock hazard.

Use only the supplied brackets of mounting.

Check that the power cord, plug, and socket are in good condition.

Voltage free only when the power plug is unplugged.

Disconnect the PUD from the power outlet before you install or connect equipment to reduce

the risk of electric shock when you cannot verify grounding. Reconnect the PDU to the power

outlet only after you make all connections.

Operation under unfavorable environmental conditions must be avoided. (Humidity over 80%

relative, wet, ambient temperatures above 50 ° C, solvents, flammable gases, dust, vapors).

If external damage to this PDU is detected, do not operate this PDU. Take this PDU immediately

out of service if external damage is detected.

Do not pour liquids over the power strip. There is a high risk of fire or life-threatening electric

shock.

When opening the power strip, live parts can be exposed. There is a risk of electric shock.

The power strip may only be opened by a specialist.

1. Smart PDU Introduction

The Smart Power Distribution Unit is a network manageable device that provides power monitoring,

controlling and managements to many equipments in the rack cabinet of data center through LAN

or WAN. For meeting with the restrictions and requirements in different environment, SMART PDU

supplies many connection methods that user can manage it through its Web interface (HTTP or

HTTPS), Serial connection, Telnet or SNMP.

1.1 Product picture and description

1.1.1 Vertical SMART PDU (0U)

1. Input power cord;

2. Brackets;

3. Hydraulic circuit breaker;

4. LCD screen;

5. DOWN key: scroll down to the next page;

6. UP key: scroll up to the previous page;

7. ENTER: OK button;

8. RUN indicator

9. 1600imp/kWh Energy pulse indicator;

10. RESET button;

11. USB port for WIFI access or software upgrade;

12. NET: 10/100M Ethernet communication port

13. SER: Serial communication port

(support MODBUS);

14. IN: for daisy-chain

15. OUT: for daisy-chain

16. T/H1: temperature and humidity sensor port 1

17. T/H1: temperature and humidity sensor port 2

18. SENSOR: extend sensor hub communication

port, sensor hub support 2

temperature/humidity sensor, 2 door sensor,

1 water logging sensor and 1 smoke sensor

19. LED indicator;

20. Outlets

1.2 Installation

Vertical-mounting (0U)

1.3 Function Description

There are four series for the Smart PDU range. A, B, D series function comparison table:

A series

B series

D series

Input-level Metering

(A/V/VA/kWh/Power factor)

Yes

Individual Outlet Metering

Yes

Individual Outlet Switching

Yes

A series: DN-95624/ DN-95625/ DN-95640/ DN-95641/ DN-95642

B series: DN-95628

D series: DN-95632/ DN-95634/ DN-95643

2. Hardware Introduction

2.1. System initialization

The buzzer sounds when the SMART PDU is switched on and it stops after 3 seconds.

Then the LCD screen is lighted after 6 seconds with the following information displayed:

Vertical (0U) Horizontal (1U)

Note: 192.168.1.163 is the default IP address; and this is the first page after system initialization.

15:53:58

2015-04-21

192.168.1.163

(Device time)

(Date)

(IP address)

15:53:58

2015-04-21

（CPU model）

（Software version）

（Master/Slave unit）

（

Device series

）

2.2. View system information

2.2.1. View system information

Press ENTER to go to the main menu

(The first page on menu)

(The second page on menu)

Through the DOWN or UP key to scroll down or up to the next/previous page, turn to the main

menu and select the first item Information, then press ENTER to go to the Information menu and

the displayed information are as below:

Note: the displayed information may differ from device part number.

CPU: ARM926EJ-S means the type of the device CPU chip; Version: 1.0.0 is the software version

number; M/S: Master means the Master Unit and Slave 1 means the Slave unit 1(1-4 means the

order of Slave unit); Type: 3 phase C means the device is 3 phase C series one.

Through the DOWN or UP key to scroll down or up to the next/previous page, turn to the main

menu and select the second item Total, then press ENTER to go to the Total menu and the displayed

information are as below:

Information

Total

Tem/Hum

Sensors

(Device information)

(Total power data)

(Temperature/Humidity)

(Door/water

Output

Group

(Outlet socket)

(Outlet group)

CPU: ARM926EJ-S

Versi

on: 1.0.0

M/S: Master

Type: 3 phase D

Note: the above information is from a single phase device, if it is a 3 phase one,

the power date of each phase will be displayed as well. U: 214V means the input voltage,

I:00.0A means the total input current, P:0.000KW means the total power, E:000013.1kWh

means the total power consumption, PF:0.00 means the power factor.

Press ENTER to return to the main menu, and then press DOWN key to select Temp/Hum to view

the temperature/humidity as below:

Press ENTER to return to the main menu, and then press DOWN key to select Sensors to view the

door, water logging, and smoke sensor status as below:

Press ENTER to return to the main menu, then press DOWN key to select Output to view each

individual outlet current as below:

U: 214V I: 00.0A

P: 0.000kW

E: 000013.1kWh

T1: --- H1: ---

T2: --- H2: ---

T3: --- H3: ---

T4: --- H4: ---

Door1: None

Door2: None

Smoke: None

Water: None

Output01: 00.0A

Output02: 00.0A

Output03: 00.0A

Output04: 00.0A

Press DOWN or UP key to view the current of rest outputs:

Note: Press UP button to view the previous page of device information.

Press ENTER to return to the main menu, then press DOWN key to select Group to view each

group outlet current as below:

3. SMART PDU Software Introduction

3.1. Software overview

SMART PDU is equipped with embedded software system which provides a lot of network services

like WEB server, SNMP, Telnet, SMTP and NTP. It’s easy to do second development and software

integration.

3.2. Access method

Web based, can access via browsers like Internet Explorer, Google Chrome and Fire fox; supports

WIFI (including the mobile device like smart phone and tablet), SNMP (v1 / v2c / v3), Telnet and

Serial console like MODBUS.

3.2.1 Web access

Open a browser and enter the default IP address, the login window will pop up like below, see

figure1-1.

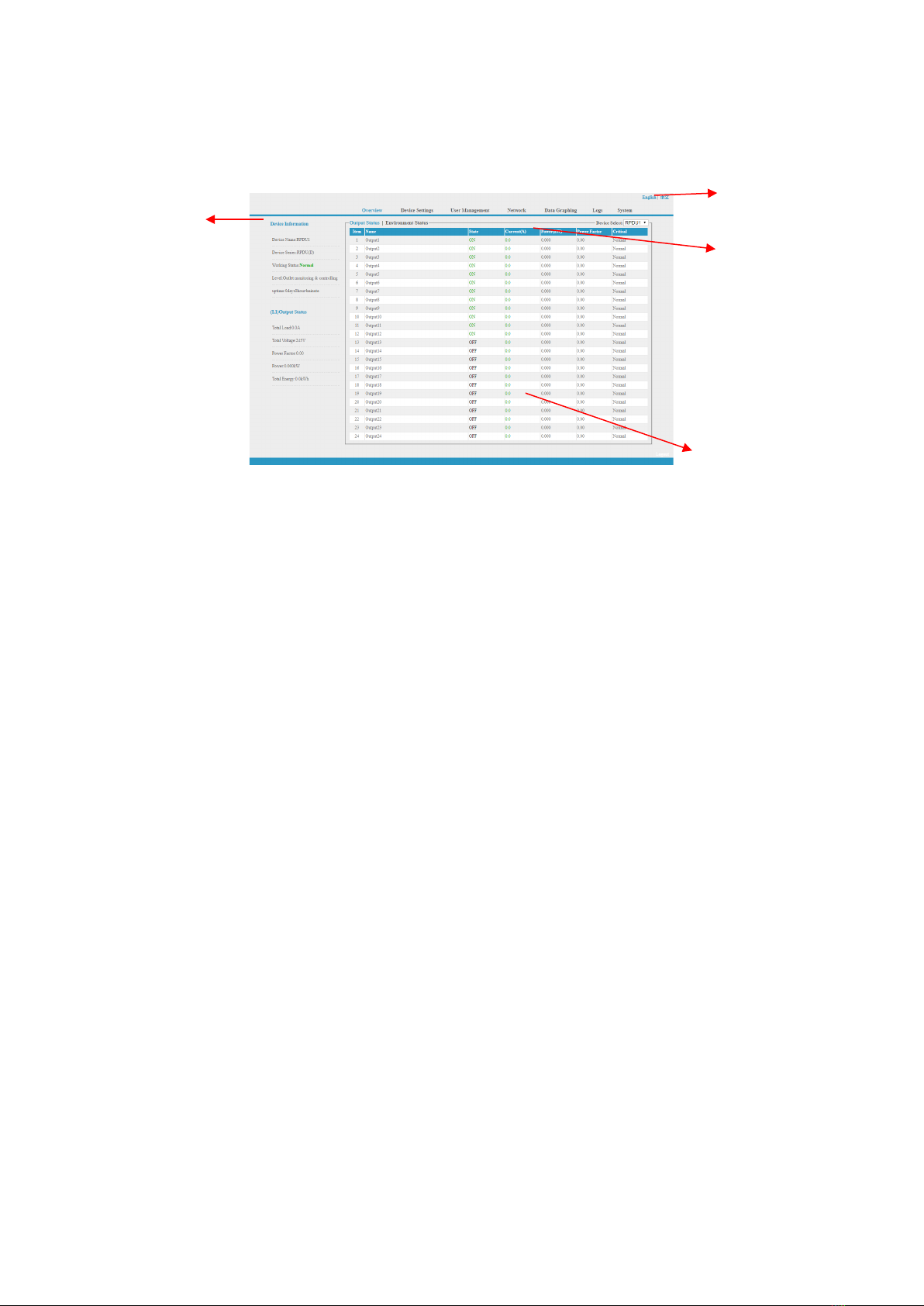

Figure 1-1

Group1:00.0A

Group2:00.0A

Group3:00.0A

Group4:00.0A

Group5:00.0A

Group6:00.0A

Output status

Fill in the correct user name and password (Factory default login name is admin,

password is admin)to login the main interface, see figure1-2

Figure 1-2

Mainly 3 parts on main interface: Navigation menu, Device information and Output status.

Navigation menu: show company logo and function menus and language selector.

Device information: display device name, device series, and device status and function level.

Output status: display output name, on/off state, individual current, individual power,

power factor and environment status. From the drop-down menu of device to check

the information of Slaves.

More detailed information on operating and configuring the device can be found in the

corresponding user manual.

Language Selector

Device information

Navigation

4. Technology Parameters

No.Performance parameter Technical parameter

1 Input

Rated input voltage 110/220VAC 50/60 Hz;

Rated input plug IEC60309 standard

Cable specification 16A:3×2.5mm² 32A:3×6.0mm²;

Cable length 2.5M

Max. load current 16A, 32A

Overload protector 1P circuit breaker

2 Output

Socket standard Standard IEC320 C13, C19

Socket quantity

A Series: DN-95624 (24way),

DN-95625 (42way)

B Series: DN-95628 (20way),

DN-95629 (24way);

C Series: DN-95630 (24way),

DN-95631 (24way);

D Series: DN-95632 (24way)

DN-95633 (16way),

DN-95634 (24way);

Output voltage 110/220VAC 50/60 Hz

Output current 16A, 32A

3 Control ports

Net port 1×RJ45 port

Daisy chain port 2×RJ45 port

Software update port 1×RJ45 port

Temperature & humidity

port

Max 2×RJ11 port（can add more）

Smoke sensor port Max 1×RJ11 port（optional）

Water sensor port Max 1×RJ11 port（optional）

Door sensor port Max 1×RJ11 port（optional）

4 Display

Working state 1×LED

Power pulse 1×LED

IP Address, M/S SMART

PDU state,

measurement value,

alarm state

LCD screen（Resolution: 128×64）

5 Load current display

technology

Total current Full-scale:16A/32A, Accuracy:±1%+0.2

Resolution:200mA, Response:400ms

requirement

Individual load current Full-scale: 10A/ 16A, Accuracy:±1%+0.1,

resolution:100mA, Response:400ms

Temperature/humi

dity

Technology

requirement

Temperature Accuracy:±1℃，Response: 400ms

Humidity Accuracy:±5%RH, Response: 400ms

7 Product size

Product size（L×W×H）X2×56×52mm

Mounting hole X3

8 Case color Color Black

9 Fittings

Installation bracket 1 set

Network connection

cable

2M blue network cable*1

Daisy-chain connection

cable

2M yellow network cable*1

Serial connection cable 2M Ivory Serial cable*1

User manual 1 set (CD)

10 Optional fittings Sensor

Temperature/humidity sensor

Smoke sensor

Door sensor

Water logging sensor

11 Environment

Working Environment Temperature: 0℃～+45℃

Relative humidity: 30%

～

90%

Storage Environment Temperature: -20℃～+70℃

Relative humidity :0%

～

95%

12 ROHS Compliance

This is a Class A product. In home environment, this product may cause radio interference.

In this case, the user may be required to take appropriate measures.

Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content.

If the Declaration of Conformity is missing, you can request it by post under the below mentioned

manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
