Digitus DA-70432 Manuale utente

Mounting frame for

HDDs and SSDs

Manual

DA-70432

Features:

• Suitable for either up to 4x 2.5", or 1x 3.5" and 2x 2.5" HDDs and SSDs

• Fits into standard 5.25" mounting bays

• Decoupled mounting for 3.5" HDD

• Dimensions: 120 x 146 x 34 mm (L x W x H)

• Weight: ~120g

• Color: black

Package contents:

• 5.25" DIGITUS mounting frame

• 4x decoupler

• 4x mounting screws for 3.5" HDDs (coarse thread)

• 16x mounting screws for 2.5" HDDs/SSDs (fine thread)

• 4x mounting screws for the mounting frame (fine thread)

• Instruction Manual

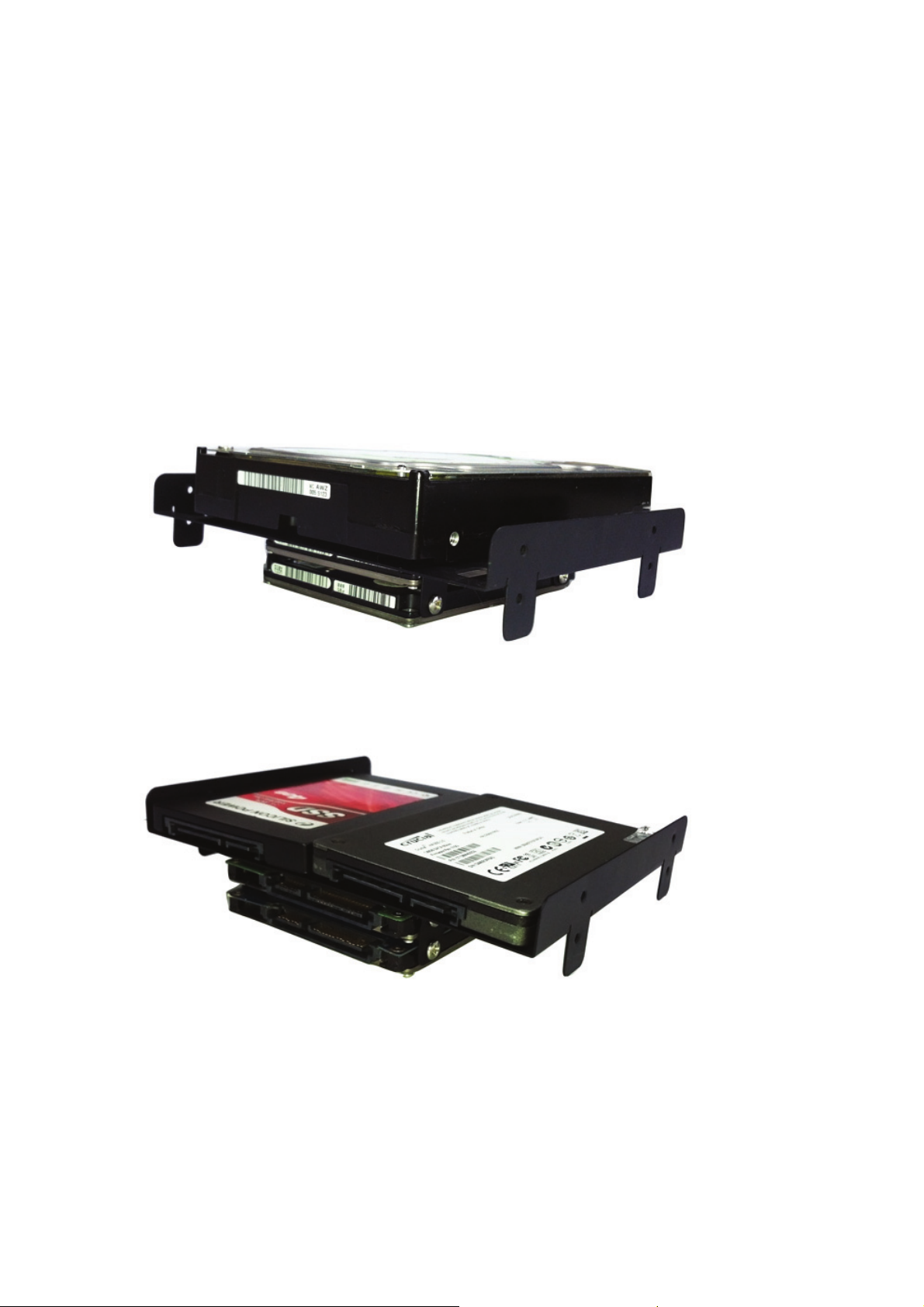

Installation 1:

1. Place two 2.5" HDDs/SSDs into the mounting bays on the top side of the

DIGITUS mounting frame.

2. Screw both HDDs/SSDs to the DIGITUS mounting frame from underneath

using the included ﬁne thread screws.

3. Place two 2.5" HDDs/SSDs into the mounting bays on the lower side of the

DIGITUS mounting frame.

4. Screw both HDDs/SSDs to the DIGITUS mounting frame from both sides

using the included ﬁne thread screws.

Alternatively, one 3.5" HDD and two 2.5" HDDs, or SSDs, can be mounted to

the DIGITUS simultaneously, at which the 3.5" HDD is mounted decoupled:

Installation 2:

1. Place one 3.5" HDD into

the mounting bay on the top side of the DIGITUS mounting frame.

2. Screw the HDD to the DIGITUS mounting frame from underneath through

the decouplers using the included coarse thread screws.

3. Place two 2.5" HDDs/SSDs into the mounting bays on the lower side of the

DIGITUS mounting frame.

4. Screw both HDDs/SSDs to the DIGITUS mounting frame from both sides

using the included ﬁne thread screws.

The DIGITUS mounting frame can be mounted to standard 5.25" bays of PC

cases and is attached with four ﬁne thread screws.

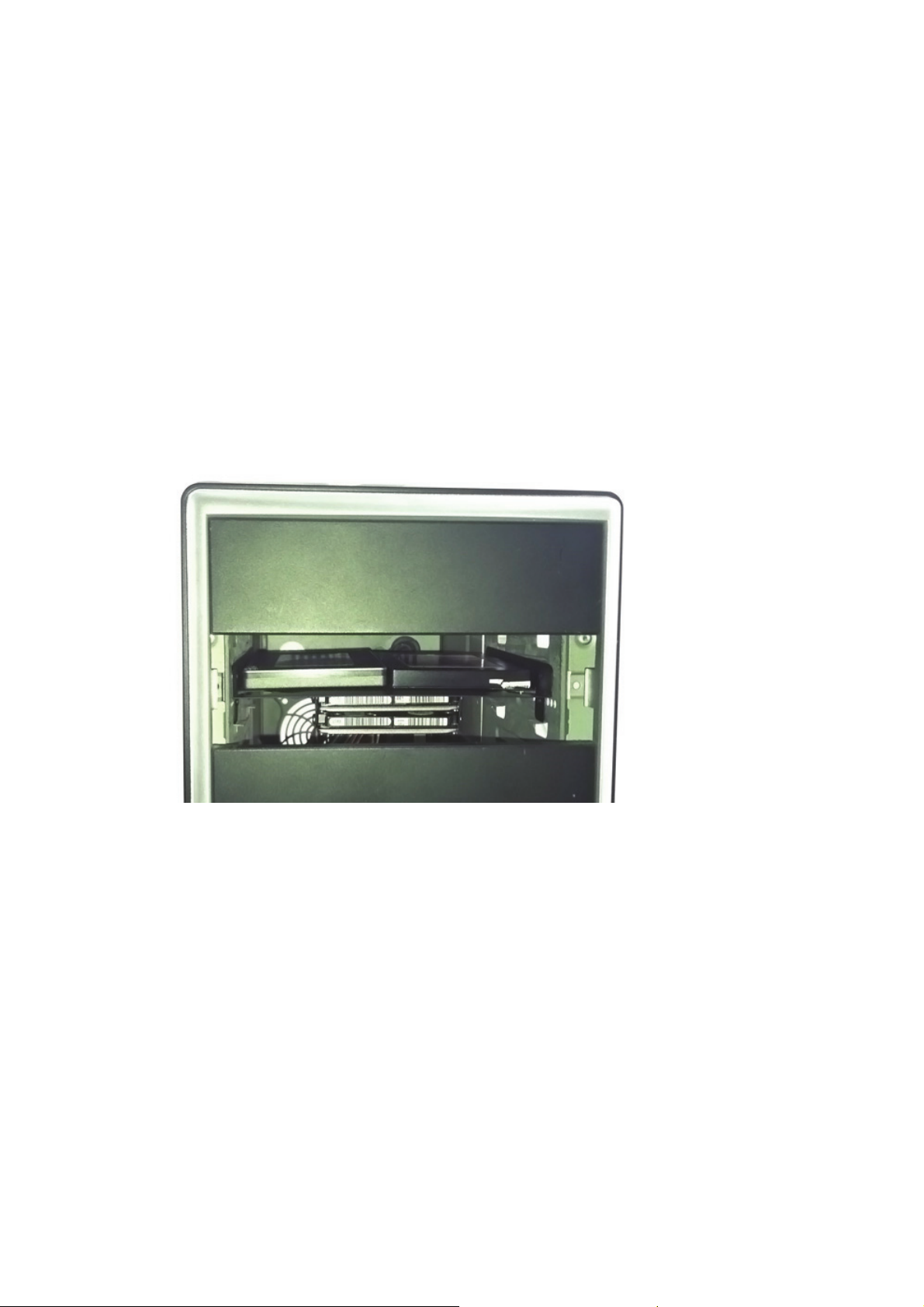

Installation 3:

1. Open the PC case.

2. Slide the

DIGITUS mounting frame with pre-installed HDDs into a 5.25"

mounting bay of the case. Refer to the installation guidelines included with

the case.

3. Screw the DIGITUS mounting frame to the case using the included ﬁne

thread screws. Refer to the installation guidelines included with the case.
