Introduction.

Thank you for choosing a Dimplex air conditioner.This manual contains information,

regulations and warnings which are of fundamental importance if the appliance is to be

installed correctly and the highest performance, in the safest possible conditions is to be

obtained.We suggest that you read the manual carefully before installing or starting up

the appliance.

The new Dimplex appliances represent the most highly developed air conditioning units

available today.

Features.

The air-conditioning unit is of the mono tube type, transferable (on Wheels) with air/air

operating system for domestic use and has 3 settings.

• Ventilate/Fan.

• Cool.

• Dehumidify.

The ventilation mode "moves" the air allowing for its recycling.

The cooling mode, a refrigerating circuit (compressor), cools the room by transferring

the heat from inside to outside though the air exhaust hose.While cooling, the air-

conditioning unit also dehumidifies the room air.

Humidity absorbed from the air condenses and turns into water that is collected in the

internal tank.The water level in the tank is automatically controlled by a float and micro

switch and when the preset level is exceeded the indicator above the 'Power' Switch will

light and the compressor will shut off automatically, the fan motor will stay on circulating

the air. At this time, you must empty the water tank as described in "Drainage" page 9.

Please Note!

During very humid conditions it will be necessary to empty the water tank more

frequently.

An added feature of this model, when enough water is collected in the tank, water is

automatically pumped up and through the condenser.The recycled water cools the

condenser which increases the cooling capacity output also evaporating some of the

water alleviating the frequency of having to empty the water tank.

Dehumidification, in the cooling mode your air-conditioner does remove moisture from

the air however another feature of this machine it, can be set up to operate as a

Dehumidifier with better moisture removal performance.

Specifications.

Cooling Capacity 9000BTU/hr

2270cal/hr

2638 watts

Power consumption 830 Watts

Air Volume (max setting) 400m3/h

Humidity removal capacity 18L/day

Net weight 31kg

Power supply 230-240V/50Hz

Compressor Rotary

Refrigerant R22

Fan Speed 2

Timer 1-8 hours

Thermostat 18-32°C

Dimension(WxDxH) 377x400x750 mm

Test Conditions Temperature 27°C

Humidity 60%

Important Safeguards.

• The air conditioning unit must always be stored and transported upright. Otherwise

you may cause irreparable damage to the compressor; in case of doubt we suggest

you wait for at least 24 hours before you start the air-conditioner.

• Avoid restarting the air conditioning unit unless 4 minutes have passed since it was

turned off or the compressor may suffer damage.

• Never use the mains plug as a switch to start and turn off the air conditioning unit.

Use the provided ON/OFF switch located on the control panel.

• Always place the portable air conditioner on a stable surface.

• Connect the portable air conditioner to a correct wall socket.

• Mount the exhaust hose on the portable air conditioner.

• The air conditioning unit should only be used by adults: do not allow children to play

with it.

Energy Saving Tips.

• Do not cover or restrict the airflow from the Outlet or Inlet grills.

Minimal distance from furniture and wall is 50cm.

• Keep blinds and /or draperies, on any windows, closed during the sunniest part of the

day.

• Keep the filter clean. Under normal conditions, the filters should be cleaned

approximately every 30 days. Since the filters remove airborne particles, more

frequent cleaning maybe necessary, depending on the indoor air quality.

• Set the fan speed switch to high cool and the thermostat to the coolest position for

the initial start-up, then set the Fan switch to Low cool and lower the thermostat to a

comfortable setting.

• Please read the instructions carefully and save them in a safe place for future reference.

1. Control panel

2. Cooling air outlet

3. Handle

4. Castors

5. Air filter

6. Air inlet

7. Exhaust air outlet

8. Cord storage

9. Water stopper (rubber plug inside)

Know your Air Conditioner.

Installation.

Mounting of the unit

This unit is a PORTABLE AIR CONDITIONER. It can be moved from room to room, so

the cooling can follow you anywhere.The mounting is easy, beneath a window or wall.

Please refer to either of the following ways -

1. Using the foam strips

• Connect the supplied foam

strips with the exhaust pipe,

let the hot air flow to the

outside.

• Should the foam strip(s) be

too large, cut off the extra

part to fit the window.

1. Adaptor - for insertion over hose and

into back of the air conditioner.

2. Adaptor - for insertion over hose and

into foam strip.

3. Exhaust hose.

4. Foam strip - for filling the open

window space and with hole for

connection to exhaust hose.

5. Foam strip - for filling the open

window space.

6. Round window connector.

7. Cap for round window connector.

8. Water tray.

Accessories.

OFF

Foam

strips

Adaptor

50cm

2. Using the round window

connectors.

• Make a hole (diameter 112mm)

in the wall/glass to fit the

supplied round window

connector.

• Take off the adaptor (the

one which does not connect

with the unit), fit the hose

directly to the round window

connector.

• When the hole is not in use.

Use the cap for the round

window connector to cover

the hole.

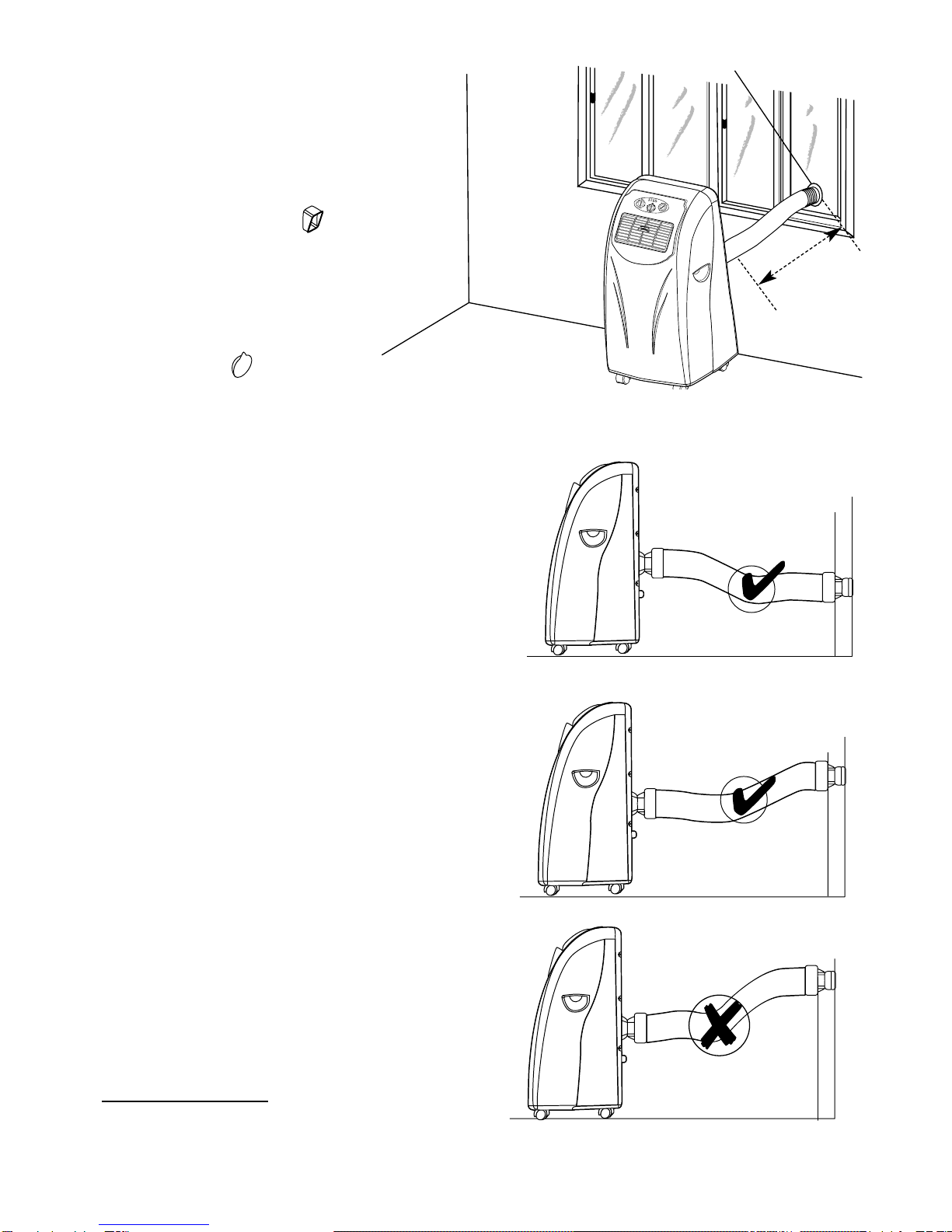

Mounting of the exhaust pipe

1. The supplied exhaust hose can be extended

from 300 to 1500mm for mounting. It is

recommended that you use the hose in the

shortest possible length.

2. Take care to prevent any bow or bend in

the middle of the exhaust hose, as this will

trap hot exhaust air, which will radiate into

the room and cause this unit to shut itself

off due to overheating.

WARNING!

The length of the exhaust pipe is specially

designed according to the specification of

this product. Do not replace or extend it

with your own private hose as this could

cause the unit to malfunction.

VOID WARRANTY

Round window

connector

50cm

Operation.

1. Power indicator

2. Fan operating indicator

3. Cooling operating indicator

4. FULL WATER indicator

5. Timer (1-8 hours) as well as ON/OFF

switch

6. Speed switch with options for - LOW FAN,

HIGH FAN, LOW COOL, HIGH COOL.

7. Thermostat

Turning ON/OFF

• Set TIMER to ON for continuous operation (the

unit will operate as long as it is not turned off).

Power indicator comes on.

• To turn off the unit, turn the TIMER to OFF position.

Setting the Temperature

Turn the THERMOSTAT to regulate the

temperature you desired. (This is for cooling mode

only.)

Set Timer

Set the TIMER to the desired operating time (1 to

8 hours).When the set time has been reached, the

machine will shut off automatically.

Regulating air flow direction

Turn the roller on air vent to control the air flow

direction of the vertical louvres.

Move the air vent directly to adjust the air flow

direction of the horizontal louvres.

NOTICE!

To prolong the compressor’s life, the compressor will only work 3 minutes after you switch the

unit on or re-switch on.The cooling system will switch off if the ambient temperature is lower

than the set one.The ventilation, however, keeps working on the set level. If the ambient

temperature rises above the selected level, the cooling will return to work.

DAC - 9000

1 2 3 4

LOW

FAN

HIGH

FAN

HIGH

COOL

LOW

COOL

Drainage.

During the process of cooling, water will be generated from the air and collected in the

water tank inside the unit.When the tank is full, the compressor will stop and the Full

Water indicator on the control panel will come on to remind you to empty the water

tank. During this time the fan will continue to operate, circulating the air.The water tank

should be emptied as follows:

1. Turn off the unit.

2. Position the supplied plastic water tray,

flat on the floor, under the drain hole.

3. Remove the water stopper and the

rubber plug. Empty the condensed

water from the air conditioner.

4. When the water tray is almost full,

replace the rubber plug to stop the

flow of water, empty the water tray.

5. Repeat step 2, 3, 4, till all the condensed

water is emptied.

6. After all condensed water is drained,

replace the rubber plug and water

stopper.

The FULL WATER indicator should be

off now.

ATTENTION!

1. All condensed water must be drained

prior to relocation or storage.

Water stopper

Rubber

plug Water

tray

Dehumidification.

NOTE! The machine operates in the cooling mode but it does not lower the room

temperature. It absorbs the excessive humidity present in the air.

1. Plug the unit into proper electrical outlet.

2. Position the exhaust tube as shown or remove

from the air-conditioner.

3. Turn the TIMER to position ON or 1 to 8

hours automatic timer setting.

4. Set the FAN SPEED control to the desired

output of airflow, high or low.

5. Set the THERMOSTAT to the maximum

cooing position.

6. When the water tank is full, the light above

'Power' switch will light and the compressor will

shut off automatically, the fan will stay on circulating the air. At this time, you must

empty the water tank as described "Draining the Condensed Water".

Continuous Drainage.

In very humid conditions to avoid the unit from continually shutting down when the

water tank is full the unit can also be continuously drained if a convenient drainage

position is available.

Important!

The water is only gravity drained therefore the tube must lay lower and drain at a lower level

than the outlet tube at the rear of the air conditioner.

• Before operating the air conditioner, remove the water stopper, take out the

rubber plug and connect a PVC tube 12mm diameter.

Maintenance.

Always unplug the unit from the mains before beginning the cleaning.

Cleaning the housing

• Use a soft, damp cloth to wipe the body clean.

• Never use aggressive chemicals, gasoline, detergents, chemically treated cloths, or

other cleansing solutions.These all could possibly hurt the cabinet.

Cleaning the filter

• Use a vacuum cleaner or tap the filter lightly to remove loose dust and dirt from the

filters and then rinse thoroughly under running water (no hotter than 40°C).

• Dry thoroughly before replacing.

Indice

Altri manuali Dimplex Condizionatore d'aria

Dimplex

Dimplex DAC12004RC Manuale utente

Dimplex

Dimplex DAC12006R Manuale utente

Dimplex

Dimplex CAB10A Manuale utente

Dimplex

Dimplex GDC-SS24RCW Manuale utente

Dimplex

Dimplex DC10RC Manuale utente

Dimplex

Dimplex DAC12004RC-2 Manuale utente

Dimplex

Dimplex DC10RC Manuale utente

Dimplex

Dimplex DCEVPT8L Manuale utente

Dimplex

Dimplex DCP9WT Manuale utente

Dimplex

Dimplex DPRC35ECO Manuale utente

Dimplex

Dimplex GDPAC12 Manuale utente

Dimplex

Dimplex DAC 12005 Manuale utente

Dimplex

Dimplex GDC16RWA Manuale utente

Dimplex

Dimplex GDC16RWA Manuale utente

Dimplex

Dimplex DCP16C Manuale utente

Dimplex

Dimplex DPRC40U Manuale utente

Dimplex

Dimplex DCEVP20 Manuale utente

Dimplex

Dimplex EVA-12 Manuale utente

Dimplex

Dimplex GDC-AC9RCS Manuale utente

Dimplex

Dimplex DAC 12000R Manuale utente

Dimplex

Dimplex GDC10RWA Manuale utente

Dimplex

Dimplex DCP11MULTI Manuale utente

Dimplex

Dimplex DAC12AC Manuale utente

Dimplex

Dimplex CAB10AR Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
