Dimplex Electricaire R7 Manuale utente

WARM AIR HEATING SYSTEM

Models: R7 - 7kW / 46kWh, R8 - 8kW / 57kWh, R10 - 10kW / 69kWh,

R12 - 12kW / 80kWh, R15 - 15kW / 103kWh

USER INSTRUCTIONS

IMPORTANT

PLEASE READ THIS LEAFLET CAREFULLY AND

RETAIN FOR FURTHER USE. NOTE ALSO THE

INFORMATION GIVEN ON THE HEATER

ELECTRICAIRE

• WARNING - THE SURFACES ON THIS HEATER CAN BE HOT.

• This heater meets BS 3456 safety requirements. However, any heater type becomes hot in normal operation. Care

must be taken to ensure that prolonged skin contact with the heater does not occur.

WHERE YOUNG CHILDREN, INFIRM PERSONS, OR THE AGED ARE LIKELY TO BE LEFT UNSUPERVISED

IN THE VICINITY OF THE HEATER WE RECOMMEND THAT A GUARD IS FITTED. Contact your installer or the

manufacturer for further advice.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• THIS APPLIANCE IS EXTREMELY HEAVY. THE FLOOR MUST BE CHECKED TO ENSURE THAT IT IS CAPABLE

OF BEARING THE WEIGHT OF THE UNIT, UP TO 750KG (¾ TON). DO NOT UNDER ANY CIRCUMSTANCES

ATTEMPT TO MOVE OR REPOSITION THIS HEATER WITHOUT SEEKING EXPERT ADVICE.

• To maintain stability, it is essential that the heater is placed on a level surface.

• The heater must be installed where it is impossible for switches and other controls to be touched by a person using

a bath or shower.

• IMPORTANT - Due to the newness of materials the heater will produce a slight smell for the ﬁrst few days of

operation. ROOMS MUST BE WELL VENTILATED AND YOUNG CHILDREN, CAGED BIRDS, OR PERSONS

WITH RESPIRATORY COMPLAINTS MUST NOT REMAIN IN CLOSE PROXIMITY TO THE HEATER DURING

THE FIRST 48 HOURS OF THE COMMISSIONING PERIOD.

• IF, DURING ANY REASSEMBLY OF THE HEATER, A PART OF THE THERMAL INSULATION SHOWS DAMAGE

OR DETERIORATION WHICH MAY IMPAIR SAFETY, IT SHOULD BE REPLACED BY AN IDENTICAL PART.

• The heater must stand at least 50mm clear of any walls and 150mm below ceilings.

USER INSTRUCTIONS

PRINCIPLES OF OPERATION

The warm air system is designed to operate on cheap rate electricity.

The heater takes in energy when electricity tariffs are low, and

retains it in the insulated core. Warm air is provided directly from

the unit mounted on a plenum or through duct work, by the operation

of a fan. The fan may be controlled by a central thermostat and/

or a time clock.

SAFETY INSTRUCTIONS

1. VENTILATE ROOM WELL DURING COMMISSIONING.

2. DO NOT MOVE THE HEATER IN ANY WAY ONCE

INSTALLED, WITHOUT THE SERVICES OF A COMPETENT

ELECTRICIAN.

3. DO NOT COVER THE HEATER WITH CLOTHING ETC. AT

ANY TIME, OR POSITION FURNITURE, OR ANY OBJECT,

CLOSE TO OR AGAINST THE HEATER.

ALSO REFER TO COVER PAGE

COMMISSIONING

The heater should be commissioned in accordance with the

installation instructions - by the installing engineer.

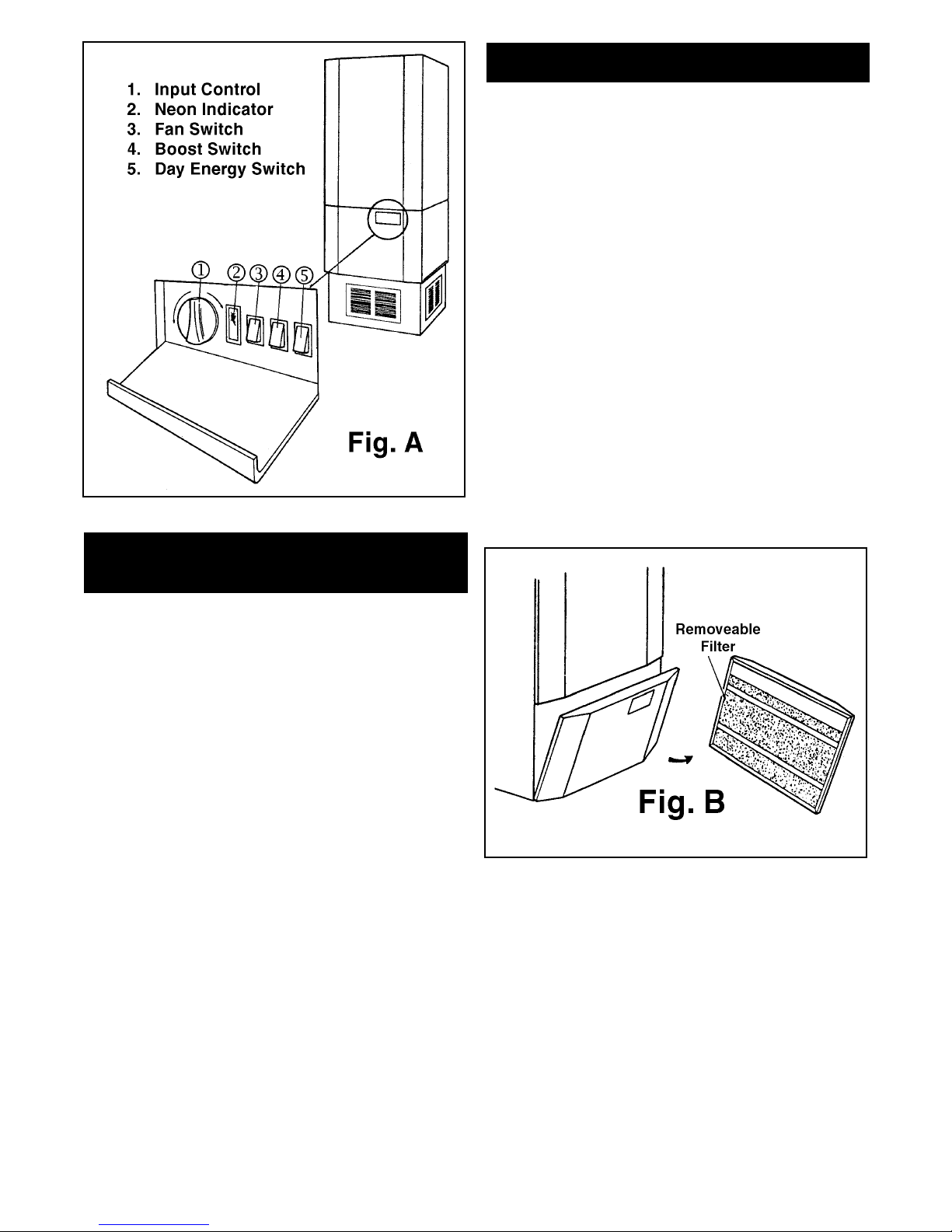

CONTROL FUNCTIONS - see Fig. A

1. INPUT CONTROL

The input controller is a thermostat which regulates the amount

of energy taken by the heater during the hours when cheap rate

electricity is available. Turning the knob clockwise increases the

amount of heat stored. The setting should be adjusted from MIN

to MAX to suit seasonal requirements.

2. NEON INDICATOR & 3. FAN SWITCH

To obtain heat from the Electricaire Unit press the fan switch

to the ON position. The fan indicator light will now glow red.

If the fan is controlled by a room thermostat it will switch off

automatically when the room temperature reaches the required

level. The fan should be switched off before retiring at night.

This function may be performed by installing a time clock.

4. BOOST SWITCH

The boost switch increases the airflow delivered by the

Electricaire Unit. This facility is designed to produce a rapid rise

in room temperature, e.g. ﬁrst thing in the morning or when you

return home in cold weather.

5. DAY ENERGY SWITCH

If your Electricaire Unit is connected to the “White Meter” tariff

the day energy switch operates direct acting elements. This

facility extends the heat output obtainable from the Electricaire

Unit by using day energy after the core has been fully discharged.

To avoid unnecessary use of day rate energy the following

safeguards have been built into the appliance.

Day energy can only be used if:

The Day Energy switch is in the ON position.

The fan switch is in the ON position.

The outlet air temperature has fallen below a pre-determined

level.

In addition ensure the input is set at MAX.

ROOM ENVIRONMENTAL

CONTROLS

The installation may be ﬁtted with several additional environmental

controls.

A room thermostat may be ﬁtted in the room. This thermostat

controls the operation of the heater fan. Adjust the setting until a

comfortable environment is achieved.

Note however the higher the thermostat setting the higher the

running costs.

Where duct work is installed individual rooms will be ﬁtted with

supply air registers. If a room is not in use the supply registers

can be closed.

MAINTENANCE

A washable ﬁlter is ﬁtted to ensure the warm air distributed is clean

and free from dust. The ﬁlter is located in the detachable lower panel

and should be washed in warm soapy water at least twice a year

(see Fig. B). The ﬁlter panel can be removed by pulling the top end

away from the heater and lifting out the location hooks.

To maintain the appearance of the heater, wipe occasionally with

a dry cloth when the heater is cool. Do not use abrasive powders

or furniture polish.

IMPORTANT - Do not remove any panel before isolating the heating

unit from all electrical supplies. Additional maintenance should

only be carried out by a trained engineer or electrician. When

required contact your local electricity board or the installer. Regular

inspection should take place, at least every two years.

ELECTRICAIRE

71035 Issue 11 : 05.09

Installer Note: Please ensure that the USER INSTRUCTIONS are handed to the User when

you have completed the installation if applicable, or left with the heater if the building is unoccupied when

the installation is carried out.

User Note: These instructions give important advice on how to get the best out of your new heater.

Please read them carefully and keep them in a safe place for future reference.

Dimplex UK Ltd,

Millbrook House,

Grange Drive,

Hedge End,

Southampton,

Hampshire,

SO30 2DF

After Sales Service: Your product is guaranteed for one year from the date of purchase.

Within this period, we undertake to repair or exchange this product free of charge (subject to availability)

provided it has been installed and operated in accordance with these instructions.

Your rights under this guarantee are additional to your statutory rights, which in turn are not affected

by this guarantee.

Should you require after sales information or assistance with this product please go to

www.dimplex.co.uk where you will ﬁnd our self help guide by clicking on ‘After Sales’ or ring our help

desk on 0845 600 5111 (UK) or 842 4833 (ROI). It would assist us if you can quote the model number,

series, date of purchase, and nature of the fault at the time of your call. The customer services help

desk will also be able to advise you should you need to purchase any spares. Spare parts are also

available on the website www.dimplex.co.uk.

Please do not return a faulty product to us in the ﬁrst instance as this may result in loss or damage and

delay in providing you with a satisfactory service.

Please retain your receipt as proof of purchase.

Recycling:

For electrical products sold within the European Community. At the end of the electrical

products useful life it should not be disposed of with household waste. Please recycle

where facilities exist. Check with your Local Authority or retailer for recycling advice in

your country.

Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing.

A division of the GDC Group Ltd, Millbrook House, Grange Drive, Hedge End, Southampton SO30 2DF

Tel: 0845 600 5111

Fax: 01489 773 050

Web-site www.dimplex.co.uk
