PARTS AND SERVICE MANUAL

FOR

DIMPLEX PURIFIRE ELECTRIC STOVE

Model TDS8515

7400050000R01

ROUBLESHOOTING GUIDE................................................................................................ 17

TableofContents

OPERATION ............................................................................................................................. 2

WIRING DIAGRAM ................................................................................................................... 5

REPLACEMENT PARTS........................................................................................................... 7

UPPER LIGHT BULB REPLACEMENT..................................................................................... 8

LOWER LIGHT BULB REPLACEMENT.................................................................................... 9

TO REPLACE THE FILTER .................................................................................................... 10

TO REPLACE MAIN POWER, MANUAL SELECTION, AND LIGHT SWITCHES .................. 11

TO REPLACE THE HEATER ASSEMBLY.............................................................................. 12

TO REPLACE THE CIRCUIT BOARD..................................................................................... 13

TO REPLACE FLAME MOTOR/FLAME ROD......................................................................... 14

TO REPLACE THE POWER CORD........................................................................................ 15

TO REPLACE THE THERMOSTAT........................................................................................ 16

OPERATION

To access the controls, go to the back of the stove.

A. MAIN POWER ON/OFF SWITCH

The main on/off switch supplies power to all unit

functions (flame, purifire, heater).

B. MANUAL SELECTION SWITCH

To choose between flame effect setting, flame

effect with Purifire™ setting, and flame effect with

Purifire™ and heat setting.

C. INTERIOR LIGHT ON/OFF SWITCH

The interior light on/off switch supplies power to

the interior light.

D. HEATER THERMOSTAT CONTROL

To adjust the temperature to your individual

requirements, turn the thermostat control

clockwise all the way to turn on the heater.

When the room reaches the desired temperature,

turn the thermostat knob counter clockwise until

you hear a click. Leave in this position to maintain

the room temperature at this setting. For additional

heat, turn clockwise until you hear the click again

and the heater will turn on.

RESETTING THE TEMPERATURE CUTOFF SWITCH

Should the heater overheat, an automatic cut out will turn the heater off and it will not come

back on without being reset. It can be reset by switching the MAIN ON/OFF SWITCH to OFF

and waiting 5 minutes before switching the unit back on.

CAUTION

If you need to continuously reset the heater, unplug the unit and call Dimplex technical support

at 1-888-DIMPLEX (1-888-346-7539) Extension 4.

NOTE

The heater may emit a slight, harmless odor when first used. This odor is a normal condition

caused by initial heating of internal heater parts and will not occur again.

REMOTE CONTROL USAGE

This stove is supplied with a radio frequency remote control. This remote control has a range

of approximately 50 feet (15.25m); it does not have to be pointed at the fireplace and can pass

through most obstacles (including walls). It is supplied with one of 243 independent

frequencies to prevent interference with other units. The frequency code is indicated on the

back of the transmitter.

A. Remote Control Initialization

This procedure is required every time there is a loss

of power to the remote control in the fireplace.

(I.e. power failure, breaker tripped, main power switch

is turned off)

1. Ensure that power is supplied through main

service panel.

2. Locate manual controls. (refer to FIGURE 3)

3. Activate main power switch, (“ ” position) red

indicator light 1 will flash.

4. Press and hold the manual selection switch for five

seconds (“ ” position) UNTIL the second red

indictor light flashes.

5. Press ON button located on the remote control

transmitter (FIGURE 2). This will synchronize the

remote control transmitter and receiver.

B. Remote Control Usage

The remote control operates the fireplace levels

sequentially. The level is increased every time the

ON button on the transmitter is pressed. The

fireplace can be turned off at any point by pressing

the OFF button on the remote control transmitter.

Level 1: The flame effect is turned on and the first red

indicator light is activated.

Level 2: The flame effect remains on, the Purifire™

is activated, and the first and second red

indicator lights are activated.

Level 3: The flame effect and Purifire™ remain on,

the heater is activated, and all three red

indicator lights are activated.

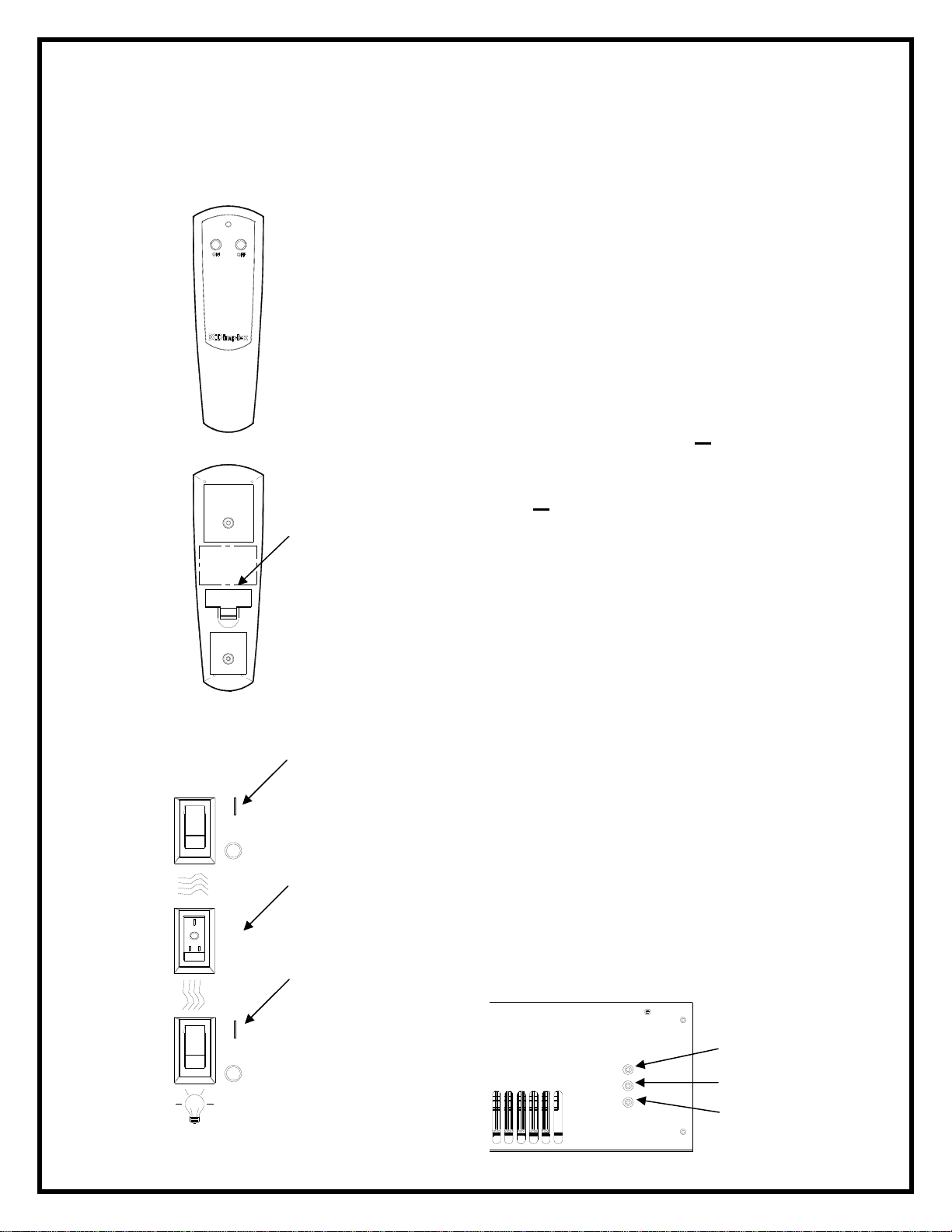

Interior

Light

Switch

FIGURE 2

Manual

Selection

Switch

Main

Power

Switch

Level 3 Indicator

Level 2 Indicator

Level 1 Indicator

FIGURE 3

FIGURE 4

Frequency

Code

MANUAL SELECTION SWITCH

Operates the electric fireplace in the same manner as the remote control transmitter. Pressing

the switch up (“ I” position) has the same effect as the ON button on the remote control and

pressing the switch down (“ II ” position) has the same effect as the OFF button of the remote

control. Pressing the switch up once activates Level 1, twice activates Level 2, and three

times activates Level 3. Pressing the switch down turns the electric fireplace OFF.

Level 1: The flame effect is turned on and the first red indicator light flashes momentarily.

Level 2: The flame effect remains on, the heater is activated to the low heat setting, and the

first and second red indicator lights flash momentarily.

Level 3: The flame effect remains on, the heater is set to the high heat setting, and all three

red indicators flash momentarily.

WIRING DIAGRAM

TDS8515

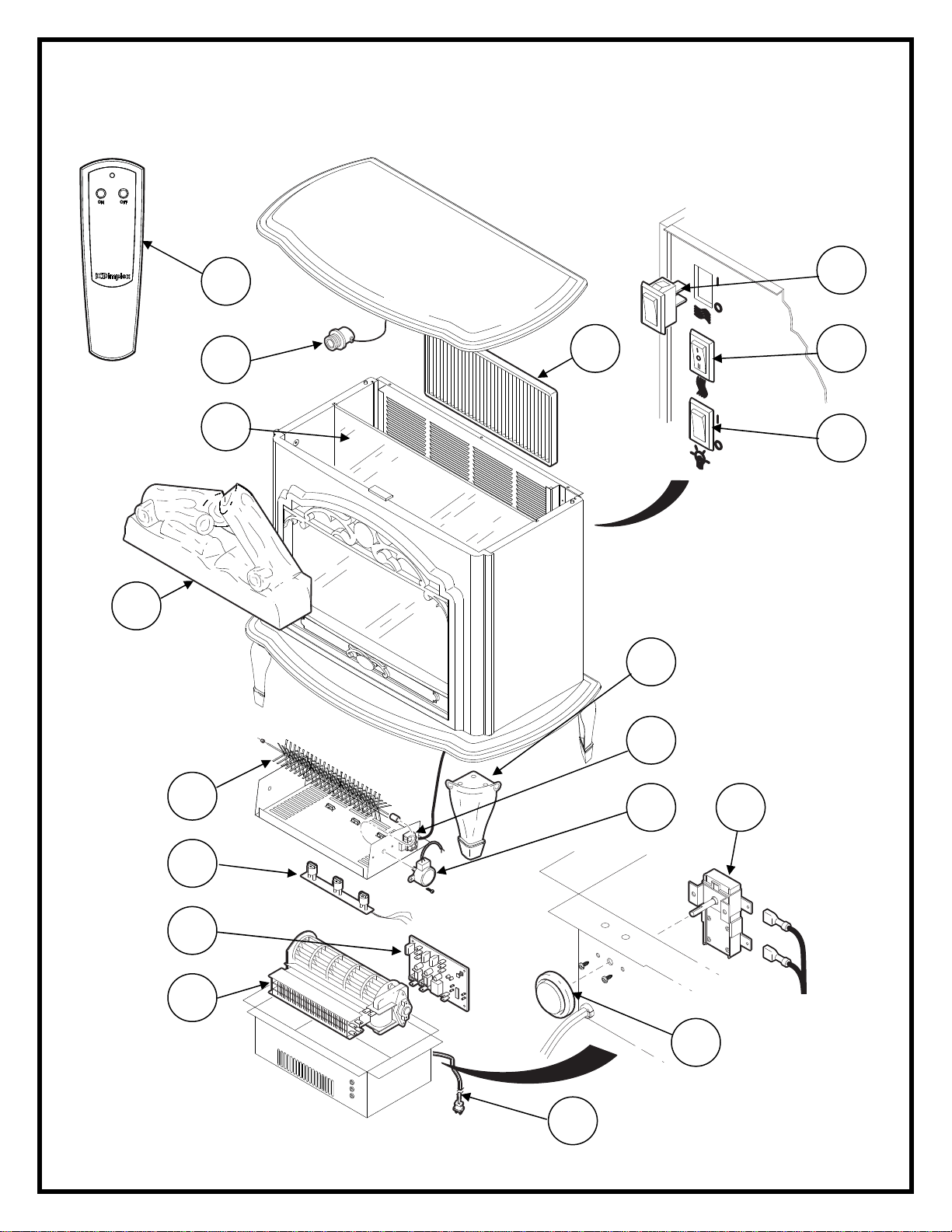

REPLACEMENT PARTS

STOVE, ELECTRIC 23", PURIFIRE

CATALOGUE NO. TDS8515

PART NO. 69004712**

MADE IN: CHINA

REPLACEMENT PART REPLACEMENT PART NO.

1. LOG SET 0438200200RP

2. FOOT 0438210104RP

3. FLAME MOTOR 2000210100RP

4. HEATER ASSEMBLY 2000230100RP

5. THERMOSTAT 2300150100RP

6. LOWER LIGHT HARNESS 2500280100RP

7. ON/OFF SWITCH 2800070500RP

8. HEATER ON/OFF SWITCH 2800070200RP

9. UPPER LIGHT ON/OFF SWITCH 2800070200RP

10.CORD SET 4100040300RP

11.UPPER LIGHT HARNESS 4200120400RP

12.MIRROR 5900060600RP

13.REFLECTOR ASSEMBLY 5900080600RP

14.FILTER 0439060100RP

15.TERMINAL BLOCK 4000070100RP

16.KNOB CONTROL 8800000300RP

17.REMOTE TRANSMITTER 3000370600RP

18.REMOTE RECEIVER (3-STAGE) Mod 0 - C 3000431100RP

Mod D 3000820600RP

** = Colour code

TDS8515

If unit was operating prior to servicing allow at least 10 minutes for light bulbs and

heating element to cool off to avoid accidental burning of skin.

Disconnect power before attempting any maintenance or cleaning to reduce the risk of

electric shock or damage to persons.

Light bulbs need to be replaced when you notice a dark section of the flame. There are

four bulbs under the log set which generate the flames and embers.

It is a good idea to replace all of the light bulbs at one time if they are close to the end of

their rated life. Group replacement will reduce the number of times you need to open

the unit to replace the light bulbs.

UPPER LIGHT BULB REPLACEMENT

1. Remove the 2 screws at the upper corners of the back panel.

2. Lift the back end of the top to clear the brackets and pull back. Lift top carefully and

place to the side of the stove.

3. Caution should be taken as the top mounting brackets may scratch the finish.

4. Hold the socket while unscrewing the bulb.

5. Hold the socket while screwing in the new bulb.

6. Re-install the top of the stove.

LIGHT BULB REQUIREMENTS

Quantity of 1 clear chandelier or candelabra bulbs with an E-12 (small) socket base,

15 watt rating.

TDS8515

If unit was operating prior to servicing allow at least 10 minutes for light bulbs and

heating element to cool off to avoid accidental burning of skin.

Disconnect power before attempting any maintenance or cleaning to reduce the risk of

electric shock or damage to persons.

Light bulbs need to be replaced when you notice a dark section of the flame. There are

four bulbs under the log set which generate the flames and embers.

It is a good idea to replace all of the light bulbs at one time if they are close to the end of

their rated life. Group replacement will reduce the number of times you need to open

the unit to replace the light bulbs.

LOWER LIGHT BULB REPLACEMENT

1. Gently place stove on its back on a flat surface.

2. Remove the thermostat knob.

3. Remove the heater cover retaining screws located on the bottom of the stove and

lower heater/light assembly onto the floor.

4. Remove the burnt out bulbs by pulling straight out of the socket. If bulbs are difficult

to remove from socket, move bulb from side to side while pulling, being careful not to

damage the light socket.

5. Replace lower light bulbs

6. Caution should be taken not to touch the glass portion of the new halogen bulbs.

Doing so may lead to shorter bulb life.

7. Reassemble in the reverse order as above.

LIGHT BULB REQUIREMENTS

Quantity of 3 -35 watt Halogen Quartz lamps, 120 volt, G9 base
