Dini Argeo LTP Manuale utente

www.diniargeo.com

LTP

Hydraulic weighing system for forklift truck

ENGLISHOPERATING INSTRUCTIONS

Optimized layout for A4 print.

USER_MAN_ENG_LTP

Contents

Introduction 4

Warnings 4

Display and keyboard 5

Accuracy factors 7

Weight reading 8

Basic functions 8

Ignition - On 8

Switching off 9

Zero 9

Adjusting the display brightness 9

Auto-weighted tare 10

Tare cancellation 10

Setting a known tare value (PT) 11

Print 12

Metric information 12

Additional functions for models with numeric keypad 13

Archive 30 tares 13

Automatic tare cancellation 14

Numeric IDs 15

Date and time 16

Printing (and reprinting of the last receipt) 17

Metric information 18

Advanced scale functions 19

How to enter the functions menu 19

Horizontal totalization 20

Exchange between net and gross weight 22

Unit of measure conversion 23

Configuration menu 25

Maintenance 30

Replacing the printer paper roll 30

Optimized layout for A4 print.

USER_MAN_ENG_LTP

Dear customer,

Thank you for purchasing a DINI ARGEO product.

This manual explains the usage of the hydraulic weighing system for forklift trucks.

In particular, zero, tare and all the function of the weighing electronic are described, to assist the forklift driver during use.

For any additional information or speciﬁc requests, please contact your local dealer.

This publication is optimized for A4 printing.

Introduction

• The weighing system does not change the safety regulations normally applied to the forklift truck.

• Before weighing, make sure that the lift truck is stationary, on a ﬂat surface and that there are no people in the area around the load.

• The employee training on the use of the system is the purchaser’s responsibility.

• Please read this manual carefully before using the system.

• Assistance must only be carried out by personnel authorized by Dini Argeo.

• Dini Argeo is not responsible for any weighing errors resulting from improper use of the system.

Warnings

Optimized layout for A4 print.

7 8

USER_MAN_ENG_LTP

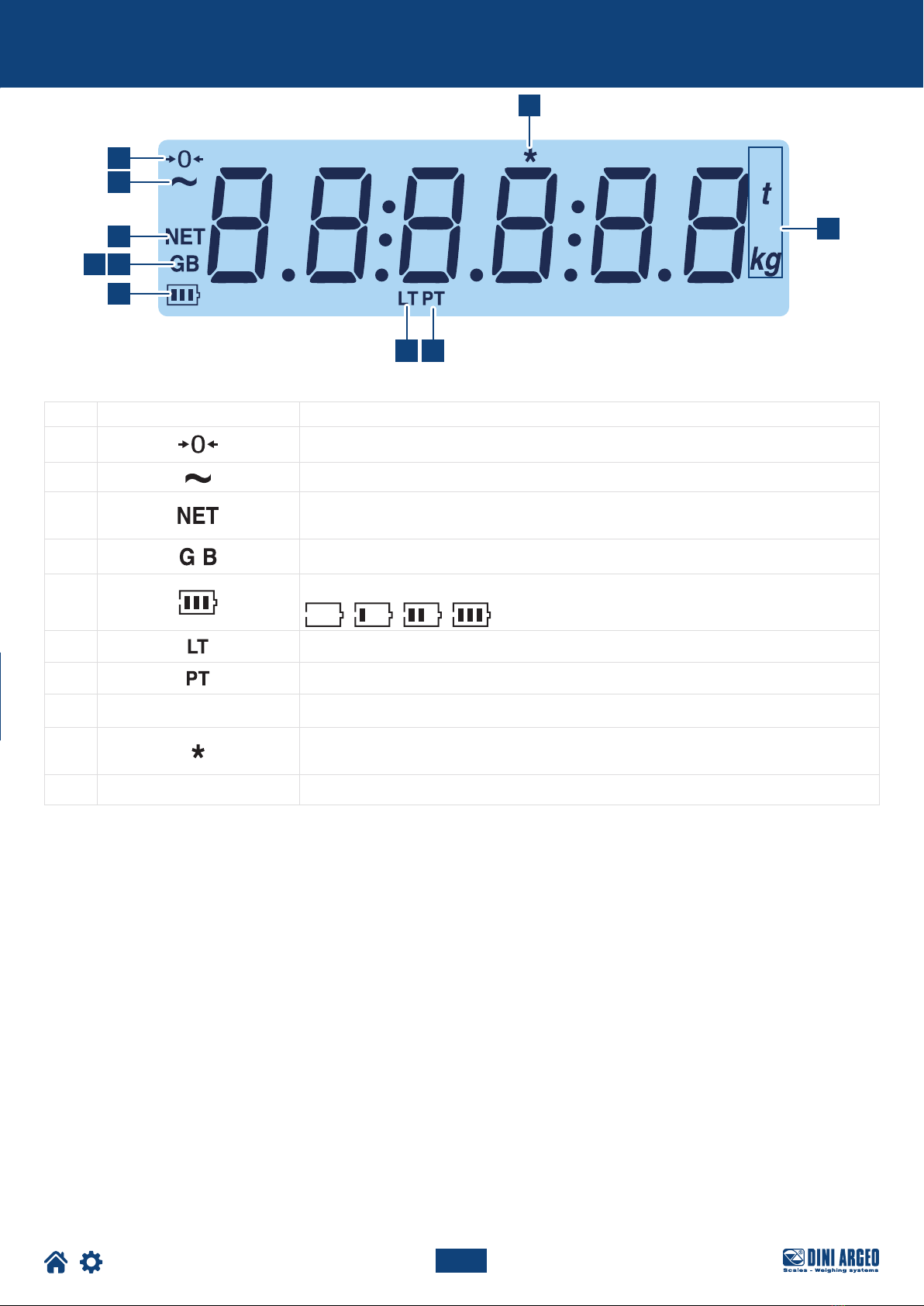

POS. ICON DESCRIPTION

1Indicates that the scale is unloaded (gross zero).

2Indicates that the weight is unstable.

3The net weight is displayed.

note: there is a tare in memory.

4 / 5 The gross weight is displayed.

6Indicates the battery level:

7AND activates a locked tare.

8AND activates a manual tare.

9lb ... kg Indicates the units of measurement: pounds (lb), tonnes (t), kilograms (kg), grams (g).

10 Indicates when a key is pressed. In some operating modes it indicates the activation of

a speciﬁc function.

11 ---- Weight acquisition phase.

Display and keyboard

Optimized layout for A4 print.

USER_MAN_ENG_LTP

WARNING!

For a clearer view and advanced key and mode functions, see the chapter “BASIC FUNCTIONS” and “ADVANCED FUNCTIONS”.

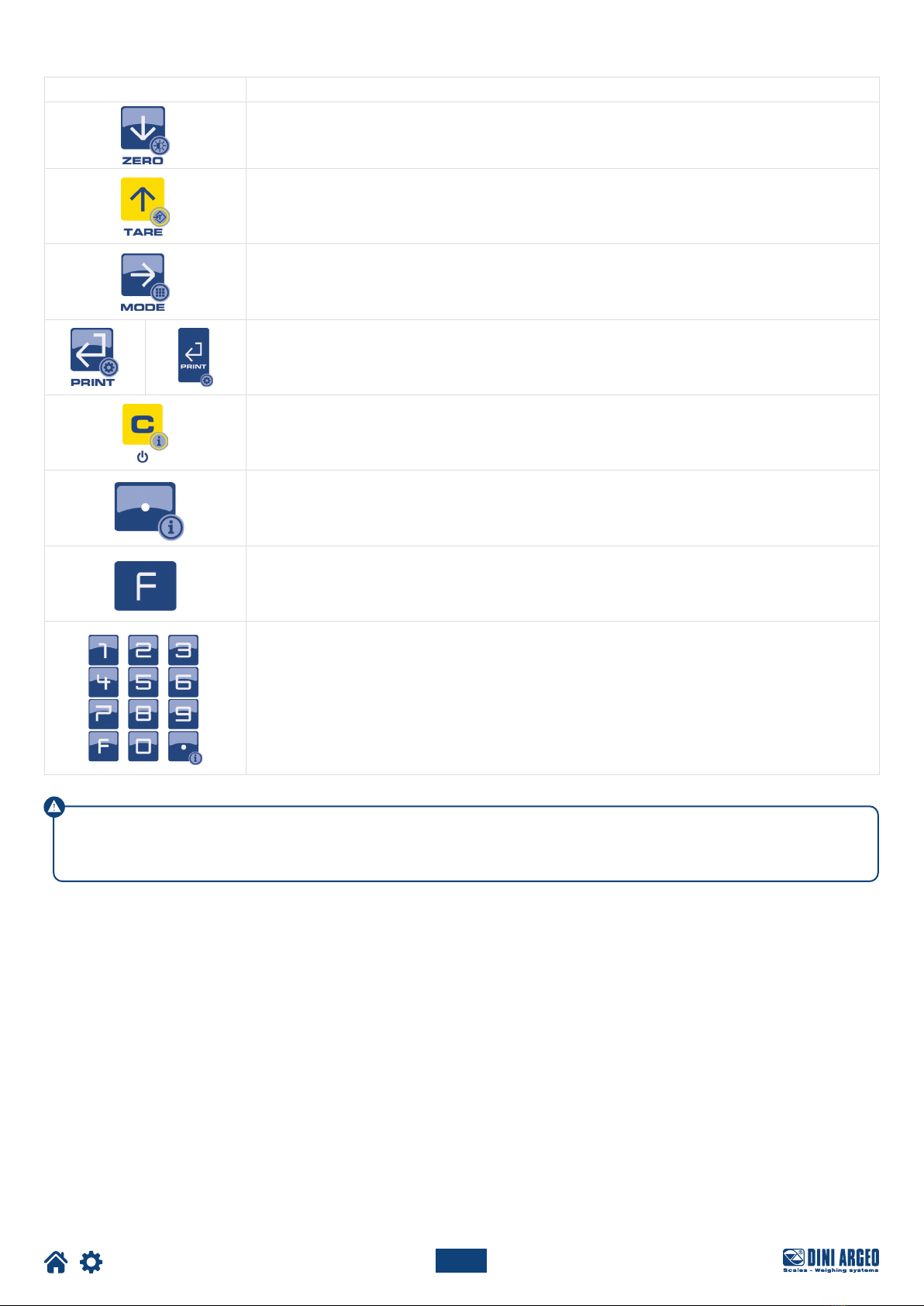

Button Description

• Resets the weight value on the scale.

• If pressed for a long time (2 sec), it allows you to set the brightness of the display.

• Performs tare on the scale.

• If pressed for a long time (2 sec) it allows you to insert a preset tare.

• Recalls the function speciﬁc to the operating mode.

• If pressed for a long time (5 sec) it allows you to change the operating mode.

• Conﬁrm key.

• Print the receipt.

• If pressed for a long time (5 sec) it allows you to enter the conﬁguration menu.

• If pressed for 2 seconds, it turns o the instrument.

• If pressed for 5 sec it shows the metrological information.

If pressed and held (2 sec) it shows the metrological information.

Performs the function (followed by pressing a number).

Allows you to quickly set a numeric value.

Optimized layout for A4 print.

USER_MAN_ENG_LTP

The system is based on the measurement of the oil pressure contained in the hydraulic lifting circuit by means of a speciﬁc sensor. This

pressure depends on the load on the forks and the height of the forks themselves, which is why the weighing operations must always be

carried out at the same height (indicated by the stickers).

The theoretical precision of the LTP system, correctly installed on suitable forklifts and used under optimal conditions, varies from

0.5% to 5% of the capacity (min. 20 kg).

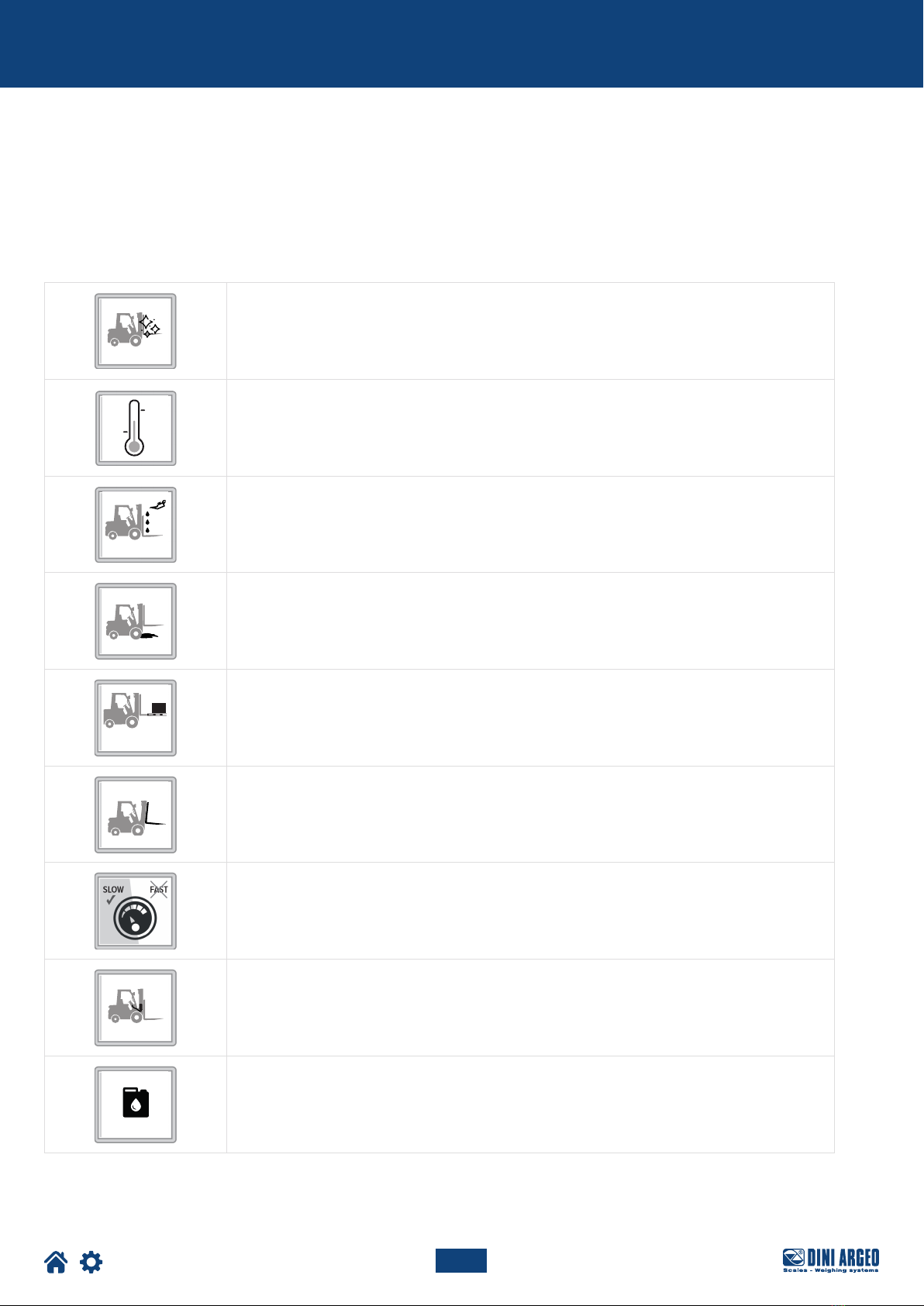

This accuracy is adversely aected by the following factors:

Type and state of wear of the forklift.

- 10° C

+ 50° C

Ambient temperature: the temperature range of the sensor is from - 10° C to + 50° C.

Mechanical friction: keep sliding parts clean and lubricated.

Oil leaks.

Load position on the forks: the gravity centre of the load must be positioned in the centre of the

forks.

Tilt of the forks: for proper weighing, position the forks at 90° to the ground.

Lifting speed: lift the load at a constant speed and without sudden dashes so as to avoid jolts.

Position of the sensor inside the hydraulic circuit. Refer to the technical manual for sensor instal-

lation.

Type of oil in the hydraulic circuit: use oils with low viscosity and suitable for a wide temperature

range.

Accuracy factors

Optimized layout for A4 print.

0550

----

USER_MAN_ENG_LTP

Basic functions

Ignition - On

Visualization Display:

Condition of the forklift truck:

Visualization Display:

Condition of the forklift truck:

Visualization Display: Visualization Display:

Condition of the forklift truck: Condition of the forklift truck:

Visualization Display:

Condition of the forklift truck:

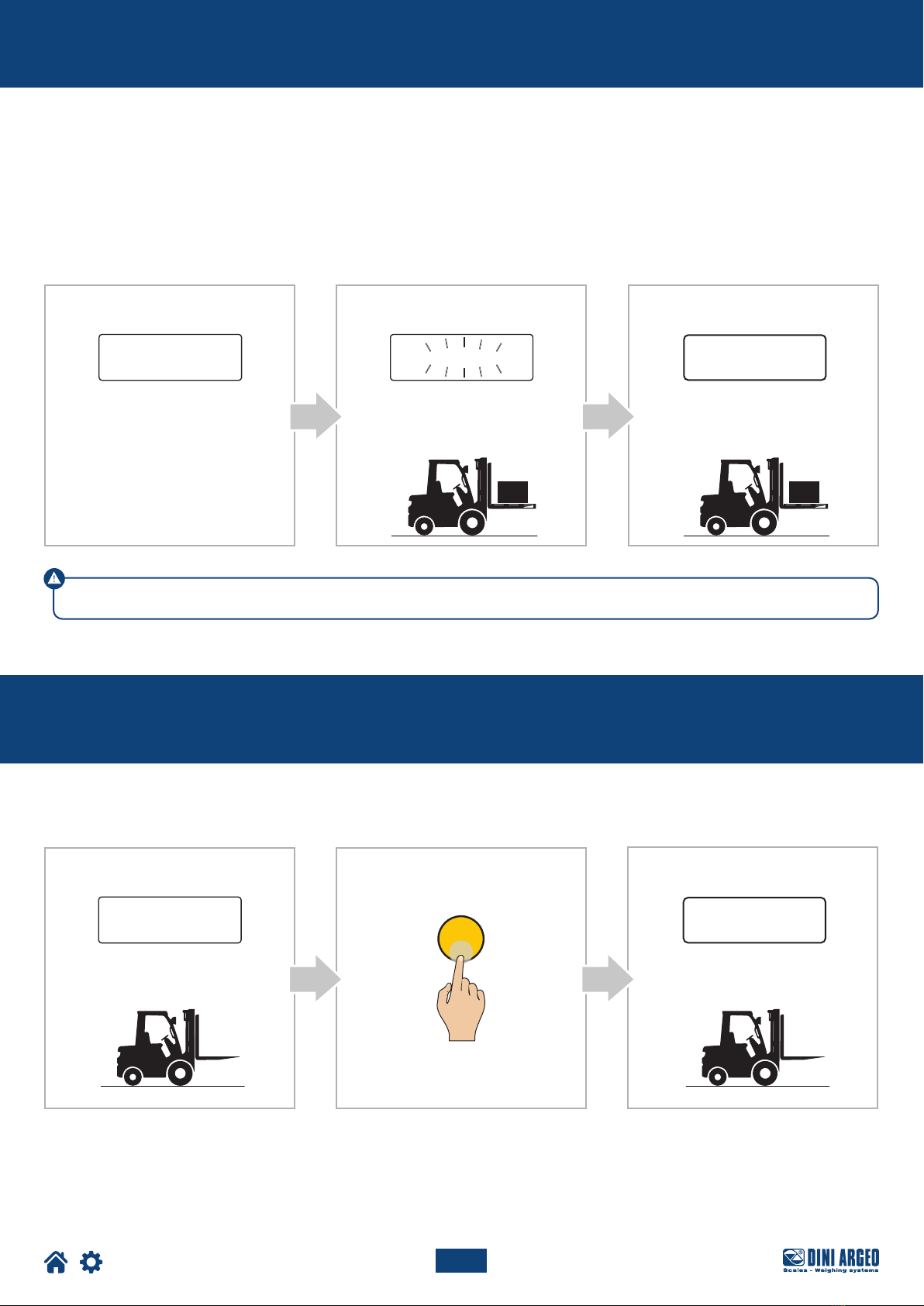

Weight reading

Before turning on the indicator, make some lifting with empty forks (at least 5) to heat the oil temperature inside the hydraulic circuit.

With the forks down (without touching the ground), turn on the weight indicator and wait for it to zero.

During load acquisition the display shows: ----

At the end of the acquisition, the weight is shown.

Between weighings it is necessary to return the weight to 0 by unloading and lowering the forks.

Optimized layout for A4 print.

-off-

A B C

brGt 0

USER_MAN_ENG_LTP

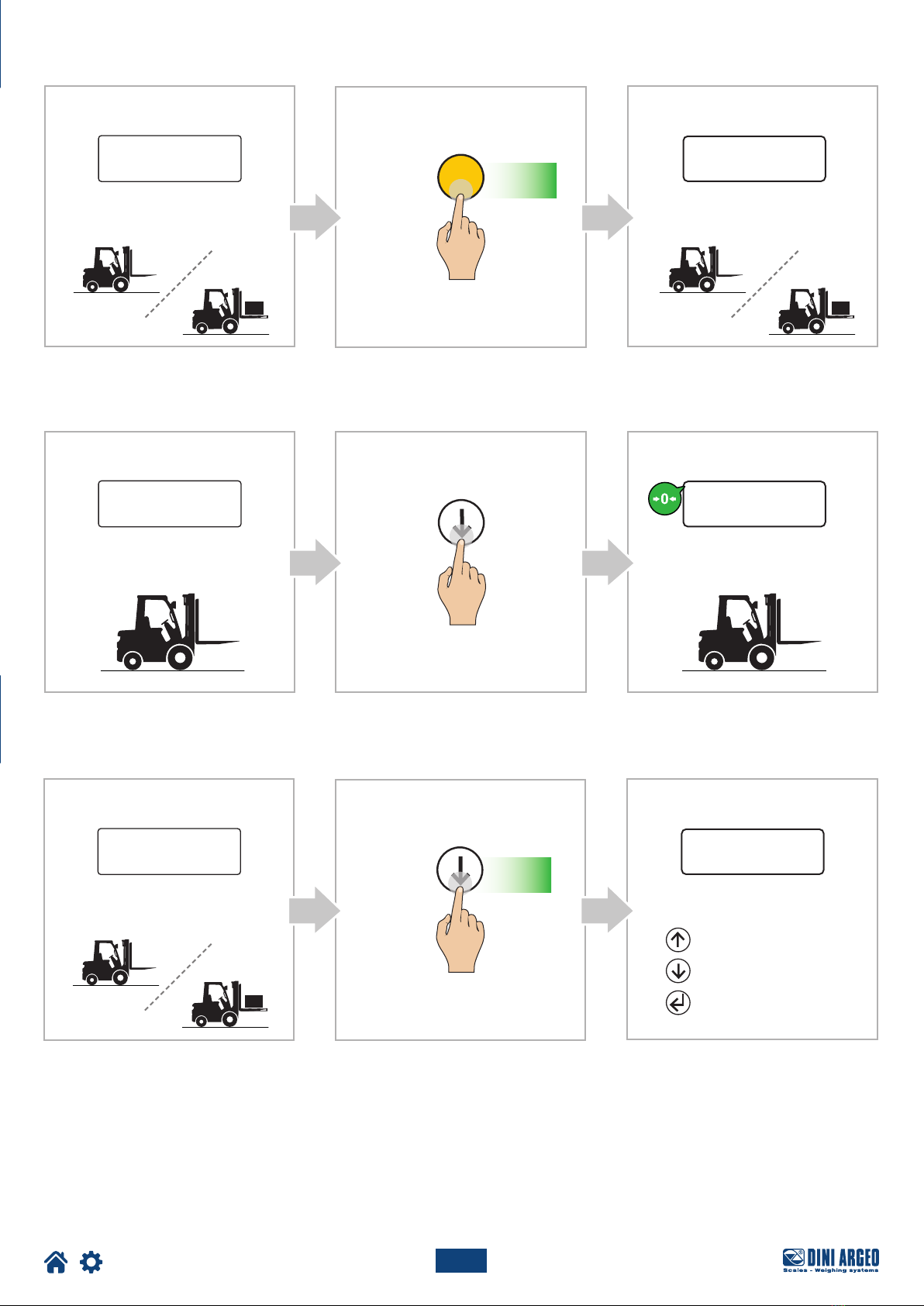

Zero

Visualization Display:

Condition of the forklift truck:

Visualization Display:

Condition of the forklift truck:

Switching off

ZERO

Press

for 2 s

Adjusting the display brightness

Visualization Display:

Condition of the forklift truck:

ZERO

Press

for 2 s

Visualization Display:

Set the brightness value:

Increase value

Decrease value

Conﬁrm

Optimized layout for A4 print.

A B C

-50 0

TARE

? kg ? kg

50 0

2000

TARE

USER_MAN_ENG_LTP

Tare cancellation

Visualization Display:

Condition of the forklift truck: Condition of the forklift truck:

Visualization Display:

Condition of the forklift truck:

Visualization Display:

Condition of the forklift truck:

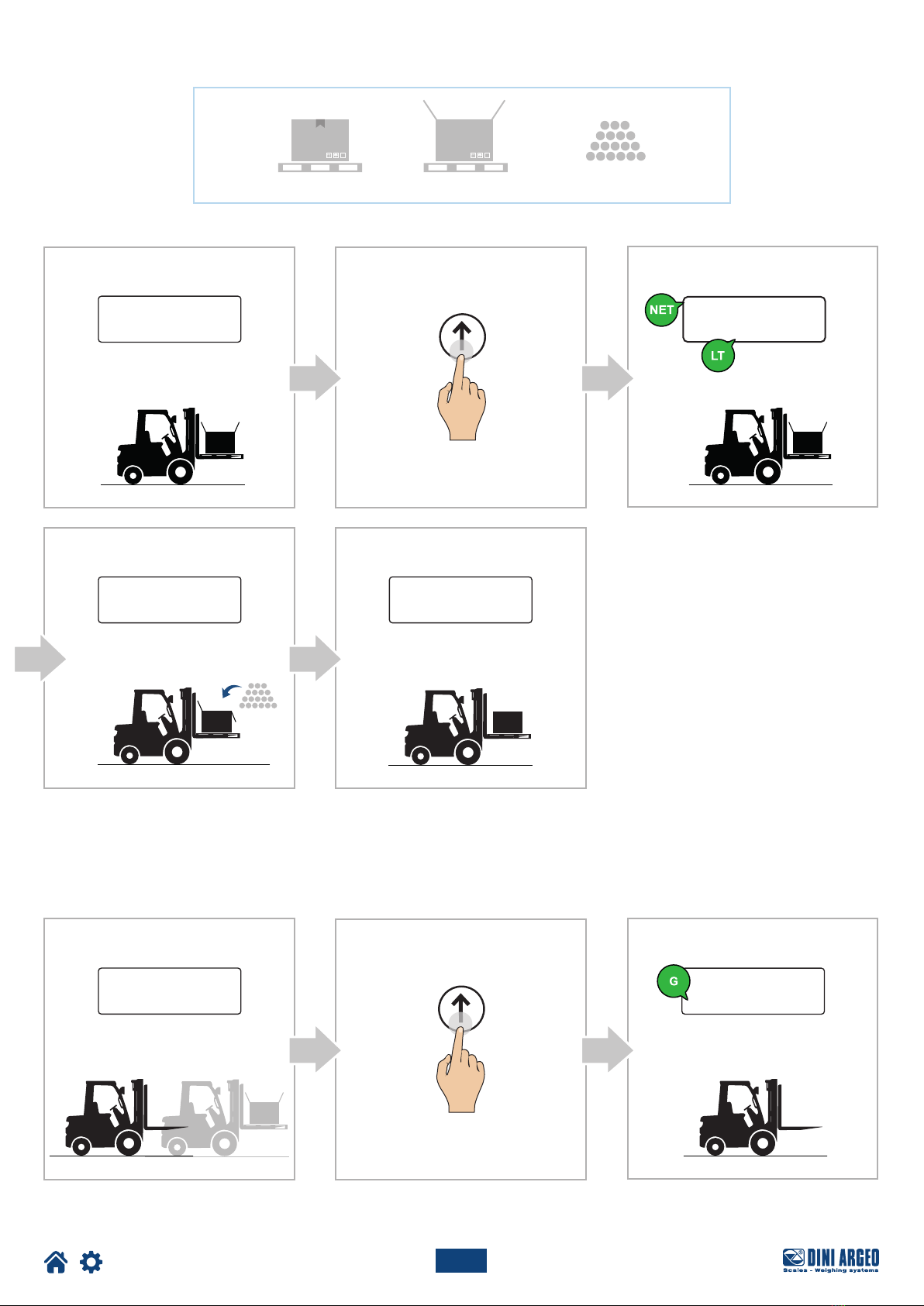

Auto-weighted tare

Visualization Display:

Condition of the forklift truck:
