Dino-Lite AM313 Manuale utente
Dino-Lite Plus Handheld Digital Microscope User’s Manual
1
Dino-Lite Plus Handheld Digital Microscope
AM-313
User’s Manual
Thank you for choosing Dino-Lite Plus Handheld Digital Microscope!
Dino-Lite Plus Handheld Digital Microscope has a wide scope of applications,
such as,
1. Industrial Inspection e.g. Printing Circuit Board(PCB)inspection, electronics
device inspection
2. Skin Check
3. Scalp Check
4. Visual Assistance
5. Printing Inspection
6. Textile Inspection
7. Jewelry Inspection
8. Science Learning
9. ….. etc.
Please read this manual carefully before using Dino-Lite Plus Handheld Digital
Microscope.
Dino-Lite Plus Handheld Digital Microscope User’s Manual
2
Contents
Product Specifications.............................................................. 3
Safety Precautions ................................................................. 3
Contents and Name of Parts ..................................................... 4
Connecting to PC .................................................................... 4
System Requirements.............................................................................................4
Driver Installation Procedure.................................................................................5
Windows XP ................................................................................................5
Windows 2000 .............................................................................................9
Windows 98se ............................................................................................13
Connecting Procedure..........................................................................................20
Operate Dino-Lite Plus Handheld Digital Microscope ......................................20
DinoCapture Application Software......................................................................21
Picture / Video Folder..................................................................................23
Menu Function List......................................................................................26
Open The Picture .........................................................................................30
The opened picture can be displayed in full screen by clicking ................30
To return from full screen mode, just press "Esc" key. ..........................30
..................................................................................................30
Open The Video Or Time Lapsed Video......................................................31
Q&A .................................................................................... 32
Copyright............................................................................. 34
Certification ......................................................................... 34
Limited Liability .................................................................... 34
Dino-Lite Plus Handheld Digital Microscope User’s Manual
3
Product Specifications
1. Resolution：640*480 VGA
2. Built-in 1 optical lens
3. Magnification power：10x~200x
4. Built-in LED light
5. Frame rate：up to 30 FPS
6. Interface：USB (PC)
Remarks: The magnification power is the ratio of the real size of the an observe
object vs. the image show on a 15” monitor
Safety Precautions
1. Avoid touching the lens with finger to protect the product from
electrostatic damage.
2. Do not attempt to service this product yourself. Opening the covers may
expose you to dangerous voltage points or other risks.
3. When hands are wet, do not plug in or remove the adaptor or other
connectors.
4. Using or storing Dino-Lite Plus Handheld Digital Microscope, do not plug in
any other cables, not belong to Dino-Lite Plus Digital Microscope.
5. Do not use any detergent or volatile solution, which will damage the
camera case, painted surfaces & lens. Only use a soft cleaning cloth.
6. If the lens is dirty, please use a kens brush on soft cloth to wipe clean.
Avoid touching them with your fingers. Exercise care to avoid scratching
the lens.
7. Without protection, do not put Dino-Lite Plus Digital Microscope outdoor to
avoid the lens damaged by high temperature or humidity.
8. Using and storing Dino-Lite Plus Digital Microscope at Temp: 0oC~ 40oC,
Humidity: 45%~85%.
9. If water has entered Dino-Lite Plus Digital Microscope device, immediately
turn the power off and remove the USB cable. Do not use dryer neither.
10. Using or storing Dino-Lite Plus Handheld Digital Microscope, need to watch
the cable to avoid trip over or Dino-Lite Plus Handheld Microscope fall
down.
11. To avoid electric shock, remove all electricity source before moving PC or
Dino-Lite Plus Handheld Digital Microscope User’s Manual
4
TV.
Contents and Name of Parts

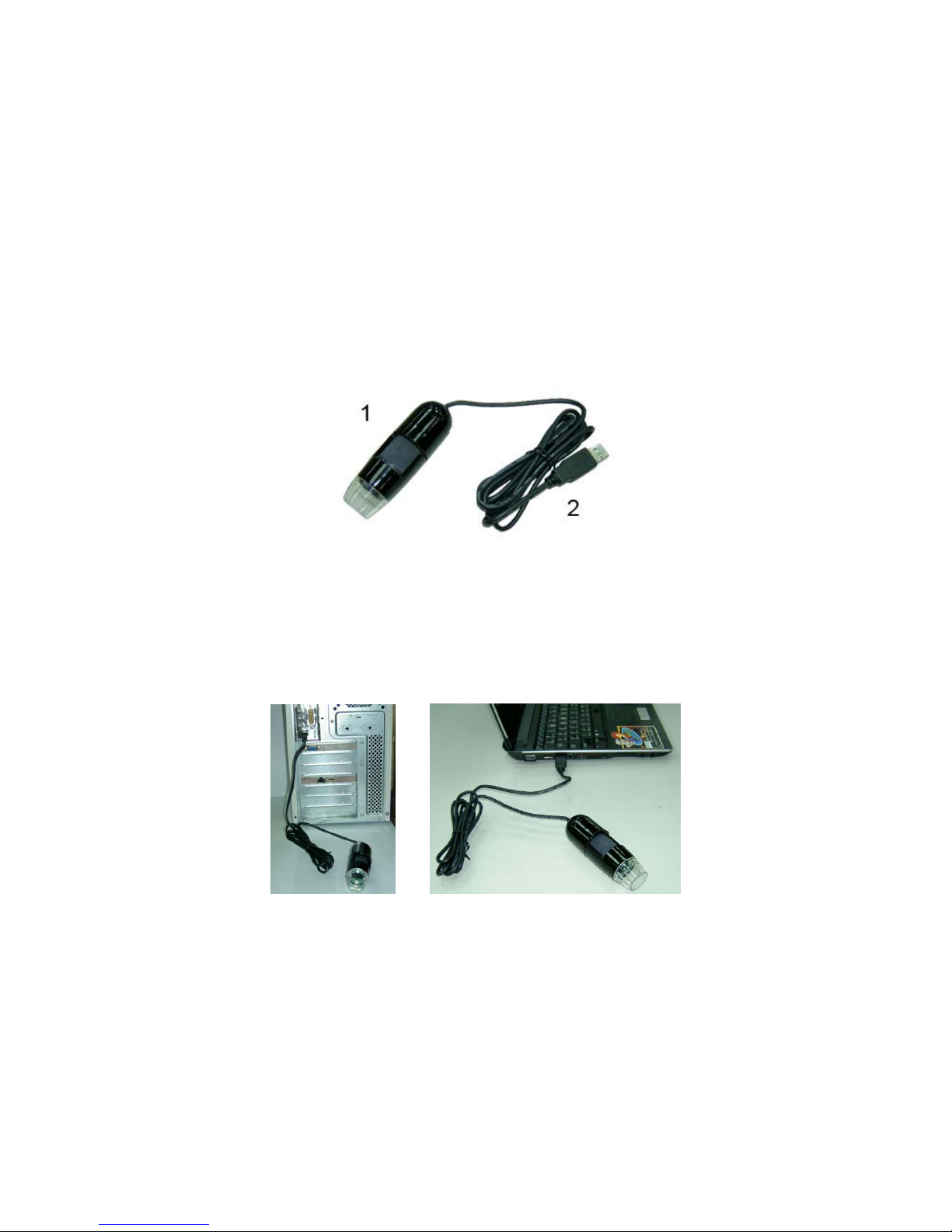

1. Dino-Lite Plus Handheld Digital Microscope Device
2. USB Cable《USB2.0》(1.8m)
3. CD (user’s manual included)
4. Stand
Connecting to PC
System Requirements
●PC’s system requirements:
9OS: Windows 98se, 2000, XP
9CPU: Pentium IV 1.5G, Celeron, AMD Athlon or above
9Memory: 128MB
9HDD storage space: at least 150MB
Dino-Lite Plus Handheld Digital Microscope User’s Manual
5
( for driver and application software installation)
9Graphic card: 16-bit or above
9CD-ROM driver
9USB2.0 / 1.1 port
Driver Installation Procedure

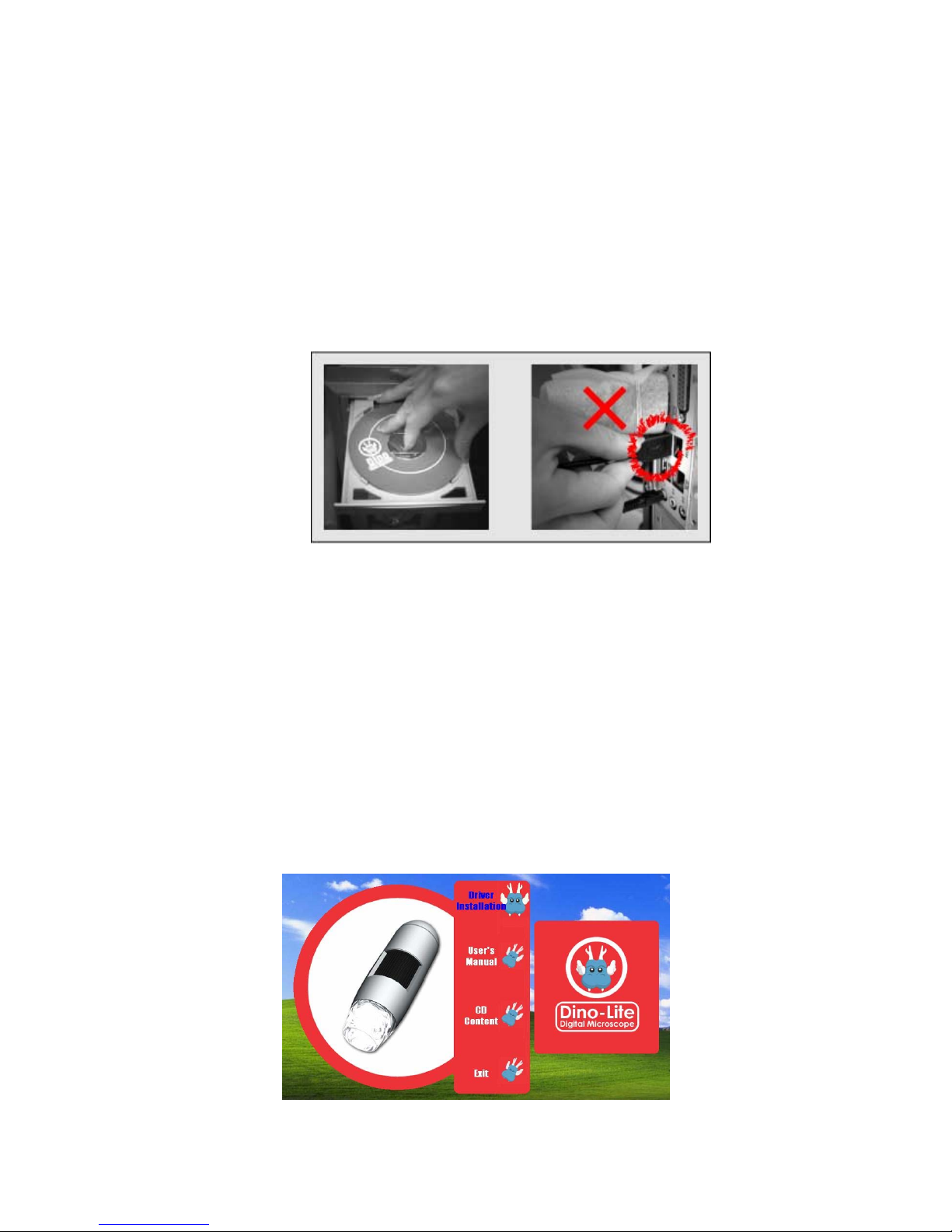

■Power on PC and place installation CD into CD-ROM driver, do not connect
USB Cable from Dino-Lite Plus Handheld Digital Microscope to PC before driver
installation.
■Select driver installation, and follow the instructions to complete installation.
■As driver installation completed, and if system asking for re-start, please
re-start the Windows OS.
Note: The driver needs to be installed only once for each computer.
Windows XP
1. Place the installation CD into CD-ROM driver, the installation program should be
started automatically. Otherwise, please execute the AUTORUN.EXE directly
from the CD.

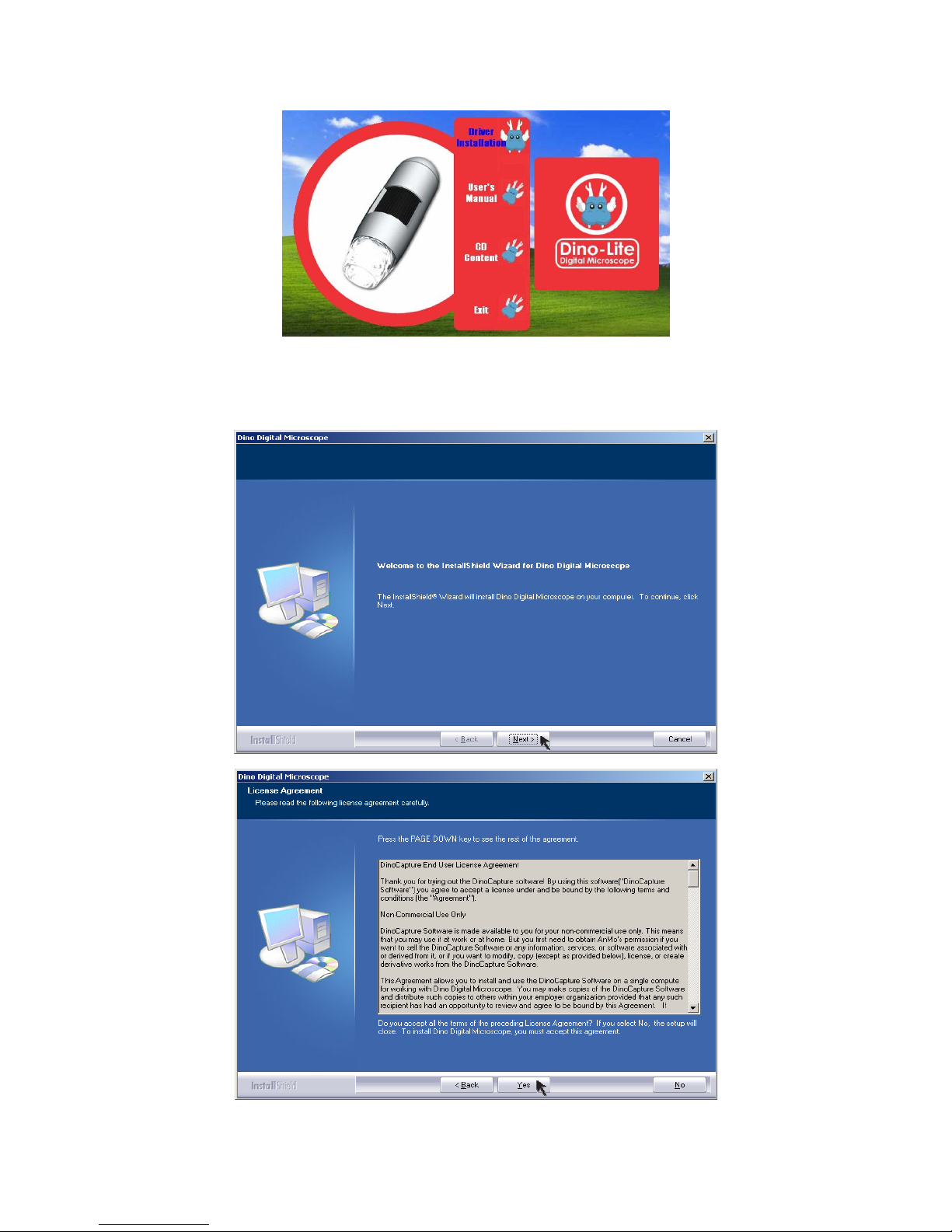

2. Select “Driver Installation” from Dino-Lite Plus Handheld digital Microscope
Installation menu screen as shown.
Dino-Lite Plus Handheld Digital Microscope User’s Manual
6
3. Click “Next” to continue, as shown.
Dino-Lite Plus Handheld Digital Microscope User’s Manual
7

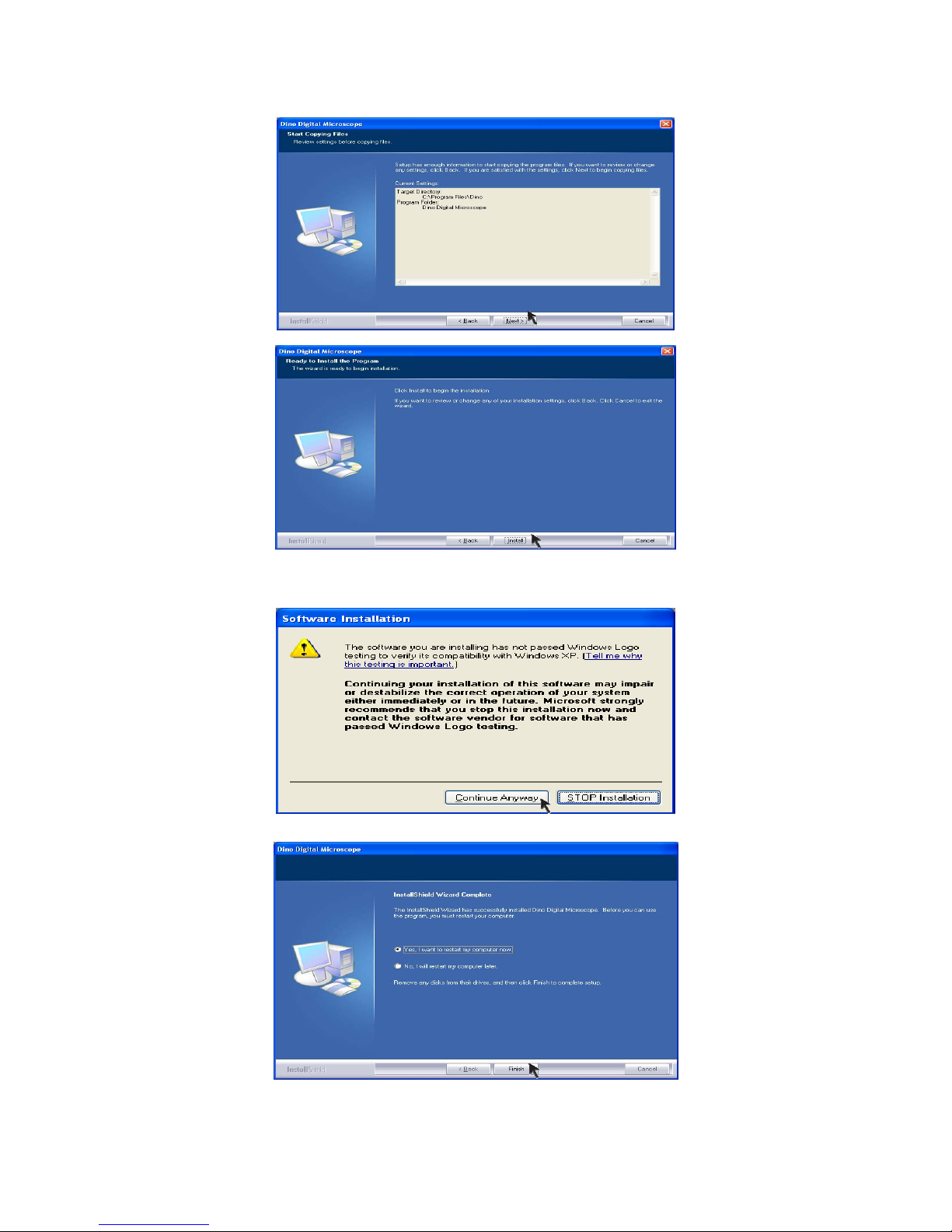

4. When the “Software Installation” warning message appears, click “Continue
Anyway”.
5. Click “Finish” to complete the installation.
Dino-Lite Plus Handheld Digital Microscope User’s Manual
8
6. Plug USB Cable of Dino-Lite Plus Handheld Digital Microscope to connect with PC,
a “Found New Hardware Wizard” will then appear. Click “Next” to continue.
Dino-Lite Plus Handheld Digital Microscope User’s Manual
9
Windows 2000
1. Place the installation CD into CD-ROM driver, the installation program should be
started automatically. Otherwise, please execute the AUTORUN.EXE directly
from the CD.
2. Select “Driver Installation” from Dino-Lite Plus Handheld digital Microscope
Installation menu screen as shown.
Dino-Lite Plus Handheld Digital Microscope User’s Manual
10
3. Click “Next” to continue, as shown.
