DINOX NVR-4016 Guida utente

DINOX&NVR)4016&

Network&Video&Recorder&

Quick&Operation&Guide&

UD.7L02X02B1192A02&

Quick Operation Guide of DINOX NVR-4016

NVR Pre-Installation

The NVR are highly advanced surveillance equipment that should be installed with care. Please take into

consideration the following precautionary steps before installation of the NVR.

1. Keep all liquids away from the NVR.

2. Install the NVR in a well-ventilated and dust-free area.

3. Ensure environmental conditions meet factory specifications.

4. Install a manufacturer recommended HDD.

NVR Installation

During the installation of the NVR:

1. Use brackets for rack mounting.

2. Ensure there is ample room for audio and video cables.

3. When routing cables, ensure that the bend radius of the cables are no less than five times than its diameter.

4. Connect both the alarm and RS-485 cable.

5. Allow at least 2cm (≈0.75-inch) of space between racks mounted devices.

6. Ensure the NVR is grounded.

7. Environmental temperature should be within the range of -10 ºC ~ 55 ºC, 14ºF ~ 131ºF.

8. Environmental humidity should be within the range of 10% ~ 90%.

Hard Disk Installation

Before you start:

Disconnect the power from the NVR before installing a hard disk drive (HDD). A factory recommended HDD

should be used for this installation.

Up to 2 SATA hard disks can be installed on your NVR.

Tools Required: Screwdriver.

Steps:

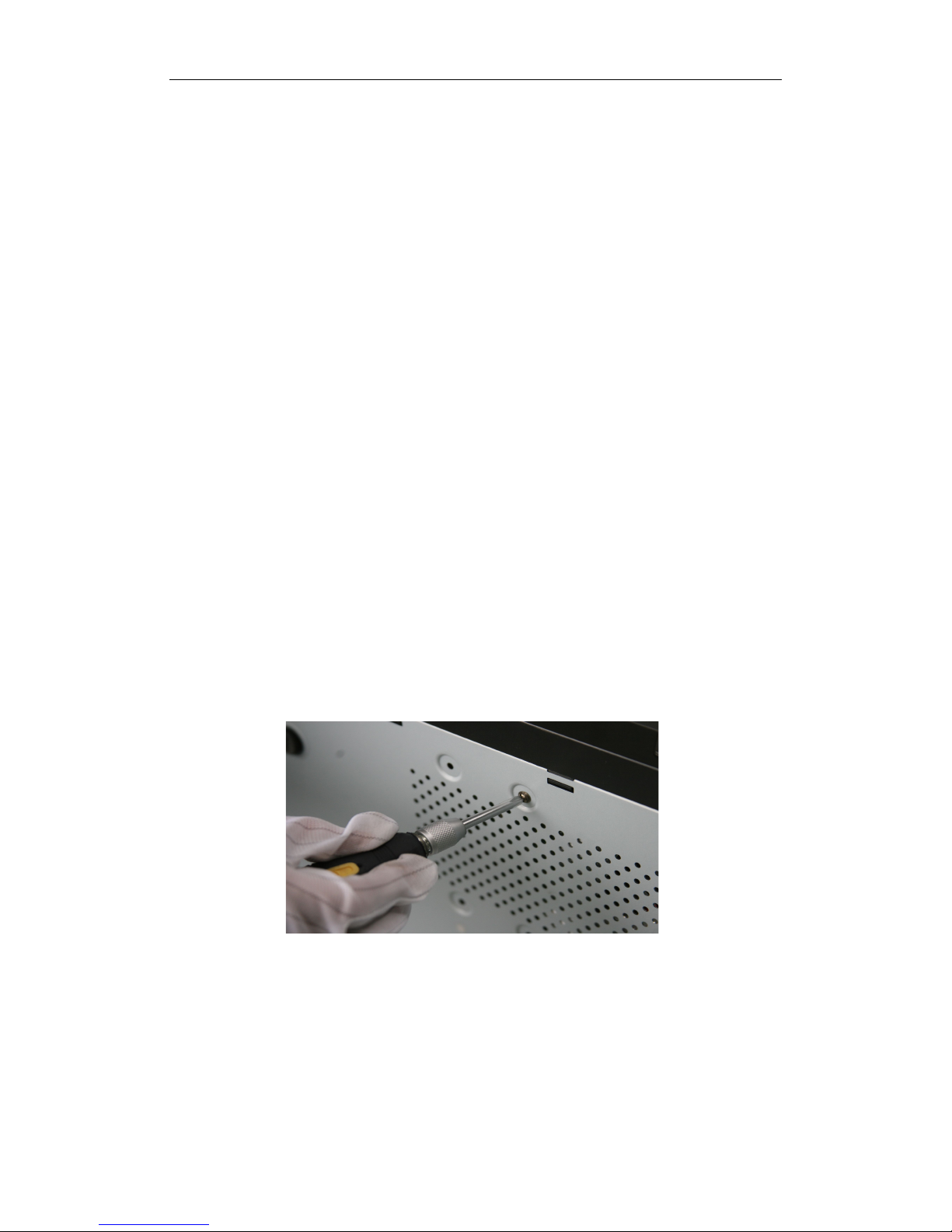

1. Remove the cover from the NVR by unfastening the screws on the rear and side panel.

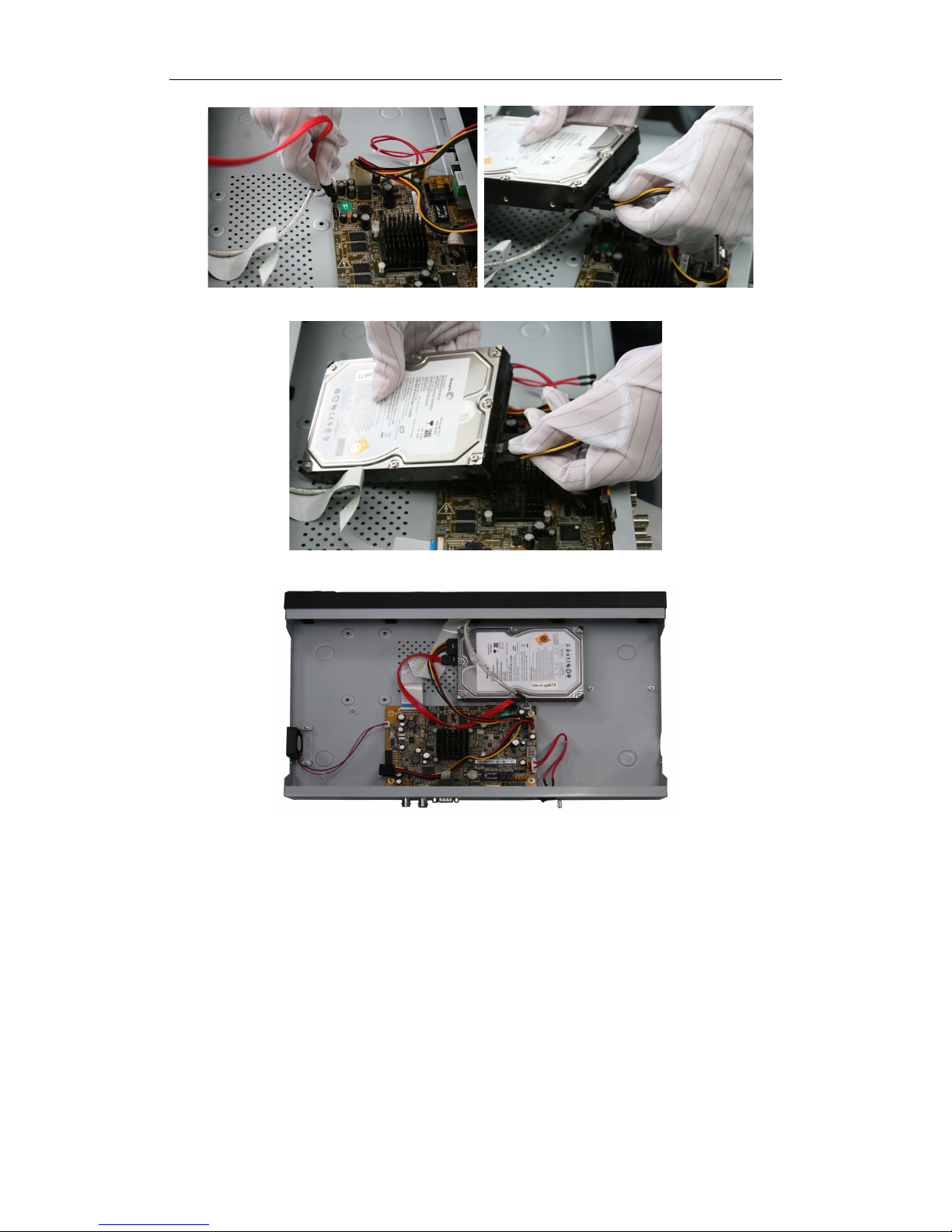

2. Connect one end of the data cable to the motherboard of NVR and the other end to the HDD.

Quick Operation Guide of DINOX NVR-4016

3. Connect the power cable to the HDD.

4. Place the HDD on the bottom of the device and then fasten the screws on the bottom to fix the HDD.

Quick Operation Guide of DINOX NVR-4016

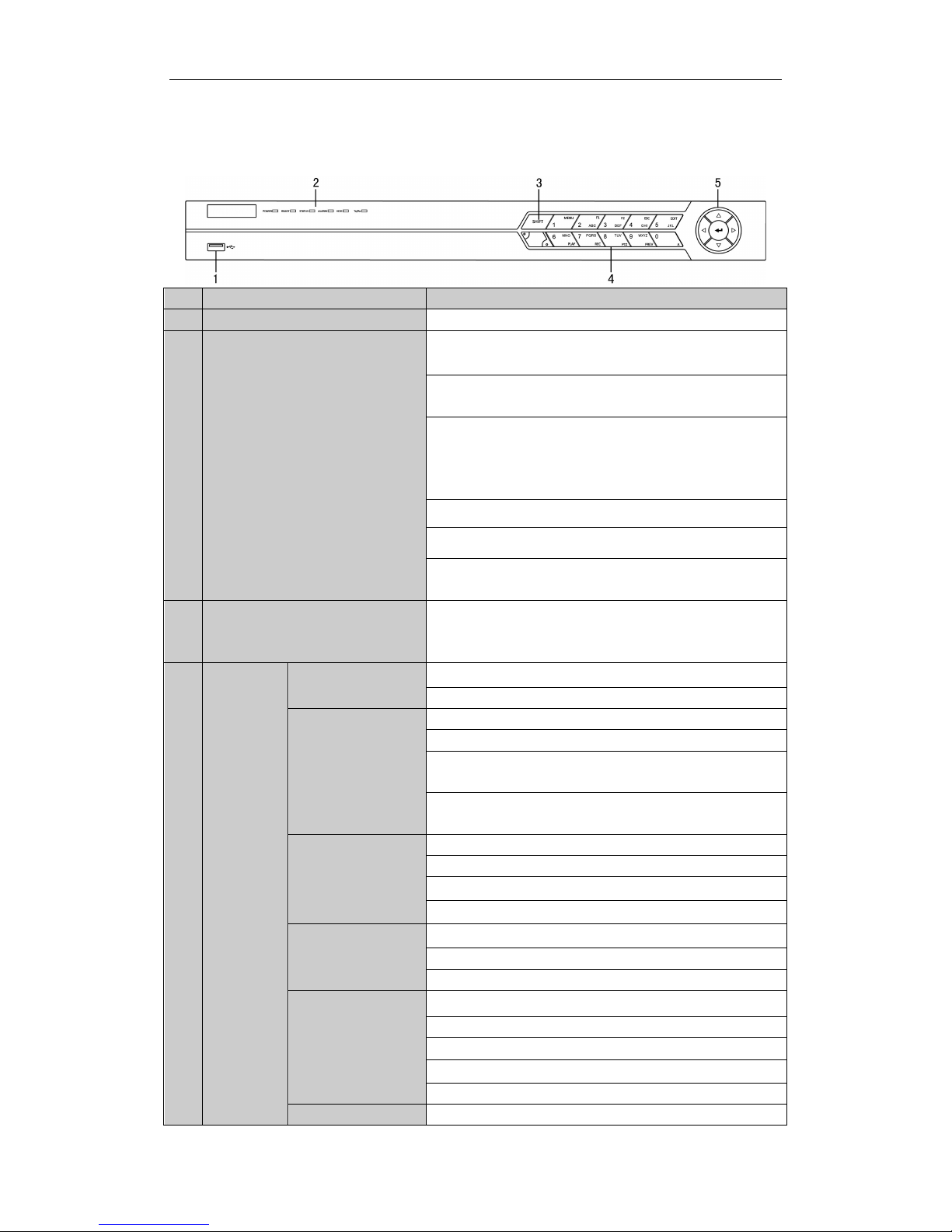

Front Panel

No.

Name

Function Description

USB Interface

Connects USB mouse or USE flash memory devices.

Status Indicators

POWER: the POWER LED turns green when NVR is powered

up.

READY: The LED is green when the device is running

normally.

STATUS: 1.The light is green when the IR remote control is

enabled; 2.The light is red when the function of the composite

keys (SHIFT) are used; 3. The light is out when none of the

above condition is met/

ALARM: the light is red when there is an alarm occurring.

HDD: the LED flashes red when HDD is reading/writing.

Tx/Rx: TX/RX LED flashes green when network connection is

functioning normally.

SHIFT

Switch between the numeric or letter input and functions of the

composite keys. (Input letter or numbers when the light is out;

Realize functions when the light is red.)

Composite

Keys

1/MENU

Enter numeral “1”;

Access the main menu interface.

2/ABC/F1

Enter numeral “2”;

Enter letters “ABC”;

The F1 button when used in a list field will select all items in the

list.

In PTZ Control mode, it will turn on/off PTZ light and when the

image is zoomed in, the key is used to zoom out.

3/DEF/F2

Enter numeral “3”;

Enter letters “DEF”;

The F2 button is used to change the tab pages.

In PTZ control mode, it zooms in the image.

4/GHI/ESC

Enter numeral “4”;

Enter letters “GHI”;

Exit and back to the previous menu.

5/JKL/EDIT

Enter numeral “5”;

Enter letters “JKL”;

Delete characters before cursor;

Check the checkbox and select the ON/OFF switch;

Start/stop record clipping in playback.

6/MNO/PLAY

Enter numeral “6”;

Quick Operation Guide of DINOX NVR-4016

Enter letters “MNO”;

Playback, for direct access to playback interface.

7/PQRS/REC

Enter numeral “7”;

Enter letters “PQRS”;

Open the manual record interface.

8/TUV/PTZ

Enter numeral “8”;

Enter letters “TUV”;

Access PTZ control interface.

9/WXYZ/PREV

Enter numeral “9”;

Enter letters “WXYZ”;

Multi-channel display in live view.

0/A

Enter numeral “0”;

Shift the input methods in the editing text field. (Upper and

lowercase, alphabet, symbols or numeric input).

Double press the button to switch the main and auxiliary output.

Control

Buttons

DIRECTION

In menu mode, the direction buttons are used to navigate

between different fields and items and select setting parameters.

In playback mode, the Up and Down buttons are used to speed

up and slow down record playing, and the Left and Right buttons

are used to move the recording 30s forwards or backwards.

In the image setting interface, the up and down button can adjust

the level bar of the image parameters.

In live view mode, these buttons can be used to switch channels.

ENTER

The Enter button is used to confirm selection in menu mode; or

used to check checkbox fields and ON/OFF switch.

In playback mode, it can be used to play or pause the video.

In single-frame play mode, pressing the Enter button will play

the video by a single frame.

And in auto sequence view mode, the buttons can be used to

pause or resume auto sequence.

Quick Operation Guide of DINOX NVR-4016

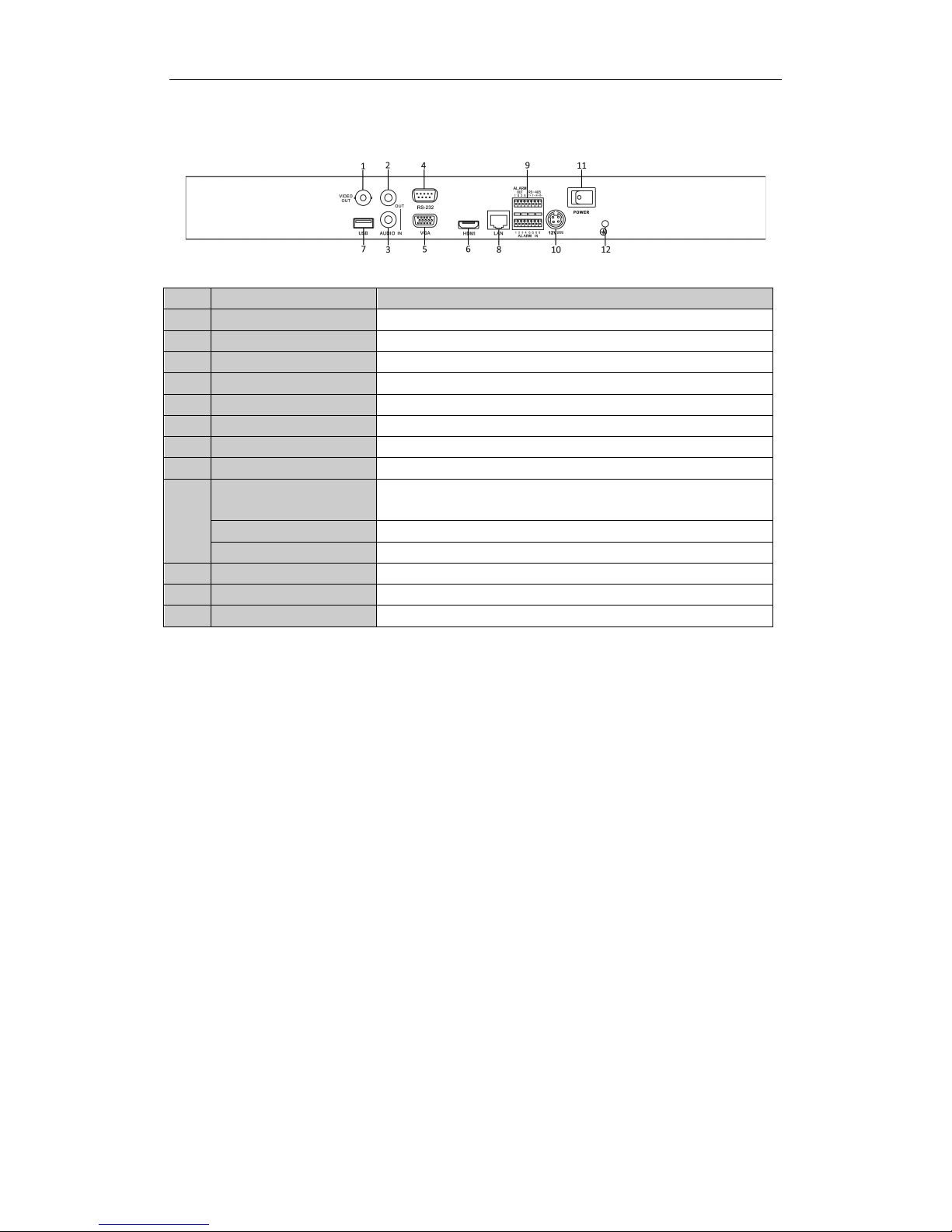

Rear Panel

No.

Item

Description

VIDEO OUT

BNC connector for video output.

AUDIO OUT

BNC connector for audio output.

AUDIO IN

BNC connector for audio input. (Also for two-way audio)

RS-232 Interface

Connector for RS-232 devices.

VGA

DB9 connector for VGA output. Display local video output and menu.

HDMI

HDMI video output connector.

USB

Connects USB disks and devices.

LAN Interface

1 network interface.

RS-485 Interface

Connector for RS-485 devices. T+ and T- pins connect to R+ and R-

pins of PTZ receiver respectively.

ALARM IN

Connector for alarm input.

ALARM OUT

Connector for alarm output.

Power Supply

12VDC power supply.

Power Switch

Switch for turning on/off the device.

Ground

Ground (needs to be connected when NVR starts up).

Quick Operation Guide of DINOX NVR-4016

Peripheral Connections

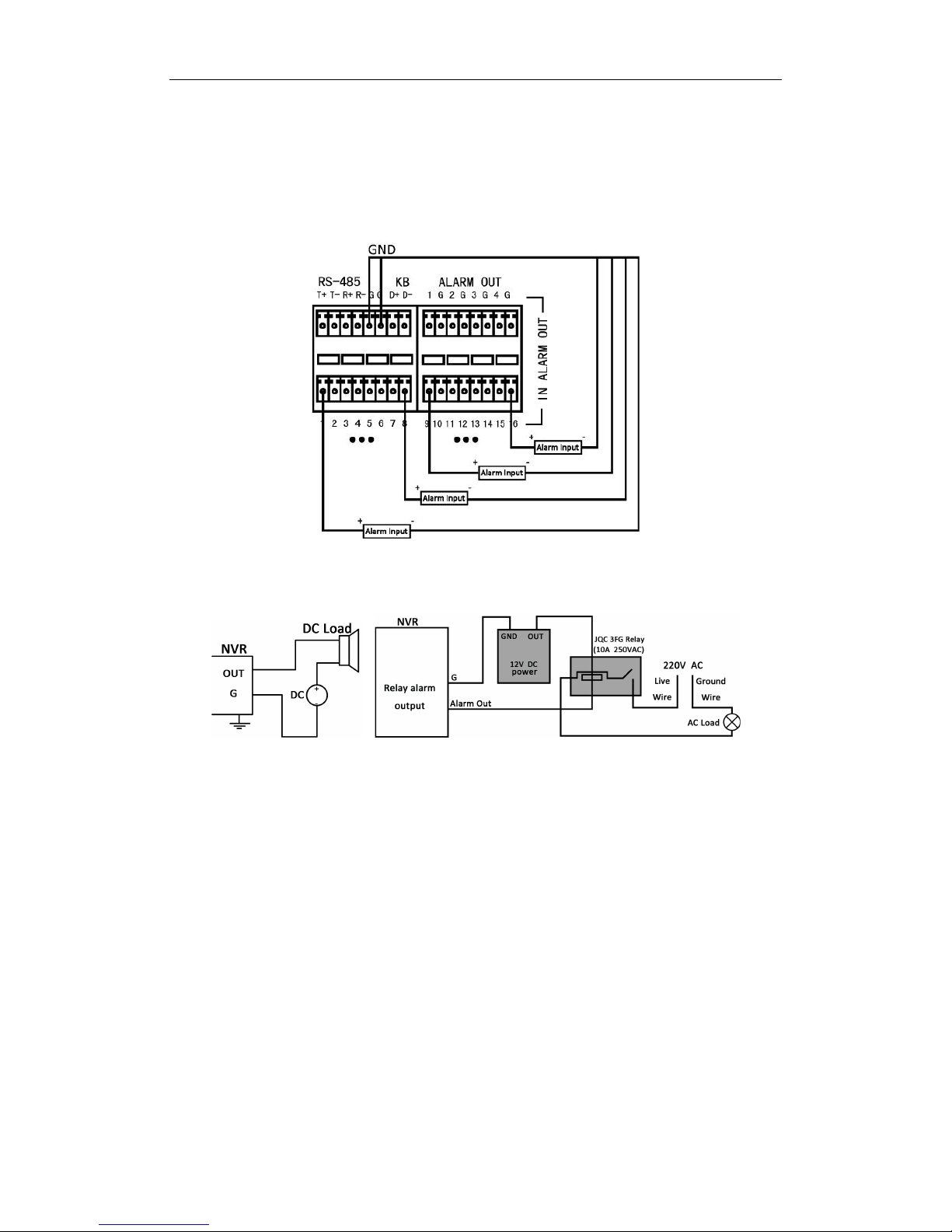

Wiring of Alarm Input

The alarm input is an open/closed relay. To connect the alarm input to the device, use the following diagram.

Note: If the alarm input is not an open/close relay, please connect an external relay between the alarm input and

the device.

Alarm Input Connection

Wiring of Alarm Output

To connect to an alarm output (AC or DC load), use the following diagram:

DC Load Connection Diagram AC Load Connection Diagram

For DC load, the jumpers can be used within the limit of 12V/1A safely.

To connect an AC load, jumpers should be left open (you must remove the jumper on the motherboard in the

NVR). Use an external relay for safety (as shown in the figure above).

There are 4 jumpers (JP1, JP2, JP3, and JP4) on the motherboard, each corresponding with one alarm output. By

default, jumpers are connected. To connect an AC load, jumpers should be removed.

Example:

If you connect an AC load to the alarm output 3 of the NVR, then you must remove the JP 3.

Using of Alarm Connectors

To connect alarm devices to the NVR:

1. Disconnect pluggable block from the ALARM IN /ALARM OUT terminal block.

2. Unfasten stop screws from the pluggable block, insert signal cables into slots and fasten stop screws. Ensure

signal cables are tight.

3. Connect pluggable block back into terminal block.

Quick Operation Guide of DINOX NVR-4016

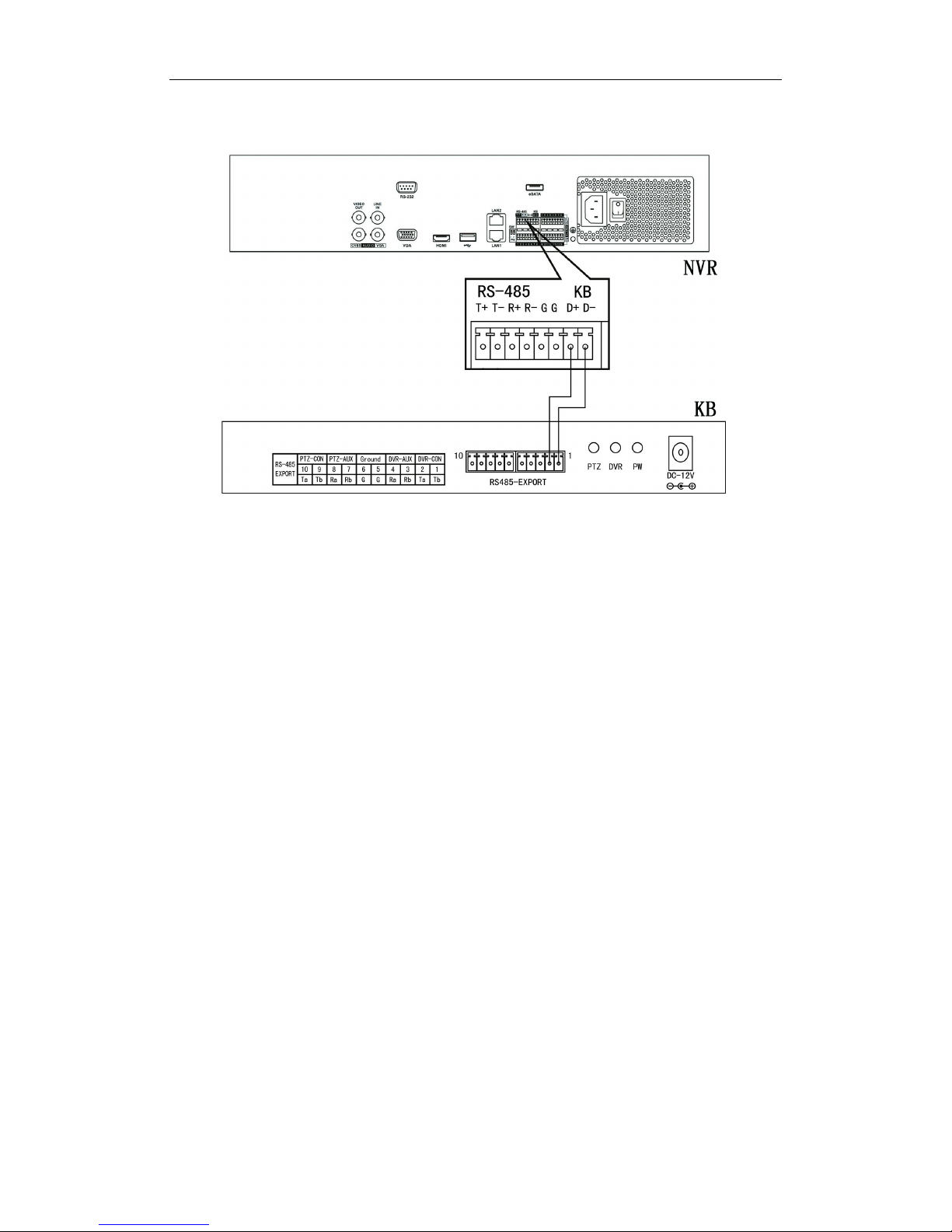

Controller Connection

To connect a controller to the NVR:

1. Disconnect pluggable block from the KB terminal block.

2. Unfasten stop screws from the KB D+, D- pluggable block, insert signal cables into slots and fasten stop

screws. Ensure signal cables are in tight.

3. Connect Ta on controller to D+ on terminal block and Tb on controller to D- on terminal block. Fasten stop

screws.

4. Connect pluggable block back into terminal block.

Note: Make sure both the controller and NVR are grounded.

Quick Operation Guide of DINOX NVR-4016

Specifications

Model

NVR-4016

Video/Audio

input

IP video input

8-ch

16-ch

32-ch

Audio in

1-ch, BNC (2.0 Vp-p, 1kΩ) (Two-way audio)

Video/Audio

output

Recording

resolution

5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF

Frame rate

Main stream: 25 fps (P) / 30 fps (N)

Sub-stream: 25 fps (P) / 30 fps (N)

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω)

Resolution: 704 ×576 (PAL); 704 ×480 (NTSC)

HDMI output

1-ch, resolution:

1920 ×1080P / 60Hz, 1920 ×1080P / 50Hz, 1600 ×1200 / 60Hz, 1280

×1024 / 60Hz, 1280 ×720 / 60Hz, 1024 ×768 / 60Hz

VGA output

1-ch, resolution:

1920 ×1080P / 60Hz, 1600 ×1200 / 60Hz, 1280 ×1024 / 60Hz, 1280 ×

720 / 60Hz, 1024 ×768 / 60Hz

Audio output

1-ch, BNC (Linear, 600Ω)

Playback

resolution

5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF

Synchronous

playback

8-ch

16-ch

Hard disk

SATA

2 SATA interfaces

Capacity

Each interface supports up to 4TB capacity for recording

External

interface

Network interface

1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface

Serial interface

RS-232; RS-485;

USB interface

2 ×USB 2.0

Alarm in

Alarm out

Others

Power supply

12 VDC

Consumption

≤13 W (without hard disk or DVD-R/W)

Working

temperature

-10 ℃~ +55 ℃

Working

humidity

10 % ~ 90 %

Chassis

19-inch rack-mounted 1U chassis

Dimensions

(W ×D ×H)

445 ×261 ×44.5 mm

Weight

≤4 Kg (8.82 lb) ( without hard disk or DVD-R/W)

Quick Operation Guide of DINOX NVR-4016

HDD Storage Calculation Chart

The following chart shows an estimation of storage space used based on recording at one channel for an hour at a

fixed bit rate.

Bitrate

Storage Used

96K

42M

128K

56M

160K

70M

192K

84M

224K

98M

256K

112M

320K

140M

384K

168M

448K

196M

512K

225M

640K

281M

768K

337M

896K

393M

1024K

450M

1280K

562M

1536K

675M

1792K

787M

2048K

900M

4096K

1800M

8192K

3600M

16384K

7200M

Note: Please note that supplied values for storage space used is just for reference. The storage values in the chart

are estimated by formulas and may have some deviation from actual value.
