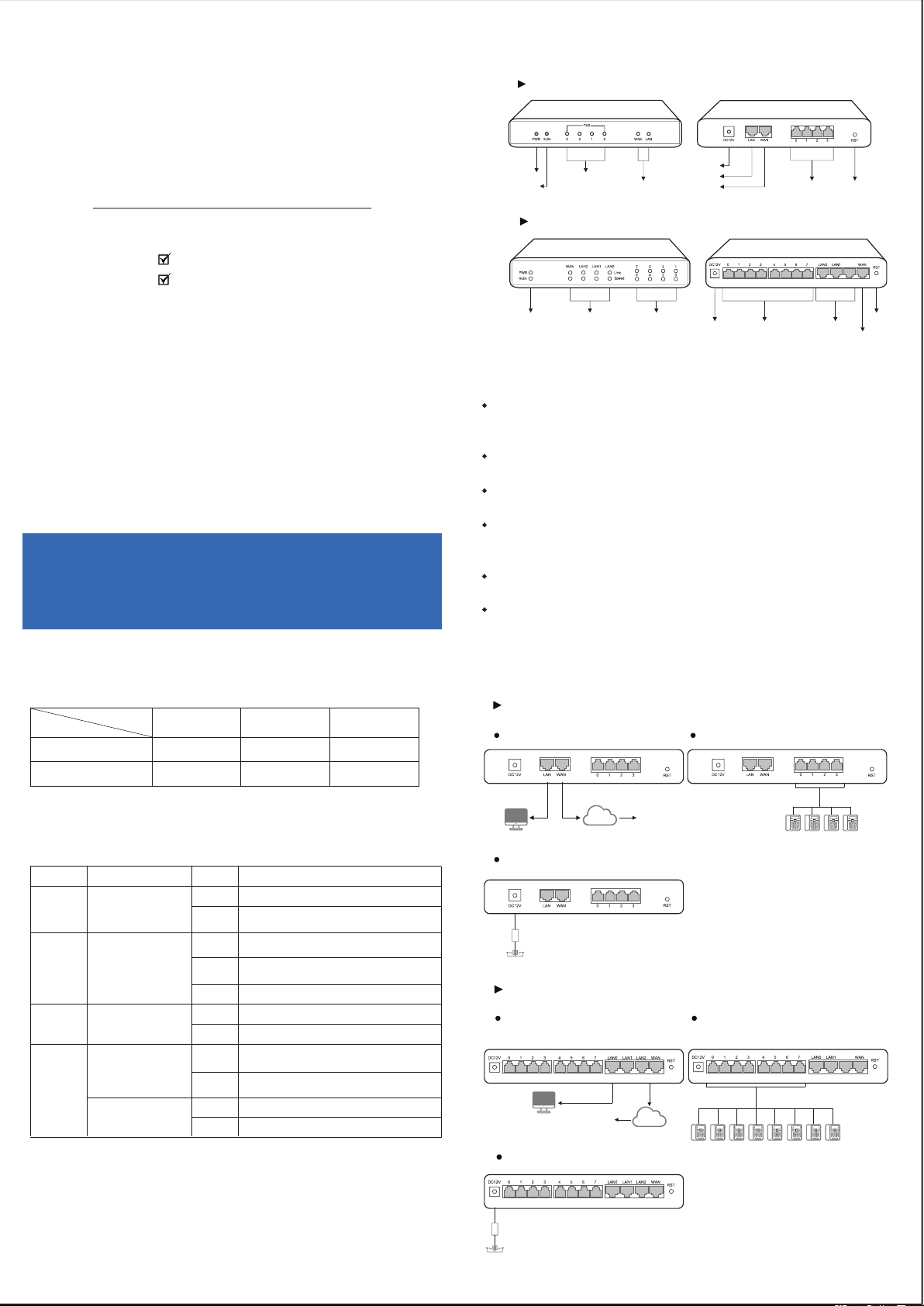

Dinstar DAG1000-4S Manuale utente

Note: DAG1000-4S has no network speed indicator.

DAG1000-4S

Connection Diagram for DAG1000-4S

Network Connection

Network Cable Network Cable

Network Cable

ADSL

Power Adapter

Telephone Line (RJ11)

Telephone

Power Connection

Telephone Connection

Connection Diagram for DAG1000-8S

DAG1000-8S

Power Indicator

Running Indicator

Network Link Indicator

Network Speed Indicator

Network Link Indicator

Power Jack

FXS Port

Reset Button

Reset

Button

LAN Port

WAN Port

Telephone In-use

Indicator

Telephone In-use

Indicator

PWR

RUN

FXS

WAN/LAN

Definition

Power Indicator

Running Indicator

Telephone In-use

Indicator

Network Link

Indicator

Network Speed

Indicator

Status

Off

Slow

Flashing

Fast

Flashing

Green

Flashing

Description

The gateway is powered on

The gateway is powered off

or there is no power supply

The gateway is running properly

If there is a SIP account registered

successfully, the indicator is fast flashing

The gateway is running improperly

FXS port is currently occupied by a call

FXS port is idle or faulty

The gateway is properly connected to

network

The gateway is not connected to network or

network connection is improper way

Work at 100Mbps

Work at 10Mbps

Indicators and Ports

Installation Instructions

Installation Attentions

Description of Indicators

Number of Ports

DAG1000-4S

DAG1000-8S

Thanks for Choosing Dinstar’s VoIP Gateway!

Please read this guide carefully before installing the gateway. If you need any technical

support, please contact us.

Tel: +86 755 61919966

Email: support@dinstar.com

Website: www.dinstar.com

Quick Installation Guide

Telephone Line (RJ11)

Telephone

Gateway

Port Type

DAG1000-4S

DAG1000-8S

WAN

LAN

FXS

Anti-jamming: to reduce the interference with telephone calls, it’s highly

recommended that telephone lines connected to the gateway should be placed

away from power cables.

Power supply: the power adapter of the gateway accepts DC input voltage of 12V.

Please ensure safe and stable power supply.

Network bandwidth: please ensure there is enough network bandwidth so as to

guarantee stabilized running of the gateway.

Temperature and humidity: to avoid any accident that might cause malfunction , it’s

advised to install the gateway in an equipment room where temperature and

humidity are appropriate.

Ventilation: to avoid overheating, please do not pile up the gateway with other

devices and make sure the gateway has good ventilation around.

Mechanical load: please make sure the gateway is placed steadily to avoid damage.

It’s highly advised to horizontally place the gateway on a flat surface or a cabinet.

Power Indicator

Running Indicator

PC LAN

LAN

AUX2

Modify PC’s IP Address

Configure SIP Server

Basic Operations

More Details

Modify Gateway’s IP Address

To log in the Web Management System of the gateway, you need to

modify the IP address of PC first to make it at the same network segment

with the gateway.

On the PC, click ‘Network (or Ethernet) → Properties’.

Double-click ‘Internet Protocol Version 4 (TCP/IPv4)’.

Select ‘Use the following IP address’, and then enter an

available IP address ‘192.168.11.XXX’ which is at the same

network segment with ‘192.168.11.1’.

If you want to modify the IP address of DAG1000-4S/8S, please click

‘Network → Local Network’ in the navigation tree on the left of the Web

Management System, and then input new IP address and DNS server

address on the displayed interface.

Open a web browser and enter the gateway’s IP address (default IP is

192.168.11.1). Then input username and password in the displayed

Server in the navigation tree and then enter the address of the SIP

server which is to be registered. Click Save in the last.

Click Port in the navigation tree on the left, and then click Add. Input the

SIP account and authentication password assigned by the SIP server.

Click Save and then restart the gateway for the new configurations to take effect.

This document only provides instructions for quick installation and

basic configuration,For detailed configuration and parameter

explanation, please make reference to user manual or ask for

online technical support.

Dial *158# to query the IP address of LAN port of the gateway;

Dial *159# to query the IP address of WAN port of the gateway;

Dial *114# to query the telephone number of a FXS port;

Dial *165*000000# to restore default IP address, username and

password;

Restore factory default settings:

(1) dial *166*000000#;

(2) press the RST button for 7 seconds;

(3) Log in the gateway and then click ‘Tools → Factory Reset’,

then click Apply and restart the gateway.

Dial *111# to restart the gateway.

IP Communication Solutions

Shenzhen Dinstar Co., Ltd.

Web: www.dinstar.com
