Network Camera is a kind of embedded digital surveillance

product collected traditional simulation camera and network

video server. Adopts embedded Linux operation system and

SOC hardware platform of Graim Corp. And has characteristics

of high efficiency on system adjustment, solidified code on Flash,

small bulk, high stability and reliability.

1.1

1.1 Functions

Functions

Functions and

and

and Characteristics

Characteristics

Basic

Basic Function

Function

�Video compression tech: adopts H 264 video compression

tech, high compression ratio with super agility handling.

�Network function: integrate TCP/IP protocols and video, alarm,

voice data supported, built-in WEB browser, IE interview

supported.

�Heartbeat function: host computer is able to know running

state of network camera real time by heartbeat function.

�PTZ control function: control for PTZ, kinds of decoder

protocols and dome cameras supported.

�Alarm function: 1 channel alarm input (signal parameter), 1

channel alarm output (on-off parameter), motion detective,

video lost, mask alarm, alarm link output.

�Voice speech: two-way voice speech, one-way voice

broadcast.

�POE power supply supported.

�User management: multi-level user popedom management.

Compression

Compression Handling

Handling

Handling Function

Function

�1 channel video signal supported, separate hardware

compression, adopts H . 264 compression standard on video

compression, not only support change code ratio, but also

support change frame ratio, while setting

video image

quality, it ’ s able to restrict compression bit rate of video image .

�D1(PAL:704*576 , NTSC:704*480), CIF(PAL:352*288 ,

NTSC:352*240 ) , QCIF ( PAL:176*144 , NTSC:240*160 )

supported

�U

to PAL : 1280*720p@25fps ; NTSC : 1280*960p@22fps

- - 3 - -

�OSD supported , date and time setup available.

Remote

Remote interview

interview

interview and

and

and transmission

transmission

transmission function

function

�One self-compliant 10M/100M Ethernet interface as standard

accessory. .

�PPPoE , DHCP , DDNS protocol supported .

�Available to set parameter, browse real time video, check

network camera state through applications or IE browser.

Available to realize alarm link and save compressed bit rate

through network.

�Available to realize remote upgrade and maintenance through

network .

�RS-485 can support one-way network readezvous point aisle

connection, client side can control serial devices through

network readezvous point aisle of network camera .

1.2

1.2 Applications

Applications

Suitable for circumstances required for network remote

surveillance

�ATM, Bank Counter, Supermarket, Factory etc

�Nursing House, Kindergarten, School etc.

�Intelligentized door management system

�Intelligentized Building, intelligentized community

management system

�Electricity station, telecom base station etc unmanned on duty

system

�Outdoor bridge, tunnel, crossing traffic etc surveillance

system

�flowing line and warehouse surveillance

�24h surveillance to road traffic

�Remote surveillance to forest, fountain and river etc .

Chapter

Chapter 2

2 Installation

Installation

2.1

2.1 cautions

cautions

�Please check carefully while unpacking, be sure articles

inside accordance to the list

�Please read this chapter carefully before installation

- - 4 - -

�Be sure to off all concerned power while installation

�Check power and voltage in case to damage facility because

of unmatched voltage

�Installation circumstance: do not install in circumstances of

high humidity or high temperature, please keep good

ventilation, pay attention to defend rain, avoid installing in

acute vibrate circumstance.

�

In times of malfunction, do not attempt to dismantle and

service the camera yourself. Please refer to qualified serving

personnel to repair or contact our technical department to

solve the problems.

Remark: power supply, lens and SD card optional while

ex-factory .

- - 5 - -

2.2

Panel

Panel Illuminate

Illuminate

2.2.

2.2. 1

Rear

Rear Elevation

Elevation

F ig. 2. 1 Rear Elevation

Interface

Interface Connection

Connection

SD card

card

socket

Insert SD card for local storage

video

video output

output

Connect to video cable of monitor, standard

BNC interface

RESET

RESET RESET button, restore ex-factory value

- - 6 - -

2.2.

2.2. 2

Rear

Rear Elevation

Elevation

①

②

③

④

⑤

⑥

F ig. 2. 2 Connection Cable

ID Cable

Cable

Cable Function

Function

Function Connection

Connection

1N/A Audio

Audio

Audio input

input

Connect to audio

input device, such

as tone

arm(impedance:

1k Ω )

2N/A

Audio

Output

Connect to

acoustics device,

such as speaker etc

for audio speech

output(impedance:

>16 Ω )

- - 7 - -

3N/A DC12V

DC12V

DC12V （1A

1A ）

Detailed type see

parameter form in

“ Appendix ” , please

use matched

manostat power

4N/A

Network

interface

Connect to Ethernet

device, such as

Ethernet exchanger,

HUB etc. See 2.3.3

for network

connection

navy blue RS485TX +

+Connect to RS-485

device, such as

Pan/Tile, PTZ etc.

white/blac

RS485TX -

brown Alarm Out

Connect to alarm

output, 1 channel

on-off

parameter(the

connected power

must be within

range of DC12V and

300mA), detailed

connection method

see 2.3.2

white Alasrm Out B

gray

Alarm in

（DC12V ）

Connect to alarm

input, 1 channel

signal alarm

（0~DC12V ）

c ambridg

e blue

Alarm in

GND

2.3

2.3 Hardware

Hardware

Hardware installation

installation

2.3.

2.3. 1

1 Alarm

Alarm

Alarm output

output

output connection

connection

Alarm

Alarm output

output

output connection

connection

connection demonstration

demonstration

- - 8 - -

Alarm output is in fact on-off (No voltage), outside power is

needed while connection alarm. Outside power must be within

DC12V and 3 00 mA while connection DC power.

2.3.

2.3. 2

2 S

S election

election

election of

of r

r eticle

eticle

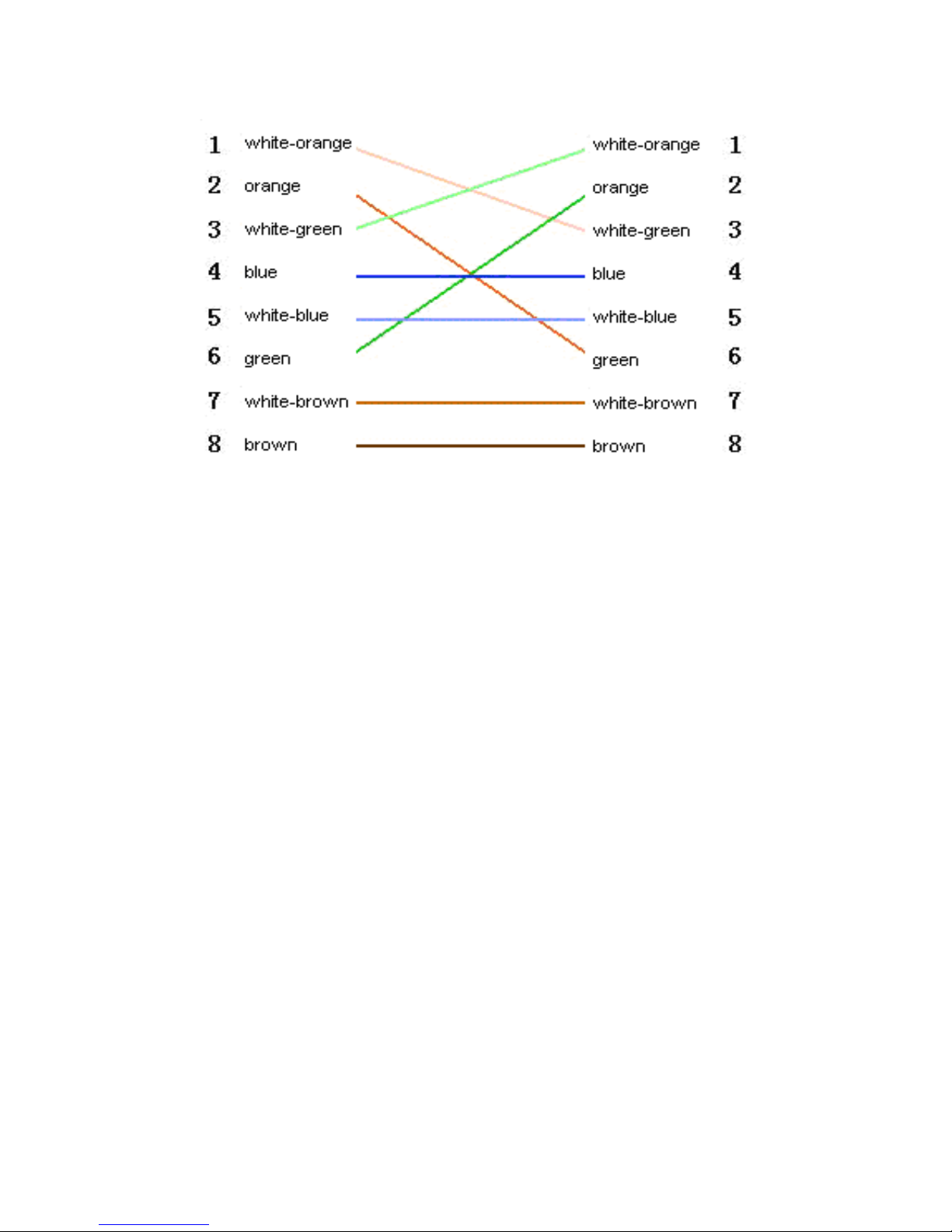

（1）Twisted-pair to connection interface of network camera

with HUB(straight connection cable)

（2）Twisted-pair to connection interface of network camera

- - 9 - -

with PC(cross connection cable)

Chapter

Chapter 3

3 Parameter

Parameter

Parameter setup

setup

Some network parameters must be setup firstly after

finishing installation, includes IP address, submask, port etc, can

be setup through many kinds of ways, see below two kinds for

examples:

1 . Setup parameters such as IP address and PPP o E etc

through IE browser

2 . Setup parameters through applications on client ’ s side .

Please be confirm PC and network camera already be

connected, and the network camera can be PING!

3.1

3.1 Setup

Setup

Setup parameter

parameter

parameter by

by IE

IE browser

browser

The default IP:192.168.0.120 , default port :30001, superuser:

admin, superuser password: admin

out logging in window, input username and password, click

“ login ” to enter IE client interface.

F unction detailed guide please refer to “

“

“ NVMS

NVMS

NVMS Manual

Manual

Manual ” .

Important Note: to check device by IE, the premise is to set

browser security level, open IE browser, enter “ tool/Internet

option/security/user-defined level ” , set security level ” security

level-low ” , or directly set “ ActiveX, Widget and Insert ” to open.
