INSTALLATION GUIDE

DB3

2008 Chrysler Aspen. 403.CHRYSLER 7.34

This product is intended for installation by a professional installer only! Attempts to install this

product by a person other than a trained professional may result in severe damage to a vehicle’s

electrical system and components.

Introduction 3

Vehicle function compatibilities 4

Pre-installation and application warnings 5

Installation 6

Wiring diagram with T-Harness CHTHD2 (R1-R7 & R9-R10) or THCHD2 (R1) 6

Wiring diagram 7

Locating components in the vehicle 8

Vehicle connections 9

Module programming 11

Key-type Vehicles 11

Push-to-Start (PTS) Vehicles 12

Connecting the module 13

LED diagnostics and troubleshooting 14

Soft reset 16

Hard reset 16

Feature programming 17

Feature and option list 18

Limited one year consumer warranty 19

Quick reference guide 20

Contents

3403.CHRYSLER 7.34 2008 Chrysler Aspen

Introduction

DB3 is an all-in-one door lock and override module.

Warning!

This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs

Mobile application for smartphones. Refer to “Connecting the module” for more information.

4403.CHRYSLER 7.34 2008 Chrysler Aspen

Vehicle function compatibilities

This section lists all the functions compatible with this vehicle for the installation illustrated in this guide.

Parking Lights Control

Arm Factory Security

Disarm Factory Security

Door Lock Control

Door Unlock

Driver Priority Unlock

Trunk / Hatch Release

Control of aftermarket alarm with OEM remote

* Fuel Level

Immobilizer Bypass-Data No Key Req'd

RAP Shut Down (Retained ACC Power)

Remote Start Ready

Remote Start Takeover

SmartStart

Tach / RPM Output

Entry Monitoring ALL Door Pins

Entry Monitoring Hood Pin

Entry Monitoring Trunk/Hatch Pin

Brake Status (foot brake)

E-Brake Status

Ignition Status

5403.CHRYSLER 7.34 2008 Chrysler Aspen

Pre-installation and application warnings

Firmware notes: This section highlights important information for this speciﬁc ﬁrmware and will assist in

pricing accordingly, as well as bringing awareness to any operational or vehicle limitations.

T-Harness

compatible CHTHD2/THCHD2 Keys required for

programming 1Keys required for

operation 0

The optional Plug & Play CHTHD2/THCHD2 T-Harnesses are sold separately. See "Wiring diagram with T-Harness" for more

information on connections and installation instructions.

The OBDII Diagnostic Connector features will remain the same even when the T-Harness is installed.

All T-Harness wires NOT listed in the diagram are NOT required for the installation.

All connectors are displayed from the wire side (unless speciﬁed otherwise).

Refer to the "Vehicle connections" following the installation diagram.

General notes: This section highlights important information for this speciﬁc ﬁrmware.

[1] Tach wire is an optional connection required on some remote starters, which do not support a tach signal in D2D.

[2] When using a THCHD2 (R11) T-Harness and the security light remains ON after performing remote start takeover or the

radio turns ON when performing functions like lock and unlock, CUT and tape the T-04 loop.

[3] When using a CHTHD2 (R1- R6 & R9 - R10) & THCHD2 (R1) T-Harness and the security light remains ON after performing

remote start takeover or the radio turns ON when performing functions like lock and unlock, then CUT the Violet/Green pin

8 and Violet/Brown, pin 9 of the Red 12-pin harness.

6403.CHRYSLER 7.34 2008 Chrysler Aspen

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).

D2D Port

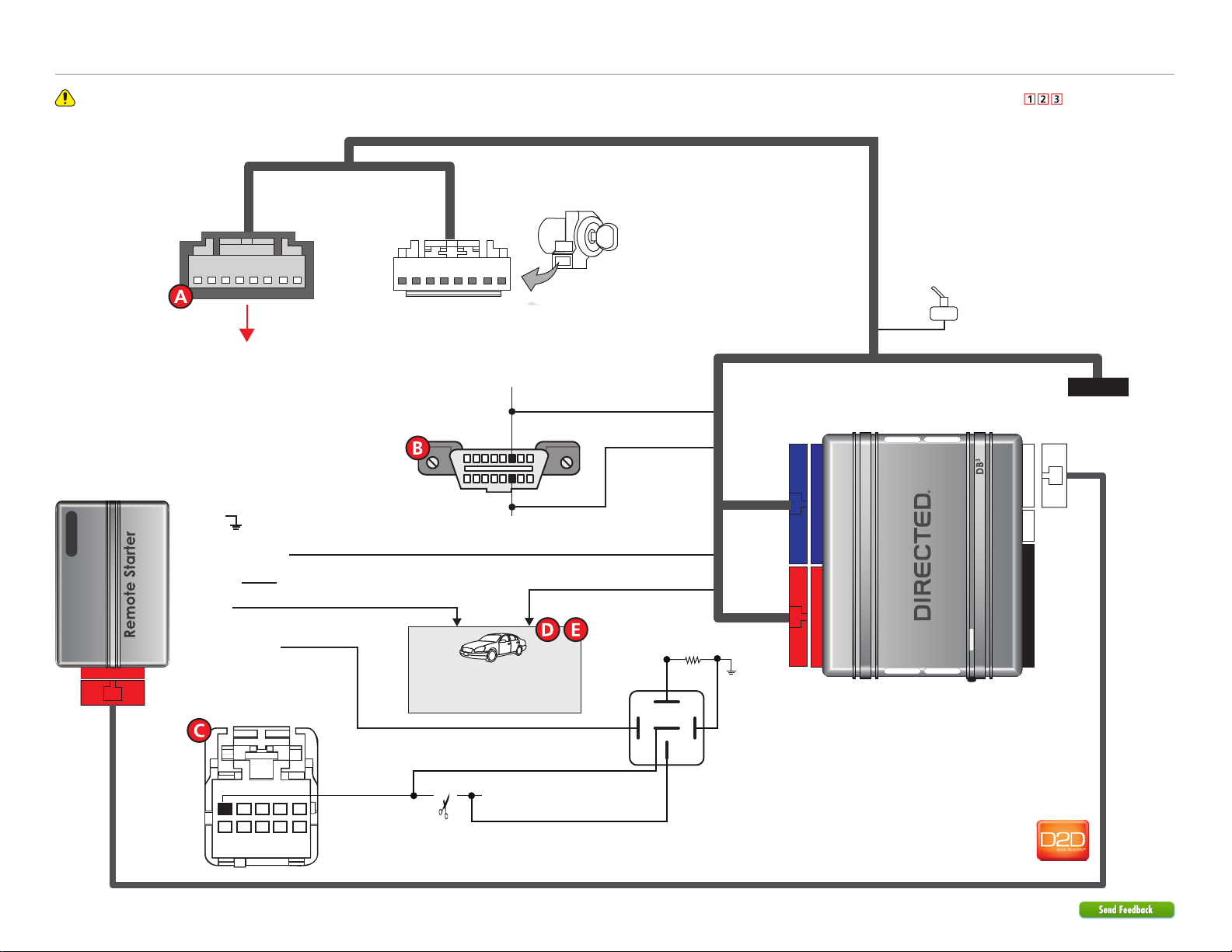

Wiring diagram with T-Harness CHTHD2 (R1-R6 & R9-R10) or THCHD2 (R1 & R11)

HS CAN High: Orange/Green

HS CAN Low: Orange/Brown

CAN C Low: Pin 14

CAN C High: Pin 6

(+)12V Input (-) Drivers Door Trigger

(-) RAP Off Output: Yellow/Black

Diagnostic

Connector OBDII

(connector side view)

1412

10 42

(+) Ignition Input/ Output (+) Ignition Input/Output: Pink

(-) Ground

(-) Hood Switch (-) Hood Switch

Refer to the

“Vehicle connections” section

for wire and connector details.

(+) 12V Input

(+) Parking Light Output

(MUX)

Parking Lights:

Pink/Red,

pin 1

987

106

Headlight Switch

(black 10-pin conn.)

CUT

1130 Ω

Resistor

86 85

87a

Do not

connect

The Remote Start Safety

Override Switch is inactive

(used for RSR only)

XKD2D65

Sentry Key Module

(black 8-pin conn.)

To vehicle

male 8-pin connector

at the ignition switch

To 8-pin Female Connector

at the ignition switch

CHTHD2 (R1-R6 & R9-R10) or THCHD2 (R1-R11)

(optional T-Harness)

7403.CHRYSLER 7.34 2008 Chrysler Aspen

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).

D2D Port

1412

10 42

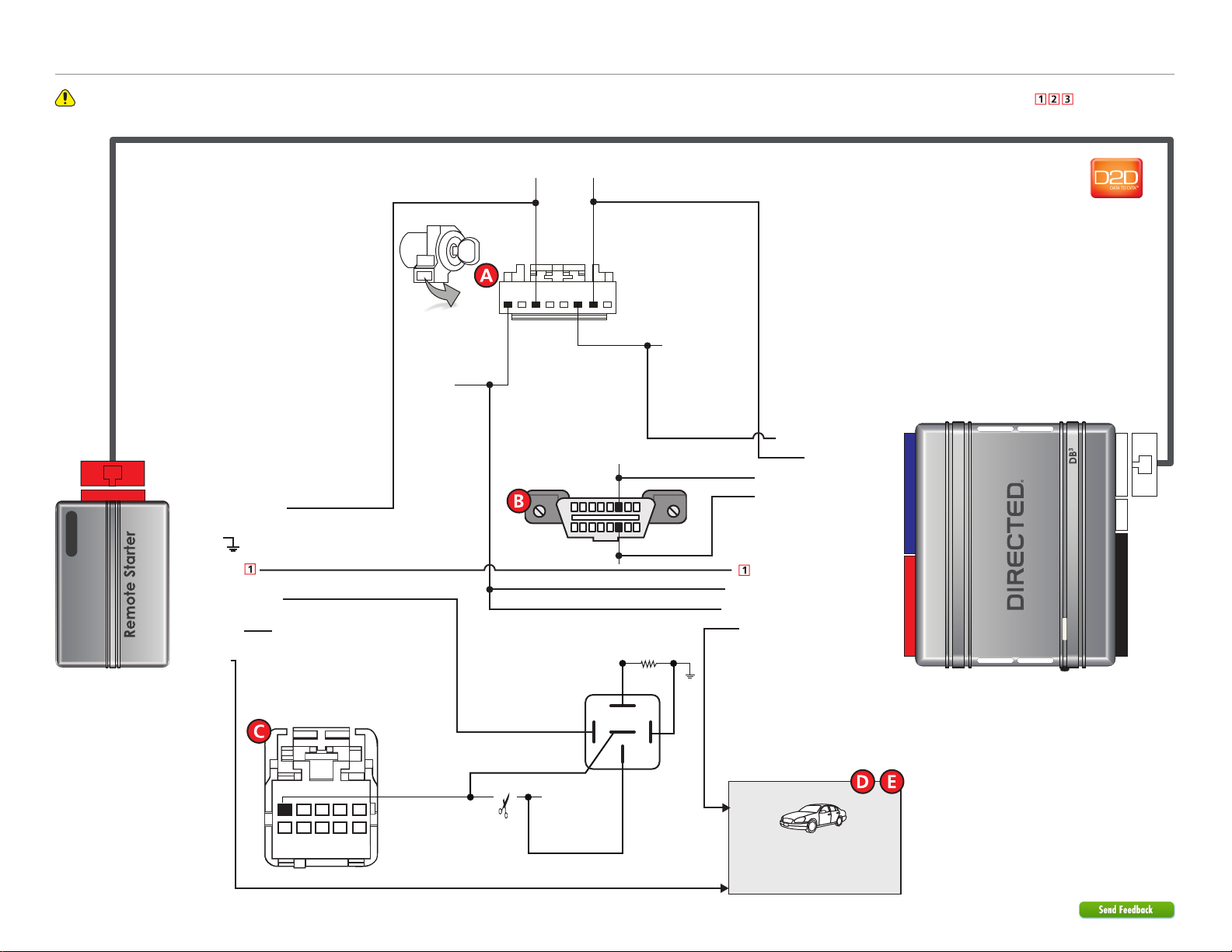

Wiring diagram

XKD2D65

(+) Parking Light Output

(-) Ground

(-) Hood Switch (-) Hood Switch

HS CAN 1 High: Tan/Black: 3

HS CAN 1 Low: Tan : 4

(AC) Tach Input (AC) Tach Output: Violet/White: 5

(MUX) Ignition Output: Violet/Brown: 9

(MUX) Ignition Output: Violet/Green: 8

(+) Ignition Input/ Output

(+) 12V Input

(MUX)

Parking Lights:

Pink/Red,

pin 1

987

106

Headlight Switch

(black 10-pin conn.)

CUT

1130 Ω

Resistor

86 85

87a

CAN B High: Pin 6

CAN B Low: Pin 7

(+) Ignition: Pink/White

or Pink/Gray, pin 3

(MUX) Ignition:

Violet/Brown,

pin 1

Sentry Key Module

(black 8-pin conn.,

connector side view)

1 8

Refer to the

“Vehicle connections” section

for wire and connector details.

CAN C Low: Pin 14

CAN C High: Pin 6

(-) RAP Off Output: Yellow/Black: 10

HS CAN 2 High: Orange/Green: 5

HS CAN 2 Low: Orange/Brown: 6

Diagnostic

Connector OBDII

(connector side view)

8403.CHRYSLER 7.34 2008 Chrysler Aspen

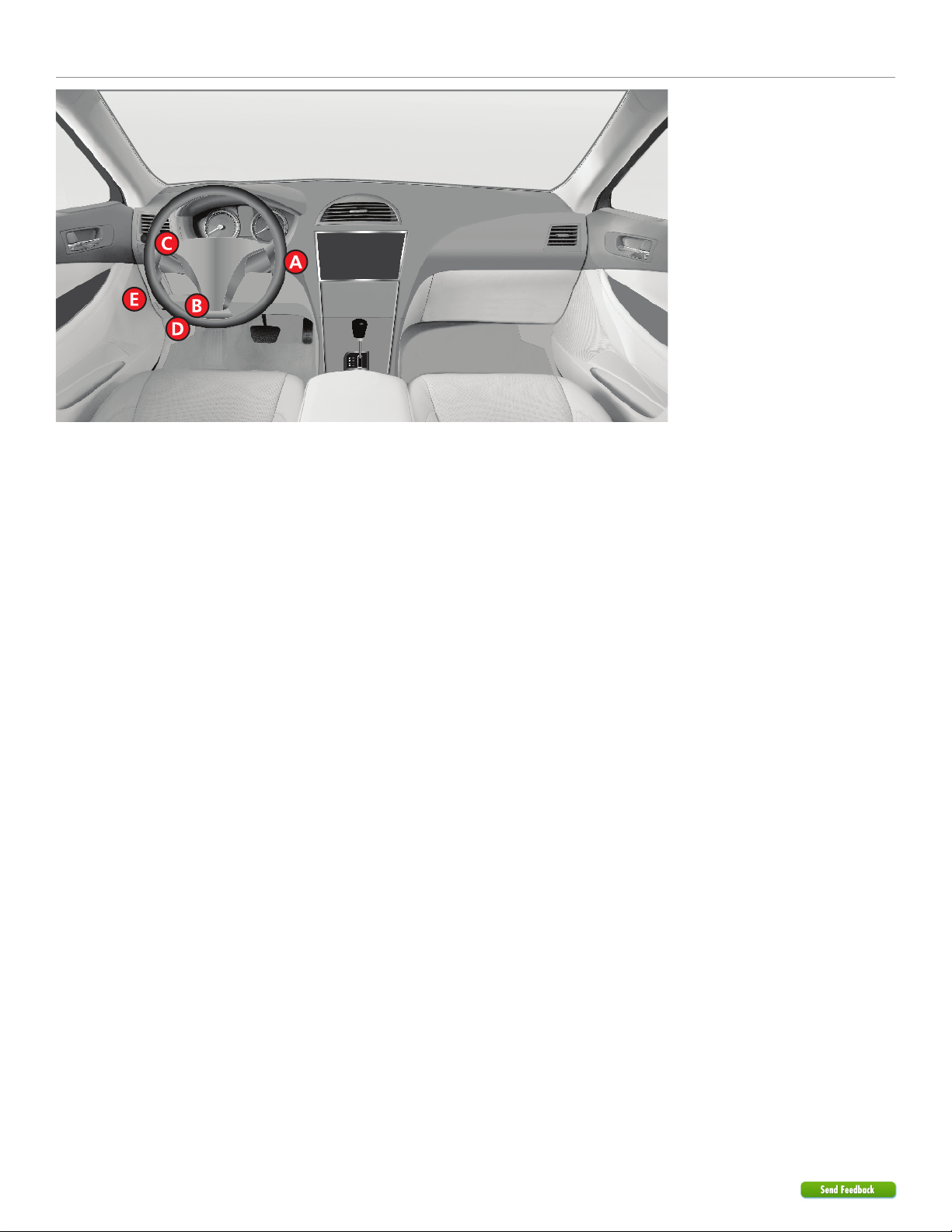

Locating components in the vehicle

9403.CHRYSLER 7.34 2008 Chrysler Aspen

Vehicle connections

The connection information listed below is specific to the 2008 Chrysler Aspen. Refer to “Pre-installation and application warnings” for a list of important notes.

Data 14-pin blue connector (H1)

Module Connects To

Conn./Pin Color Description Wire Location (+/-) Wire Color

H1/1 Light Green No Connection No Connection

H1/2 Violet/Yellow No Connection No Connection

H1/3 Tan/Black (DATA) HS CAN 1 High Sentry Key Module on ignition switch, black 8 pin plug, pin 6 data white/orange (CAN B BUS)

H1/4 Tan (DATA) HS CAN 1 Low Sentry Key Module on ignition switch, black 8 pin plug, pin 7 data white (CAN B BUS)

H1/5 Orange/Green (DATA) HS CAN 2 High OBD-data link connector, black 16 pin plug, pin 6 data white/pink (Diagnostic CAN C)

H1/6 Orange/Brown (DATA) HS CAN 2 Low OBD-data link connector, black 16 pin plug, pin 14 data pink/red (Diagnostic CAN C)

H1/7 Brown Relay N.O. No Connection No Connection

H1/8 Yellow Relay COM Ignition Output No Connection

H1/9 Orange/Yellow Relay N.C. Ignition Output No Connection

H1/10 Orange/Red Relay N.C. No Connection No Connection

H1/11 Yellow/Red Relay COM No Connection No Connection

H1/12 Brown/Red Relay N.O. No Connection No Connection

H1/13 Red (+) W2W Only - 12 Volt driver kick fuse box, black 40 pin plug, pin 1 + red/gray (40A)

H1/14 Black (-) W2W Only - Ground (chassis ground)

Output 12-pin red connector (H2)

Module Connects To

Conn./Pin Color Description Wire Location (+/-) Wire Color

H2/1 Black/White (-) W2W Only - E-Brake Output Remote Starter

H2/2 Green/Black No Connection No Connection

H2/3 Green/White (-) W2W Only - Door Output Remote Starter

H2/4 Red/Black (-) W2W Only - Trunk Output Remote Starter

H2/5 Violet/White (AC) W2W Only - Tach Output [1] Remote Starter

H2/6 Gray (+) W2W Only - Brake Output Remote Starter

H2/7 Gray/Black No Connection No Connection

H2/8 Violet/Green (MUX) Ignition Output Sentry Key Module on ignition switch, black 8 pin plug, pin 1 MUX violet/brown

H2/9 Violet/Brown (MUX) Ignition Output Sentry Key Module on ignition switch, black 8 pin plug, pin 1 MUX violet/brown

H2/10 Yellow/Black (-) RAP Off Output Driver Door Module, brown 20 pin plug, pin 5 - violet

H2/11 Orange/Black No Connection No Connection

H2/12 Blue/Red (-) W2W Only - Hood Switch Input Remote Starter

Input 10-pin black connector (H3)

Module Connects To

Conn./Pin Color Description Wire Location (+/-) Wire Color

10 403.CHRYSLER 7.34 2008 Chrysler Aspen

Module Connects To

Conn./Pin Color Description Wire Location (+/-) Wire Color

H3/1 Green (-) W2W Only - Lock Input Remote Starter

H3/2 Blue (-) W2W Only - Unlock Input Remote Starter

H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter

H3/4 White/Violet (-) W2W Only - Aux1 Input Remote Starter

H3/5 Violet/Black (-) W2W Only - Aux2 Input Remote Starter

H3/6 White/Black No Connection No Connection

H3/7 Pink/White (+) W2W Only - Pk Light Input

H3/8 Violet (+) W2W Only - Starter Input Remote Starter

H3/9 Pink (+) W2W Only - Ignition Input Remote Starter

H3/10 Blue/White (-) W2W Only - Ground When Running (Status) Input Remote Starter

D2D 4-pin white connector (H4)

Module

Conn./Pin Color Description

H4/1 Blue (Data) TX

H4/2 Black (-) Ground

H4/3 Green (Data) RX

H4/4 Red (+) 12 Volt

RF 2-pin white connector (H5)

Module

Conn./Pin Color Description

H5/1 N/A No Connection

H5/2 N/A No Connection

Additional remote start connections

(Not all of these connections may be required for your installation. Refer to the wiring diagram for vehicle-specific connections.)

Wire Connects To

Wire Location (+/-) Wire Color

12 Volts driver kick fuse box, black 40 pin plug, pin 1 + red/gray (40A)

Ground (chassis ground)

Hood Pin hood pin switch, black 2 pin plug, pin 1 - violet/lt. blue

Ignition Sentry Key Module on ignition switch, black 8 pin plug, pin 3 + pink/gray

Parking Lights MUX - Must use a resistor - Must use a relay Not Applicable

Tachometer any fuel injector ac NOT red
