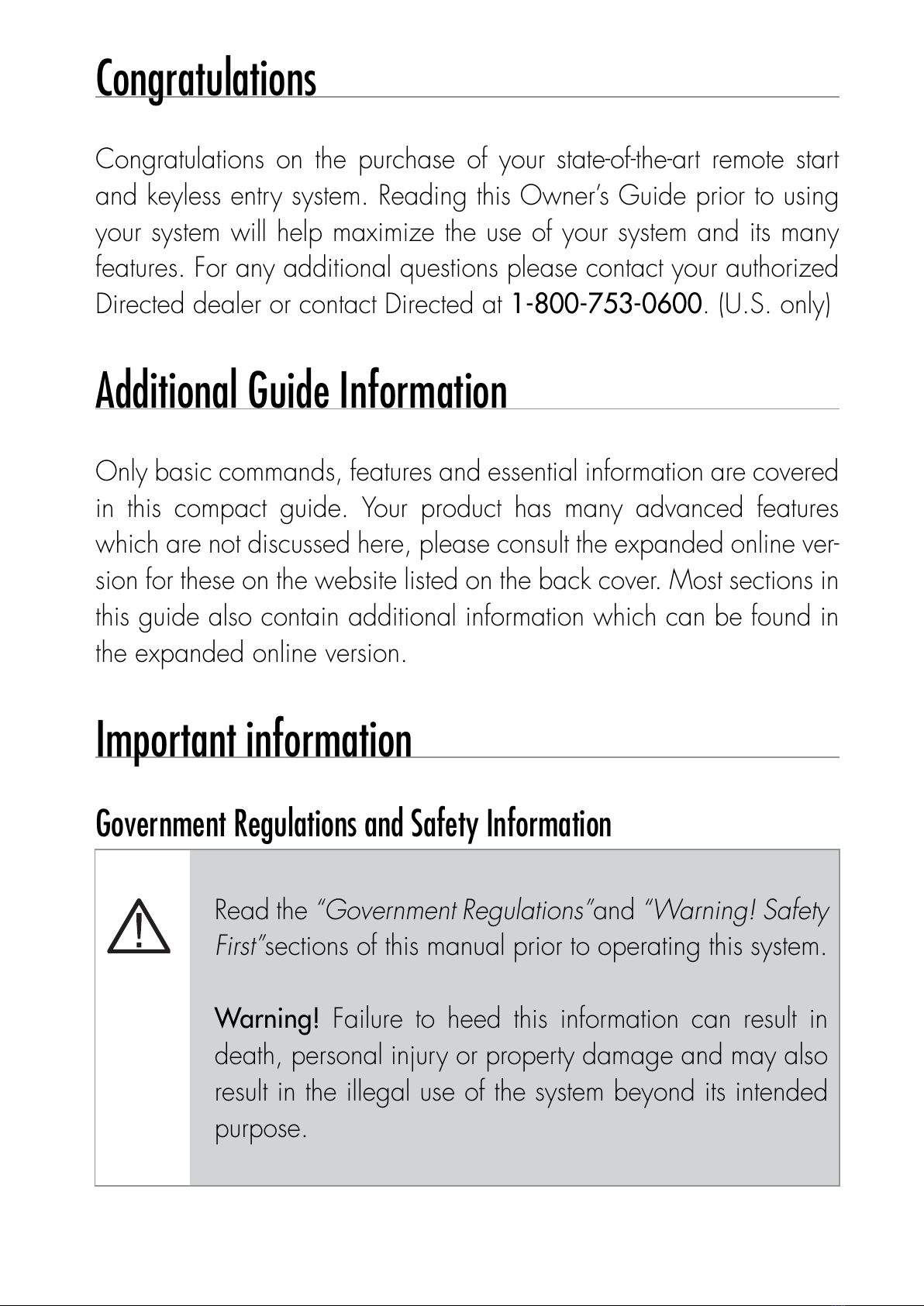

Congratulations

Congratulations on the purchase of your state-of-the-art remote start

and keyless entry system. Reading this Owner’s Guide prior to using

your system will help maximize the use of your system and its many

features. For any additional questions please contact your authorized

Directed dealer or contact Directed at 1-800-753-0600. (U.S. only)

Additional Guide Information

Only basic commands, features and essential information are covered

in this compact guide. Your product has many advanced features

which are not discussed here, please consult the expanded online ver-

sion for these on the website listed on the back cover. Most sections in

this guide also contain additional information which can be found in

the expanded online version.

Important information

Government Regulations and Safety Information

Read the “Government Regulations”and “Warning! Safety

First”sections of this manual prior to operating this system.

Warning! Failure to heed this information can result in

death, personal injury or property damage and may also

result in the illegal use of the system beyond its intended

purpose.

All manuals and user guides at all-guides.com

Your Warranty

Your system comes with a warranty. The warranty terms are detailed at

the end of this guide. Make sure that you receive the proof of purchase

from your dealer, indicating the product was installed by an autho-

rized Directed dealer.

Optional Remote Controls

A choice of two optional remote controls with additional features is

also available for use with your system. These remote control choices

are: LED 2-way (P/N 7856) and LCD 2-way (P/N 7756). See your

authorized dealer for purchasing details. Once purchased, please

go online to our website (listed on the back cover) and use system

model number 4806 or 4706 respectively to search for the appropri-

ate owner’s guide, which provides instructions on how to use these

remote controls.

Replacement remote controls

Please see your authorized dealer or visit us at www.directedstore.

com to order additional remote controls. Remote control part numbers

are found on the back of the device.

All manuals and user guides at all-guides.com

Contents

Important information ......................................................................................... 1

Remote Control ................................................................................................... 2

Control Center .................................................................................................... 2

Using your System............................................................................................... 3

Commanding the system....................................................................... 3

Performing Commands ......................................................................... 3

Remote Control Command table ............................................................ 4

Basic Commands (Direct Access) .......................................................................... 5

Lock ................................................................................................... 5

Unlock................................................................................................ 5

Remote Start........................................................................................ 5

AUX/Trunk.......................................................................................... 5

Battery Information.............................................................................................. 6

Battery Disposal .................................................................................. 6

Patent Information ............................................................................................... 6

Government Regulations ...................................................................................... 7

Warning! Safety First........................................................................................... 8

Installation .......................................................................................... 8

Remote Start Capable .......................................................................... 8

Manual Transmission Vehicles ............................................................... 9

Interference....................................................................................... 11

Upgrades ......................................................................................... 11

Water/Heat Resistance ...................................................................... 11

Limited lifetime consumer warranty ..................................................................... 12

All manuals and user guides at all-guides.com

Remote Control

Feature Description

Internal Antenna Used for transmitting information

Transmit LED Active when transmitting information

Command buttons (4)

A U X

AUX

Used to perform locking, unlocking, auxiliary channel and

remote start commands

Function button

A U X

Used to access function levels for commands, configuration

menus for programming and Car Selection

Control Center

Control CenterLED Button

The Control Center, typically located on the upper part of the front

windshield. It consists of:

• The In-vehicle system antenna.

• The Status LED, as a visual indicator of the system’s status.

• The Control button, for placing the system into Valet Mode* and

to perform the Emergency Override operation.

* See online guide.

All manuals and user guides at all-guides.com

Using your System

Commanding the system

Commands, Basic or Advanced, are used to activate system features

and are performed by pressing one of the Command buttons. Basic

commands control the most often used keyless entry and remote start

features while Advanced commands control more specialized fea-

tures.

Conﬁrmations for Basic or Advanced commands are indicated

by horn honks* and parking light ﬂashes. A description of each fea-

ture conﬁrmation is found in the following Basic command and Ad-

vanced command sections.

Performing Commands

Perform Basic commands by pressing a Command button.

Perform Advanced Commands by ﬁrst accessing Levels 1-4 using the

AUX

button and then by pressing a Command button while within a

level.

Advanced command example: Silent Lock

1. Press the

AUX

button once to access Function Level 1, The trans-

mit LED single ﬂashes for 3 seconds.

2. Press the

AUX

button while the transmit LED is still ﬂashing to

perform the Silent Lock command.

3. The system will lock the doors and ﬂash the parking lights,

without horn honks.*

* The optional Horn Honk feature must be connected.

All manuals and user guides at all-guides.com

all-guides.com

Remote Control Command table

Basic

Commands

Advanced Commands

Function

Level 1

Function

Level 2

Function

Level 3

Function

Level 4

Button

Level Direct Access

A U X

x 1

A U X

x 2

A U X

x 3

A U X

x 4

A U X

Lock Silent Lock

A U X

Unlock Silent Unlock Remote Valet Car Finder

A U X

Remote Start Reset Runtime Timer Start Smart Start Defogger

AUX AUX/Trunk AUX 1 AUX 2 AUX 3 AUX 4

A U X

Advance

Level, Change

Car (3 sec),

Enter program-

ming (8 sec)

All manuals and user guides at all-guides.com

Basic Commands (Direct Access)

Lock

Press and release

AUX

Doors lock (if connected), the horn honks** once and the parking

lights ﬂash one time.

To Lock and Panic

Press and hold

AUX

To lock the system, then activate Panic. For Panic to be effective,

the optional horn honk feature must be connected. Press the

AUX

button to stop Panic output.

Unlock

Press and release

AUX

The doors unlock (if connected), the horn honks** twice and the park-

ing lights ﬂash.

Remote Start*

Press and release

AUX

Activates (or if On, deactivates) the remote starter. The engine turns

On, or the engine turns Off accordingly. If a Remote start conﬁgura-

tion issue prevents the engine from starting, the parking lights ﬂash a

Remote Start fault report to identify the fault.

AUX/Trunk**

Press and hold

AUX

The Trunk opens (if connected) when button is held for 2 seconds.

* See online guide.

**This is an optional feature, see your authorized Directed dealer.

All manuals and user guides at all-guides.com

Battery Information

The remote controls are powered by one coin cell battery (CR-2032)

that can be purchased at most retailers. When the battery begins to

weaken, the operating range is reduced.

Battery Disposal

Directed cares about the environment. If you need to dis-

pose of the battery, please do so in accordance with your

municipal requirements for battery disposal.

Patent Information

This product is covered by one or more of the following United States

patents:

Remote Start Patents:

5,349,931; 5,872,519; 5,914,667; 5,952,933; 5,945,936;

5,990,786; 6,028,372; 6,467,448; 6,561,151; 7,191,053;

7,483,783

Vehicle Security Patents:

5,467,070; 5,532,670; 5,534,845; 5,563,576; 5,646,591;

5,650,774; 5,673,017; 5,712,638; 5,872,519; 5,914,667;

5,952,933; 5,945,936; 5,990,786; 6,028,505; 6,452,484

Other patents pending.

All manuals and user guides at all-guides.com

Government Regulations

This device complies with Part 15 of FCC rules. Operation is subject to the fol-

lowing two conditions: (1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference

that may cause undesirable operation.

This equipment has been tested and found to comply with the limits for a

class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates and can radiate radio fre-

quency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installa-

tion. If this equipment does cause harmful interference to radio or television,

which can be determined by turning the equipment OFF and ON, the user is

encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio / TV technician for help.

Remote Controls

To satisfy FCC RF exposure compliance requirements, this device should be

used in hand-held, hand operated conﬁgurations only. The device and its an-

tenna must maintain a separation distance of 20 cm or more from the person’s

body, except for the hand and wrists, to satisfy RF exposure compliance. This

device is designed to be used in a person’s hands and its operating conﬁgu-

rations do not support normal transmissions while it is carried in pockets or

holsters next to a person’s body.

All manuals and user guides at all-guides.com

Indice

Altri manuali Directed Avviamento remoto

Directed

Directed Clifford 4205X Manuale utente

Directed

Directed Viper 4105V Manuale utente

Directed

Directed 4115V Manuale utente

Directed

Directed Autostart Signature Series Manuale utente

Directed

Directed DS4+ Manuale utente

Directed

Directed 5906 Manuale utente

Directed

Directed 2102T Manuale utente

Directed

Directed AS-RFK2300 Manuale utente

Directed

Directed Xpresskit DBALL2 Manuale utente

Directed

Directed SMARTASTART VSM300 Manuale utente

Directed

Directed Xpresskit DBALL2 Manuale utente

Directed

Directed Clifford 4706X Manuale utente

Directed

Directed Xpresskit DBALL2 Manuale utente

Directed

Directed XPRESSSTART ONE Manuale utente

Directed

Directed SMARTSTART ASRA-2510 Manuale utente

Directed

Directed AS-3472TW Manuale utente

Directed

Directed 4113, 1-button series Manuale utente

Directed

Directed SmartStart DSM200 Series Manuale utente

Directed

Directed TWO -WAY FM LED AUTOMATIC/MANUAL TRANSMISSION REMOTE... Manuale utente

Directed

Directed Python 4218P Manuale utente

Directed

Directed AS-RFK1710 Manuale utente

Directed

Directed HYUNDAI4 Manuale utente

Directed

Directed DS4+ Manuale utente

Directed

Directed Xpresskit DBALL2 Manuale utente

Manuali Avviamento remoto popolari di altre marche

AstroStart

AstroStart 803U Manuale utente

Durite

Durite 0-649-20 Manuale

EINHELL

EINHELL BT-PS 1000 Manuale

Linear

Linear ACCESS AK-21 Specifiche tecniche

Soundstream

Soundstream TARANTULA RS.2 Manuale utente

Jaycar Electronics

Jaycar Electronics MB3752 Manuale utente

Ultra Start

Ultra Start 72 Series Manuale utente

ADS

ADS FLASHLOGIC FLRSVW1 Manuale utente

Selecta

Selecta JS012 Manuale utente

Black Widow Security

Black Widow Security BW RAS 400 Manuale utente

Vector

Vector Power City DK080706 Supplemento

Code Alarm

Code Alarm CA-535 Manuale utente

Ozito

Ozito OJS-800 Manuale utente

Profi-Partner

Profi-Partner 46387 Manuale utente

EZ STARTER

EZ STARTER EZ-45 Manuale utente

Viper

Viper 4204 Manuale utente

Essex Electronics

Essex Electronics KE-1701 Manuale utente

EINHELL

EINHELL EGS 3600 Manuale
