Directive Systems & Engineering DSE2455LY Manuale utente

DSE2455LY Rev 4/21

Directive Systems & Engineering

2702 Rodgers Terrace

Haymarket, VA 20169-1628

www.directivesystems.com

703-754-3876

24cm Loop Yagi, Model DSE2455LY

SPECIFICATIONS

Frequency Range: 1.24 to1.27 GHz

Number of elements: 55

Boom Length: 180 inches

Boom diameter: 1 inch

Mast diameter: 2 inches max.

Weight: 7 ½ pounds assembled

Connector: Type N female

Gain: ≅21 dBi

3 dB Beamwidth (E Plane) : ≅14º

F/B ratio: >20 dB

Maximum Power: 550 W. average

Stacking distance: 27 inches’vertical

30 inches’horizontal

Note: All hardware is Stainless Steel unless otherwise noted.

BEFORE INSTALLING YOUR NEW ANTENNA, PLEASE BE SURE

TO READ THE ENCLOSED WARNING PAMPHLET.

ASSEMBLY INSTRUCTIONS

1) Unpack antenna and locate the three preassembled antenna sections and the hardware

package. The boom is broken between elements D21 and D22 & D42 and D43. Remove D22 &

D43 from the boom pieces and slide boom pieces together to alignment marks. Replace D22 &

D43 and retighten. (D22 is the element approximately 0.5 inch from the end of the boom section; it

will only fit together one way.) The booms are marked for your assembly.

2) Straighten any misaligned elements and tighten hardware if necessary. But do not touch

R1, DE or D1, as these have been factory set for minimum SWR.

3) Attach the boom to mast plate to the boom with the hardware provided. Install the U-bolts

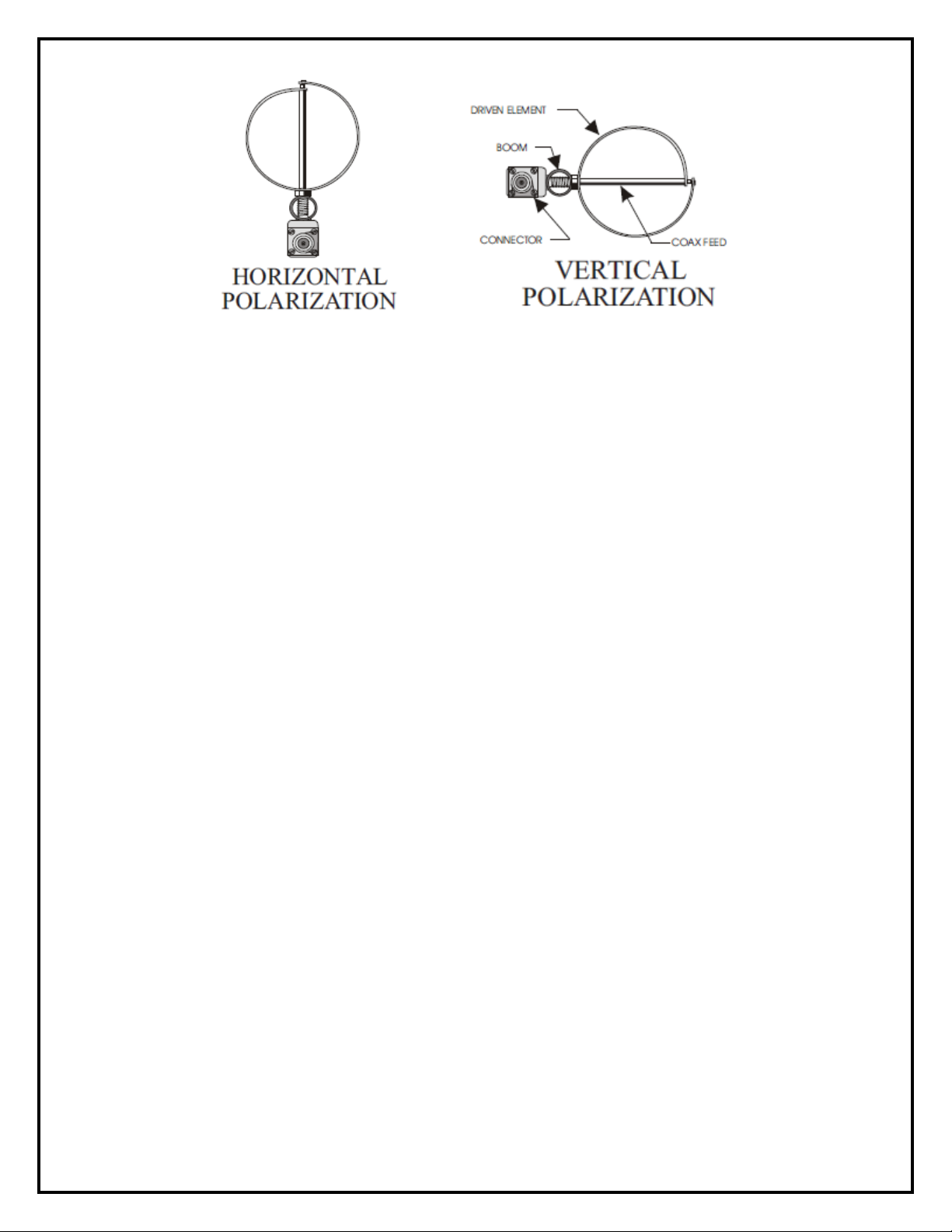

so that the mast comes up directly under the boom. Note that the bracket can be installed for

either vertical or horizontal polarization. (See drawings below)

P a g e | 2

DSE2455LY Rev 4/21

(Can be up or down) (Can be left or right)

4) Attach the feed line, and tape it to the bottom of the boom. The connector should be sealed

with electronic grade RTV or equivalent.

5) As shipped, the antenna SWR will be less than 1.5:1. Additional tweaking can be

accomplished by adjusting the distance between the driven element and R1 and D1, or by

adjusting the shape of the driven element. NOTE: Do not attempt this adjustment unless the

proper equipment and qualified personnel are available.

6) If antennas are to be stacked, see "Instructions for Stacking Loop Yagis".

Refer to photos in the next few steps for clarification on the Sub Boom:

7) Mount the boom to mast bracket (square tubing piece) to the center boom section,

using 8-32 X 2" screws, lock washers and nuts. Mount the boom to mast plate to this bracket

using 8-32 x 1 ¼” screws, lock washers and nuts. Note: There may be extra holes in the plate that

may be used for different applications.

8) There are two sub-boom brackets consisting of ½” aluminum angle and sub-boom

plates. Mount the angle brackets on the front and rear boom sections using 8-32 x 1 3/8”

screws, lock washers and nuts. Mount the sub-boom plates to these brackets using 8-32 x ½”

screws, lock washers and nuts.

9) Mount the sub-boom (3/4” thick wall aluminum square tubing) to the sub-boom brackets

and boom to mast plate using 8-32 x 1 ¼” screws, lock washers and nuts. NOTE: Do not

tighten any of this hardware until sub-boom assembly is complete.

DO NOT, UNDER ANY CIRCUMSTANCES, APPLY ANY TYPE OF SEALANT OR COATING TO THE

DRIVEN ELEMENT, T-ARMS OR CONNECTOR ASSEMBLY, OTHER THAN KRYLON®

CLEAR COAT. ANY OTHER COATING WILL ADVERSELY AFFECT THE SWR AND VOID YOUR

WARRANTY.

P a g e | 3

DSE2455LY Rev 4/21

Boom to Mast Bracket

Boom to Mast Plate

Sub Boom

Sub Boom Plate

Sub Boom

Bracket

P a g e | 4

DSE2455LY Rev 4/21

Directive Systems Warranty Policy

All Directive Systems antennas are built with the finest materials available. We take great pride

in building a quality product that will give years of good service and performance. If there is a defect

in materials or workmanship within 90 days of purchase, Directive Systems will repair or replace

the defective part, free of charge, to the original purchaser. DO NOT RETURN ANYTHING

WITHOUT PRIOR AUTHORIZATION FROM DIRECTIVE SYSTEMS. Please contact us either by

phone or email describing the problem and we will work to resolve it.

If, after examining a new antenna you received, you are not satisfied, contact us immediately

for return authorization and refund. ANY ANTENNA THAT HAS BEEN MODIFIED WILL BE

SUBJECT TO A RESTOCKING CHARGE. IF AN ANTENNA IS SO MODIFIED AS TO MAKE IT

UNUSABLE, DIRECTIVE SYSTEMS RESERVES THE RIGHT TO REFUSE TO ACCEPT THE

ANTENNA FOR RETURN.

URN.
