Directive Systems & Engineering Yagi DSE3319LYCEL Manuale utente

DSE3319LYCEL Rev 4/21

Directive Systems & Engineering

2702 Rodgers Terrace

Haymarket, VA 20169-1628

www.directivesystems.com

703-754-3876

Cellular Loop Yagi, Model DSE3319LYCEL

SPECIFICATIONS

Frequency Range: 826-896 MHz

Number of elements: 19

Boom Length: 72 inches

Boom diameter: 1 inch

Mast diameter: 1 1/2 inch max.

Weight: 5 lbs (6 lbs(ship)

Connector: Type N female

Gain: 16.5 dBi

3 dB Beamwidth (E Plane): ≅28°

F/B ratio: >20 dB

Maximum Power: 550 W. average

Stacking Distance:

H Plane 18 inches vertical

E Plane 20 in. horizontal

Note: All hardware is Stainless Steel unless otherwise noted.

Anti-Seize Compound - Apply a small amount of the supplied Anti-Seize Compound to the aluminum joints and

to the threads of the U-Bolts to prevent galling.

BEFORE INSTALLING YOUR NEW ANTENNA, PLEASE BE SURE

TO READ THE ENCLOSED WARNING PAMPHLET.

P a g e | 2

DSE3319LYCEL Rev 4/21

ASSEMBLY INSTRUCTIONS

1) Unpack antenna and locate the hardware package. If the antenna is shipped in two

pieces, remove Director 9, Connect the two boom pieces together at alignment marks. Re-

install D9 and tighten 4-40 nut to secure boom.

2) Straighten any misaligned elements and tighten hardware if necessary. But do not

touch the gold colored (brass) loop or the loops on either side of it, as these have been

factory adjusted.

3) If the boom-to-mast "L" bracket isn’t already attached to the bracket, do so now with the

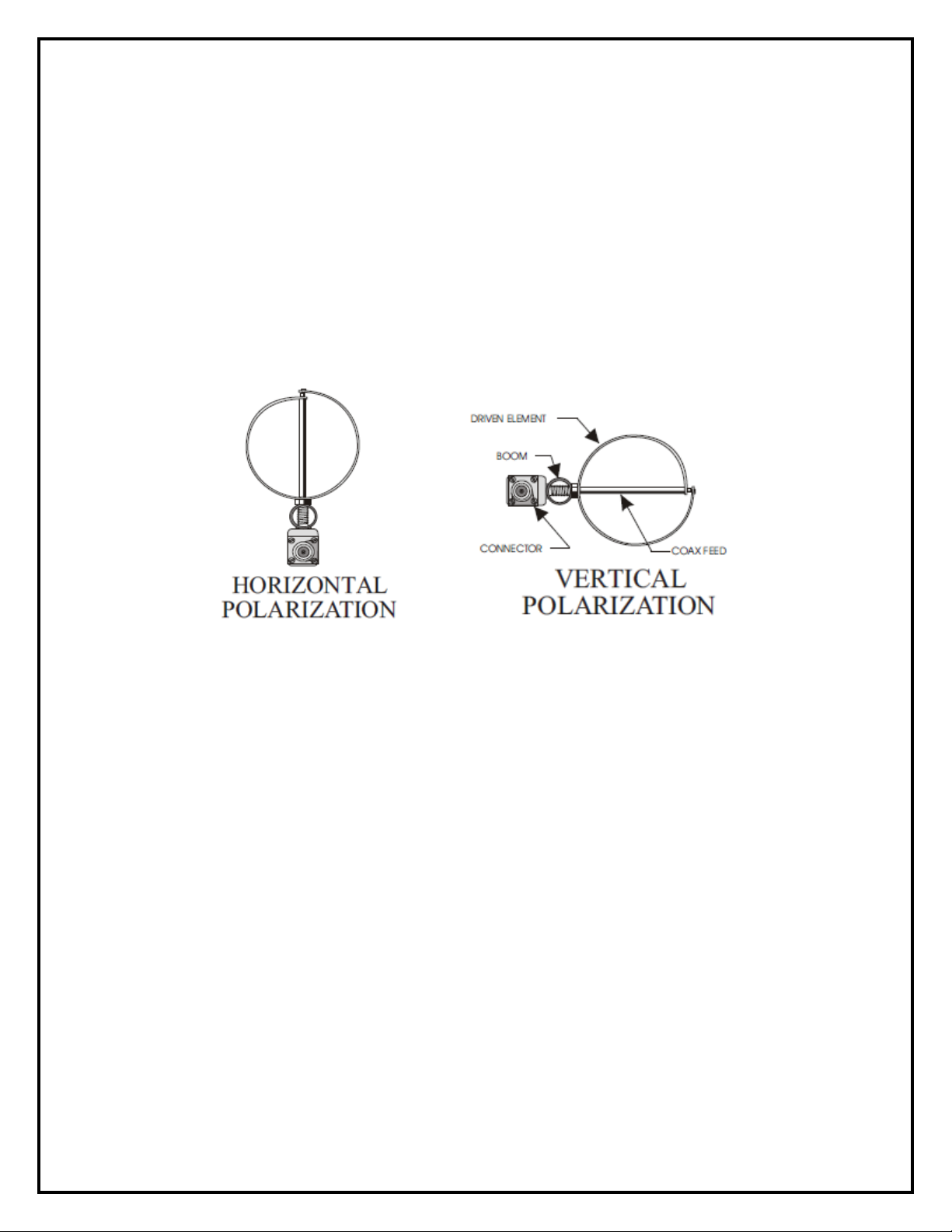

hardware provided. (See diagram on opposite page. Polarization may be easily adjusted by

loosening the two hose clamps. Hydrogen line radiation is mostly randomly polarized.)

(Can be up or down) (Can be left or right)

4) Attach the feed line and tape it to the bottom of the boom. The connector should be

sealed with electronic grade RTV or equivalent.

5) The antenna SWR has been adjusted for less than 1.5:1 at the factory. Additional

tweaking can be accomplished by adjusting the distance between the driven element and R1

and D1, or by slightly adjusting the shape of the driven element. NOTE: Do not attempt this

adjustment unless the proper equipment and qualified personnel are available.

6) If antennas are to be stacked, see "Instructions for Stacking Loop Yagis"

DO NOT, UNDER ANY CIRCUMSTANCES, APPLY ANY TYPE OF SEALANT OR COATING TO THE

DRIVEN ELEMENT, T-ARMS OR CONNECTOR ASSEMBLY, OTHER THAN KRYLON®

CLEAR COAT. ANY OTHER COATING WILL ADVERSELY AFFECT THE SWR AND VOID YOUR

WARRANTY.

P a g e | 3

DSE3319LYCEL Rev 4/21

Directive Systems Warranty Policy

All Directive Systems antennas are built with the finest materials available. We take great pride

in building a quality product that will give years of good service and performance. If there is a defect

in materials or workmanship within 90 days of purchase, Directive Systems will repair or replace

the defective part, free of charge, to the original purchaser. DO NOT RETURN ANYTHING

WITHOUT PRIOR AUTHORIZATION FROM DIRECTIVE SYSTEMS. Please contact us either by

phone or email describing the problem and we will work to resolve it.

If, after examining a new antenna you received, you are not satisfied, contact us immediately

for return authorization and refund. ANY ANTENNA THAT HAS BEEN MODIFIED WILL BE

SUBJECT TO A RESTOCKING CHARGE. IF AN ANTENNA IS SO MODIFIED AS TO MAKE IT

UNUSABLE, DIRECTIVE SYSTEMS RESERVES THE RIGHT TO REFUSE TO ACCEPT THE

ANTENNA FOR RETURN.
