Dirt Devil CV1500 Manuale utente

Installation

CENTRAL VACUUM SYSTEMS

The compact (6.25" x 7" x 14.5"), lightweight (14 pounds), 120-volt CV1500 power unit is

quick and easy to install in a space as small as 10" x 20" –perfect for installing under seats,

inside closets or in storage compartments. Using the mounting brackets already attached

to either side of the power unit, the CV1500 can be top or bottom mounted, and installed

horizontally or vertically. The power unit and inlet valve can also be installed up to five feet

apart using an optional Flex Connector Kit.

A complete Installation

Guide is included

with the

Dirt Devil®

CV1500

Power Unit.

Quick and Easy Installation

Sample Layouts Using 3-Way Manifold (#8727)

3-Way

Manifolds can

also be used

to install three

separate tubing

branch lines.

3-Way

Manifold

Using a 3-Way

Manifold makes

installation of two

separate tubing

branch lines and

an inlet valve

easier with

simpler layout

configurations –

less fittings are

needed too!

Installation

CENTRAL VACUUM SYSTEMS

HOSE, CUT TO LENGTH

#6452-15 = 5 FT LONG

#6452-06 = 10 FT LONG

#6452-05 = 29 FT LONG

#6452-13 = 60 FT LONG

-THREADS INTO 7477-G FLEX KIT

7477-G FLEX KIT INCLUDES:

(2) THREADED COUPLINGS

(2) 5527W

(SEE

PAGE 5

FOR MORE

INLET

VALVE

OPTIONS)

8735W

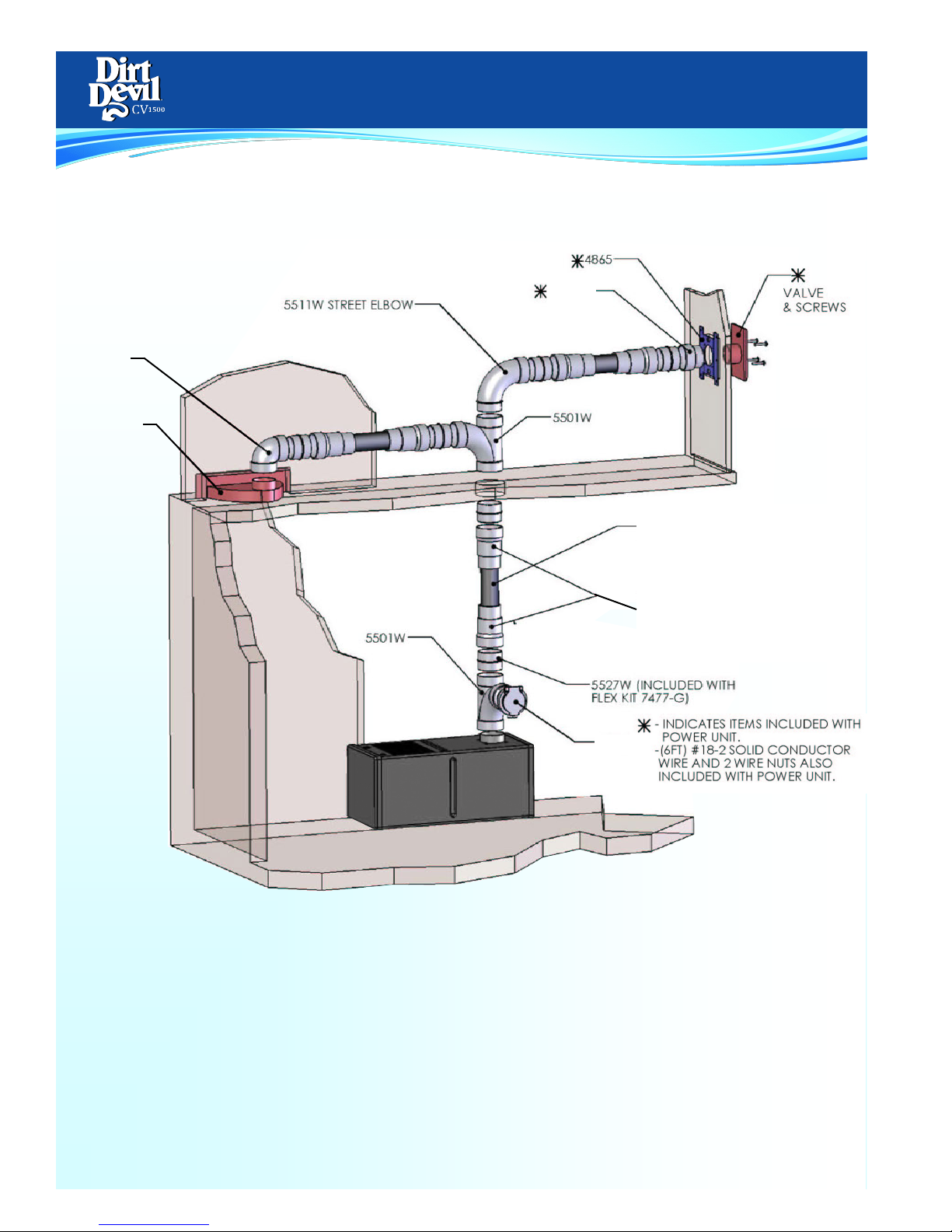

Dirt Devil® CV1500 Central Vacuum

System Layout

ADDITIONAL ACCESSORIES:

5149 - WIRE NUTS

5038 - PVC SOLVENT

NOTES:

1) This illustration shows a typical installation. Many different mounting configurations can be

achieved by using these standard components.

2) Rigid PVC tubing (#6928W) may be used in place of flexible hose (6452-06, -05, -13) and the

flex kit (#7477-G).

5148-6 - #18-2 SOLID CONDUCTOR WIRE (6 FT)

5148-14 - #18-2 SOLID CONDUCTOR WIRE (14FT)

5139W - #18-2 SOLID CONDUCTOR WIRE (100 FT) SPOOL

5018W - VALVE STEM EXTENSION USED FOR THICK WALLS

5510W - 90º ELBOW (NOT STREET)

VACPAN

7710W WHITE

7710B BLACK

7710A ALMOND

5506W

5586W
