Dirt Devil Royal M082120 Manuale utente

OWNER'S MANUAL

Operating and Servicing Instructions

CAN

VAC"

Please read these

instructions

carefully

before using

your CanVac.

Let us help you

put your vacuum

together or answer

any questions, call

1-800-321-1134

(U.S.A.).

1-800-661-6200

(Canada).

website:

www.dirtdevil.com

For

quick

reference,

please

record

your

vacuum

information

below.

Model

Mfg.

Code:

(This information is located on the underside

of cleaner)

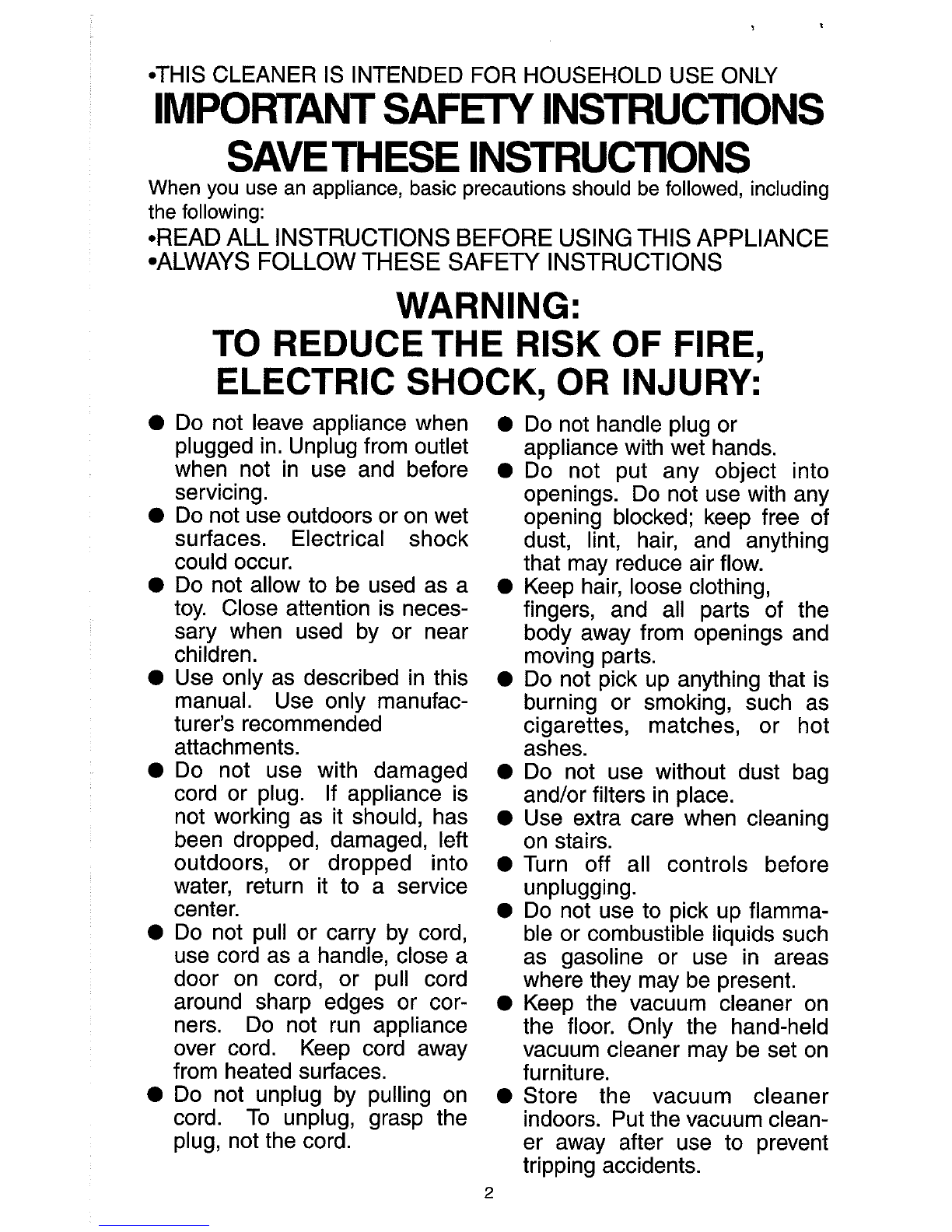

*THIS CLEANER IS INTENDED FOR HOUSEHOLDUSEONLY

IMPORTANTSAFETY INSTRUCTlONS

When you use an appliance, basic precautionsshould be followed, including

the following:

*READALL INSTRUCTIONSBEFOREUSINGTHISAPPLIANCE

*ALWAYS FOLLOWTHESE SAFETY INSTRUCTIONS

WARNING:

TO REDUCETHE RISK OF FIRE,

ELECTRIC SHOCK, OR INJURY:

Do not leave appliance when

pluggedin. Unplugfrom outlet

when not in use and before

servicing.

Do not useoutdoors or on wet

surfaces. Electrical shock

could occur.

Do not allow to be used as a

toy. Close attention is neces-

sary when used by or near

children.

Use only as described in this

manual. Use only manufac-

turer's recommended

attachments.

Do not use with damaged

cord or plug. If appliance is

not working as it should, has

been dropped, damaged, left

outdoors, or dropped into

water, return it to a service

center.

Do not pull or carry by cord,

use cord as a handle, close a

door on cord, or pull cord

around sharp edges or cor-

ners. Do not run appliance

over cord. Keep cord away

from heatedsurfaces.

Do not unplug by pulling on

cord. To unplug, grasp the

plug, not the cord.

Do not handle plug or

appliance with wet hands.

Do not put any object into

openings. Do not use with any

opening blocked; keep free of

dust, lint, hair, and anything

that may reduce air flow.

Keep hair, loose clothing,

fingers, and all parts of the

body away from openings and

moving parts.

Do not pick up anything that is

burning or smoking, such as

cigarettes, matches, or hot

ashes.

Do not use without dust bag

andlor filters in place.

Use extra care when cleaning

on stairs.

Turn off all controls before

unplugging.

Do not use to pick up flamma-

ble or combustible liquids such

as gasoline or use in areas

where they may be present.

Keep the vacuum cleaner on

the floor. Only the hand-held

vacuum cleaner may be set on

furniture.

Store the vacuum cleaner

indoors. Putthevacuum clean-

er away after use to prevent

tripping accidents.

Always turn off the vacuum Using improper voltage may

cleaner before connecting or result in damage to the motor

removingthe hose. andpossibleinjurytothe user.

SAFETY PRECAUTIONS

WARNING:

To reducethe risk of electric shock, this appliancehas a polarized

plug(one bladewider thantheother). This plugwill fit ina polarized

outletonlyoneway. Ifthe plugdoes notfit fully intheoutlet, reverse

theplug. If itstilldoesnotfit, contactaqualifiedelectriciantoinstall

the proper outlet. Do notchangethe plug inany way.

Using impropervoltage may result indamage to the motorand

possibleinjuryto the user. Proper voltage islistedonthe cleaner

plate.The Dirt DevilCanVac operates on

120

Volts A.C.

cycles

power.

Do NOT operatethis unitnear flammable gases or 1iquids.To prevent

fire, do not pick up hotobjectssuch as cigarettebutts, Etc.

WARN

reduce the risk

electric shock,this appliance

has

polar-

ized plug

(one

blade

is wider than the other). This plug will fit

polarized out-

let

only

one

way. If the

plug

does

not fit

fully

the outlet, reverse the plug. If it

still

does

not fit, contact

qualified electrician to installthe proper outlet.

not

change

the plug

any

way.

LIMITED

WARRANTY

To the consumer, Royal Appliance Mfg. Co. warrants this vacuum cleaner to be free of defects in

material or workmanship commencing upon the date of the original purchase. Referto your vacuum

cleaner carton for the length of warranty and saveyour original sales receipt tovalidate start of war-

ranty period.

If the vacuum cleaner should become defective within the warranty period, we will repair or replace

any defective parts free of charge. The complete machine must be delivered

oreDaid

to any ROYAL

Authorized Sales

Warranty Service Station. Please include complete description of the problem,

day of purchase, copy of original sales receipt and your name, address and telephone number. Ifyou

are not near aWarranty Station,, callthefactory for assistance at USA: 1-800-321-1134

CANADA:

800-661-6200. Use only genuine Royal replacement parts.

The warranty does not include unusual wear, damage resultingfrom accident or unreasonable use of

the vacuum cleaner. This warranty does not cover belts, brushes, bags, bulbs or fan damage. This

warranty does not cover unauthorized repairs. This warranty gives you specific legal rights and you

may also have other rights. (Other rights may vary from state to state in the USA).

GET ACQUAINTED

WITH

YOUR CANISTER

Easy Glide Wheels

Tool Caddy*

Gripper Handle

Power Switch

Door Release

Hose Connection

Flexible Hose*

Gripper Handle

Rolling Caster Wheel

10. QuickRelease Cord Clip

11. Cord Wrap

12. Carpet Nozzle*

13. Bare Floor Brush*

14. ExtensionWands*

15. Crevice Tool

16. 2-in-1 Tool*

*Attachmentsvary per model.

This vacuum cleaner will operate best when serviced with genuine parts. To be

sure that you receive genuine parts and service at fair prices, have your cleaner

serviced at an Authorized Royal Dealer or see your Yellow Pages for a dealer near

you.

Shouldyou experience any difficulties in operatingthis vacuum cleaner, report

immediatelyto the Dealer from whom it was purchased.

The service parts used inthis unit are easily replacedand readily available. This

compact canister has the power of many full-sized canisters.You have purchased

the finest small canister available.

Follow the instructions enclosed and it will give you years of efficient service.

HOSE INSTALLATION AND REMOVAL

NOTE:

UNPLUG CLEANER BEFORE

REMOVING OR INSTALLING HOSE.

Holdhose adapter end so that

button is at the top

(A).

Line up adapter with intake

hole on face of cleaner.

Depress button on hose adapter

and slide adapter into intake

hole

(B).

Release button. Give hose a

slight tug to ensure it is in place

-1

securely.

With a paper bag and the hose in

place,you are ready to begin

vacuuming.

ATTACHMENT INSTALLATIONAND REMOVAL

Choose any of the handy

accessoriesto meet your

various cleaning needs.Then

simply push it firmly onto the

hoseor wand end

(A).

The hose can be used alone.

It can be usedwith many

combinations of wands and

tools.

To remove a tool or wand, pull

the two apart gently.You may

rotate the attachment back

andforth a littleto make the

removaleasier.

Optional Power Nozzle available

model

313PC.

Call customer service at 1-800-321-1134to order.

OPERATING INSTRUCTIONS

NOTE:

UNPLUG CLEANER BEFORE

CHANGING PAPER BAG.

CLEANER MUST HAVE PAPER

BAG IN PLACE AT ALL TIMES.

PAPER BAG REMOVAL AND

Check to be sure your CANVAC

has one paper bag in place before

you beginvacuuming.

Removehose if it is in place

from the face of the cleaner.

(SEE PAGE 5)

Depressdoor release buttonto

open door and expose paper

bag (A).

If your CANVAC has no paper

insert in place, follow these easy

bag installation steps.

Placea fresh paper bag into the

bag chamber with the cardboard

collar facing you

(6).

Be sure the paper bag is placed

back intothe chamber so the

cardboard collar is flush with the

front edge of the CAN VAC.

INSTALLATION

Snap the bottomtwo corners of C

the cardboardcollar behindthe

two clipsalong the bottom edge

of the chamber.Your new bag is

now secure.

Close the door and be sure it

snaps shut tightly.

If your paper bag is full and you'd like to

replace it with a fresh bag, follow instruc-

tions #1 and #2 and then begin at #7.

(You can tell your bag needs replaced

when you experience low performance

with the CANVAC.)

7. After removingthe hose and

opening the CAN VAC door,

simply grasp the cardboard collar

and pullthe full paper bag

toward you (C).

8. Carry the full bag to a waste

receptacleand dispose of it.

You may now follow #3-#6 to place a

fresh bag in you CAN VAC.

You may also want to purchase paper

bags now so you have them when you

needthem. Call your local Royal vacuum

cleaner dealer for information or call

customer serviceat l-8OO-321-1l34.

CORDWRAP AND QUICK RELEASE

Your cord can be easily wrapped

aroundthe two cord hooks

provided underneaththe

CANVAC.

Turn the CANVAC on end as

shown (A).

Wrap the cord around one cord

hook andthen the other.

To releaseyour cord without

unwinding it, push inthe black

quick cord releasetab

(B).

Your

power cord will now pull off in

one coil.

INSTALLATIONAND REMOVAL

Squeeze together the clip on

one end of the strap.

Insertthe clip into one of the

grooves (one front, one back)

on CANVAC (A).

NOTE:

Clip may break

not

installed properly.

Do the same steps for the

remainingclip and groove.

Your CANVAC can now be

carriedon your shoulder

while you clean above the

floor

(B).

Indice

Lingue:

Altri manuali Dirt Devil Aspirapolvere

Dirt Devil

Dirt Devil INFINITY MC54 Black Manuale utente

Dirt Devil

Dirt Devil UPRIGHT Series Manuale utente

Dirt Devil

Dirt Devil REBEL34 Manuale utente

Dirt Devil

Dirt Devil Infinity Excell Manuale utente

Dirt Devil

Dirt Devil Magnum PR Manuale utente

Dirt Devil

Dirt Devil BD10045RED Manuale utente

Dirt Devil

Dirt Devil M0100 Manuale utente

Dirt Devil

Dirt Devil Featherlite Manuale utente

Dirt Devil

Dirt Devil twinfinity m5040 Manuale utente

Dirt Devil

Dirt Devil Dirt Devil Manuale utente

Dirt Devil

Dirt Devil UD70163 Manuale utente

Dirt Devil

Dirt Devil Sweeper Vac Manuale utente

Dirt Devil

Dirt Devil Carpet + Hard Floor Cyclonic Upright Manuale utente

Dirt Devil

Dirt Devil BG-2 Manuale utente

Dirt Devil

Dirt Devil M2012-4 Manuale utente

Dirt Devil

Dirt Devil Trendino Manuale utente

Dirt Devil

Dirt Devil Centrixx CPR Manuale utente

Dirt Devil

Dirt Devil DDH01-E01 Manuale utente

Dirt Devil

Dirt Devil Bandit DDBBC Manuale utente

Dirt Devil

Dirt Devil Bag Line 7050 Manuale utente

Dirt Devil

Dirt Devil F28 Manuale utente

Dirt Devil

Dirt Devil fusion Manuale utente

Dirt Devil

Dirt Devil Centrino Cleancontrol Manuale utente

Dirt Devil

Dirt Devil EQU Turbo Silence Manuale utente

Manuali Aspirapolvere popolari di altre marche

Bissell

Bissell LittleGreen Proheat 1425 Series Manuale utente

Panasonic

Panasonic MC-YL637S147-AE Manuale utente

NEFF

NEFF N17XH10 0 Series Manuale utente

LG A9 Series Manuale utente

Oreck

Oreck Cordless Captura BK51700 Series Manuale utente

Kogan

Kogan KAVACROBVWA Manuale utente

Kränzle

Kränzle VENTOS 50 ID Guida utente

EVVO

EVVO Ai35 Manuale utente

DeWalt

DeWalt DWH200D Manuale utente

Pontec

Pontec Pondomatic Vacuum Cleaner Manuale utente

Cleanmaxx

Cleanmaxx PC-P007E Manuale utente

Exido

Exido 240-114 Manuale utente

RIDGID

RIDGID WD1685AU0 Manuale utente

Ezviz

Ezviz RE4P Manuale utente

STG global

STG global TANVAC HDV3000 Manuale utente

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuale utente

Factory

Factory M3340 Manuale utente

Shop-Vac

Shop-Vac VN92 SERIES Manuale utente
