Dirte Bike C300 Manuale utente

BEACH CRUISER

LCD DISPLAY

OWNERS MANUAL

C300 Specification

CONTENTS

ABOUT THE USER MANUAL.............................................................................................................2

FUNCTION SUMMARY & BUTTON DEFINITION......................................................................3

FUNCTION SUMMARY..........................................................................................................................3

FULL VIEWING AREA...........................................................................................................................4

NORMAL VIEWING AREA ....................................................................................................................4

BUTTON DEFINITION.......................................................................................................................5

INSTALLATION INSTRUCTION .....................................................................................................5

NORMAL OPERATION.......................................................................................................................6

ON/OFF..............................................................................................................................................6

DISPLAY INTERFACE ...........................................................................................................................6

PUSH CRUISE CONTROL......................................................................................................................7

TURN ON/OFF BACKLIGHT..................................................................................................................7

PAS LEVEL SELECTION.......................................................................................................................7

BATTERY INDICATOR ..........................................................................................................................8

ERROR CODE DISPLAY........................................................................................................................8

USER SETTING....................................................................................................................................9

PREPARATION BEFORE STARTING......................................................................................................9

GENERAL SETTING ..............................................................................................................................9

1、Distance and Riding Time Clearing

...............................................................................9

2、Wheel Size Setting

..............................................................................................................9

3. Speed-limit Setting

.........................................................................................................10

4、KM/H, MPH Setting

..........................................................................................................10

FAQ........................................................................................................................................................11

QUALITY ASSURANCE AND WARRANTY SCOPE ...................................................................11

WARRANTY:....................................................................................................................................... 11

OTHER ITEMS:................................................................................................................................... 11

ERROR CODE DEFINITION...........................................................................................................12

TABLE 1................................................................................................................................................12

www.bigstone-nj.com Page2/15 10/20

About the User Manual

Dear users,

To ensure better performance of your e-bicycle, please read

through the C300 product introduction carefully before using it.

We will use the most concise words to inform you of all the

details (including hardware installation, setting and normal use

of the display) when using our display. Meanwhile, the

introduction will also help you solve possible confusion and

malfunction.

Outlook and Size

Material and Color

C300 products are made of black PC material. Under the

temperature of -20℃to 60℃, the shell material can ensure normal

usage and good mechanical performance of the products.

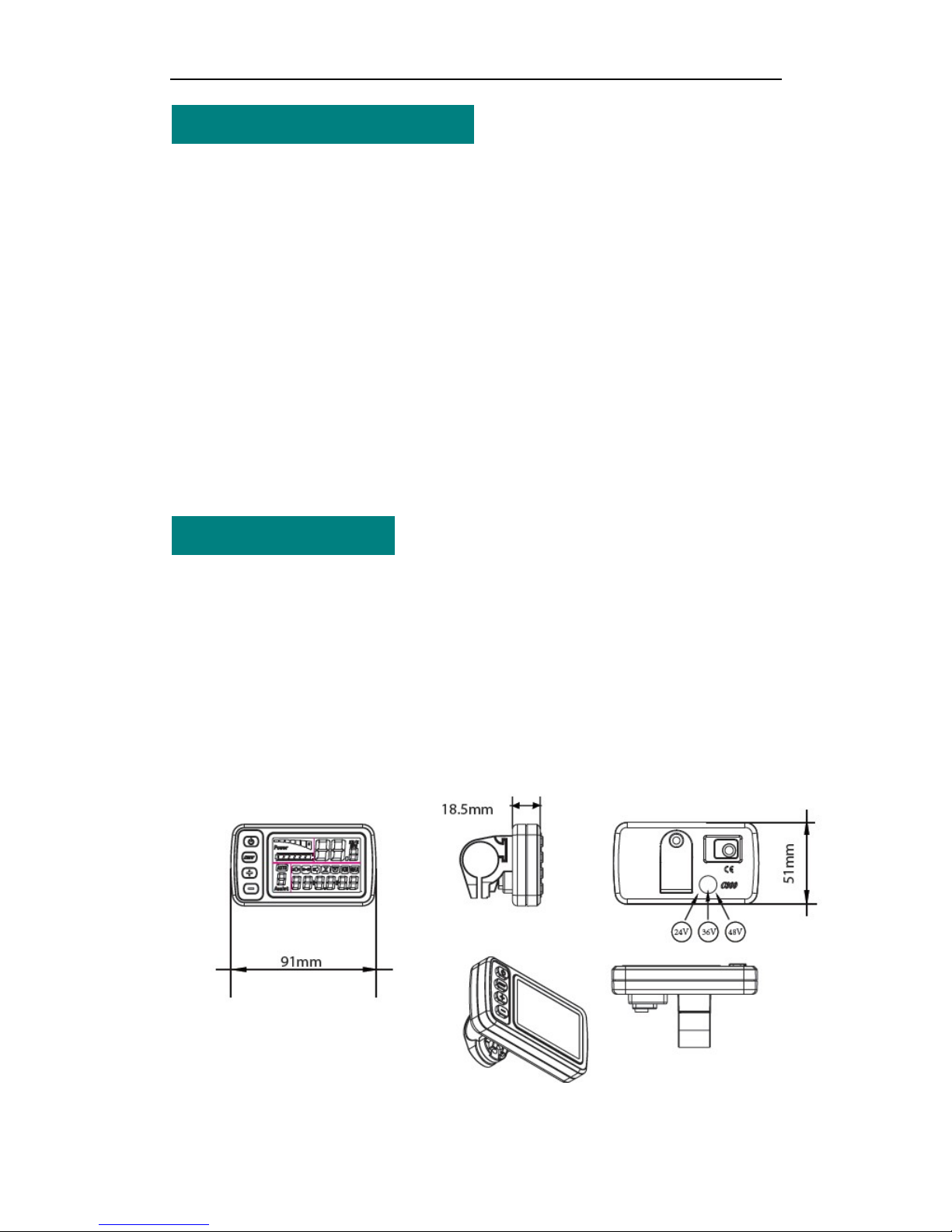

Real product and dimension figure (unit: mm)

www.bigstone-nj.com Page3/15 10/20

Function Summary & Button Definition

Function Summary

C300 provides a wide range of functions and indicators to fit the

users’ needs. The indicated contents are as follow：

◆ ODO Display；

◆ Riding Distance Display；

◆ Riding Time Display；

◆ Max Speed Display；

◆ 6KM/H Display；

◆ Backlight Open；

◆ Assist Level；

◆ Battery Indicator；

◆ Error Code Display；

● Wheel Diameter Setting；

● KMH, MPH Switching；

● Max Speed Limit Setting；

www.bigstone-nj.com Page4/15 10/20

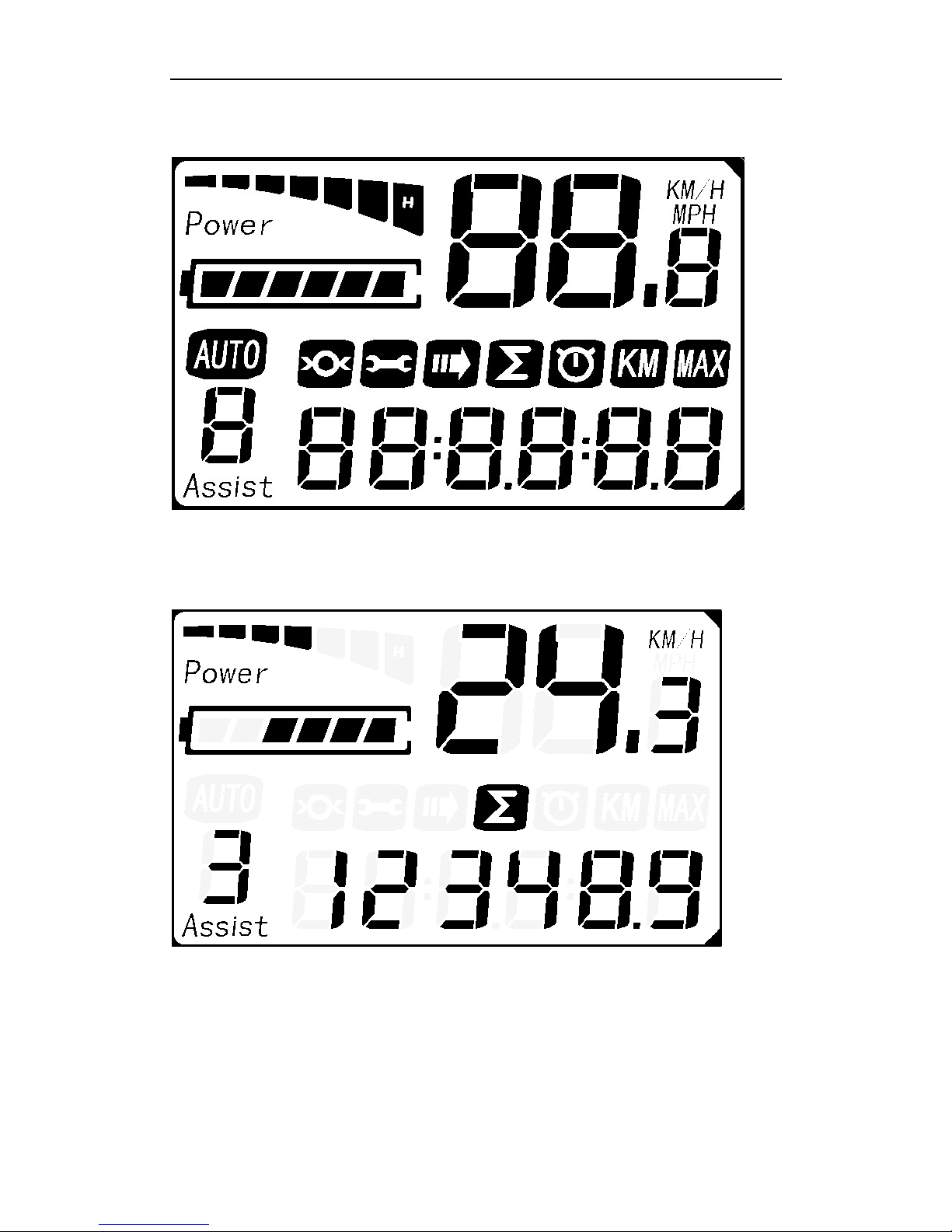

Full Viewing Area

Normal Viewing Area

www.bigstone-nj.com Page5/15 10/20

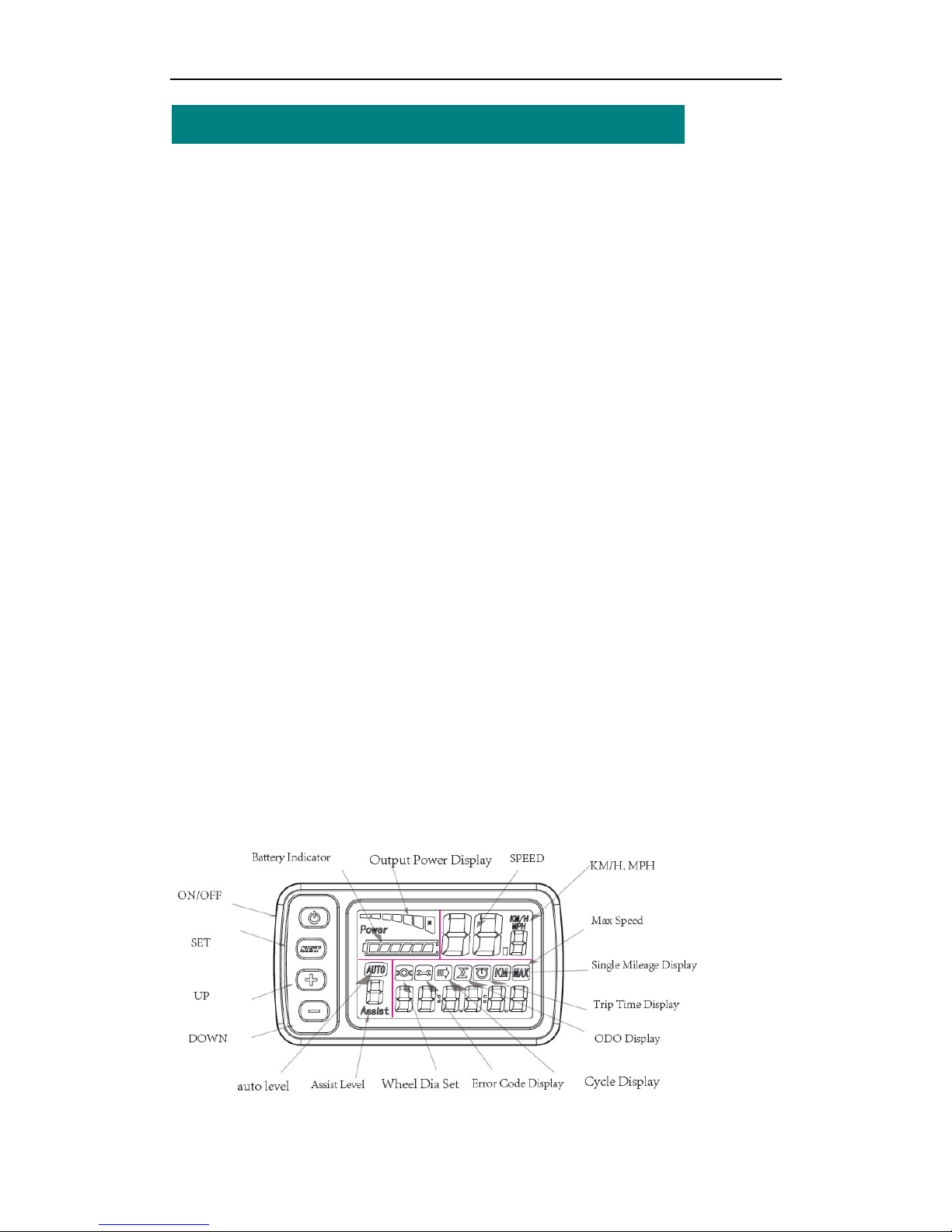

Button Definition

C300 has four buttons. They are ON/OFF, SET, UP and

DOWN.

Installation Instruction

Fix display in the handlebar, adjust to the appropriate

perspective; install the button in the easy manipulation of the

position. With the e-bicycle power is off the corresponding

connector of display plug in the controller connector. The attention

for installing button is from right to left on the handlebar; avoid

overstretching snap triggered damage in the Installation.

www.bigstone-nj.com Page6/15 10/20

Normal Operation

ON/OFF

Press ON/OFF and start the display ，The display will

provide power supply for the controller.

With display on，more than 3 seconds press ON/OFF to turn

off power supply of the e-bicycle. With the display off，the

display and controller no longer consume battery power. The

leakage current is no more than 2µA。

※ If more than 5 minutes without use of the e-bicycle, the

display will automatically shut down.

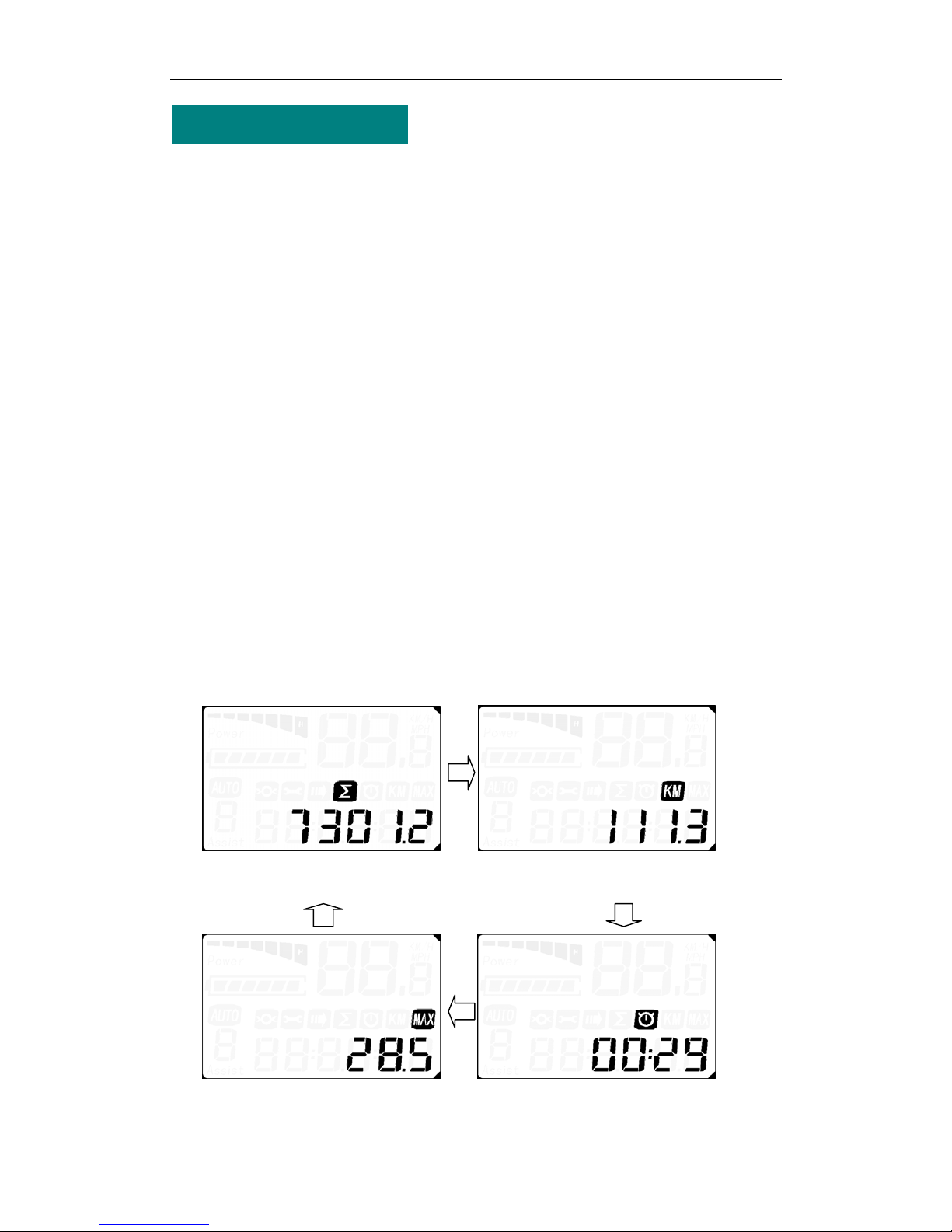

Display Interface

Press SET to switch the displaying information. The order

is: ODO →Riding Distance →Riding Time →Max Speed.

ODO Display Riding Distance Display

Max Speed Display Riding Time Display

www.bigstone-nj.com Page7/15 10/20

Push Cruise Control

Hold UP for 2 seconds and enter into the mode of power

assist walk. The e-bicycle will go on at a uniform speed of

6km/h. It shows“6KM”on the screen.

Turn on/off Backlight

With the display on, press ON/OFF and turn on the

backlight. Meanwhile, the controller will turn on the headlight.

When the surrounding light is not enough or it is in the evening,

you can turn on the backlight. And press ON/OFF again, turn

off the backlight.

PAS Level Selection

Press UP or DOWN, switch the e-bicycle Assist Level to

change output power of the motor. The power ranges from 0~6

levels. The default value is level 1.

www.bigstone-nj.com Page8/15 10/20

Battery Indicator

When the battery capacity is high, the six battery segments

are all light. When the battery is in low voltage, the outside edge

of the battery frame will flash at 1 Hz. It indicates that the

battery is severely low in voltage condition and needs to be

recharged immediately.

Low Voltage Flash

Error Code Display

If there is something wrong with the electronic control

system, the display will show the error code automatically. See

Table 1 for detailed error code information.

※Display return to normal only after problem being fixed

and bike will not run before fixing the problem.

www.bigstone-nj.com Page9/15 10/20

User Setting

Preparation before Starting

Make sure the connector is linked properly to the motor

controller on the bike and the power is on.

General Setting

1、Distance and Riding Time Clearing

★ Hold UP and DOWN for 12 seconds to clear Total

Distance、Riding Distance, Riding time and Max

Speed.

★ Hold DOWN for 3 seconds to clear Riding

Distance and Riding time and Max Speed.

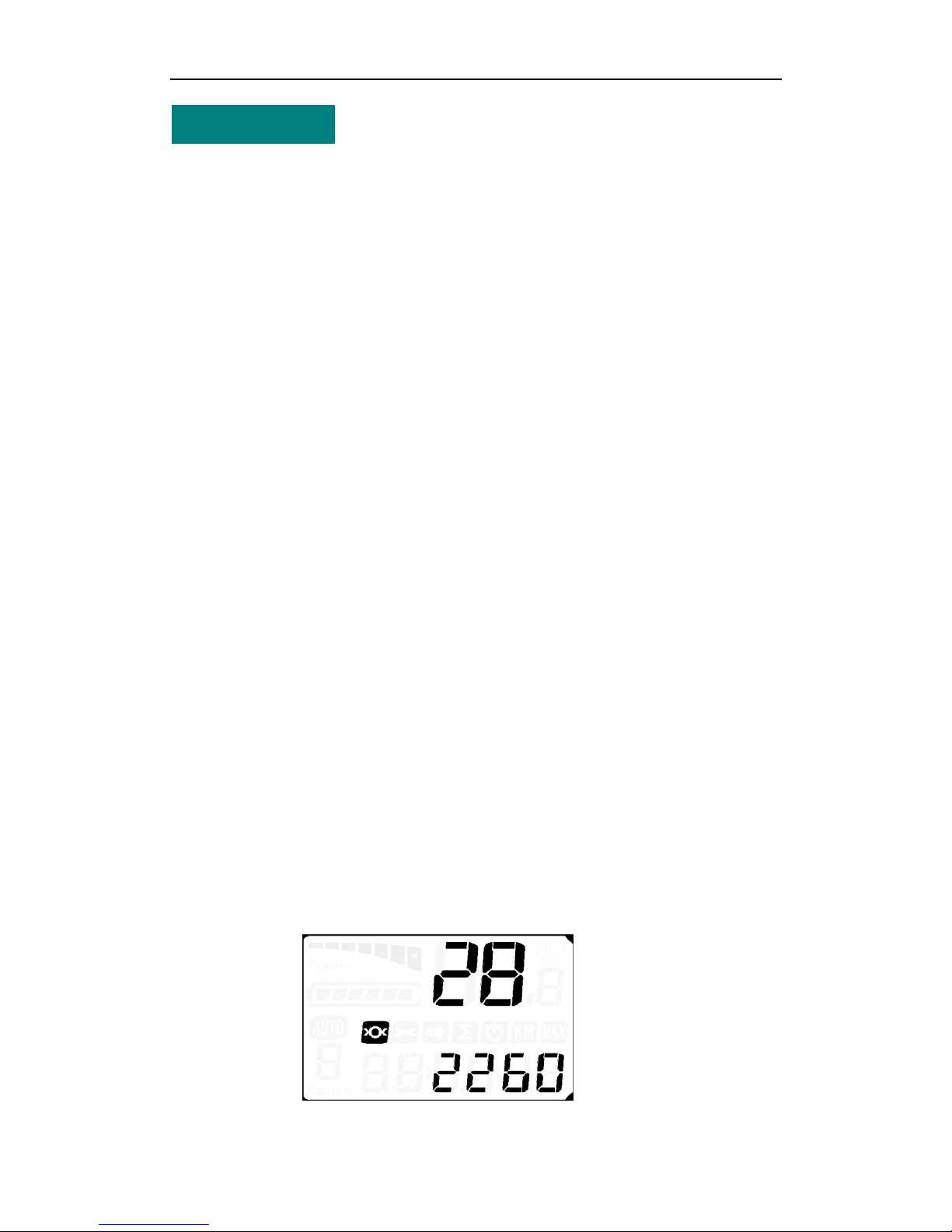

2、Wheel Size Setting

★ Hold SET for 10 seconds and enter into wheel

diameter setting.

Selectable values include：16,20,24,26,700C,28.

Press UP or DOWN to select the suitable value，

to ensure the accuracy of display about speed and

mileage. Default diameter value is 700C.
