Distech LonWorks ECL-203 Series Manuale utente

ECL Series LONWORKSControllers

Figure1: From left to right: large enclosure with HOA switches, large enclosure without HOA, and small enclosure with operator interface.

Product Description

This document describes the hardware installation procedures for the ECL Series LONWORKS controllers.

The Distech Controls ECL Series controllers are designed to control and monitor various HVAC equipment such as roof top units, air handling units as

well as chillers, boilers, and central plant applications. Moreover, these controllers are suitable for any lighting control and power measurement applica-

tions. This product line includes the following controllers: ECL‑203, ECL‑300, ECL‑400 Series, ECL‑600 Series.

For controllers equipped with an operator interface (ECL-x50 models), refer to the ECL‑x50 and ECB‑x50 Series Controller User Guide for how to use

the this interface.

The ECL‑600 Series are compatible with the IO Extension Module product line, which includes the following modules: ECx‑400, ECx‑410, and ECx-420

(refer to the ECx‑400 series IO Extension Module Hardware Installation Guide).

Each controller uses the LONWORKS TP/FT-10 communication protocol.

This document describes the hardware installation procedures for the following controllers: ECL‑203, ECL‑300, ECL‑400 Series, and ECL‑600 Series

controllers only.

£These controllers are all built on a similar platform, but have different numbers of inputs and outputs. Moreover,

each individual model has different amounts of digital and/or universal outputs. For more information on the

specific layout and functionality of each controller, please refer to their individual datasheets.

£The following controllers are housed in small enclosures: ECL‑203 Series and ECL‑300 Series.

£The following controllers are housed in large enclosures: ECL‑400 Series and ECL‑600 Series.

General Installation Requirements

For proper installation and subsequent operation of the device, pay special attention to the following recommendations:

£It is recommended that the controller(s) be kept at room temperature for at least 24 hours before installation to allow any condensation that may

have accumulated due to low temperature during shipping/storage to evaporate.

£Upon unpacking, inspect the contents of the carton for shipping damages. Do not install a damaged device.

£The device is designed to operate under environmental conditions that are specified in its datasheet.

£Ensure proper ventilation of the device and avoid areas where corroding, deteriorating or explosive vapors, fumes or gases may be present.

£Record the 12-character Neuron® ID located on either end of the device (shown on a sticker below the barcode), for later commissioning.

£Allow for proper clearance around the device’s enclosure and wiring terminals to provide easy access for hardware configuration and maintenance.

£When installing in an enclosure, select one that provides sufficient surface area to dissipate any heat generated by the device and by any other de-

vices installed in the enclosure. A metal enclosure is preferred. If necessary, provide active cooling for the enclosure.

£Orient the controller with the ventilation slots and power supply/output terminal block connectors towards the top to permit proper heat dissipation.

£The device’s plastic enclosure has a back plate that is separable from the front plate allowing the back plates (with the connectors) to be shipped di-

rectly to the installation site while all the engineering is done in the office.

£The device’s datasheet specifies the power consumption (amount of heat generated), the operating temperature range, and other environmental

conditions the device is designed to operate under.

£Ensure that all equipment is installed according to local, regional, and national regulations.

£Do not drop the device or subject it to physical shock.

£If the device is used and/or installed in a manner not specified by Distech Controls, the functionality and the protection provided by the device may

be impaired.

Installation Guide

2 / 16

Any type of modification to any Distech Controls product will void the product’s warranty

Take special care to keep the front and back plate aligned when separating and joining them.

Before installation of the Wireless Receiver, verify that local communication regulations allow the installation of wireless devices and

available frequencies to be supported in your area. Refer to the Open-to-Wireless™ Application Guide for more information.

Take reasonable precautions to prevent electrostatic discharge to the device when installing, servicing or during operation. Discharge

accumulated static electricity by touching one’s hand to a well-grounded object before working with the device.

Device Markings (Symbols)

Certain markings (symbols) can be found on the controller and are defined as follows:

Symbol Description

CE marking: the device conforms to the requirements of applicable EC directives.

Products must be disposed of at the end of their useful life according to local regulations.

Read the Hardware Installation Guide for more information.

UL marking: conforms to the requirements of the UL certification.

FCC marking: This device complies with FCC rules part 15, subpart B, class B.

Warning Symbol: Significant information required. Refer to the Hardware Installation Guide.

Alternating Current

Direct Current

General Wiring Recommendations

Risk of Electric Shock: Turn off power before any kind of servicing to avoid electric shock.

£All wiring must comply with electrical wiring diagrams as well as national and local electrical codes.

£To connect the wiring to a device, use the terminal connectors. Use a small flat screwdriver to tighten the terminal connector screws once the wires

have been inserted (strip length: 0.25’’ (6mm), maximum tightening torque 0.5 Nm).

£Comply with all network and power supply guidelines outlined in the Network Guide.

£Always use unshielded cabling with a minimum Category 5 (CAT5) cable for ethernet communications.

£Keep wiring separate according to their function and purpose to avoid any ambient noise transmission to other wires. Use strapping to keep these

wires separated. For example, keep power, hazardous voltage, SELV, PELV, network, and input wiring separate from each other.

£The board connectors accept wires or flat cables ranging from 22 to 14AWG (0.644 to 1.630mm diameter) per pole. However, power cables must be

between 18 and 14AWG (1.024 to 1.630mm diameter).

£Keep all wires away from high speed data transmission cables (for example, Ethernet, etc.).

£Do not connect the universal inputs, analog/digital outputs or common terminals to earth or chassis ground (unless stated otherwise).

£Keep input and output wiring in conduits, trays or close to the building frame if possible.

3 / 16

Controller Dimensions & Components

Figure2: Rear view of large enclosure

Figure3: Rear view of small enclosure

Figure4: Side view of large and small enclosure

4 / 16

Mounting Instructions

The controllers can be mounted on a DIN rail to speed up the installation procedure. They are also equipped with two mounting holes 0.25” x

0.165” (6.35mm x 4.191mm). The controllers can be mounted in a panel or on a wall by using appropriate screw types (use sheet metal, thread forming,

or self-tapping screws accordingly).

The controller’s mounting orientation must be horizontal with controller’s back attached to a vertical wall surface.

Figure5: Permitted Mounting Positions

DIN Rail-Mounted Installation

1. Ensure the DIN rail is properly mounted on the wall.

2. Simply clip controller onto the DIN rail.

Wall-Mounted Installation

3. Open the enclosure by separating the front and back plate while pressing on the side clips.

4. Use the back plate’s mounting holes to mark the location of any holes that need to be drilled.

5. Drill the holes.

6. Clean the surface and mount the controller using the appropriate screw types.

5 / 16

Power Wiring

Voltage: 24VAC/DC; ± 15%, Class 2

This is a Class 2 Product. Use a Class 2 transformer only (rated at 100VA or less at 24VAC) to power the

controller(s).

The Network Guide provides extensive information and requirements for powering a controller that uses a LONWORKS network for communications. It can

be downloaded from our website.

It is recommended to wire only one controller per 24VAC transformer.

If only one 24VAC transformer is available, determine the maximum number of controllers that can be supplied using the following method to determine

the required power transformer capacity:

£Add up the maximum power consumption of all controllers including external loads and multiply this sum by 1.3.

£If the resulting number is higher than 100VA, use multiple transformers.

Use an external fuse on the 24VAC side (secondary side) of the transformer, as shown below, to protect all controllers against power line spikes.

Maintain consistent polarity when connecting controllers and devices to the transformer. That is, the COM terminal of each controller and each peripheral

should be connected to the same terminal on the secondary side of the transformer.

Connecting the power source to Electrical System Ground is not a requirement for proper system operation. However

it is good installation practice to do so in order to maintain the same potential between all controllers and Protective

Earth.

Always use a separate transformer for each ECL-600 series controller and for each of its associated IO Extension

Module (ECx‑400s).

One terminal on the secondary side of each of these transformers must be connected to the building’s ground and to

the respective controller’s or IO Extension Modules’ 24V COM terminal.

Failure to maintain consistent polarity throughout the entire network will result in a short circuit and/or damage to the

controller!

The COM terminals of the controller are internally wired to the 24V COM terminal of the power supply. Connecting a

peripheral or another controller to the same transformer without maintaining polarity between these devices will

cause a short circuit.

Controller 2 Transformer

Controller 1

24V AC

24V COM

Fuse: 4 A Max.

Fast Acting

24 VAC

Electrical System Ground

- At Transformer Only

24V AC

24V COM

Figure6: Power wiring – AC

Controller 2

Controller 1

24V AC/DC

24V COM

Fuse: 4 A Max.

Fast Acting

Electrical System Ground

- At Power Supply Only

24V AC/DC

24V COM 24 VDC

Figure7: Power wiring – DC

6 / 16

Jumper Identification and Configuration

Controllers have the following onsite configurable jumpers.

Net Port

* Factory- default position

Subnet

Port

Wireless

Port

Net to Subnet Settings

Enabled Disabled*

Figure8: ECL-203Controller Jumper Locations

Net Port

* Factory- default positions

Universal Outputs (UO)

0- 10V / 0-20 mA Select

0-10V* 0- 20mA

Subnet

Port

Wireless

Port

Universal Inputs (UI)

0- 20 mA Enable / Disable

0-20 mA

Disable*

0-20 mA

Enable

LONWORKS Network Board

Net to Subnet Settings

Enabled Disabled*

Figure9: ECL-300Controller Jumper Locations

* Factory- default positions

LONWORKS Network Board

Universal Outputs (UO)

0-10 V / 0- 20 mA Select

0-10V* 0- 20mA

Universal Inputs (UI)

0-20 mA Enable / Disable

0-20 mA

Disable*

0-20 mA

Enable

ECL- 600 ONLY: Subnetwork

EOL Termination

Subnet

Port

EOL Off

(Disabled)*

EOL On

(Enabled)

EOL Off

(Disabled)*

EOL On

(Enabled)

Wireless

Port

Typical locations: Quantity may vary according to controller model

Net to Subnet Settings

Enabled Disabled *

Net Port

Figure10: ECL-400SeriesandECL-600SeriesController Jumper Locations

7 / 16

Input Wiring

Before connecting a sensor to the controller, refer to the installation guide of the equipment manufacturer.

£For a wire length less than 75’ (23m), either a shielded or unshielded 18AWG wire may be used.

£For a wire up to 200’ (61m) long, a shielded 18AWG wire is recommended.

£The shield of the wire should be grounded on the controller side only and shield length should be kept as short as possible.

Table 1 shows the ECL-203, ECL-300, ECL-400, and ECL-600 Series controller pulse and current input jumper support. Table 2 shows the available uni-

versal input (UIx) wiring methods.

Controller Fast and Slow Pulse Inputs support Current Input Jumper support:

0 to 10VDC / 0 to 20mA

50Hz: 10ms minimum ON/OFF

(Fast Pulse)

1Hz: 500ms minimum ON/OFF

(Slow Pulse)

ECB‑203 None UI1 to UI6 None

ECB‑300 UI1 to UI4 UI5 to UI10 Yes; see

Table 2

ECB-400 Series UI1 to UI4 UI5 to UI12

ECB-600 Series UI1 to UI4 UI5 to UI16

Table1: Controller Input Support

Sensor Input Type Input Connection Diagram

£Dry Contact input.

UIx

COM

To Digital

Input

Digital Dry Contact

NO-NC

£RTD input (for example, 1000Ω).

£Thermistor Input (for example, 10kΩ type II and III).

UIx

COM

To Analog-

To-Digital

Converter

RTD/

Thermistor

£Resistive input, (for example, use with 10kΩ and 100kΩ potentiometers).

UIx

COM

To Analog-

To-Digital

Converter

Potentiometer

10kΩ

ECL-203 Series:

£0 to 20mA input used with a 2-wire, 0 to 20mA sensor powered by the controller’s internal

15VDC power supply.

–

Sensor 0-20mA UIx

COM

+15VDC

To Controller’s

Analog-To-Digital

Converter

249Ω / ¼W

ECL-203 Series:

£0 to 20mA input used with a 2-wire, 0 to 20mA sensor powered by an external 24VDC

power supply.

0-20mA

Sensor

UIx

COM

To Analog-

To-Digital

Converter

24VDC

249Ω ¼W

ECL-203 Series:

£0 to 20mA input used with a 3-wire, 0 to 20mA sensor powered by an external 24VAC

power supply.

Common

0-20mA

Sensor

UIx

COM To Analog-

To-Digital

Converter

24VAC

249Ω ¼W

ECL-203 Series:

£0 to 20mA input used with a sensor powered by its own power source.

0-20mA

Sensor

UIx

COM

To Analog-

To-Digital

Converter

249Ω ¼W

8 / 16

Sensor Input Type Input Connection Diagram

ECL‑300, ECL‑400, and ECL‑600 Series:

£0 to 20mA input used with a 2-wire, 0 to 20mA sensor powered by the controller’s internal

15VDC power supply.

£For jumper location, see Jumper Identification and Configuration [pg.6].

Sensor 0-20mA Controller

0-20mA Input

Equivalent

Circuit

UIx

COM

To Analog-

To-Digital

Converter

249Ω

Jumper

Setting

0-10V

0-20mA

+15VDC

ECL‑300, ECL‑400, and ECL‑600 Series:

£0 to 20mA input used with a 2-wire, 0 to 20mA sensor powered by an external 24VDC

power supply.

£For jumper location, see Jumper Identification and Configuration [pg.6].

Sensor

0-20mA Controller

0-20mA Input

Equivalent

Circuit

UIx

COM

To Analog-

To-Digital

Converter

249Ω

Jumper

Setting

0-10V

0-20mA

24VDC

ECL‑300, ECL‑400, and ECL‑600 Series:

£0 to 20mA input used with a 3-wire, 0 to 20mA sensor powered by an external 24VAC

power supply.

£For jumper location, see Jumper Identification and Configuration [pg.6].

Common

Sensor 0-20mA Controller

0-20mA Input

Equivalent

Circuit

UIx

COM

To Analog-

To-Digital

Converter

249Ω

Jumper

Setting

0-10V

0-20mA

24VAC

ECL‑300, ECL‑400, and ECL‑600 Series:

£0 to 20mA input used with a sensor powered by its own power source.

£For jumper location, see Jumper Identification and Configuration [pg.6].

Sensor

0-20mA Controller

0-20mA Input

Equivalent

Circuit

UIx

COM

To Analog-

To-Digital

Converter

249Ω

Jumper

Setting

0-10V

0-20mA

£Voltage input used with a 3-wire 0 to 10VDC or 0 to 5VDC sensor powered by an external

24VAC power supply.

Common

0-10V

Sensor

UIx

COM To Analog-

To-Digital

Converter

24VAC

£Voltage input used with a 0 to 10VDC or 0 to 5VDC sensor powered by its own power

source.

0-10V

Sensor

UIx

COM

To Analog-

To-Digital

Converter

£Slow Pulse – Internal supply: 2-wire pulse meter for ECL‑203, ECL‑300, ECL‑400, and

ECL‑600 Series controllers

£Connect the pulse input according to the figure for a pulse meter that can pull-down a

+5VDC supply with a 10KΩ pull-up resistor (internal supply type).

£Refer to Table 1 for more information on Controller Input Support

Pulse Meter

Output

Controller

Pulse Input

Equivalent

Circuit

UIx or DIx

COM To Pulse Count

Accumulator

10KΩ

5VDC

£Fast Pulse – Internal supply: 2-wire pulse meter for ECL‑300, ECL‑400, and ECL‑600 Series

controllers

£Connect the pulse input according to the figure for a pulse meter that requires more than

5VDC to operate using built in controller power source from 6VDC to 15VDC maximum.

£Refer to Table 1 for more information on Controller Input Support

Pulse Meter

Output

Controller

15VDC

COM

Suitable current-limiting resistor as

recommended by the pulse meter’s

manufacturer (field supplied)

UI1 to UI4

To Pulse Count Accumulator

Trigger Threshold: 2.5Volts

23.5kΩ

Equivalent Load

£Fast Pulse – External supply: 2-wire pulse meter for ECL‑300, ECL‑400, and ECL‑600 Se-

ries controllers

£Connect the pulse input according to the figure for a pulse meter that requires more than

5VDC to operate using an external power source from 6VDC to 27VDC maximum.

£Refer to Table 1 for more information on Controller Input Support

Pulse Meter

Output

Controller

COM

To Pulse Count Accumulator

Trigger Threshold: 2.5Volts

Suitable current-limiting

resistor as recommended

by the pulse meter’s

manufacturer (field supplied)

Power Source

6 to 27VDC Max.

UI1 to UI4

23.5kΩ

Equivalent Load

Table2: Input Wiring

9 / 16

Output Wiring

Before connecting an output device (actuator, relay, etc.) to the controller, refer to the datasheet and installation

guide of the equipment manufacturer.

£For a wire length less than 75’ (23m) long, either a shielded or unshielded 18AWG wire may be used.

£For a wire length up to 200’ (61m) long, a shielded 18AWG wire is recommended.

£The shield of the wire should be grounded on the controller side and the shield length should be kept as short

as possible.

£For relay outputs (DOx); select appropriately-sized wiring suitable to the current load.

£To measure the state of a triac output, an external load must be connected.

Table 3 shows the ECL-203, ECL-300, ECL-400, and ECL-600 Series controller Output and Jumper support. Table 4 shows the available output wiring

methods.

Controller Digital (Triac) Outputs Universal Outputs Jumper

0 to 10VDC/0 to 20mA

ECL‑203 5 3

ECL‑300 0 8

ECL‑4x0 Series 0 12

ECL‑4x3 Series 8 4

ECL‑600 Series 0 12

Table3: Controller Output Support

Control Output Type Output Designation Output Connection Diagram

£Discrete 0 or 12VDC digital, Pulse, or PWM output controlling

a 12VDC relay. Maximum 60 mA (minimum load resistance

200Ω).

UOx

From

Digital

Output

12VDC Relay

UOx

COM

£Current 0 to 20mA universal output & jumper configuration

£For ECL-300, ECL-400, and ECL-600 Series only

£For jumper location, see Jumper Identification and Configura-

tion [pg.6].

UOx

0-20mA

Common

From Digital-To-

Analog Output

UOx

COM

JUMPER

SETTING

0-10V

0-20mA

£Linear 0 to 10VDC digital to analog output. UOx

0-10V

Common

From Digital-

To-Analog

Output

UOx

COM

£0 to 10VDC voltage output controlling an analog actuator that

is powered by an external 24VAC power source.

UOx

0-10V

~ or +

From Digital-

To-Analog

Output

UOx

COM

Actuator

or -

24VAC

£24VAC externally-powered triac output controlling a floating

actuator1.

£Ensure that the external power supply is grounded as shown.

DOx

Actuator

24VAC

DOy

DOx

£24VAC controller-powered triac output controlling a relay1 with

line and neutral switching.

£Ensure that the transformer’s secondary winding is grounded

as shown.

DOx

24VAC Relay

Transformer

24VAC

24VCOM AC

Electrical

System Ground

Fuse: 4A Max.

Fast Acting

Controller

24VAC

Load

DOx

24VAC Relay

Transformer

24VAC

24VCOM AC

Electrical

System Ground

Fuse: 4A Max.

Fast Acting

Controller

24VAC

Load

Line Switching Neutral Switching

10 / 16

Control Output Type Output Designation Output Connection Diagram

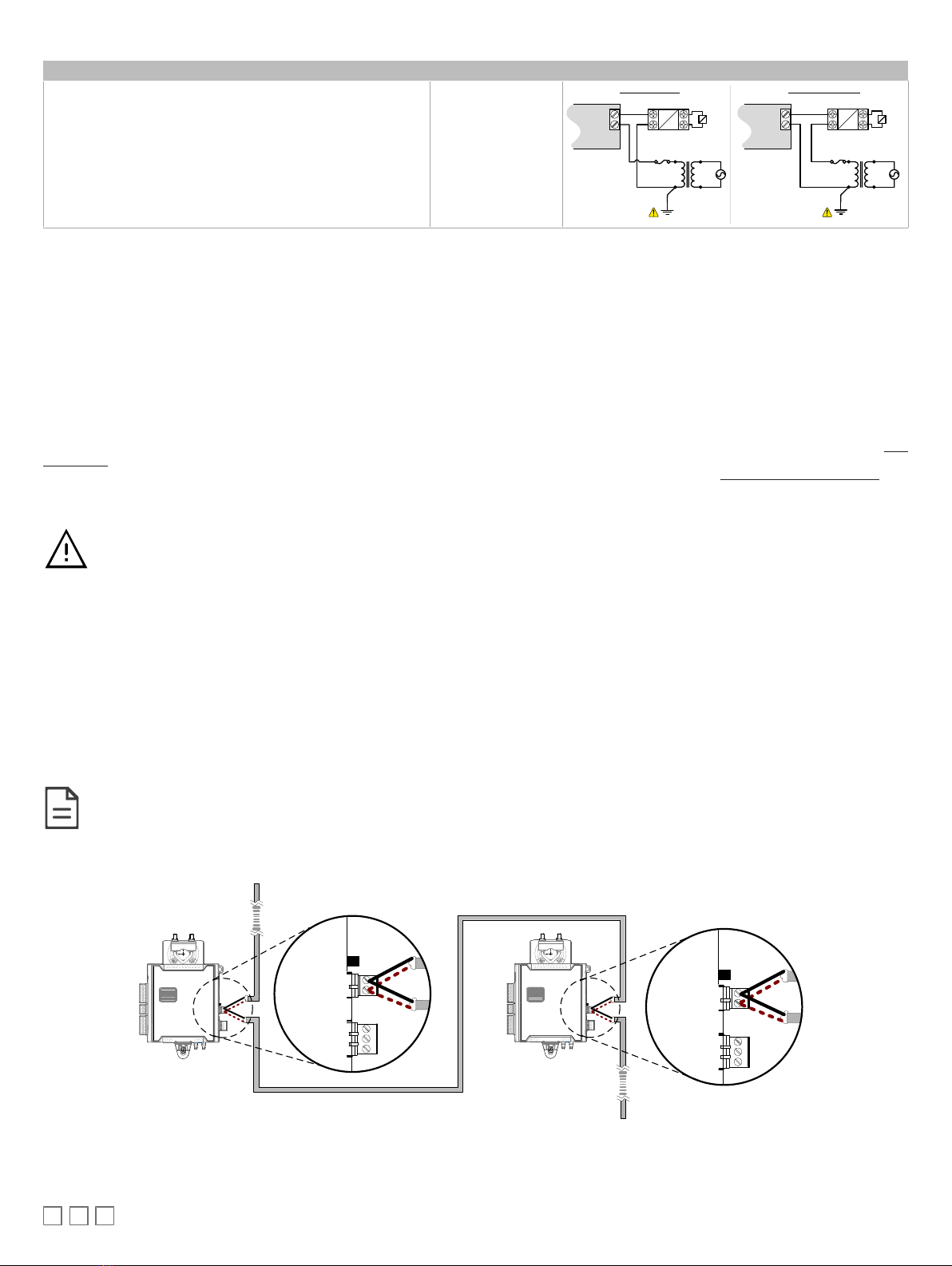

£24VAC externally-powered triac output controlling a relay1 with

line and neutral switching.

£Ensure that the transformer’s secondary winding is grounded

as shown.

DOx

24VAC Relay

Transformer

Electrical

System Ground

Fuse: 4A Max.

Fast Acting

24VAC

Load DOx

24VAC Relay

Transformer

Electrical System

Ground

Fuse: 4A Max.

Fast Acting

24VAC

Load

Line Switching Neutral Switching

Table4: Output Wiring

1. Maximum output current for all digital triac outputs is 0.5A continuous or 1A @ 15% duty cycle for a 10-minute period.

Subnet-Wiring

The subnet is used to connect a range of Allure Series Communicating Sensors:

£The Allure EC-Smart-Vue Series sensor is a communicating room temperature sensor with backlit display graphical menus and VAV balancing ca-

pabilities.

£The Allure EC-Smart-Comfort and Allure EC-Smart-Air Communicating Sensors are a range of communicating room temperature sensors.

Connect the Allure Series to the controller’s Subnet Port with a standard Category 5e Ethernet patch cable fitted with RJ-45 connectors. Refer to the Net-

work Guide for extensive information and requirements for the connection of the Allure Series. It contains information about network topology and length,

cable type, setting the Subnet ID, etc. It can be downloaded from the

www.distech-controls.com

website. See also the Hardware Installation Guide sup-

plied with the Allure Series.

If you make your own patch cable, see the Allure Series Hardware Installation Guide.

Protect the controller’s connector from being pulled on when a cable to the Allure Series is connected. Create a

strain-relief by looping the cable and attaching it to a solid object with a nylon tie so that a tug on the cable will not

pull out the connector on the controller.

Subnet Wiring with the ECL‑600 Series Controller

ECx-400 series IO Extension Modules are connected to the SUBNET– and SUBNET+ terminals of the ECL‑600 series controller. The Network Guide

provides extensive information and requirements to implement the subnetwork for the ECx-400 series IO Extension Modules. It contains information

about network length, cable type, controller addressing, etc. It can be downloaded from our website. See also the Hardware Installation Guide supplied

with the ECx-400 series IO Extension Module.

Communications Wiring

The recommended cable type for LONWORKS® communications is 22AWG (0.65 mm), twisted pair, unshielded. The LONWORKS communication wire is po-

larity insensitive and can be laid out in a bus, star, loop or free topology. For loop topology, polarity is important, special care must be taken when con-

necting the LONWORKS network to avoid short circuit.

It is recommended to use the bus topology network configuration for all LONWORKS communication wiring, as it allows

for easy network troubleshooting.

Connect both wires to the LON+ and LON‑ terminals of the controller. If inserting multiple wires in the terminals, ensure to properly twist wires together

prior to inserting them in the terminal connectors.

LON

LON Network

To Next

Controller

LON2

1LON

Figure11: Communication Wiring

If inserting multiple wires in the terminals, ensure to properly twist wires together prior to inserting them into the terminal connectors.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Distech Controllori
