DK2 BCR690E Manuale utente
BCR690E
HITCH MOUNTED EBIKE CARRIER
2 BICYCLE CAPACITY HITCH MOUNTED PLATFORM DESIGN
USER MANUAL
1 (888) 277-6960 (ENGLISH / FRENCH) | MONDAY - FRIDAY 8AM - 4PM EST | WWW.DETAILK2.COM
MADE IN CHINA
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
DK2 USA WEST
4301 S VALLEY VIEW BLVD.
SUITE 10-11 LAS VEGAS, NEVADA
89103 USA
DK2 USA EAST
3750 SOUTH AVENUE,
NORTH UNIT TOLEDO, OHIO
43615 USA
DK2 CORPORATE HEAD OFFICE
5330 MAINWAY
BURLINGTON, ONTARIO
L7L6A4 CANADA
2 | BCR690E man. v.201215
ENGLISH
SECTION I: WARNINGS
GENERAL REMARKS ..................................................................5
SAFE AND PROPER USE ..............................................................5
ROAD SAFETY .......................................................................6
MAINTAINING YOUR BICYCLE RACK....................................................6
SECTION II: ASSEMBLY
PACKAGE CONTENTS.................................................................8
STEP 1: INSTALL THE REAR WHEEL CRADLE .............................................9
STEP 2: INSTALL THE FRONT WHEEL CRADLE..........................................10
STEP 3: FASTEN CROSSBARS TO THE FRAME ...........................................11
STEP 4: ATTACH THE BIKE RACK TO THE HITCH RECEIVER ..............................12
STEP 5: ADJUSTING THE SAFETY CRADLES............................................13
STEP 6: SAFE FOLDING PROCEDURE..................................................14
PRODUCT DIAGRAM.................................................................15
FULL PARTS LIST ....................................................................16
LIMITED 1 YEAR WARRANTY .......................................................... 17
TABLE OF CONTENTS
BCR690E man. v.201215 | 3
ENGLISH
SPECIFICATIONS
ITEM NUMBER BCR690E
CONSTRUCTION Powder-coated steel
COMPATIBILITY Most E-Bikes
TIRE SIZE COMPATIBILITY 40.6 cm - 73.6 cm / 15.9 in - 28.9 in
MAX TIRE WIDTH 12.1 cm / 4.7 in
FOLDED DIMENSIONS 157 cm (l) x 108 cm (w) x 42 cm (h) >> 85 cm (depth from vehicle hitch)
61.8 in (l) x 42.5 in (w) x 16.5 in (h) >> 33.4 in (depth from vehicle hitch)
UNFOLDED DIMENSIONS 157 cm (l) x 108 cm (w) x 110 cm (h) >> 85 cm (depth from vehicle hitch)
61.8 in (l) x 42.5 in (w) x 43.3 in (h) >> 33.4 in (depth from vehicle hitch)
WEIGHT 20 kg / 44 lb
RACK WEIGHT CAPACITY 32.8 kg / 72.3 lb
TOTAL WEIGHT CAPACITY 65.7 kg / 144.8 lb
RECEIVER Fits on a 5cm / 2 in hitch receiver
SECTION I
WARNINGS
BCR690E man. v.201215 | 5
ENGLISH
GENERAL REMARKS
1. Please read and observe the instructions carefully before you use the product, and keep
them in a safe place for future use. Check the part list after opening the package. Make sure
that all parts are fully assembled according to the instruction before fitting it on your car.
2. The user is responsible for assembly and installation of this product, and the manufacturer
disclaims any liability due to improper fitting or use of the product.
3. Failure to properly install this bike carrier and/or the bikes may cause damage to the vehicle
and/or the bikes, and may result in personal injury.
4. Do not use this product for purposes other than those for which it is designed. Do not modify
any components of the product. Remove the carrier if not in use.
5. Do not use the carrier to carry more bikes than recommended. The weight of each bike
cannot exceed 32.8 kg / 72.3 lbs.
6. The bike carrier is designed to be fitted directly on vehicles with a 5 cm / 2 in hitch receiver.
7. This bike rack is not intended for transporting tandem, or recumbent bicycles.
8. Do not transport bicycles with attached baby seats, panniers, wheel covers, or full bike
covers.
SAFE AND PROPER USE
1. Please make sure you clean the surface of the hitch receiver completely before installing the
rack.
2. Always use the safety strap to attach the bikes to the bike carrier.
3. Check if distance from the exhaust pipe to the bicycle tires is safe for your bicycles or the
straps of the carrier. The heat of the exhaust could damage the bike or bicycle racks.
4. If your vehicle is equipped with an automatic tailgate opening system, disable this function
when using the bike carrier, and open the tailgate manually.
5. When loading the bicycles, remove all loose parts and accessories from bicycles (toolbars,
baby carriers, pumps, etc.).
6. Always position the biggest/heaviest bike first and closest to the vehicle, and then position
the smaller bike after that.
7. The user is responsible for periodically verifying that all hardware, straps, knobs, hubs are
securely tightened for safety purposes.
8. You might have to use extra precautions to protect the bikes and the tailgate from scratches.
9. The locks used on this rack are theft deterrent.
WARNINGS
PLEASE READ BEFORE STARTING
6 | BCR690E man. v.201215
ENGLISH
WARNINGS
PLEASE READ BEFORE STARTING
ROAD SAFETY
1. Check before departure that the light board of the carrier is properly functioning.
2. The bicycle rack increases the vehicle’s length, and the bicycles may increase its width and
height. Be aware of this when passing through narrow or low clearance spaces and when
reversing. Any loads exceeding the indicated dimensions must nevertheless respect existing
regulations and be properly strapped down.
3. The load of the rack and bicycles will aect driving. Do not exceed the speed limit, and do
not drive faster than 120km/h (74.5mph).
4. Drive slowly over speed bumps. Respect the speed limit, and adapt your speed to the
condition of the road.
5. O-road driving is not recommended and could result in damage to your vehicle, hitch
receiver, bike carrier, or your bikes.
6. If you hit a bump or hole in the road, stop your vehicle and inspect the bikes and the carrier.
If you notice anything wrong, remove the bikes and do not use the bike carrier.
7. Make sure there is a safe distance between the bikes and the ground, especially when
entering the driveway.
MAINTAINING YOUR BICYCLE RACK
1. Periodically inspect the product for signs of wear, corrosion, and fatigue.
2. Do not use the carrier with defective parts, contact the dealer to replace them before using it
again.
3. Remove the product before entering an automatic car wash.
4. To keep your product in the best condition, it is recommended to remove the product
from the car when not in use. Please be advised that this product is not designed to resist
extreme weather conditions, especially seacoast air.
5. Lubricate the bolts in order to avoid corrosion.
MAX 65.7 KG / 144.8 LB
*
KG
MAX
LOAD
Car manual
5 cm / 2 in size
SECTION II
ASSEMBLY
8 | BCR690E man. v.201215
ENGLISH
ASSEMBLY
PACKAGE CONTENTS
A B
1x 2x
C D E F
x2
2x 2x 2x 2x
G H I J
1x 4x 1x 1x
K L M N
1x 1x 4x 2x
O P Q
8x 1x 1x
BCR690E man. v.201215 | 9
ENGLISH
ASSEMBLY
STEP BY STEP INSTRUCTIONS

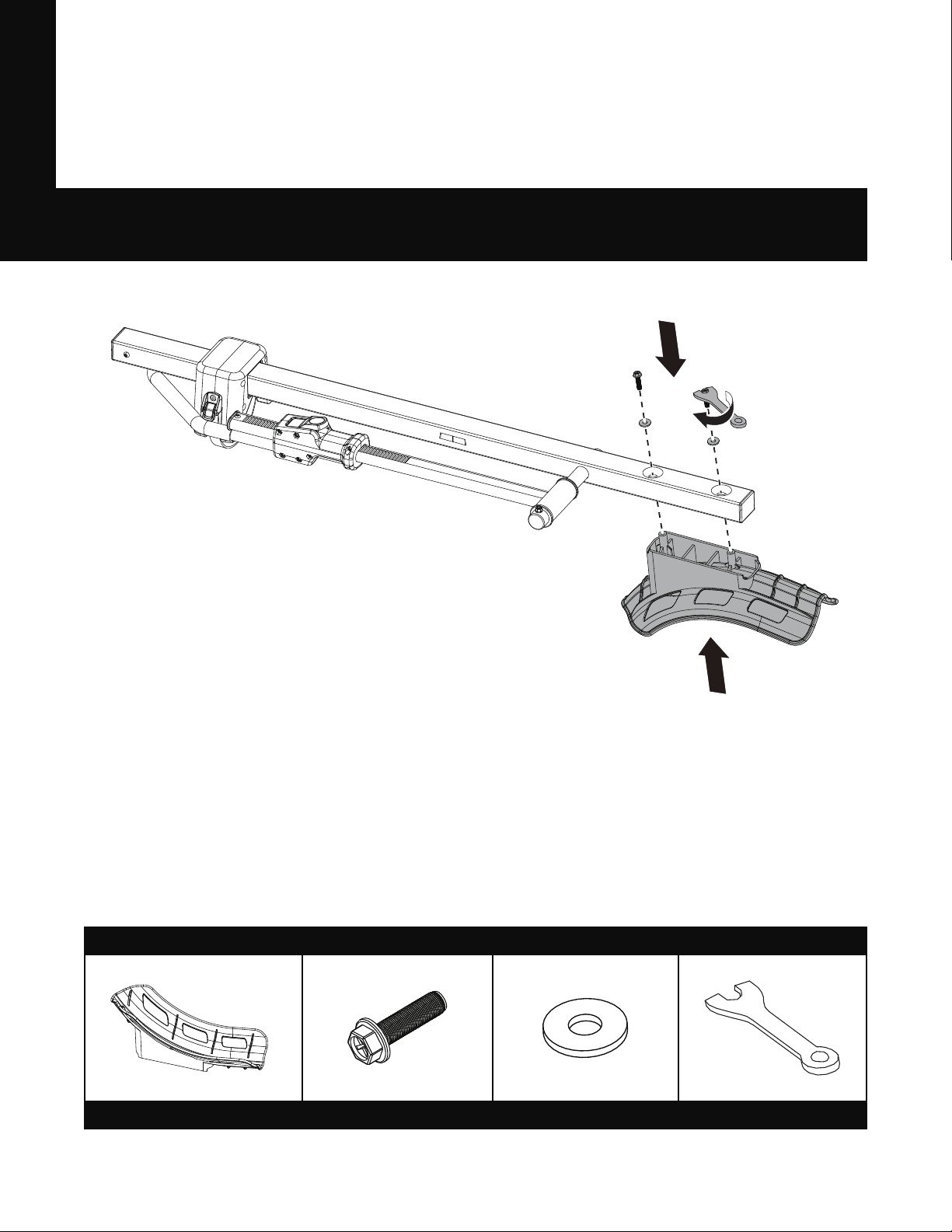

STEP 1: INSTALL THE REAR WHEEL CRADLE
B D N P
2x 2x 2x 1x
10 | BCR690E man. v.201215
ENGLISH
ASSEMBLY
STEP BY STEP INSTRUCTIONS
STEP 2: INSTALL THE FRONT WHEEL CRADLE
C M H Q
2x 4x 4x 1x
