CellComSLCF Cellular

Communicator Dialer Capture

APPLICATION NOTE

Introduction

This Application Note is designed to quide technicians through

the process of installing the CellComSLCF with the Fire

Panels shown below. The information provided illustrates the

connection and programming of Fire Panels for CID Dialer

Capture using the CellComSLCF Cellular Communicator.

• Ademco Vista 128FBP

• Ademco Vista 128FBPT

• Bosch FPD-7024 Fire Control Panel

• Firelite MS-5UD

• Firelite MS-9200UDLS

• First Alert FA 1600C

• Silent Knight 5808

Introduction............................................. 1

Basic Programming for CellComSLCF

CID Dialer Capture Communication ......... 1

Wiring Diagrams ..................................... 2

Ademco Vista 128FBP........................... 2

Ademco Vista 128FBPT ......................... 3

Bosch FPD-7024 Fire Control Panel ........ 4

Firelite MS-9200UDLS ........................... 6

First Alert FA1600C............................... 7

Silent Knight 5808 ................................ 8

Congure a Single Path Alarm Connection.. 9

Basic Programming for CellComSLCF CID Dialer Capture Communication

This section provides the basic programming required for the CellComSLCF. Please see the CellComSL Series

Installation and Programming Guide (LT-1339) for complete information.

Communication:

Account No: 1 -65535

Test Time: Use entries between 12:00 to 11:59 and then choose AM or PM.

Cell TST DAYS: 1

CHECKIN: 58 minutes for NFPA 72 2013 & UL 864 10th edition

FAIL TIME: 60 minutes for NFPA 72 2013 & UL 864 10th edition

RECEIVER 1 PROG:

ALARM: YES

SPV/TRBL: YES

TEST RPT: YES

FIRST IP ADDR: XXX.XXX.XXX.XXX

FIRST IP PORT: Default is 2001

SYSTEM OPTIONS:

TIME CHG: YES

HRS FROM GMT: # Default is 6 for CST

OUTPUT OPTIONS:

COM FAIL OUT: Either 1 or 2. The default is 0 (zero), which disables this output.

Note: This output turns on if a commnicator fails to communicate with its receiver.

Digital Monitoring Products CellComSLCF Cellular Communicator Dialer Capture Application Note

APPLICATION NOTE

1 2 3 4 5 6 7 8 9 10

11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

TRNSFMR BELL OUTPUTS AUX. RELAY

KEYPAD PORT #1 ZONE 1 ZONE 2 ZONE 3 ZONE 5

ZONE 4

ZONE 6 ZONE 7 ZONE 8 GND

KEYPAD PORT #2

INTERFACE TO 5140DLM

BLUE

BATTERY TABS

BLK - + RED

BELL 1 BELL 2

(WHITE)

VOLTAGE

TRIGGERS

MAIN

PHONE JACK

TIP

RESET

LOAD

MODEL CellCom

PROG

+12 G Z1 Z2 Z4-Z4+GZ3 RTO2O1

RING

Must be installed in

conduit and located

in the same room

within 20 feet.

Ademco

Vista 128FBP

Cut the W6

(BLUE) Jumper

Connection Instructions:

1. Connect the 12VDC on the CellComSLCF to terminals 11

and 12 on the host panel.

2. Connect the phone line from TIP and RING on the CellComSLCF to

the Main Phone Jack on the host panel.

3. Cut the blue jumper on the host panel or disable the TLM.

To disable the TLM, follow these programming steps:

1. Enter programming.

2. *93 - Zone Prog? 1 = YES 0 = NO. Select YES.

3. Set to Conrm? 1 = YES 0 = NO. Select NO.

4. Enter Zone No. 000 = Quit.

5. Enter 974 then *. 974 Zone Type 24-Hour Trouble 19.

Change the zone type to 00. Press *.

6. Press * until Enter Zone No. 000 = Quit displays.

Enter 000 then *.

7. Conrm that you want to exit zone programming.

8. The default values for locations *30, *42, *43, *45

do not need to be changed.

9. Normal Central Station programming.

Wiring Diagrams

Ademco Vista 128FBP

CellComSLCF Cellular Communicator Dialer Capture Application Note Digital Monitoring Products

APPLICATION NOTE

Ademco Vista 128FBPT

1 2 3 4 5 6 7 8 9 10

11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

TRNSFMR BELL OUTPUTS AUX. RELAY

KEYPAD PORT #1 ZONE 1 ZONE 2 ZONE 3 ZONE 5

ZONE 4

ZONE 6 ZONE 7 ZONE 8 GND

KEYPAD PORT #2

INTERFACE TO 5140DLM

BLUE

BATTERY TABS

BLK - + RED

BELL 1 BELL 2

(WHITE)

VOLTAGE

TRIGGERS

MAIN

PHONE JACK

TIP

RESET

LOAD

MODEL CellCom

PROG

+12 G Z1 Z2 Z4-Z4+GZ3 RTO2O1

RING

Must be installed in

conduit and located

in the same room

within 20 feet.

Ademco

Vista 128FBPT

Cut the W6

(BLUE) Jumper

J13

TXD

RXD

RTS/OTR

CTS/DSR

PRN

Connection Instructions:

1. Connect the 12VDC on the CellComSLCF to terminals 11

and 12 on the host panel.

2. Connect the phone line from TIP and RING on the CellComSLCF to the

Main Phone Jack on the host panel.

3. Check that the CellComSLCF is communicating with the host panel. If

it is not, cut the blue jumper on the host panel or disable the TLM.

To disable TLM, follow these programming steps:

1. Enter programming.

2. *93 - Zone Prog? 1 = YES 0 = NO. Select YES.

3. Set to Conrm? 1 = YES 0 = NO. Select NO.

4. Enter Zone No. 000 = Quit. Enter 974 then *.

5. 974 Zone Type 24-Hour Trouble 19. Change the zone type to 00.

Press *.

6. Press * until Enter Zone No. 000 = Quit displays. Enter 000 then *.

7. Conrm that you want to exit zone programming.

8. The default values for locations *42 and *45 do not need to be

changed. Locations *30 and *43 do not exist on this panel.

9. Normal Central Station programming.

Digital Monitoring Products CellComSLCF Cellular Communicator Dialer Capture Application Note

APPLICATION NOTE

Connection Instructions:

1. Connect the 12VDC on the CellComSLCF to the R

and B connections on the Option Bus on the panel.

2. Connect the CellComSLCF Tip connection to the

T1 and T2 connections on the host panel.

3. Connect the CellComSLCF Ring connection to the R1

and R2 connections on the host panel.

4. Normal Central Station programming.

RESET

LOAD

PROG

+12 G Z1 Z2 Z4-Z4+GZ3 RTO2O1

MODEL CellCom

Must be installed

in conduit & located

in the same room

within 20 feet.

12 VDC nominal, 500 mA

Do not draw more than

500mA from option bus.

Bosch

FPD-7024

R B G Y OPTION BUS

AUX-

AUX+

A+

B+

B-

A-

A+

B+

B-

A-

BAT-

24V

BAT+ Power

Alarm

Supervisory

Trouble

Silenced

Gnd Flt

Drill

Disable

Test

History

Acknowledge

Silence

Reset

Back Prog Enter

HR2

HT2

RH1

TH1

NC3

COM3

NO3

NC2

COM2

NO2

NC1

COM1

NO1

SMK+

SMK-

4A+

4B+

4B-

4A-

3A+

3B+

3A-

3B-

2A+

2B+

2A-

2B-

1A+

1B+

1B-

1A-

Bosch FPD-7024 Fire Control Panel

CellComSLCF Cellular Communicator Dialer Capture Application Note Digital Monitoring Products

APPLICATION NOTE

Firelite MS-5UD

TIP

RESET

LOAD

MODEL CellCom

PROG

+12 G Z1 Z2 Z4-Z4+GZ3 RTO2O1

RING

Must be installed in

conduit and located

in the same room

within 20 feet.

JP31

TB9

TB5 TB4 TB7

TB5 TB6 TB2 TB8

JP24

JP30

J13 J11

J8 J9

TB3

J12

J15

- +

JP43

SW1

4XTM OPT BD

Primary Secondary

- + ANN-BUS

GND PWR A B

NO NC C

RELAY 1

NO NC C

RELAY 2

NO NC C

RELAY 3

ZONE

OUT3 OUT4OUT1 OUT2

ANN-SEC

RST AUX

PWR

RST/NONRS

AUXPWR

Firelite

MS-5UD

Connection Instructions:

1. Connect the 24VDC on CellComSLCF to the 24V Auxillary Power

header on the panel.

2. Connect the phone line from TIP and RING on the CellComSLCF to

J8 on the host panel.

3. Normal Central Station programming.

Note: This only applies to CellCom SLCF Rev 4 Lev E.

Digital Monitoring Products CellComSLCF Cellular Communicator Dialer Capture Application Note

APPLICATION NOTE

TIP

RESET

LOAD

MODEL CellCom

PROG

+12 G Z1 Z2 Z4-Z4+GZ3 RTO2O1

RING

Must be installed in

conduit and located

in the same room

within 20 feet.

+ -

REMOTE PWR

SUPPLY SYNC

+ 24V

NON-RST

POWER

+ 24V

RST

POWER

1B+ 3B+ 3B- 1B- 2B+ 4B+ 4B- 2B- NO NC C NO NC C NO NC C Xmt Rcv Dtr Gnd

A B

In+ In- OUT+ Out-

+ -

A B

B+ A+ B- A- A B

Slc Slc Slc Slc SHIELD

J5 J6

J7 JP3

TB10TB9TB8TB6TB5TB7TB4TB3TB2 TB1

JP7

JP4

JP6 J14

JP2

J12

SW1

PH15 PH16

MIN DIN

KWYBOARD COMM.

SEC. PHONE LINE

JP5

TB11

J10

J11

LCD DISPLAY

BATTERY

- +

HOT NEUT EARTH

TRANSFORMER 1TRANSFORMER 2

KEYPAD

PRI. PHONE LINE

Must be installed in

conduit and located

in the same room

within 20 feet.

Firelite

MS-9200UDLS

Connection Instructions:

1. Connect the 24VDC on the CellComSLCF to the TB2 header on the

host panel.

2. Connect the phone line from TIP and RING on the CellComSLCF to PH15

on host panel.

3. Normal Central Station programming.

Firelite MS-9200UDLS

CellComSLCF Cellular Communicator Dialer Capture Application Note Digital Monitoring Products

APPLICATION NOTE

First Alert FA1600C

123456789

MAIN

INTERFACE TO 5140DLM

BLUE

KEYPAD PORT #2

BATTERY TABS

BLK - + RED

BELL 1 BELL 2

(WHITE)

TRNSFMR BELL OUTPUTS

AUX. RELAY KEYPAD PORT #1 ZONE 1 ZONE 2 ZONE 3

ZONE 5 ZONE 6 ZONE 8

ZONE 7

PHONE JACK

(RED)

VOLTAGE

TRIGGERS

1 2 3 4 5 6

7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

TIP

RESET

LOAD

MODEL CellCom

PROG

+12 G Z1 Z2 Z4-Z4+GZ3 RTO2O1

RING

Must be installed in

conduit and located

in the same room

within 20 feet.

Cut the W6

(BLUE) Jumper

First Alert

FA 1600C

Connection Instructions:

1. Connect the 12VDC on the CellComSLCF to terminals 11 and 12

on the host panel.

2. Connect the phone line from TIP and RING on the CellComSLCF

to the Main Phone Jack on the host panel.

3. Cut the blue jumper on the host panel.

4. Follow these programming steps:

1. *30 Main dialer. Default is 0 changed that to 1 for Touch

Tone.

2. *42 Dial tone pause 0=5 seconds

3. *43 Dial tone detection was a 0 which is pause, then dial.

Changed that to a 1=wait for true dial tone.

4. *45 Veried the proper format which is 1=Contact ID

5. Normal Central Station programming.

Digital Monitoring Products CellComSLCF Cellular Communicator Dialer Capture Application Note

APPLICATION NOTE

Silent Knight 5808

TIP

RESET

LOAD

MODEL CellCom

PROG

+12 G Z1 Z2 Z4-Z4+GZ3 RTO2O1

NAC4

+ -

NAC3

+ -

NAC2

+ -

NAC2

+ -

RELAY 2

NO COM NC

RELAY 1

NO COM NC

TROUBLE

NO COM NC

SBUS

- + A B

BATTERY

- +

AC INPUT

B EARTH W

SLC IN

- +

SLC OUT

- +

SLC PROG

- +

RING TIP

TELCO 1

RING TIP

PHONE 1

RING TIP

TELCO 2

RING TIP

PHONE 2

RING

Must be installed in

conduit and located

in the same room

within 20 feet.

Silent Knight

5808

Connection Instructions:

1. Connect the 24VDC on the CellComSLCF to the + and - terminals on the

host panel.

2. Connect the phone line from TIP and RING on the CellComSLCF to TIP

and RING on host panel.

3. Normal Central Station programming.

17062

800-641-4282

INTRUSION • FIRE • ACCESS • NETWORKS

www.dmp.com 2500 North Partnership Boulevard

Designed, Engineered and

Assembled in U.S.A. Springeld, Missouri 65803-8877

TIP

RESET

LOAD

MODEL CellCom

PROG

+12 G Z1 Z2 Z4-Z4+GZ3 RTO2O1

RING

SEC. PHONE LINEPRI. PHONE LINE

ALARM PANEL

1. Connect both phone lines on the host panel to TIP and

RING on the CellComSLCF.

Congure a Single Path Alarm Connection

Some re panels provide two telco connections. Because the CellComSLCF is equipped with a single telco

connection, the re panel must be congured accordingly. One method of installation is to disable the second

telco connection. If this option is not applicable due to panel limitations, both TIP and RING connections may be

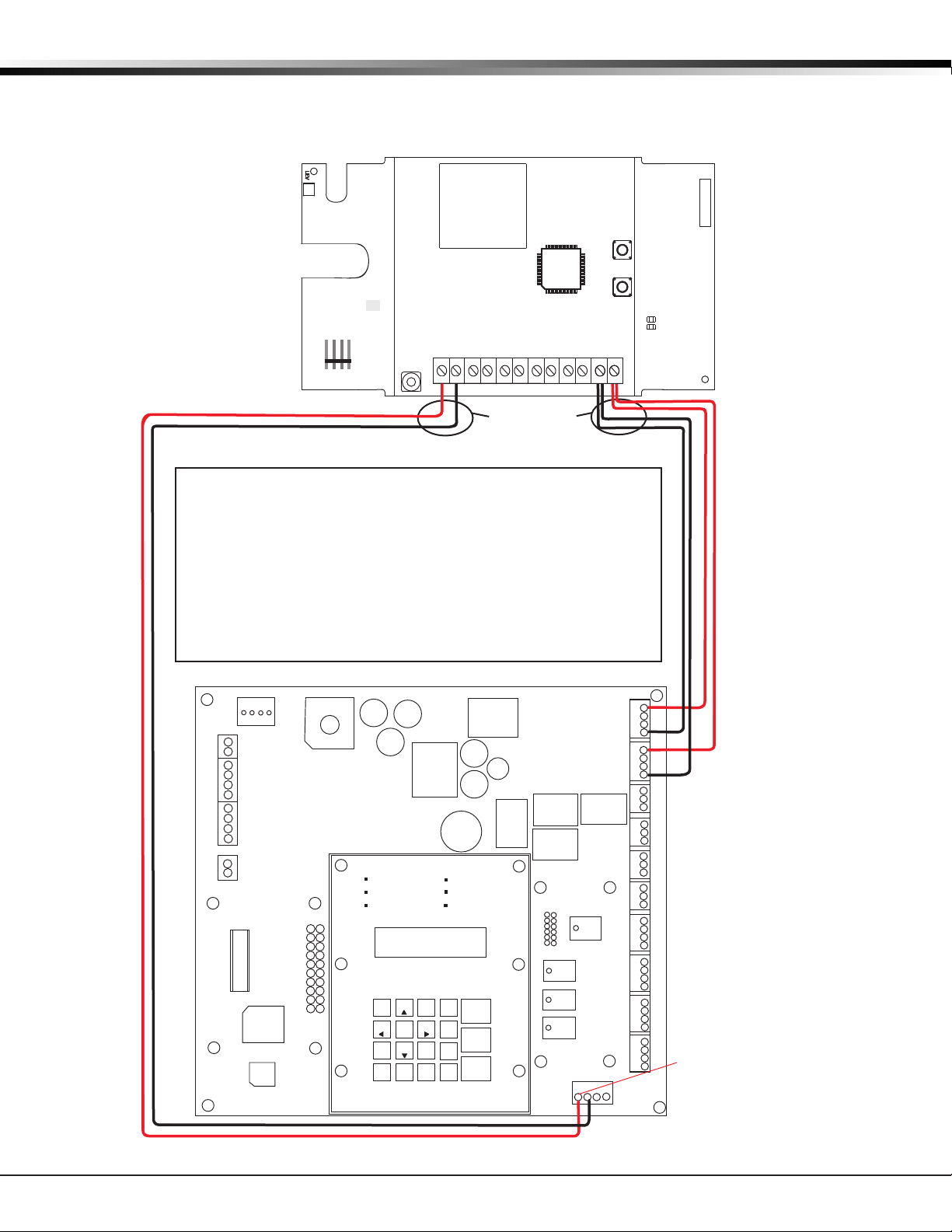

connected from the panel into the CellComSLCF. The CellComSLCF has the capability of monitoring and providing a

dial tone to both telco connections.

Indice

Altri manuali DMP Electronics Telefono cellulare

DMP Electronics

DMP Electronics Com Series Guida per l'amministratore

DMP Electronics

DMP Electronics DUALCOM Series Manuale di installazione e funzionamento

DMP Electronics

DMP Electronics Com Series Guida per l'amministratore

DMP Electronics

DMP Electronics 265LTE-V Manuale utente

DMP Electronics

DMP Electronics CellCom LTE Series Manuale utente

DMP Electronics

DMP Electronics CellCom-LTE-V SERIES Manuale utente

DMP Electronics

DMP Electronics 263LTE Series Manuale utente

DMP Electronics

DMP Electronics 263LTE-FN Manuale utente

DMP Electronics

DMP Electronics CellCom SLC Manuale di installazione e funzionamento

DMP Electronics

DMP Electronics Com Series Guida per l'amministratore

DMP Electronics

DMP Electronics 263LTE-V5 Manuale utente

DMP Electronics

DMP Electronics CellComRT Manuale utente

DMP Electronics

DMP Electronics DUALCOM Series Manuale utente

DMP Electronics

DMP Electronics iComSL Series Guida all'installazione

DMP Electronics

DMP Electronics 464-263C Istruzioni per il montaggio

DMP Electronics

DMP Electronics CELLCOMEX Com Series Guida per l'amministratore

DMP Electronics

DMP Electronics 464-263H Istruzioni per il montaggio

DMP Electronics

DMP Electronics CELLCOMSL SERIES Guida all'installazione

DMP Electronics

DMP Electronics 265HCAN Manuale utente

DMP Electronics

DMP Electronics XR500 SERIES Manuale utente

DMP Electronics

DMP Electronics 263LTE-V Manuale utente

DMP Electronics

DMP Electronics 263H HSPA+ Istruzioni per il montaggio

DMP Electronics

DMP Electronics 263LTE X1 Series Istruzioni per il montaggio

DMP Electronics

DMP Electronics iComSL Manuale utente

Manuali Telefono cellulare popolari di altre marche

Zte

Zte BLADE A520 Manuale utente

Nokia

Nokia Lumia 620 Manuale utente

Blackbe;rry

Blackbe;rry KEYone Manuale utente

Bea-fon

Bea-fon X5 Premium Manuale utente

Blackbe;rry

Blackbe;rry 8707 Series Manuale utente

Blackbe;rry

Blackbe;rry Storm Istruzioni operative

LG LM-X420QN Manuale utente

LifeWatch

LifeWatch V Manuale utente

Bea-fon

Bea-fon SILVER LINE SL860 Manuale utente

IKI Mobile

IKI Mobile KF4.5i Manuale utente

Hitech

Hitech HT-850 Manuale utente

Yezz

Yezz Fashion F10 Manuale utente

Point Mobile

Point Mobile PM60 Manuale utente

Blackbe;rry

Blackbe;rry Q10 Manuale utente

Blackbe;rry

Blackbe;rry Bold 9900 Manuale utente

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuale utente

LG LM-K420EMW Manuale utente

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuale utente
