Dnake 902M S8 Manuale utente

Model: 280SD-C12

280SD-R2

280SD-R5

Quick Start Quide

Door Station

The picture is only a schematic diagram. The actual product shall prevail.

902M S8

USER MANUAL

Please follow the user manual for correct installation and

testing. If there is any doubt please call our tech-supporting

and customer center.

Our company applies ourselves to reformation and

innovation of our products. No extra notice for any change.

The illustration shown here is only for reference. If there is

any difference, please take the actual product as the

standard.

The product and batteries must be handled separately from

household waste. When the product reaches the end of

service life and needs to be discarded, please contact the

local administrative department and put it in the designated

collection points in order to avoid the damage to the

environment and human health caused by any disposal. We

encourage recycling and reusing the material resources.

REMARK

CATALOG

Product Features......................................................1

Technical Parameters...............................................1

Package Contents ....................................................2

Pictures.....................................................................2

Operations................................................................3

1. VOIP......................................................................4

2. Security...............................................................11

3. Smart ..................................................................16

4. Service................................................................20

5. About 902 ...........................................................21

Web Settings ..........................................................22

System Configuration ............................................26

System Diagram.....................................................27

Installation..............................................................29

Troubleshooting .....................................................30

Safety Instructions .................................................31

PRODUCT FEATURES

TECHNICAL PARAMETERS

Voltage: DC 12V

POE

Rated power: 9W

Standby power consumption: 1.5W

Display screen: 7''

Touch screen: Capacitive touch screen

Resolution: 800x480

Working Temperature: -10℃ to +55℃

Storage Temperature: -10℃ to +60℃

Working Humidity: 10% to 90% (non-condensing)

1. Building intercom application:

VOIP: Support video call, monitoring, unlocking, VOIP

communication and call record checking.

Security: Support 8 alarm zones with 3 states, alarm zone and

scene setup.

Smart: Support smart home extension by RS485 communication.

Others: Support Android systems applications.

Voltage: DC 12V

POE

Rated power: 10W

Standby power consumption: 3W

Display screen: 7''

Touch screen: capacitive touch screen

Resolution: 1024X600

Working Temperature: -10℃ to +55℃

Storage Temperature: -10℃ to +60℃

Working Humidity: 10% to 90% (non-condensing)

RAM: 1GB

ROM: 4GB

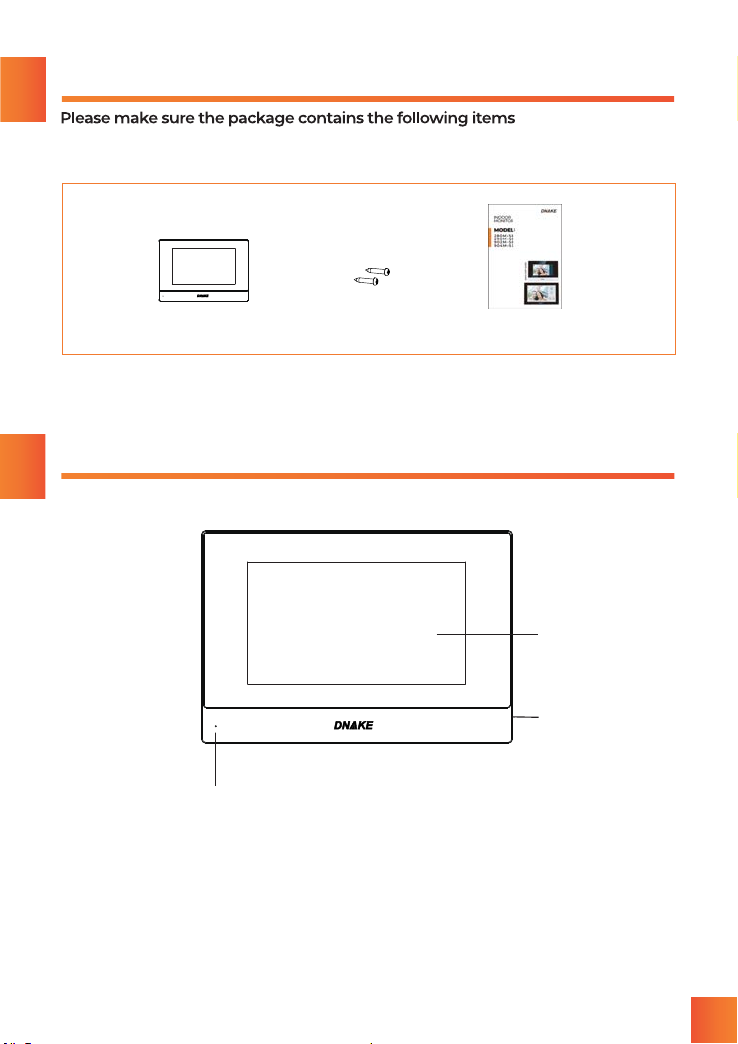

Package Contents

Quick Start Guide

Indoor Monitor

MODEL: 902M-S8

Please make sure the package contains the following items:

Screw

PACKAGE CONTENTS

PICTURES

Microphone

7'' capacitive

touch screen

Speaker

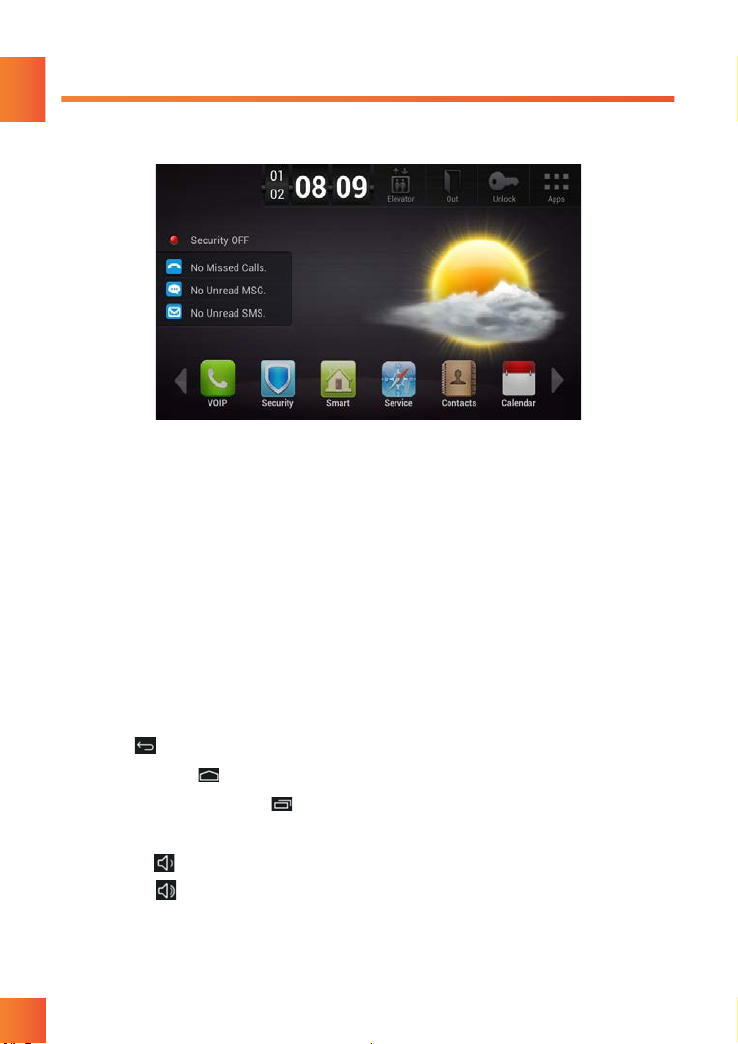

OPERATIONS

Main menu: VOIP, Security, Smart, Service, Contacts, Calendar, Mediaplayer

and About 902.

Shortcut key: Elevator, Out, Unlock and Apps.

1.The main interface will remind user when there are missed calls, unread

MSG and SMS.

2. The state of weather is synchronously updated by NTP.

Status bar: Return, Main interface, Background program, Volume-,Volume+.

When the user enters into secondary menu, the interface displays the

following icons at the bottom of the screen.

Status bar instruction:

1. Return :Click it to return to previous menu.

2. Main interface : Click it to return to main interface.

3. Background program : Click it to display the operating program

running in the background.

5. Volume- : Click it to reduce the volume.

6. Volume+ : Click it to increase the volume.

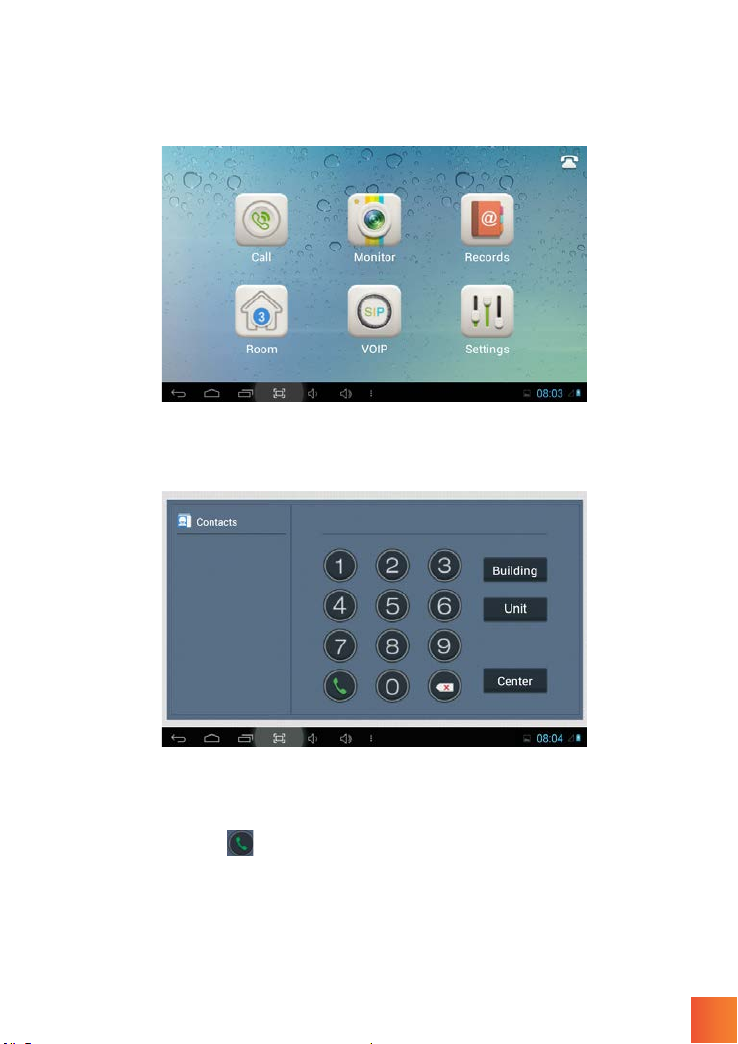

Clicking “VOIP” icon on the main interface, the system will enter the

following interface:

1.1 Call

Clicking “Call” icon, the system will enter the following interface:

1.VOIP

1.1.1 Call unit resident

Input 1-3 digits building No.+ “Building” + 2-digit Unit No. + “Unit” +4-digit

room No., then click icon to call.

The system will enter into the following interface:

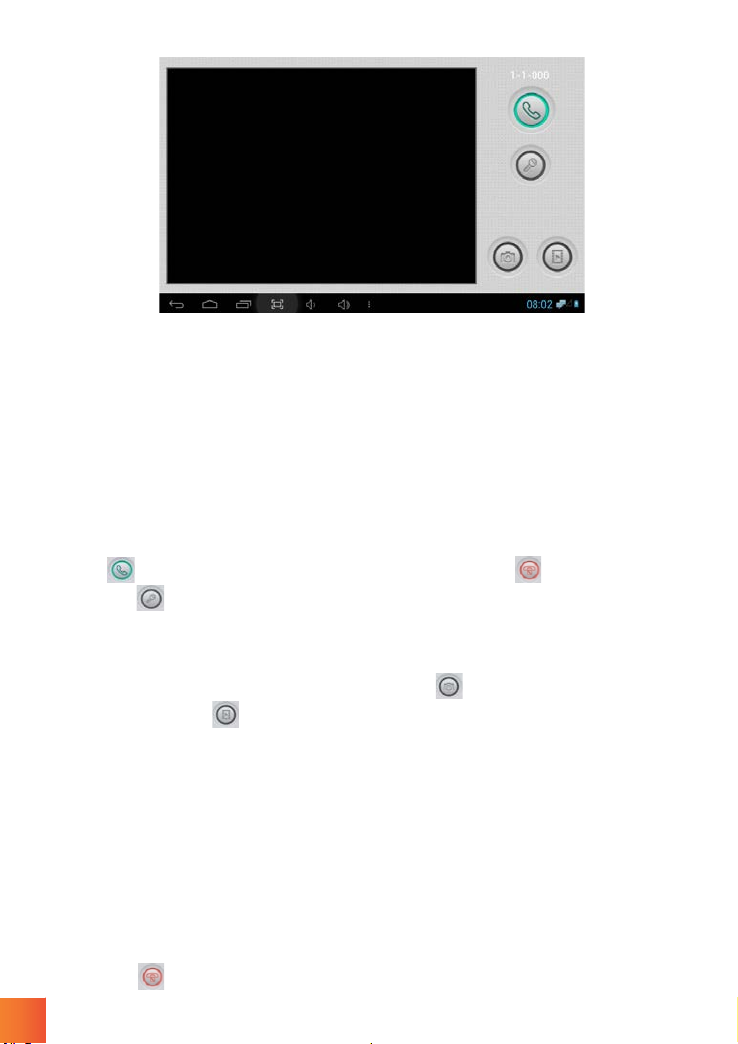

When the call is answered, the system will enter into call state:

1. If there is a camera, the caller’s image will be displayed on the screen;

2. When the call is answered, the video will be uploaded into the indoor

monitor.

When the door station, wall panel or secondary door station calls, the

indoor monitor will ring; when door station calls indoor monitor, the image

from door station will be displayed on the indoor monitor; if there is no

answer within 25 seconds, the call will be ended.

Click icon to communicate with door station; click icon to end the

call; click icon to unlock the door.

Remark: visual intercom function between households is optional.

You can make audio and video recording during communication (TF card

should be inserted into indoor monitor ). Click icon to take a snapshot of

the visitor; click icon to save the video and image for current

communication.

The system’s default call duration is 120s.

1.1.2 Call management center

Clicking “Center” icon to call management center(namely master

station), the system will call management center No.1-No.5 successively. If

the management center cannot be searched or call failed, the system will

automatically call next management center. When the management center

answers, it will ring and stop calling next one.

Click icon to end the communication.

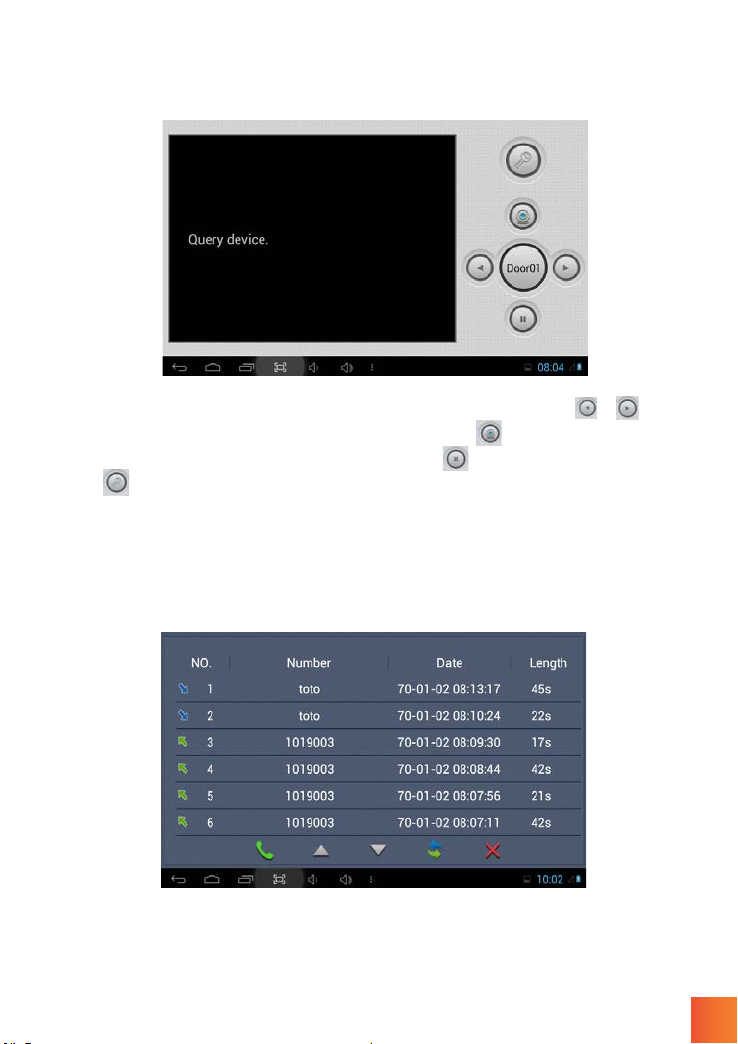

1.2 Monitor

Clicking “Monitor” icon, the system will enter the following interface:

Click “Door01” icon to switch the type of door station, then click or icon

to select the area you want to monitor, and click icon to monitor the

door station or secondary door station. Click icon to end monitoring.

Click icon to unlock the door.

Remark: The system’s default monitoring time is 25s.

1.3 Records

Clicking “Records” icon, the system will enter the following interface:

refers to call-out record; refers to call-in record; refers to missed

call record. It can save up to 64 records.

Click or icon to search for records. Select one record and click icon

to call; click icon to delete it. Click icon to back-up.

If there is snapshot image, click icon to view it.

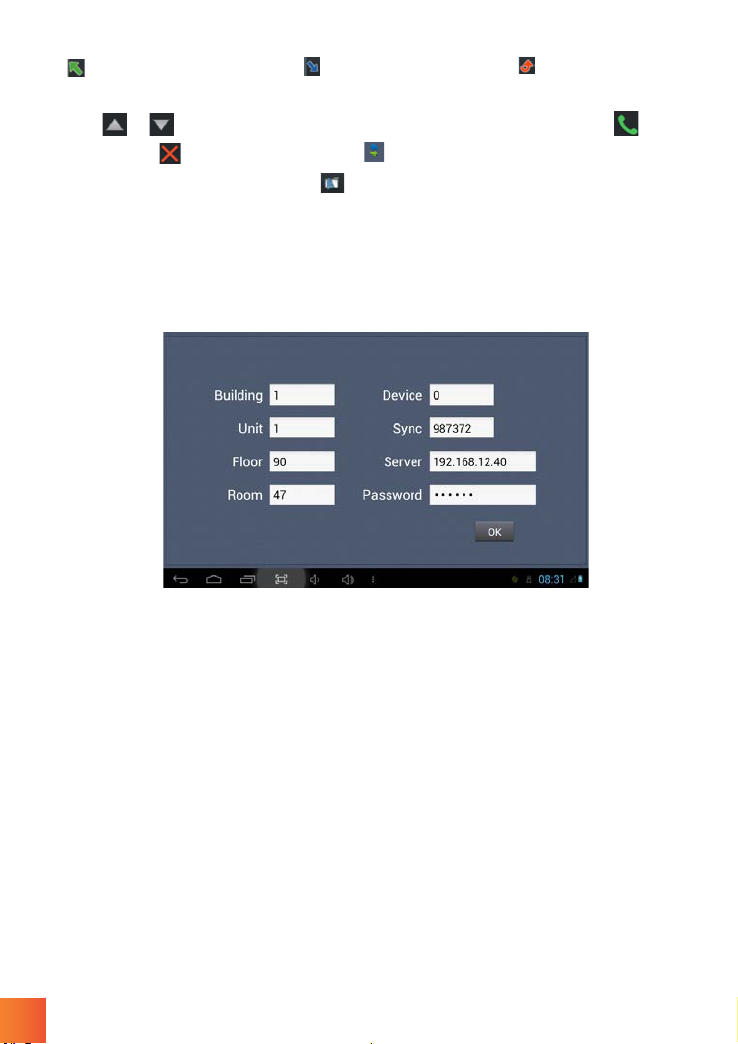

1.4 Room

Click “Room” icon, then input 1-16 digits password (the default password is

123456 ) to enter into the following interface:

Warning: Please revise synchronous No.(6 digits) as soon as possible after

you read the user manual. The synchronous No. of all indoor monitors in

one household must be the same.

Input the 3-digit Building No. such as 001, and then click “OK” to finish the

building No. setting.

The setting method of Unit No.,Floor No., Room No., Device No. and

Synchronous No. is the same as the one of Building No.. The Unit No., Floor

No. and Room No. are limited to 2 digits respectively. When Device No. is

set to be 0, the indoor monitor is regarded as the main; when Device No. is

set from 1 to 5, as the sub1 to sub5.
