DOD MEATBOX Manuale utente

1 2

3 4

5

6

8

7

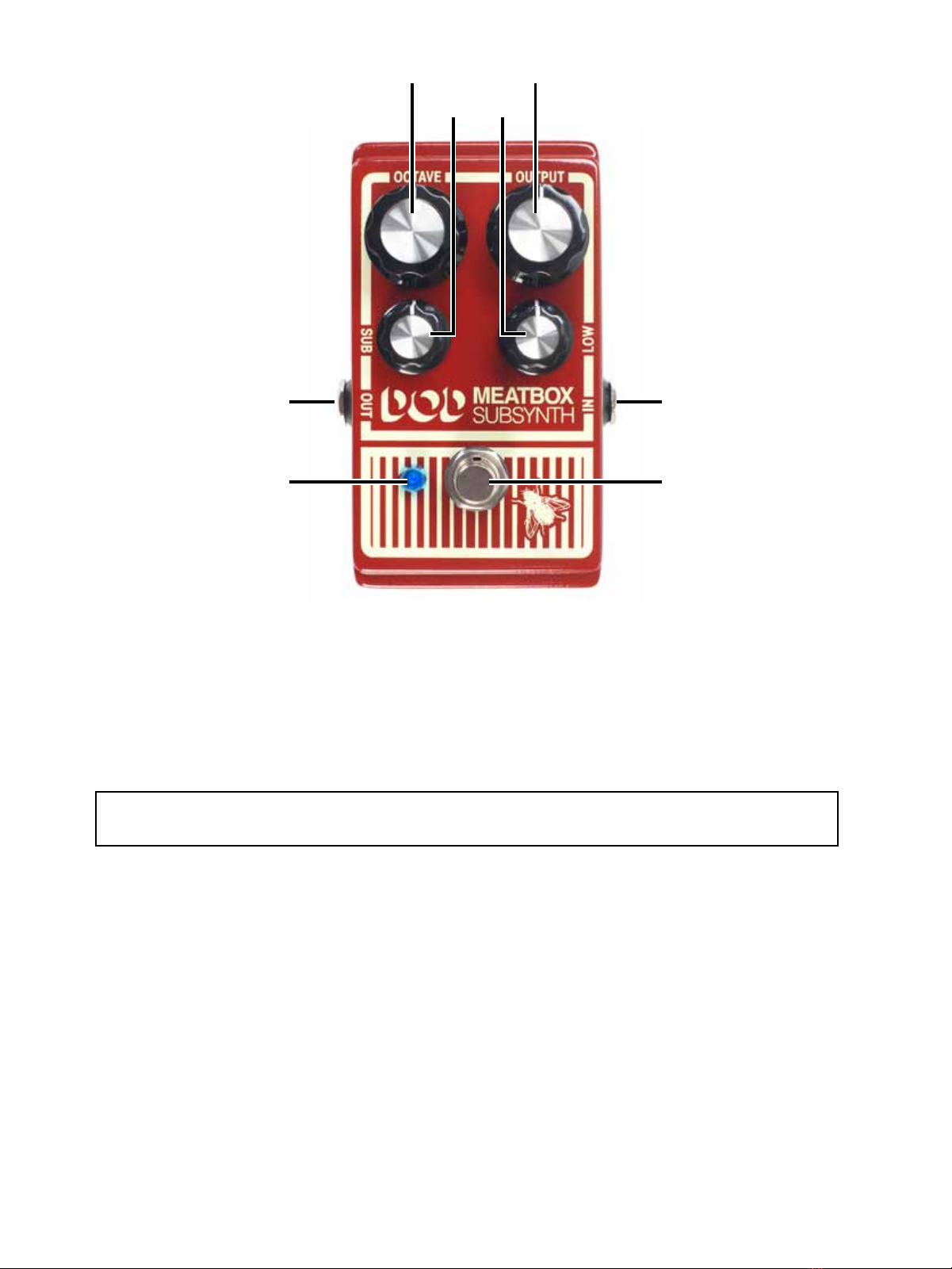

1. OCTAVE - adjusts the amount of low octave being added to the signal.

2. OUTPUT - adjusts the overall output level of the eect.

3. SUB - adjusts the amount of synthesized sub harmonic eect is added to the signal.

4. LOW - adjusts the low frequency content of the overall eect.

WARNING: Start with the OUTPUT and LOW controls at minimum and gradually increase

their level to avoid possible speaker damage.

5. INPUT - connect your instrument here.

6. FOOTSWITCH - turns the eect on and o.

7. LED - turns on when the eect is enabled.

8. OUTPUT - connect to the next pedal input or to the input of your amplier. This output

allows you to route a dry unprocessed signal (Ring) and processed signal (Tip)

to an amplier and other eects simultaneously via TRS ‘Y’ cable.

Tip = Octave+Sub

Ring = Dry

Sleeve = Ground

USING MEATBOX:

Most bassists will favor placing the Meatbox at the beginning of

their chain of eects, so start with that placement. Guitarists may

nd it better to add after distortion eects or near the end of the

eect chain.

A typical eects signal chain will consist of Distortion eects rst

then Modulation eects (Chorus, Flanger, Phaser, Tremolo, etc...)

next and then nally Time based eects (Delay and Reverb).

This being said you may wish to experiment with dierent eect

placements.

SPECIFICATIONS:

Input 1/4”TS Unbalanced - 470 kΩ

Output 1/4”TRS Unbalanced - 100 Ω

Current Draw 20 mA

Bypass True Bypass

Power 9VDC alkaline battery (not included)

HARMAN PS0913DC power adapter (optional)

Warranty 1 Year

DOD

10653 River Front Parkway

South Jordan, UT 84095

USA

801-566-8800 Rev A - 6/15
