CHAPTER 1:
SAVE THIS INSTRUCTION MANUAL

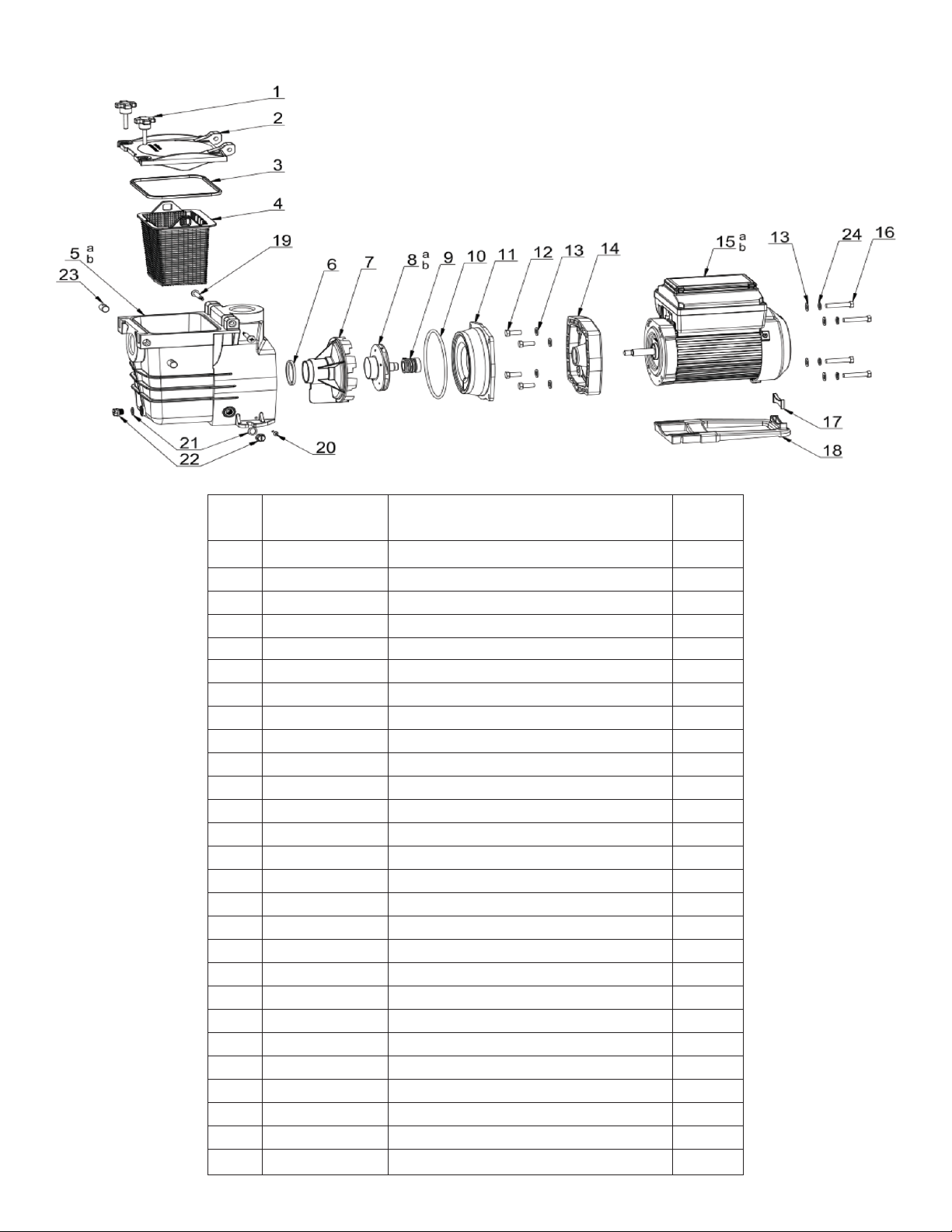

Brief Introduction
This variable speed pump is designed to operate your
swimming pool ltration system as well as your spa,
waterfall, cleaner, heater, salt chlorine system and
other water applications.
Using the control panel, you can run your pump on one
of three scheduled programs:
1. Regular mode: use three quick start buttons.
ECO (default 1500RPM) CLEAN (default 2400RPM)
BOOST (default 3250RPM), and then adjust the
pump to run at the speeds you selected.
2. Mode 1: 16 hours for each clean cycle.
3. Mode 2: 24 hours for each clean cycle.
The control panel also has LED indicators for speed
as well as alarm indicators and error messages to
warn the user against under and over voltage, high
temperature, over current and freeze protection.
CHAPTER 2:
FEATURES OF LED CONTROL PANEL
1. Display and change time.
2. Display and change running speed.
3. Quick-start button of ECO/CLEAN/BOOST to run
on different speed.
4. MODE1/MODE2 for scheduled program (16 hours
or 24 hours clean cycle).
5. Re-start and reset to normal schedule after over
current, over voltage, over heat, or unexpected
power off.
6. Keep records of scheduled programs for maximally
15 days after power off.
7. Password needed when to make change of the
program. (not effective now)
8. Run 5 minutes high speed when rst start the pump
9. Step-by-step acceleration and deceleration of the
speed to extend the use life of the motor and
control panel.
CHAPTER 3:
INTRODUCTION OF LED CONTROL BOARD
1. ECO: Press to select and run on default speed
1500PRM, can adjust from 1000 to 2400RPM
2. CLEAN: Press to select and run on default speed
2400PRM, can adjust from 2400 to 2850RPM
3. BOOST: Press to select and run on default speed
3250PRM, can adjust from 2850 to 3450RPM
4. STOP: Press to stop the pump. The screen displays
the present time.
5. MENU: Accesses the pump menu if the pump is
stopped.
6. MODE 1: Run programmed 16 hours clean cycle.
7. MODE 2: Run programmed 24 hours clean cycle.
8. Enter: Save and exit the menu.
9. ARROW BUTTONS:
UP ARROW: Move up one level in the menu or to
increase a digit when changing a setting.
DOWN ARROW: Move one level down in the menu
or to decrease a digit when changing a setting.
LEFT ARROW: Moves the cursor left one digit
when changing a setting.
RIGHT ARROW: Moves the cursor right one digit
when changing a setting
10. LED Screen: Composed of four digital tubes.
Display current time when in standby. Switch
current speed and time back and forth when in
running.
11. AM/PM: Designed for 12-hour system. If pump run
on 0:00-11:59, AM light on; if pump run on 12:00-
23:59, PM light on.
12. MODE1 and MODE 2 have 4 stages, S1/S2/S3
S4 is the speed for each stage. If the S1 light is on,
the pump is run on rst stage, if the light twinkles,
the time for the stage is not arrive yet or the pump
is not running.
If SPEED light is on, the screen will display the
current RPM.
If HOUR light twinkles, you are ready to set the
running time for each stage.
If ALARM light is on, an alarm condition exists.
13. Press MODE 1, the light will be lit and one light of
S1/S2/S3/S4 will be on or twinkle. (Light twinkle
means the current time is not during the set running
period), and one of AM or PM light will be on.
14. Press MODE2, the light will be lit and the one light
of S1/S2/S3/S4 will be on or twinkle. (Light twinkle
means the current time is not during the set running
period), and one of AM or PM light will on.
15. When the pump is in standby, switch MODE 1 and
MODE2, the corresponding light will be lit, and the
pump run accordingly.
10
7
8
4
3
1
2
5
9
6
Control
Board
