QUICK START GUIDE
Dolby Voice®Huddle
VERSION 1
2
CONTROLLER
HDMI® CABLE
Camera to Display Camera to Controller
USB A
Camera to Wall
POWER
Camera to Network Optional Accessory
ETHERNET 90°HDMI® ADAPTER
CAMERA EXPANSION MIC
Dolby Voice Huddle Plus
3
BACK OF CONTROLLER
EXPANSION MIC
BACK OF CAMERA
BACK OF TV
Kensington®
Lock
Power
To Network ResetTo PC
To TV
QUICK START
PERIPHERALS / OPTIONAL MODES
4

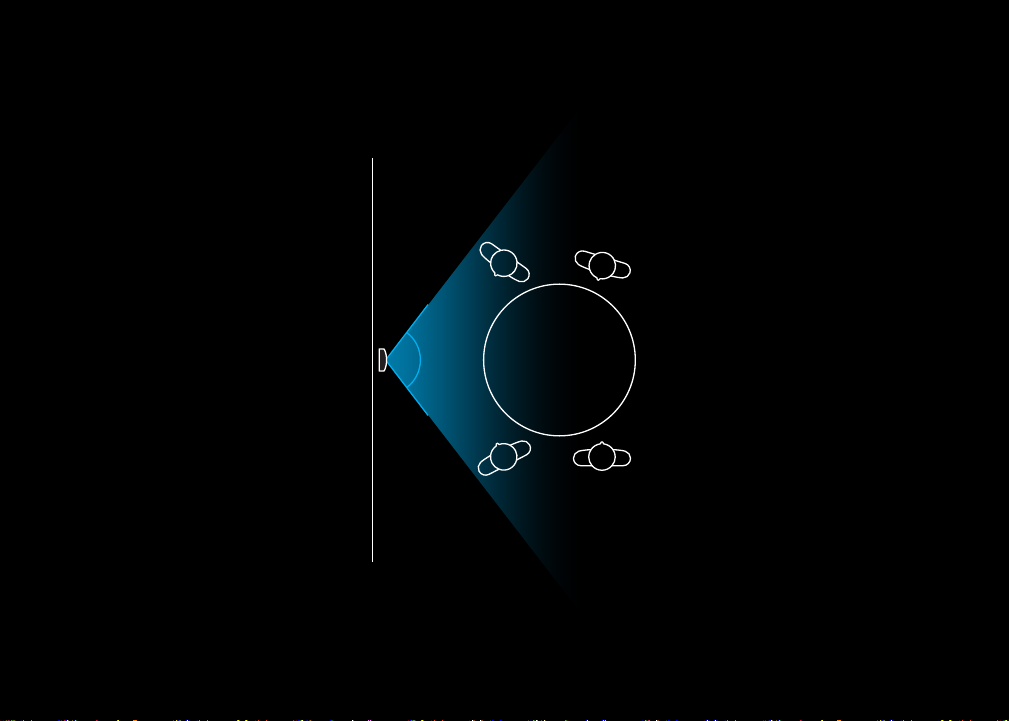

110º
View Angle

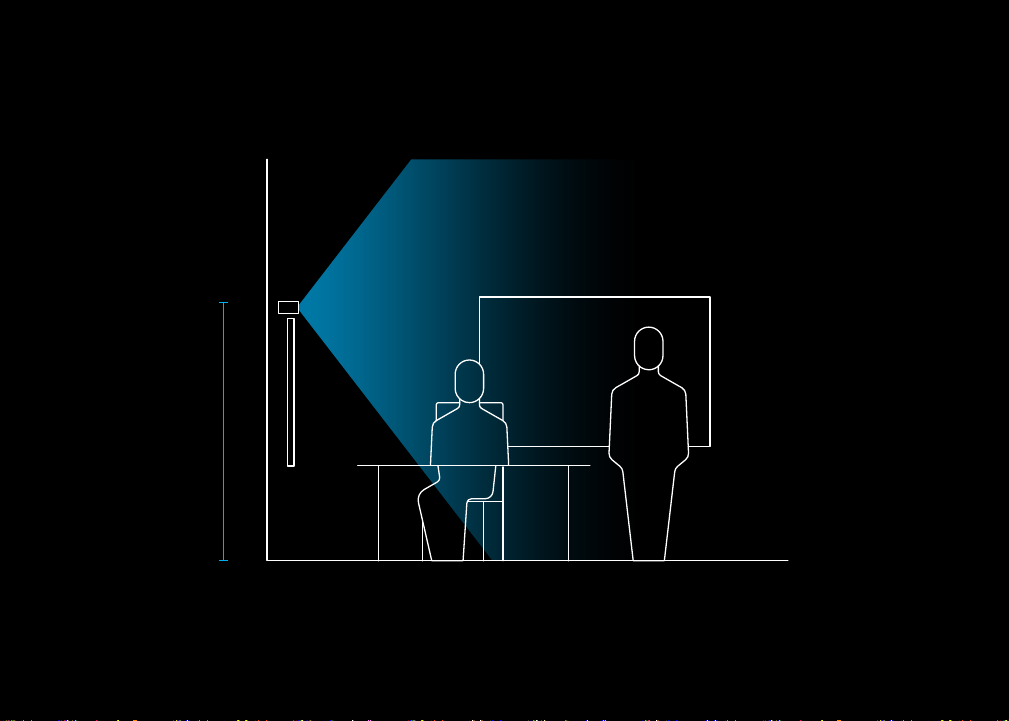

5
70”
178 cm
6

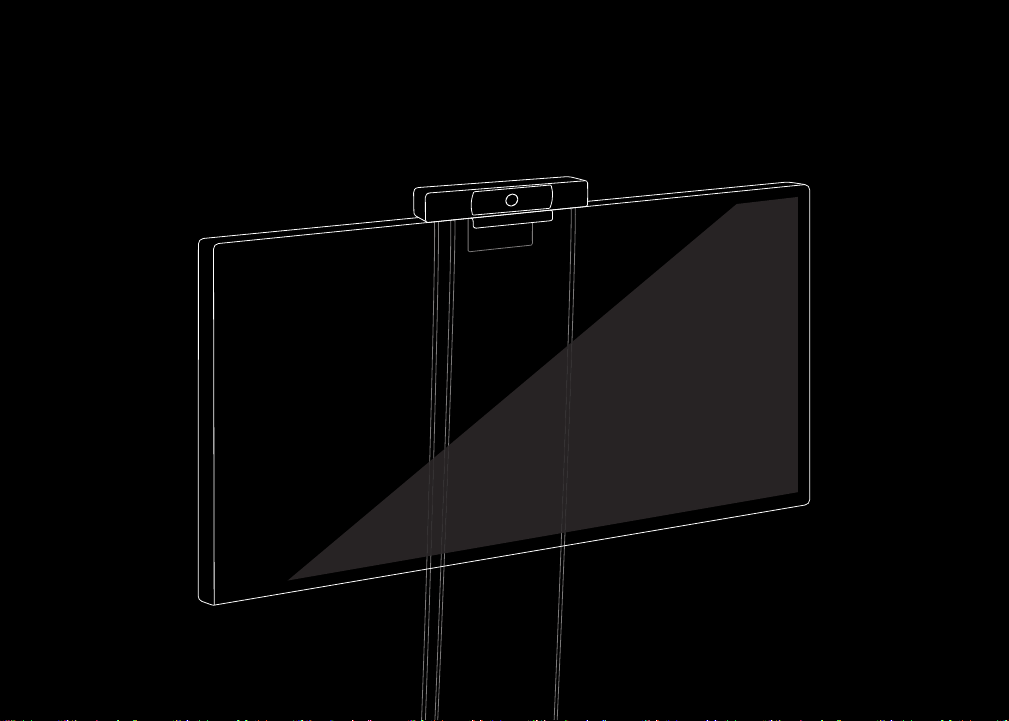

TV Mount
Choose this set up to mount the camera on top
of the TV with the cleanest cable management.
7

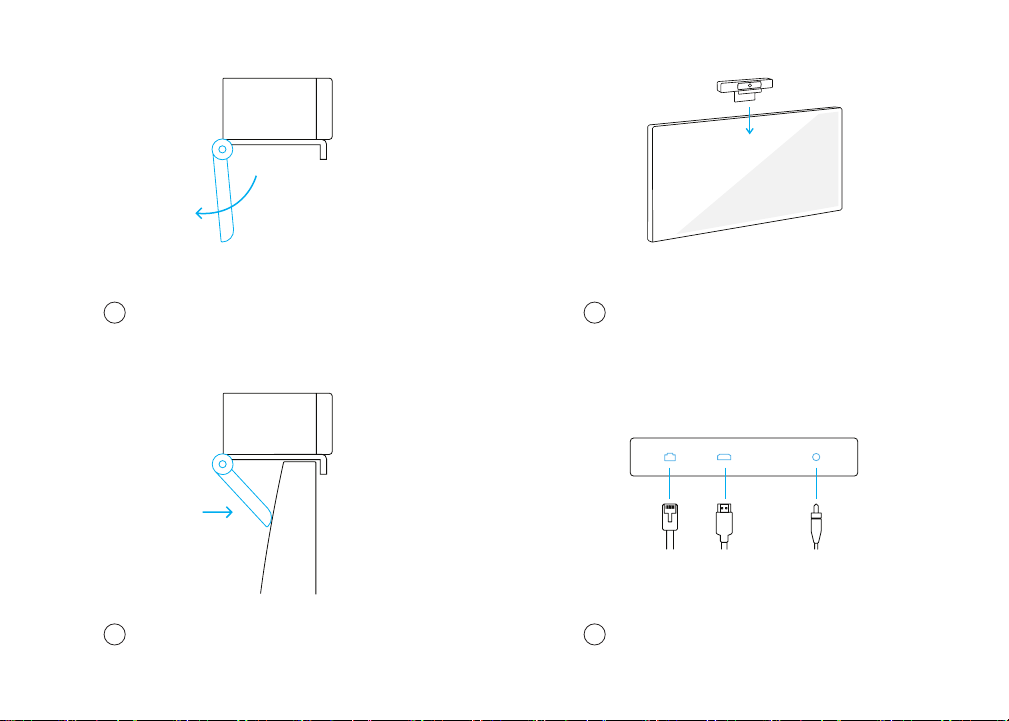

Set camera on top of TV with cables behind TV.
Plug the required cables, then follow the
on-screen instructions.
Open hinge of the camera.
Close the hinge, and tightly press against the
TV back.
2
4
1
3
8

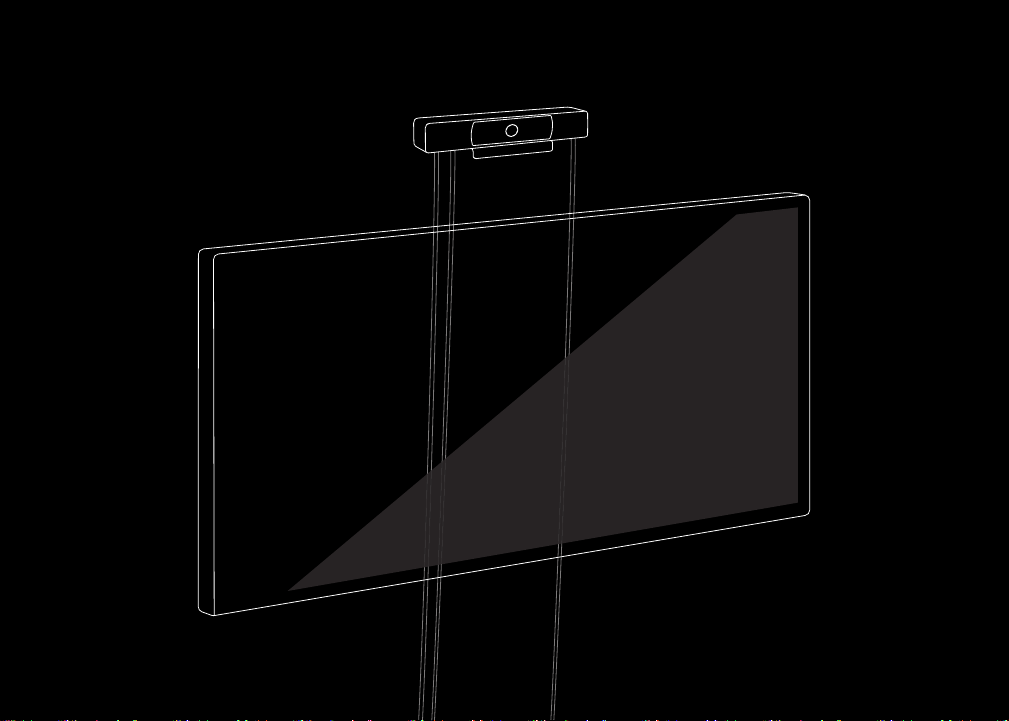

Choose this setup to mount the camera
on the wall above the TV.
Wall Mount
9

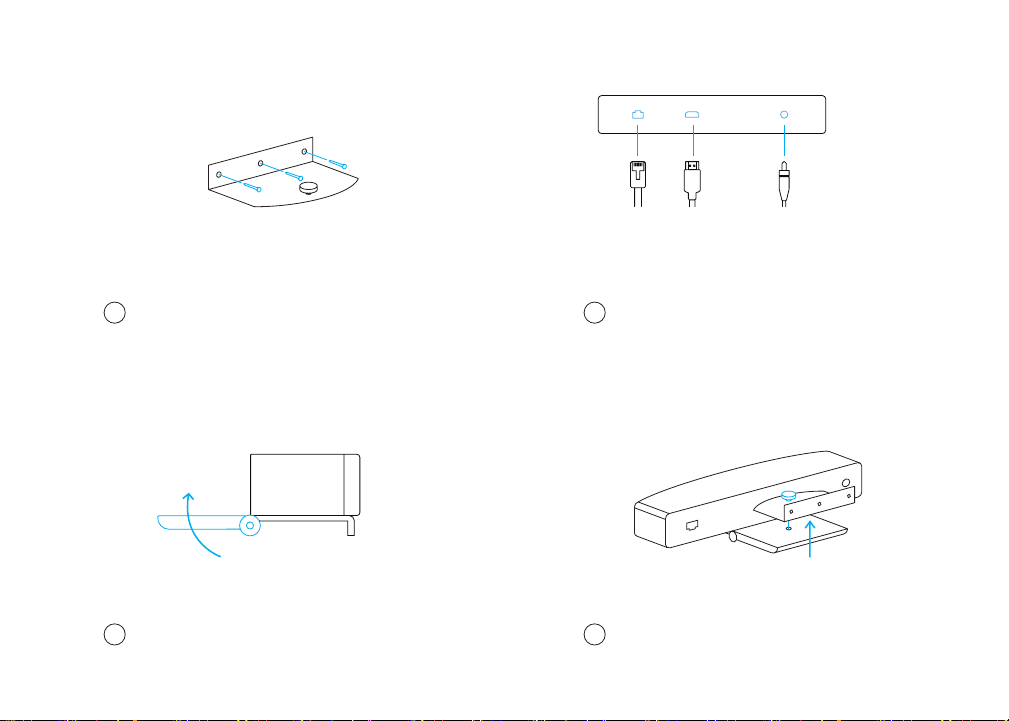

Plug in the required cables.
Fasten camera to mount using tripod
screw.
Secure wall mount to wall using a screw driver,
level, and fasteners.
Rotate the hinge 180° backwards.
2
4
1
3
10 EUROPE / EUROPA
CONTRÔLEUR TACTILE
CONTROLLER TOUCH
MANDO TÁCTIL
Dolby Voice Huddle Plus
MICRO D’EXPANSION
VIDEOCAMERA MIC ESPANSIONE
CÁMARA MICRÓFONO DE EXPANSIÓN
CAMÉRA
