CK40D Hybrid

Hybrid cooler

Operating manual . . . . . . . . . . . . . . . . . . . . .4

ENERGY & LIGHTING

COOLFUN

CK40D-Hybrid-O-16s.book Seite 1 Mittwoch, 7. September 2016 11:41 11

Autogoods “130”

130.com.ua

CK40D Hybrid

520

410

364

270

455

510

ON/OFF TEMP

–TEMP

°C

23 4

CK40D-Hybrid-O-16s.book Seite 3 Mittwoch, 7. September 2016 11:41 11

Autogoods “130”

130.com.ua

CK40D Hybrid

Please read this operating manual carefully before starting the device.

Keep it in a safe place for future reference. If the device is passed on to

another person, this operating manual must be handed over to the user

along with it.

The manufacturer cannot be held liable for damage resulting from improper usage

or incorrect operation.

Contents

1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

4 Proper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

7 Cleaning and care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

9 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

10 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

CK40D-Hybrid-O-16s.book Seite 4 Mittwoch, 7. September 2016 11:41 11

Autogoods “130”

130.com.ua

CK40D Hybrid Explanation of symbols

1 Explanation of symbols

2 Safety instructions

2.1 General safety

!WARNING!

•Do not operate the device if it is visibly damaged.

•If this device's power cable is damaged, it must be replaced by the

manufacturer, customer service or a similarly qualified person in order

to prevent safety hazards.

•This device may only be repaired by qualified personnel. Improper

repairs can lead to considerable hazards.

•This device can be used by childrenaged 8 years or over, as well as by

persons with diminished physical, sensory or mental capacities or a

lack of experience and/or knowledge, providing they are supervised

or have been taught how to use the device safely and are aware of the

resulting risks.

•Cleaning and user maintenance must not be carried out by children

without supervision.

•Children must not play with the device.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or

serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE

Supplementary information for operating the product.

CK40D-Hybrid-O-16s.book Seite 5 Mittwoch, 7. September 2016 11:41 11

Autogoods “130”

130.com.ua

Safety instructions CK40D Hybrid

•Children must be supervised to ensure that they do not play with the

device.

•Always keep and use the device out of the reach of children under the

age of 8 years.

•Do not store any explosive substances such as spray cans with a

flammable propellant in the device.

!CAUTION!

•Disconnect the device from the power supply

– before each cleaning and maintenance

– after every use

•Food may only be stored in its original packaging or in suitable

containers.

ANOTICE!

•Check that the voltage specification on the type plate corresponds to

that of the energy supply.

•Only connect the device as follows:

– With the DC cable to a DC plug socket in the vehicle (e. g.

cigarette lighter)

– Or with the 230 V connection cable to the 230 V AC mains supply

•Connect the device with the 230 V connection cable to the 230 V

mains supply.

•Never pull the plug out of the socket by the cable.

•If the cooler is connected to the DC socket: Disconnect the cooler and

other power consuming devices from the battery before connecting

the quick charging device.

•If the cooler is connected to the DC socket: Disconnect the cooler or

switch it off when you turn off the engine. Otherwise you may dis-

charge the battery.

•The cooling device is not suitable for transporting caustic materials or

materials containing solvents.

•The cooling device contains inflammable cyclopentane in the

insulation. The gases in the insulation material require special disposal

procedures. Deliver the device at the end of its life-cycle to an appro-

priate recycling.

CK40D-Hybrid-O-16s.book Seite 6 Mittwoch, 7. September 2016 11:41 11

Autogoods “130”

130.com.ua

CK40D Hybrid Scope of delivery

2.2 Operating the device safely

!CAUTION!

•Before starting the device, ensure that the power supply line and the

plug are dry.

ANOTICE!

•Do not use electrical devices inside the cooler unless they are

recommended by the manufacturer for the purpose.

•Do not place the device near naked flames or other heat sources

(heaters, direct sunlight, gas ovens etc.).

•Danger of overheating!

Ensure at all times that there is sufficient ventilation so that the heat that

arises during operation does not build up. Make sure that the device

is sufficiently far away from walls and other objects so that the air can

circulate.

•Ensure that the ventilation openings are not covered.

•Do not fill the inner container with ice or fluid.

•Never immerse the device in water.

•Protect the device and the cable against heat and moisture.

3Scopeofdelivery

Quantity Description

1Coolbox

1 Instruction manual

CK40D-Hybrid-O-16s.book Seite 7 Mittwoch, 7. September 2016 11:41 11

Autogoods “130”

130.com.ua

Proper use CK40D Hybrid

4Properuse

In compressor mode the cooler is suitable for cooling and deep freezing food-

stuffs. In thermoelectric mode the cooler is only suitable for cooling foodstuffs.

The device is designed for use with:

•a 12 V vehicle electrics socket of a car (such as a cigarette lighter), boat or caravan

(see voltage specification on the type plate)

•a 230 V AC mains supply

The appliance may also be used for camping use. The appliance shall not to be

exposed to rain.

5 Technical description

The hybrid cooler is suitable for portable use. It is equipped with two separate

cooling systems. The device features a Peltier cooling system with heat discharged

by a fan, as well as a compressor cooling system. The cooling system is non-wearing.

In thermoelectric mode (connection to 12 Vg), it can cool goods down to max.

20 °C below ambient temperature and keep them cool. In compressor mode

(connection to 230 Vw), it can cool goods and keep them cool or deep freeze them

down to –15 °C.

In thermoelectric mode you don’t have to set the temperature. The display is

deactivated.

In compressor mode, you can use the buttons to set the temperature within a

range from +10 °C to –15 °C. The display shows the temperature.

The lid is sealed continuously and has a magnetic lock.

CAUTION! Health hazard!

Please check if the cooling capacity of the device is suitable for storing

the food or medicine you wish to cool.

CK40D-Hybrid-O-16s.book Seite 8 Mittwoch, 7. September 2016 11:41 11

Autogoods “130”

130.com.ua

CK40D Hybrid Operation

The cooler has the following operating elements:

6Operation

6.1 Energy saving tips

•Choose a well ventilated installation location which is protected against direct

sunlight.

•Allow warm food to cool down first before placing it in the cooling device to

keep cool.

•Do not open the cooling device more often than necessary.

•Do not leave the cooling device open for longer than necessary.

Item in fig. 2,

page 3 Description Explanation

1 Display Displays the current or the desired temperature,

respectively.

2 ON/OFF Switches the cooler on or off.

3 TEMP – Decreases the desired cooling

temperature by 1 °C.

4 TEMP + Increases the desired cooling temperature

by 1 °C.

CAUTION! Health hazard!

Food may only be stored in its original packaging or in suitable

containers.

NOTE

•Before starting your new coolbox for the first time, you should clean

it inside and outside with a damp cloth for hygienic reasons (please

also refer to the chapter “Cleaning and care” on page 12).

•A few water drops may form inside the cooler if it has been cooling

for a lengthy period. This is normal because the moisture in the air

condenses to water when the temperature in the cooler falls. The

cooler is not defective. Wipe it out with a dry cloth if necessary.

CK40D-Hybrid-O-16s.book Seite 9 Mittwoch, 7. September 2016 11:41 11

Autogoods “130”

130.com.ua

Operation CK40D Hybrid

6.2 Using the coolbox

➤Place the coolbox on a firm base.

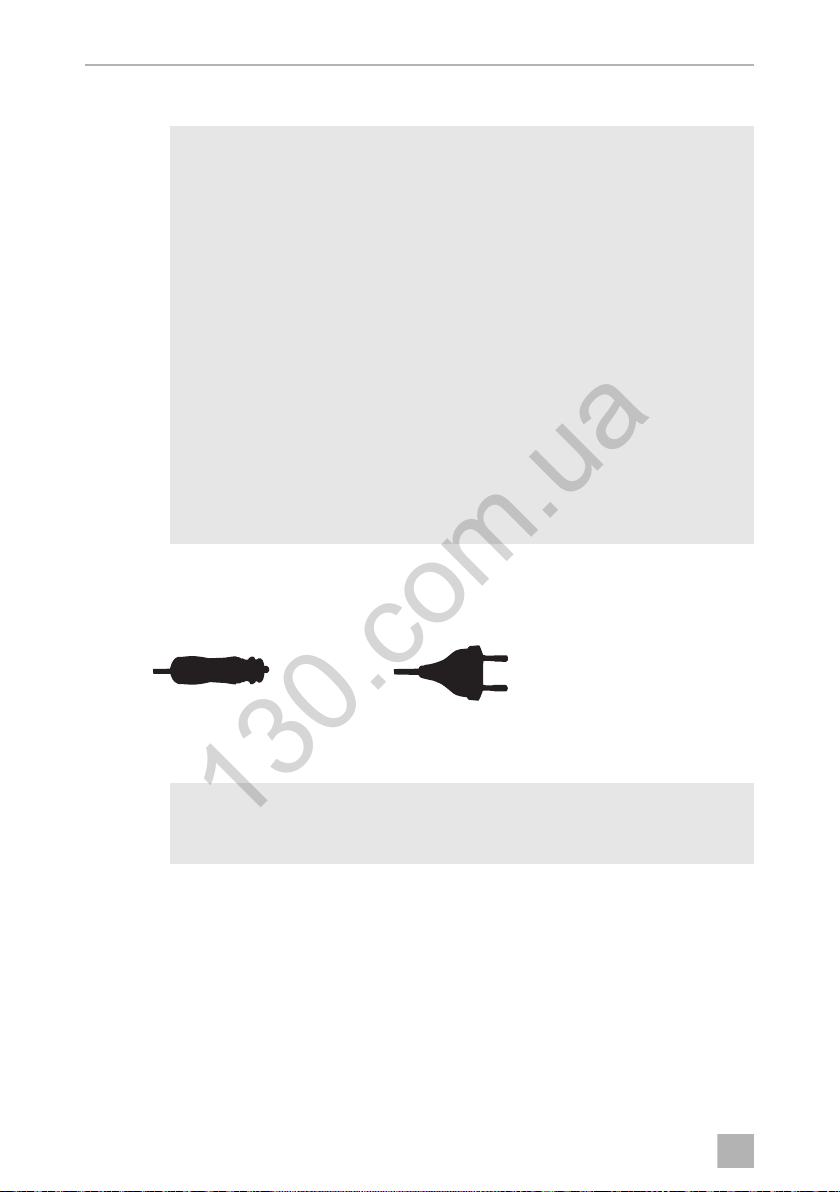

Connection cable plug

Connecting the cooler to 12 V (thermoelectric mode)

➤Make sure the cable between the cooler and the battery is protected by a fuse

(maximum 5 A).

➤Plug the 12 V connection cable (see figure) into the cigarette lighter socket or a

12 V socket in the vehicle.

✓The cooler starts cooling the interior.

NOTICE! Risk of damage

•Do not switch on the device immediately after transporting it. This

could damage the cooling system. Leave the device to stand for

about 30 minutes after transporting, before you switch it on. This

allows the refrigerant to collect again in the compressor, and the

compressor does not run dry.

•Only operate the device from a single energy source. Simultaneous

use of the thermoelectric cooling system and the compressor is not

permitted.

•Ensure that the objects or goods placed in the cooling device are

suitable for cooling to the selected temperature.

•Ensure that food or liquids in glass containers are not excessively

refrigerated. Liquids expand when they freeze and can therefore

destroy glass containers.

•Ensure that your cooler is well ventilated so that any heat created can

dissipate. Otherwise proper functioning cannot be ensured. It is

especially important not to cover the air vents.

NOTE

In thermoelectric mode, the thermostat has no function and the device

cannot deep freeze.

12 V 230 V

CK40D-Hybrid-O-16s.book Seite 10 Mittwoch, 7. September 2016 11:41 11

Autogoods “130”

130.com.ua

Altri manuali per CK40D Hybrid

Indice

Altri manuali Dometic Accessori

Dometic

Dometic Waeco ColdMachine CS-NC15 Manuale utente

Dometic

Dometic CF SERIES Manuale utente

Dometic

Dometic 103EAA Manuale utente

Dometic

Dometic TropiCool TC35 Manuale utente

Dometic

Dometic Horizon 920****.000 series Manuale

Dometic

Dometic CFX3 Series Manuale utente

Dometic

Dometic PERFECTVIEW VS400N Manuale utente

Dometic

Dometic WAECO TC07 Manuale utente

Dometic

Dometic ACX Series Manuale utente

Dometic

Dometic BORDBAR AS25 Manuale utente

Dometic

Dometic 8953001.400 Series Manuale utente

Dometic

Dometic PerfectWall PW1000 Manuale utente

Dometic

Dometic ELITE SLIDE TOPPER Series Manuale

Dometic

Dometic CK40D Hybrid Manuale utente

Dometic

Dometic CFX3 Series Manuale utente

Dometic

Dometic POWER AWNING PRO Manuale utente

Dometic

Dometic CABANA 747 1 002 Series Manuale

Dometic

Dometic CFX3 Series Manuale utente

Dometic

Dometic ACX35 Manuale utente

Dometic

Dometic PERFECTWALL PW3800 Manuale di istruzioni

Dometic

Dometic PerfectWall PW1750 Manuale utente

Dometic

Dometic DTM04 Guida rapida

Dometic

Dometic OASIS ELITE 975 Series Manuale utente

Dometic

Dometic PERFECTROOF PR2000 Manuale utente

Manuali Accessori popolari di altre marche

Hillco

Hillco 2810 Manuale utente

Siemens

Siemens QSA2700D Manuale dell'operatore

Contours

Contours ZY024 Manuale utente

Saivod

Saivod VS621 Manuale utente

Virtuox

Virtuox VirtuCLEAN 2.0 Manuale utente

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuale utente

Z-Wave

Z-Wave HSD-200Z Manuale utente

turck

turck FMX-IM-2UPLI63FX Manuale utente

Decagon Devices

Decagon Devices 10HS Manuale utente

UPPAbaby

UPPAbaby Cup Holder Manuale utente

Elko

Elko SmartSensor Leakage Wireless Manuale utente

Grizzly

Grizzly H8371 Manuale utente

Panasonic

Panasonic HG-T Series Manuale utente

IFM Electronic

IFM Electronic Efector 250 Series Guida di riferimento

DigiDesign

DigiDesign 888/24 I/O Manuale utente

PROZIS

PROZIS QUAY Manuale utente

patagonia

patagonia PSI Vest Manuale utente

SFC Energy

SFC Energy EFOY GO! Manuale utente
