Dometic PERFECTROOF PR2000 Manuale utente

Awning

Installation Manual. . . . . . . . . . . . . . . 7

Markise

Montageanleitung . . . . . . . . . . . . . . 16

Store extérieuru

Instructions de montage . . . . . . . . . 26

Toldo

Instrucciones de montaje. . . . . . . . . 36

Tenda da sole

Indicazioni di montaggio . . . . . . . . . 46

Zonnescherm

Montagehandleiding . . . . . . . . . . . . 55

Markise

Monteringsvejledning. . . . . . . . . . . . 64

Markis

Monteringsanvisning . . . . . . . . . . . . 73

Markise

Monteringsanvisning . . . . . . . . . . . . 82

Markiisi

Asennusohje . . . . . . . . . . . . . . . . . . 91

Toldo

Instruções de montagem . . . . . . . . 100

Маркиза

Инструкция по монтажу . . . . . . . . 109

Markiza

Instrukcja montażu. . . . . . . . . . . . . 119

Markýza

Návod k montáži . . . . . . . . . . . . . . 128

Markiza

Navodilo za montažo . . . . . . . . . . 137

Τέντα

Οδηγίες τοποθέτησης . . . . . . . . . . 146

PerfectRoof

PR2000, PR2500

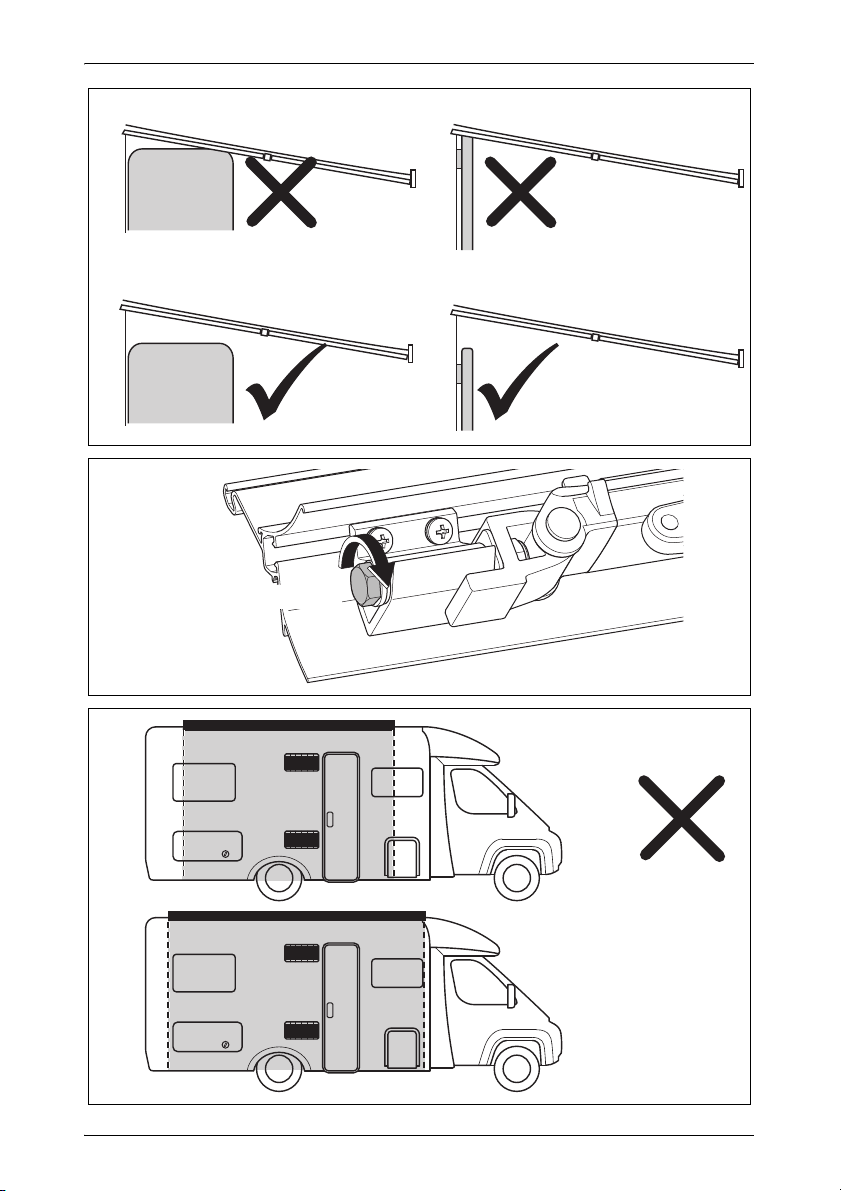

2 3 4

5 6 7 8

12 13

1110

PR2000, PR2500

15 – 25 Nm



PR2000, PR2500

Ø 3 mm

PR2000, PR2500

PR2000:

PR2500:

PR2000, PR2500

Table of contents

1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2 Important safety and installation instructions . . . . . . . . . . . . . . . . . . . 8

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

6 Installing the awning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

7 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

WARNING!

This operating manual must be read and understood before

installation, set up, operation and servicing. This device must

be installed by a specialist. Improper installation can lead to

serious injury. Alterations to the device can be extremely

dangerous and lead to serious injury or damage to the device.

Keep this operating manual with the device. The owner must

read it carefully.

Explanation of symbols PR2000, PR2500

1 Explanation of symbols

➤Action: This symbol indicates that action is required on your part. The

required action is described step-by-step.

✓This symbol describes the result of an action.

Fig. 15, page 3: This refers to an element in an illustration. In this case,

item 5 in figure 1 on page 3.

2 Important safety and installation

instructions

Please observe the prescribed safety instructions and stipulations

from the vehicle manufacturer and service workshops.

The manufacturer accepts no liability for damage in the following cases:

Damage to the product resulting from mechanical influences and excess

voltage

Alterations to the product without express permission from the manu-

facturer

Use for purposes other than those described in the operating manual

!WARNING!

If you do not have sufficient technical knowledge for installing

components in vehicles, you should have a specialist fit the

awning to your vehicle.

WARNING!

Safety instruction: Failure to observe this instruction can cause

fatal or serious injury.

NOTICE!

Failure to observe this instruction can cause material damage and

impair the function of the product.

NOTE

Supplementary information for operating the product.

PR2000, PR2500 Scope of delivery

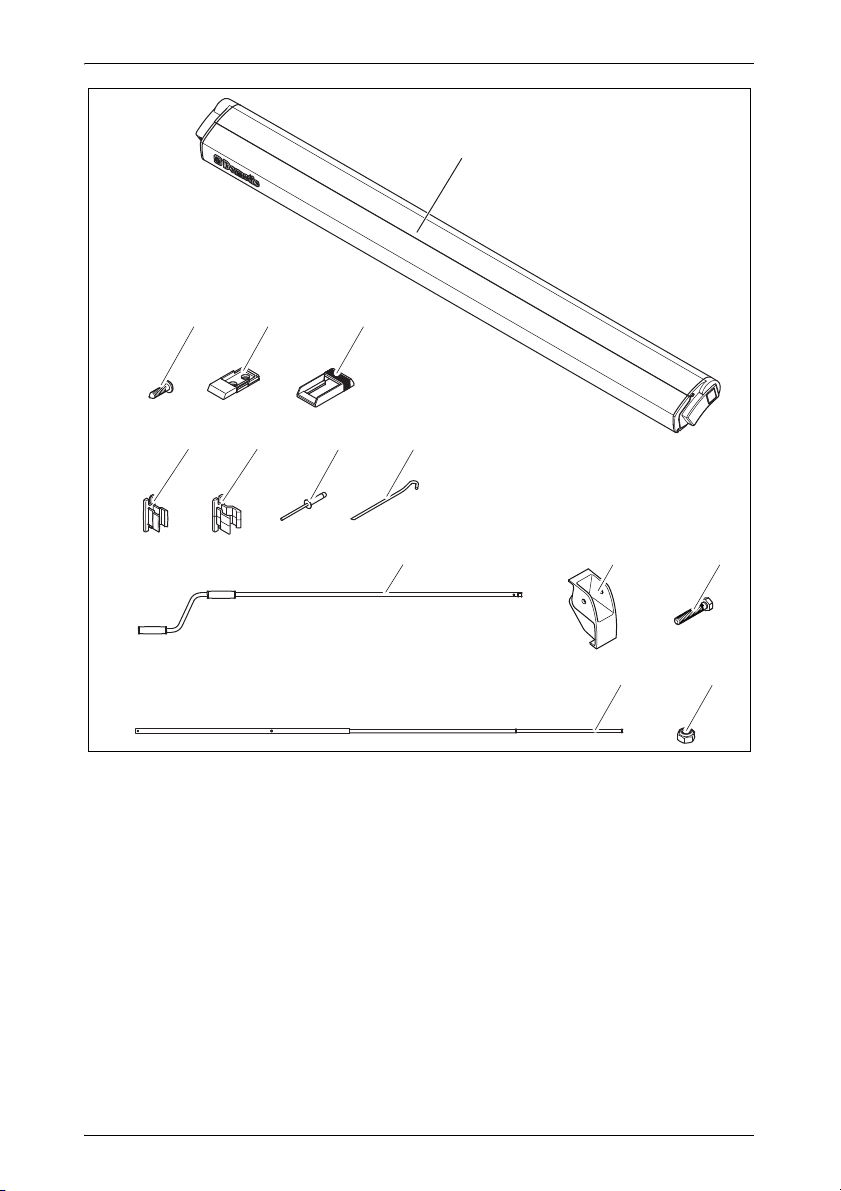

3 Scope of delivery

3.1 PR2000

No. in

fig. 1,

page 2

Awning width

Description

2.6 m, 3 m, 3.25 m,

3.5 m, 3.75 m 4m

1 1x 1x Awning

2 6x 6x Self-tapping screw

3 2x 2x Wall bracket (lower section)

4 2x 2x Wall bracket (upper section)

5 1x 1x Crank bracket (lower section)

6 — — Crank bracket (upper section)

7 4x 4x Rivets

8 4x 4x Pegs

91x1xCrank

10 — 1x Latch for tensioning arm

11 — 1x Hexagon head bolt

12 — 1x Tensioning arm

13 — 1x Hexagon nut with clamping part

Scope of delivery PR2000, PR2500

3.2 PR2500

No. in

fig. 1,

page 2

Awning width

Description

2.6m,3m,

3.5 m, 3.75 m

4m,4.5m,

5m,5.5m

11x 1xAwning

2 8x 8x Self-tapping screw

3 2x 2x Wall bracket (lower section)

4 2x 2x Wall bracket (upper section)

5 1x 1x Crank bracket (lower section)

6 1x 1x Crank bracket (upper section)

74x 4xRivets

84x 4xPegs

91x 1xCrank

10 — 1x Latch for tensioning arm

11 — 1x Hexagon head bolt

12 — 1x Tensioning arm

13 — 1x Hexagon nut with clamping part
