Dometic Coolfreeze CF SERIES Manuale utente

CF11

Compressor cooler

Operating manual

PORTABLE REFRIGERATION

CF SERIES

CF11-O-AUS.book Seite 1 Donnerstag, 14. Juni 2018 1:41 13

CoolFreeze

Please read this manual carefully before starting the device. Keep it in a

safe place for future reference. If the device is passed on to another

person, this manual must be handed over to the user along with it.

The manufacturer cannot be held liable for damage resulting from improper usage

or incorrect operation.

Table of contents

1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

7 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

9 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

10 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

CF11-O-AUS.book Seite 3 Donnerstag, 14. Juni 2018 1:41 13

Explanation of symbols CoolFreeze

1 Explanation of symbols

2 Safety instructions

2.1 General safety

!WARNING!

•Do not operate the cooling device if it is visibly damaged.

•If this cooling device's power cable is damaged, it must be replaced

by the manufacturer, customer service or a similarly qualified person in

order to prevent safety hazards.

•This cooling device may only be repaired by qualified personnel.

Improper repairs can lead to considerable hazards.

•This cooling device can be used by children aged 8 years or over, as

well as by persons with diminished physical, sensory or mental capac-

ities or a lack of experience and/or knowledge, providing they are

supervised or have been taught how to use the cooling device safely

and are aware of the resulting risks.

•Cleaning and user maintenance must not be carried out by children

without supervision.

•Children must not play with the cooling device.

•Children must be supervised to ensure that they do not play with the

cooling device.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or

serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE

Supplementary information for operating the product.

CF11-O-AUS.book Seite 4 Donnerstag, 14. Juni 2018 1:41 13

CoolFreeze Safety instructions

•Always keep and use the cooling device out of the reach of children

under the age of 8 years.

•Do not store any explosive substances such as spray cans with a

flammable propellant in the cooling device.

!CAUTION!

•Disconnect the cooling device from the power supply

– before each cleaning and maintenance

– after every use

•Food may only be stored in its original packaging or in suitable

containers.

ANOTICE!

•Check that the voltage specification on the type plate corresponds to

that of the energy supply.

•Only connect the cooling device as follows:

– With the DC connection cable to a DC power supply in the vehicle

– Or with the AC connection cable to the AC power supply

•Never pull the plug out of the socket by the cable.

•If the cooling device is connected to the DC outlet: Disconnect the

cooling device and other power consuming devices from the battery

before connecting a quick charging device.

•If the cooling device is connected to the DC outlet: Disconnect the

cooling device or switch it off when you turn off the engine. Otherwise

you may discharge the battery.

•The cooling device is not suitable for transporting caustic materials or

materials containing solvents.

•The insulation of the cooling device contains flammable cyclopentane

and requires special disposal procedures. Deliver the cooling device

at the end of its life-cycle to an appropriate recycling.

2.2 Operating the cooling device safely

!CAUTION!

•Before starting the cooling device, ensure that the power supply line

and the plug are dry.

ANOTICE!

•Do not use electrical devices inside the cooling device unless they are

recommended by the manufacturer for the purpose.

CF11-O-AUS.book Seite 5 Donnerstag, 14. Juni 2018 1:41 13

Scope of delivery CoolFreeze

•Do not place the cooling device near naked flames or other heat

sources (heaters, direct sunlight, gas ovens etc.).

•Danger of overheating!

Ensure at all times that there is a minimum of 50 mm ventilation on all

four sides of the cooling device. Keep the ventilation area free of any

objects that could restrict the air flow to the cooling components.

Do not place the cooling device in closed compartments or areas with

none or minimal air flow.

•Ensure that the ventilation openings are not covered.

•Do not fill the inner compartment with ice or fluids.

•Never immerse the cooling device in water.

•Protect the cooling device and the cable against heat and moisture.

3Scopeofdelivery

•Compressor cooler

•Connection cable for DC connection

•Connection cable for AC connection

•Operating manual

•Shoulder strap

4 Intended use

The compressor cooler is suitable for refrigerating and freezing foodstuffs.

The compressor cooler has been designed for operation using a DC socket of a car

or caravan as well as an AC mains supply.

The compressor cooler can also be used for camping. The compressor cooler may

not be exposed to rain.

!CAUTION! Health hazard!

Please check if the cooling capacity of the compressor cooler is suitable

for storing the food or medicine you wish to cool.

CF11-O-AUS.book Seite 6 Donnerstag, 14. Juni 2018 1:41 13

CoolFreeze Technical description

5 Technical description

The cooler can chill products, keep them cool as well as freeze them. A low

maintenance refrigerant circuit with compressor provides the cooling.

The cooler is portable.

For use in vehicles, the cooling device can be secured with a safety belt.

The cooler can withstand a short term inclination of 30°, for example on boats.

An integrated battery monitor can be switched on to protect your vehicle battery

from discharging to dangerously low levels (see chapter “Using the battery monitor”

on page 13).

5.1 Operating and display elements

Control panel

Item Description Explanation

1 ON/OFF button Switches the cooling device on or off when the button is

pressed for between one and two seconds

2 POWER Operating display

LED lights up green Compressor is on; set

temperature not yet reached

LED lights up orange Set temperature has been

reached

LED flashes orange Voltage is too low

3 ERROR LED flashes red Device is switched on but

not ready for operation

POWER

FRIDGE FREEZER

ERROR

12 34 5 6 7

CF11-O-AUS.book Seite 7 Donnerstag, 14. Juni 2018 1:41 13

Technical description CoolFreeze

Connection sockets

4 SET Selects the input mode

•Setting the temperature

•Set temperature unit (°Celsius or °Fahrenheit)

•Set the battery monitor

5 Display Displays the temperature in the refrigerator compartment

The first three digits of the four-digit display show the tem-

perature, the fourth digit indicates the temperature unit

(°C or °F).

When an error occurs, the display shows “Err1” or “Err2”.

6 + Press once to increase the selected value

7 – Press once to decrease the selected value

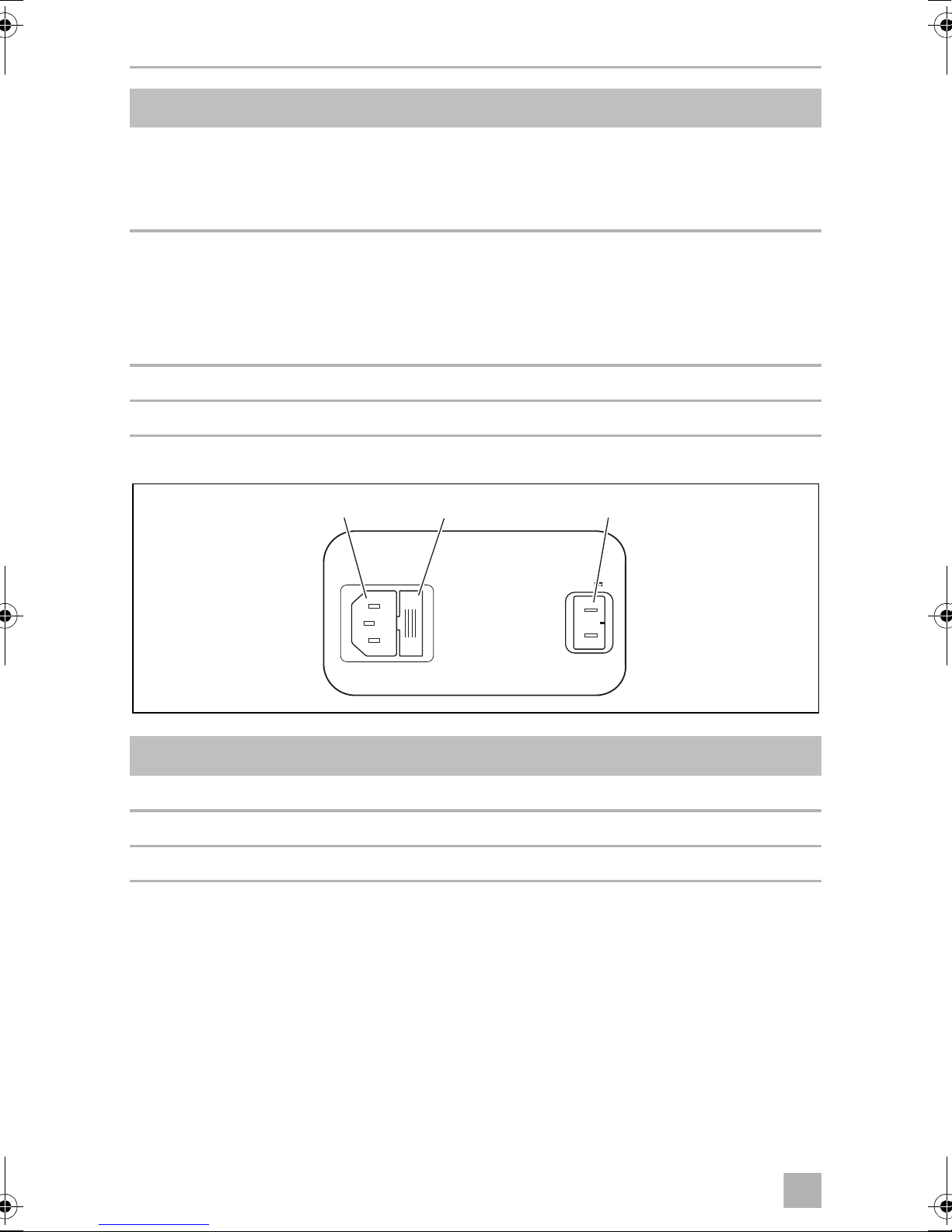

Item Description

1 AC voltage supply inlet

2 AC fuse holder

3 DC voltage supply inlet

Item Description Explanation

100-240V~AC

FUSE

12/24V DC

12 3

CF11-O-AUS.book Seite 8 Donnerstag, 14. Juni 2018 1:41 13

CoolFreeze Operation

6Operation

The cooling device is equipped with an LED interior light that remains on when the

voltage is applied. The energy consumption of the LED interior light is extremely low

and is negligible compared to the total energy consumption of the device.

6.1 Before initial use

6.2 Energy saving tips

•Choose a well ventilated location which is protected from direct sunlight.

•Allow warm food to cool down first before placing it in the device to keep cool.

•Do not open the cooling device more often than necessary.

•Do not leave the lid open for longer than necessary.

•Defrost the cooling device as soon as a layer of ice forms.

•Avoid unnecessarily low temperature settings.

6.3 Latching the lid

➤Close the lid.

➤Press the latch (fig. 31,page 9) down, until it latches in place audibly.

NOTE

Before starting your new cooler for the first time, you should clean it

inside and outside with a damp cloth for hygienic reasons (see also

chapter “Cleaning and maintenance” on page 16).

CF11-O-AUS.book Seite 9 Donnerstag, 14. Juni 2018 1:41 13

Operation CoolFreeze

6.4 Connecting the cooling device

The cooler can be operated with 12 Vgor 24 Vgor 100 – 240 Vw.

➤Place the cooler on a firm base.

Make sure that the ventilation slots are not covered and that the heated air can be

dissipated.

Using the fused DC plug

NOTICE! Danger of Damage!

•Disconnect the cooler and other consumer units from the battery

before you connect the battery to a quick charging device.

•Overvoltage can damage the electronics of the device.

NOTICE! Danger of damage!

For protection ofthe device the DC cable supplied includes a fuse inside

the plug. Do not remove the fused DC plug.

Only use the DC cable supplied.

NOTE

If you connect the cooler to the DC socket, remember that the ignition

must be turned on to supply it with power.

CF11-O-AUS.book Seite 10 Donnerstag, 14. Juni 2018 1:41 13

CoolFreeze Operation

➤Plug the DC connection cable (fig. 42, page 10) into the DC power supply inlet

of the cooler (fig. 23, page 8).

➤Connect the DC connection cable to a DC power outlet.

Connecting to an AC power supply (e.g. at home or in the office)

The cooling device has a built-in multi-voltage mains adapter with a priority circuit for

connecting to an AC voltage source. The priority circuit automatically switches to

mains operation if the appliance is connected to an AC power suply, even if the DC

connection cable is still connected.

➤Plug the AC connection cable (fig. 43, page 10) into the AC power supply inlet

of the cooler (fig. 21, page 8).

➤Connect the AC connection cable to the AC power outlet.

6.5 Secure the cooling device in the vehicle

➤Open the lid of the cooling device.

➤Place the safety strap into the guide (fig. 41, page 10) of the cooling device.

➤Close the lid.

➤Engage the safety strap and tighten it.

DANGER! Danger of electrocution

•Never handle plugs and switches with wet hands or if you are

standing on a wet surface.

•If you are operating your cooler on board a boat with an AC power

supply, you must install a residual current circuit breaker between the

power supply and the cooler.

Seek advice from a trained technician.

CF11-O-AUS.book Seite 11 Donnerstag, 14. Juni 2018 1:41 13

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Dometic Congelatore

Dometic

Dometic CDF 18 Manuale utente

Dometic

Dometic CDF 26 Manuale utente

Dometic

Dometic COOLFREEZE CDF16 Manuale utente

Dometic

Dometic BORDBAR AS25 Manuale utente

Dometic

Dometic TropiCool TC-14US Manuale utente

Dometic

Dometic BordBar TB15 Manuale utente

Dometic

Dometic ACX3 Series Manuale utente

Dometic

Dometic CDF18,CDF26 Manuale utente

Dometic

Dometic CB36 Manuale utente

Dometic

Dometic CoolFreeze CF-18 Manuale utente

Dometic

Dometic Waeco CoolMatic FC40 Manuale utente

Dometic

Dometic MOBILE COOLING TROPICOOL TC07 Manuale utente

Dometic

Dometic ColdMachine 50 Manuale utente

Dometic

Dometic CoolAir RTX2000 Manuale utente

Dometic

Dometic UF 755G Manuale utente

Dometic

Dometic CDF-11 Manuale utente

Dometic

Dometic CoolFreeze CDF-18 Manuale utente

Dometic

Dometic HiPro Series Manuale utente

Dometic

Dometic TROPICOOL Series Manuale utente

Dometic

Dometic Waeco TropiCool TC -21FL-AC Manuale utente

Dometic

Dometic CDF-11 Manuale utente

Dometic

Dometic RGE 410 Manuale

Dometic

Dometic COOLFREEZE CFX95DZW Manuale utente

Dometic

Dometic TropiCool TC14 Manuale utente

Manuali Congelatore popolari di altre marche

Siemens

Siemens GU..D SERIES Manuale utente

Omcan

Omcan FR-CN-0155 Manuale utente

Beko

Beko FNE290E24W Manuale utente

Electrolux

Electrolux ARCTIS G 8 60 50-6I Manuale utente

Electrolux

Electrolux EUF2042AOX Manuale utente

Electrolux

Electrolux EUF7000W1 Manuale utente

Polar Electro

Polar Electro CT330 Manuale utente

MPM

MPM MPM-145-SK Series Manuale utente

SAF

SAF PRESTOTIG 200AC/DC Guida rapida

Zanussi

Zanussi ZFT11407WA Manuale utente

AEG

AEG A63190GT Manuale utente

AEG

AEG A81000TNW0 Manuale utente

Matsui

Matsui MUC50S15E Manuale utente

NEFF

NEFF G4344X8 Manuale utente

Frigidaire

Frigidaire FV 1246 H Manuale utente

Frigidaire

Frigidaire FFC13K1AW Manuale utente

Electrolux

Electrolux EU 2400C Manuale utente

Electrolux

Electrolux SG235NFCN Manuale utente
