Dometic PERFECTPOWER PP152 Manuale utente

PP152, PP154, PP402,

PP404, PP602, PP604

Modified sine wave inverter

Installation and Operating Manual. . . . . . . . 6

Trapez-Wechselrichter

Montage- und Bedienungsanleitung . . . . . 18

Onduleur trapézoïdal

Instructions de montage

et de service . . . . . . . . . . . . . . . . . . . . . . . . . 31

Convertidor onda trapezoidal

Instrucciones de montaje y de uso . . . . . . .44

Conversor trapezoidal

Instruções de montagem e manual de

instruções . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Inverter trapezoidale

Istruzioni di montaggio e d’uso . . . . . . . . .69

Trapeziumomvormer

Montagehandleiding en

gebruiksaanwijzing. . . . . . . . . . . . . . . . . . . 83

Trapez-inverter

Monterings- og betjeningsvejledning. . . . 96

Fytkantsvåg-växelriktare

Monterings- och bruksanvisning . . . . . . . 108

Trapes-vekselretter

Monterings- og bruksanvisning . . . . . . . . 120

Trapez-vaihtosuuntaaja

Asennus- ja käyttöohje . . . . . . . . . . . . . . . 132

Трапецеидальный инвертор

Инструкция по монтажу и эксплуатации 144

Przetwornica trapezowa

Instrukcja montażu i obsługi. . . . . . . . . . . 157

Trapézový menič napätia

Návod na montáž a uvedenie

do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 170

Měnič napětí

Návod k montáži a obsluze . . . . . . . . . . . 182

Trapéz inverter

Szerelési és használati útmutató . . . . . . . 194

POWER FAULT

ENERGY & LIGHTING

PERFECTPOWER

PP150-PP400-PP600--IO-16s.book Seite 1 Mittwoch, 18. Januar 2017 1:13 13

PP150-PP400-PP600--IO-16s.book Seite 2 Mittwoch, 18. Januar 2017 1:13 13

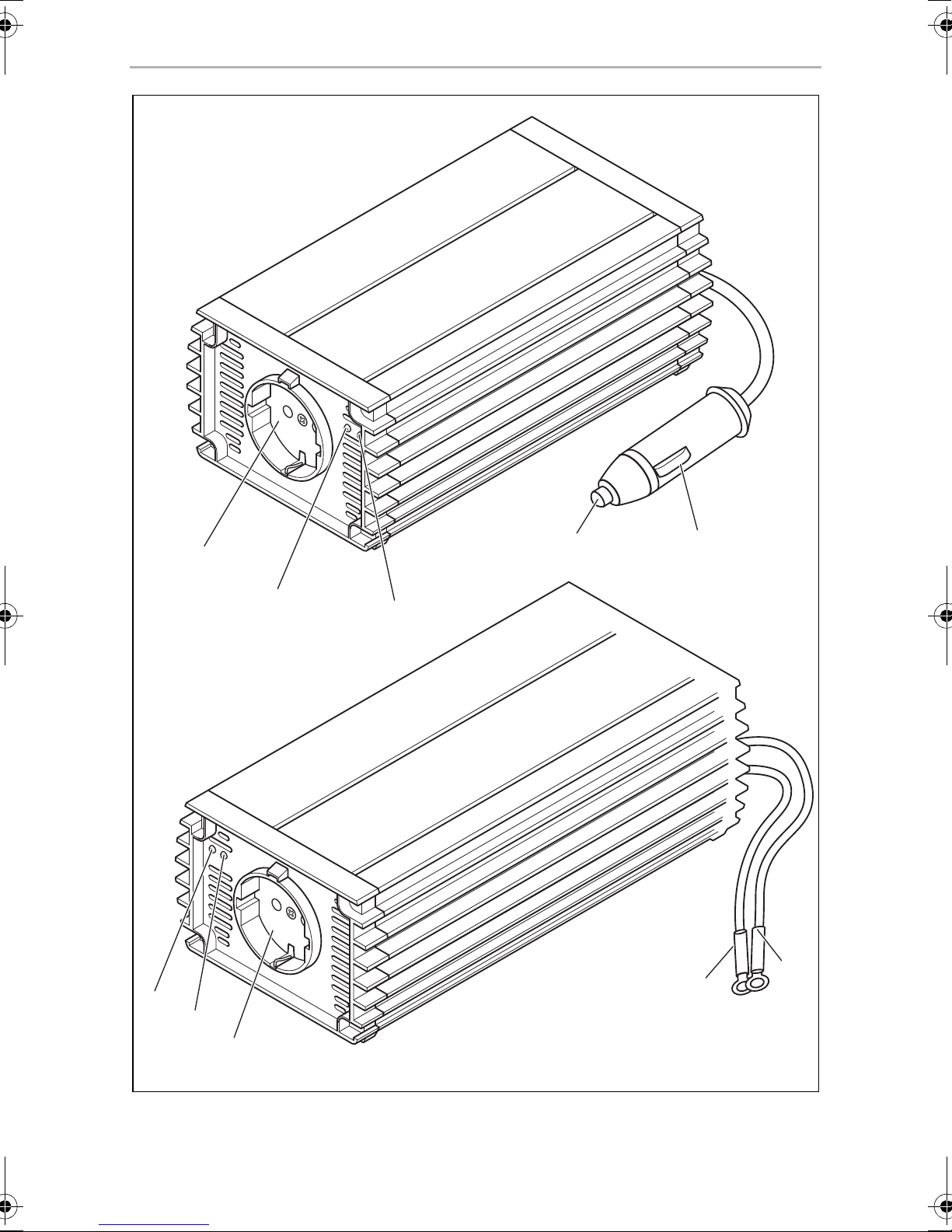

PerfectPower

POWER FAU LT

PP152, PP154

PP402, PP404,

PP602, PP604

PP150-PP400-PP600--IO-16s.book Seite 3 Mittwoch, 18. Januar 2017 1:13 13

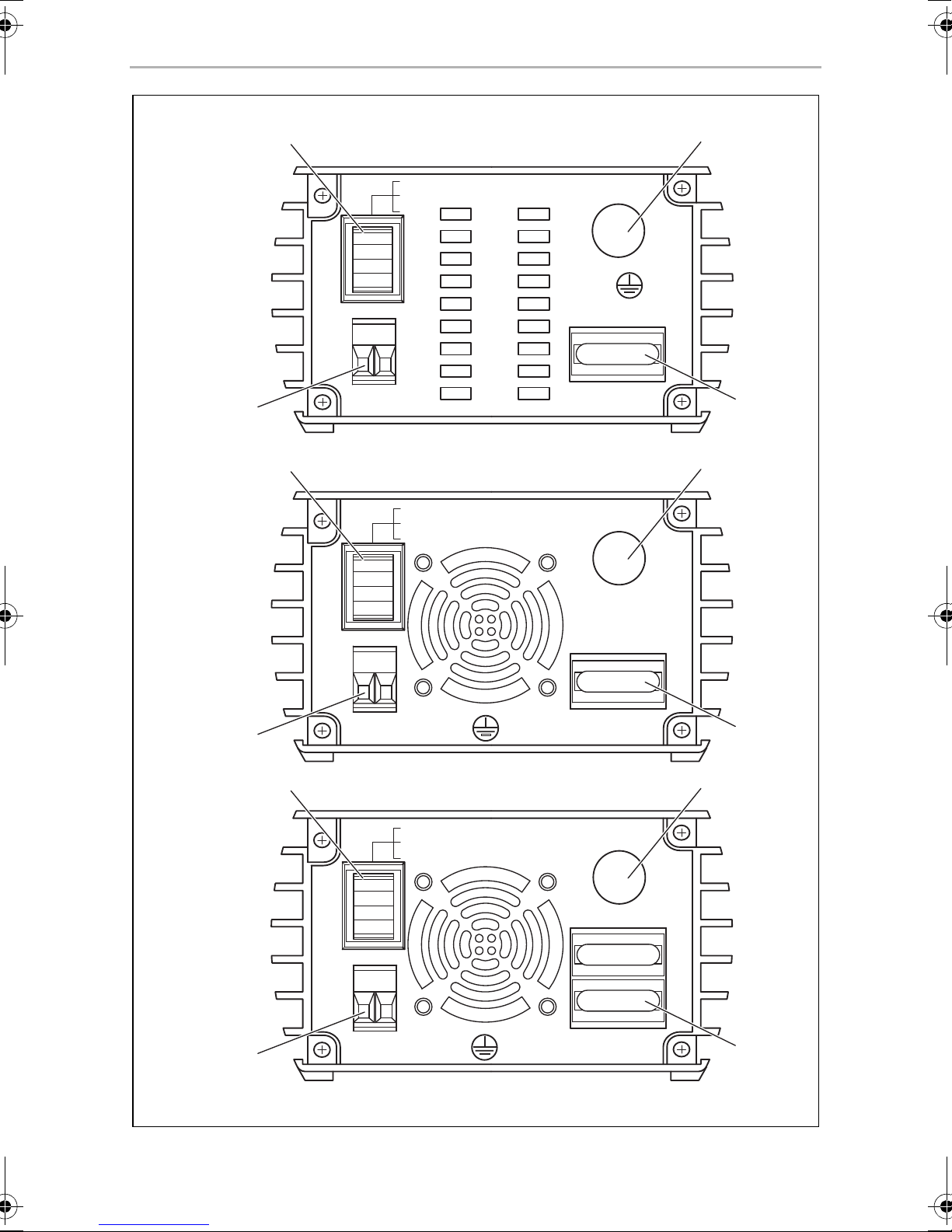

PerfectPower

REMOTE

DC INPUT

FUSE

GROUND

OFF

REMO.

REMOTE

DC INPUT

FUSE

GROUND

OFF

REMO.

REMOTE

DC INPUT

FUSE

GROUND

OFF

REMO.

PP602,

PP604

PP402,

PP404

PP152,

PP154

PP150-PP400-PP600--IO-16s.book Seite 4 Mittwoch, 18. Januar 2017 1:13 13

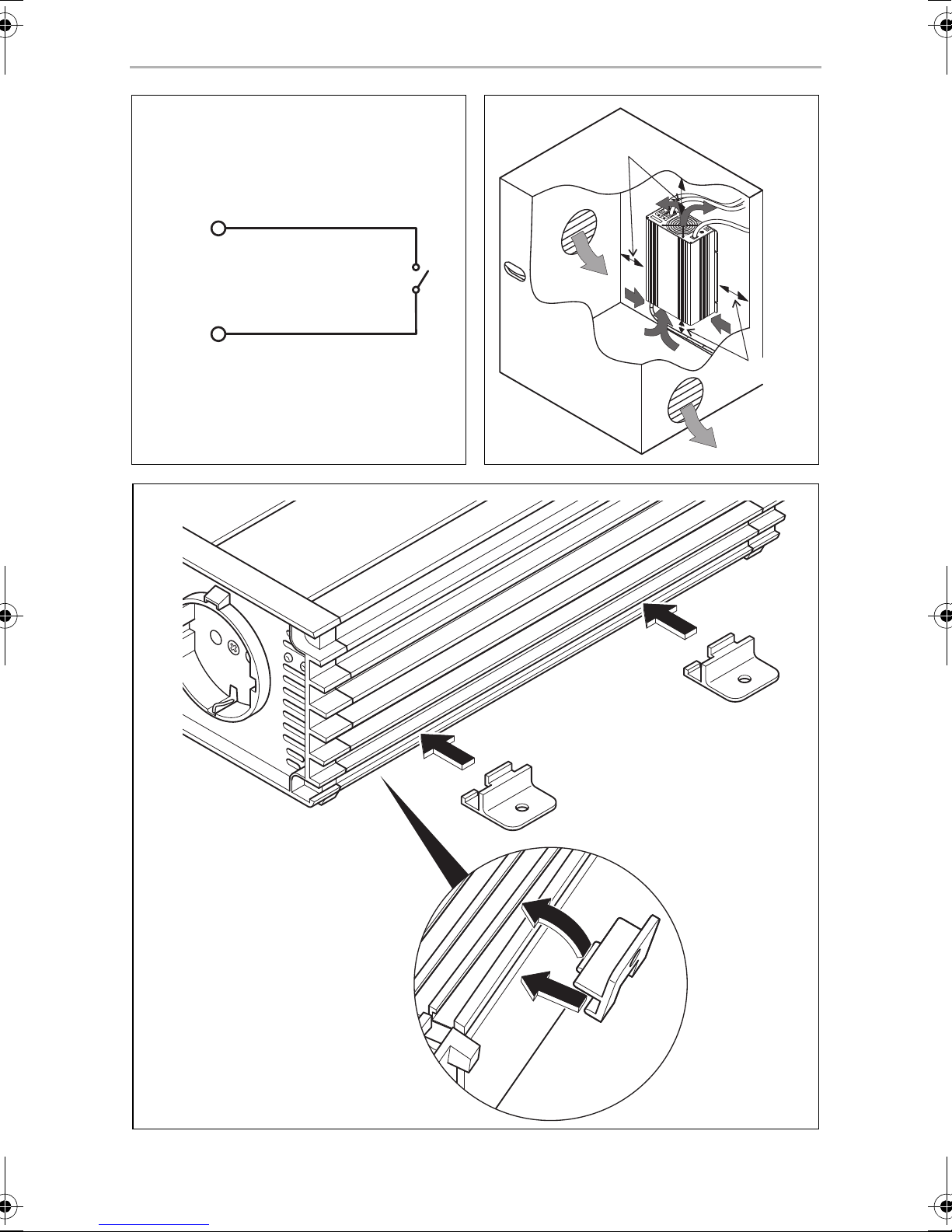

PerfectPower

NEG(-)

REVERSEPOLARITY

CHASSIS

25 cm

PP150-PP400-PP600--IO-16s.book Seite 5 Mittwoch, 18. Januar 2017 1:13 13

PerfectPower

Please read this instruction manual carefully before installation and first

use, and store it in a safe place. If you pass on the product to another

person, hand over this instruction manual along with it.

Contents

1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

3 Device guides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

6 Connecting the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

7 Using the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

8 Replacing the fuse. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

9 Cleaning and caring for the inverter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

10 Rectifying faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

11 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

12 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

PP150-PP400-PP600--IO-16s.book Seite 6 Mittwoch, 18. Januar 2017 1:13 13

PerfectPower Explanation of symbols

1 Explanation of symbols

2 General safety instructions

The manufacturer accepts no liability for damage in the following cases:

•Faulty assembly or connection

•Damage to the product resulting from mechanical influences and excess voltage

•Alterations to the product without express permission from the manufacturer

•Use for purposes other than those described in the operating manual

2.1 General safety

!WARNING!

•Use the device only as intended.

•People (including children) whose physical, sensory or mental capac-

ities or whose lack of experience or knowledge prevent them from

using this product safely should not use it without the supervision or

instruction of a responsible person.

•Do not operate the device in a damp or wet environment.

•Maintenance and repair work may only be carried out by qualified per-

sonnel who are familiar with the risks involved and the relevant regula-

tions.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or

serious injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE

Supplementary information for operating the product.

PP150-PP400-PP600--IO-16s.book Seite 7 Mittwoch, 18. Januar 2017 1:13 13

General safety instructions PerfectPower

2.2 Safety when installing the device

!WARNING!

•Never connect more than one consumer device to the inverter. If you

connect more than one device, a short circuit may occur.

!CAUTION!

•Ensure the device is standing firmly.

The device must be set up and fastened in such a way that it cannot tip

over or fall down.

•Take the precautions necessary to ensure that children cannot inter-

fere with operation. Dangerous situations may occur which cannot be

recognised by children!

•Do not expose the device to a heat source (such as direct sunlight or

heating). Avoid additional heating of the device in this way.

Electrical cables

•If cables have to be fed through metal walls or other walls with sharp

edges, use ducts or wire bushings to prevent damage.

•Do not lay cables which are loose or bent next to electrically conduc-

tive material (metal).

•Do not pull on the cables.

•Do not lay the 230 V mains cable and the 12/24 V DC cable in the

same duct.

•Fasten the cables securely.

•Lay the cables so that they cannot be tripped over or damaged.

PP150-PP400-PP600--IO-16s.book Seite 8 Mittwoch, 18. Januar 2017 1:13 13

PerfectPower Device guides

2.3 Operating the appliance safely

!WARNING!

•Note the following basic safety information when using electrical

devices to protect against:

– Electric shock

–Firehazards

–Injury

•Do not operate the device near gas or flammable material; the surface

temperature can reach up to 60 °C.

•Operate the device only if you are certain that the housing and the

cables are undamaged.

•Make sure the air inlets and outlets of the device are not covered.

•Ensure good ventilation.

•Do not connect the 230 V output of the inverter (fig. 11, page 3) to

a different 230 V source.

•Even after the fuse triggers, parts of the inverter remain live.

•Always disconnect the power supply when working on the device.

3 Device guides

•PerfectPower PP152: Inverter with connection cablefor a 12 V vehicle socket and

four holders

•PerfectPower PP154: inverter with connection cable for a 24 V vehicle socket

and four holders

•PerfectPower PP402: Inverter with terminals for a 12 V vehicle battery and

four holders

•PerfectPower PP404: inverter with terminals for a 24 V vehicle battery and

four holders

•PerfectPower PP602: inverter with terminals for a 12 V vehicle battery and

four holders

•PerfectPower PP604: inverter with terminals for a 24 V vehicle battery and

four holders

NOTE

The version for continental Europe is depicted.

PP150-PP400-PP600--IO-16s.book Seite 9 Mittwoch, 18. Januar 2017 1:13 13

Intended use PerfectPower

4 Intended use

The inverters are used to convert a direct current of 12 V or 24 V into a 230 V

AC supply of 50 Hz.

•12 V: PerfectPower PP152, PP402 and PP602

•24 V: PerfectPower PP154, PP404 and PP604

5 Technical description

The PerfectPower inverter can be operated wherever there is a 12 Vgvehicle socket

(for PP152, PP402, PP602) and a 24 Vgvehicle socket (for PP154, PP404, PP604).

The device is additionally cooled with a load and temperature dependent fan.

The maximum constant output for the devices is as follows:

•For PP152 and PP154 inverters 150 W

•For PP402 and PP404 inverters 350 W

•For PP602 and PP604 inverters 550 W

Never connect devices that have a higher power requirement.

The inverter is equipped with protection against thermal and electrical overloading,

as well as excess and insufficient voltage. The inverter switches off:

•If its internal temperature is too high

•If the load exceed the values stated above

•If the input voltage is too high or too low

The inverter can be switched on and off using the switch directly on the device or

using an external switch.

NOTICE!

This device is exclusively intended for vehicle use.

NOTE

Note when connecting devices with an electrical drive (such as power

drills and refrigerators), that they often need more power than is stated

on the type plate.

PP150-PP400-PP600--IO-16s.book Seite 10 Mittwoch, 18. Januar 2017 1:13 13
