6400 underground swing gate operator - installation guide
1
2
3
4
5
general information
safety instructions .....................................................04
entrapment protection ...............................................05
glossary ....................................................................06
specifications ................................................................. 07
underground operator installation
enclosure hole ............................................................... 08
gate mount..................................................................... 10
electrical installation
control box mounting ..................................................... 11
actuator wiring ............................................................... 12
main terminal wiring....................................................... 13
entrapment protection wiring ......................................... 15
exit/reverse loop detector wiring.................................... 16
shadow loop detector wiring .......................................... 17
settings
control board adjustment ............................................... 18
switch descriptions & functions...................................... 19
limit switch adjustment................................................... 20
reverse sensitivity adjustment ....................................... 21
soft/hard shutdown ........................................................ 22
technical information
maintenance schedule................................................... 23
troubleshooting .............................................................. 24
accessories.................................................................... 25
save this installation guide for reference
6400 Underground Swing Gate Operator,
Installation Guide
DKS DoorKing, Inc.
120 Glasgow, Avenue
Inglewood, Ca. 90301
310.645.0023
310.641.1586 fax
www.doorking.com
Copyright © 2006 DoorKing, Inc. All rights
reserved.
Notice of Rights
The content in this manual is protected
under copyright law and no portion of
this manual may be copied, reproduced,
translated, or converted to any electronic
medium without prior written consent.
Notice of Liability
DoorKing, Inc. reserves the right to make
changes in the products described in this
manual without notice and/or obligation
to notify any persons of any revisions
or changes. DoorKing, Inc. makes no
representations or warranties with respect
to this manual.
publication number
6400-065-C-10-06
6400-065-C-10-06
6400-065-C-10-06
4 6400 installation guide

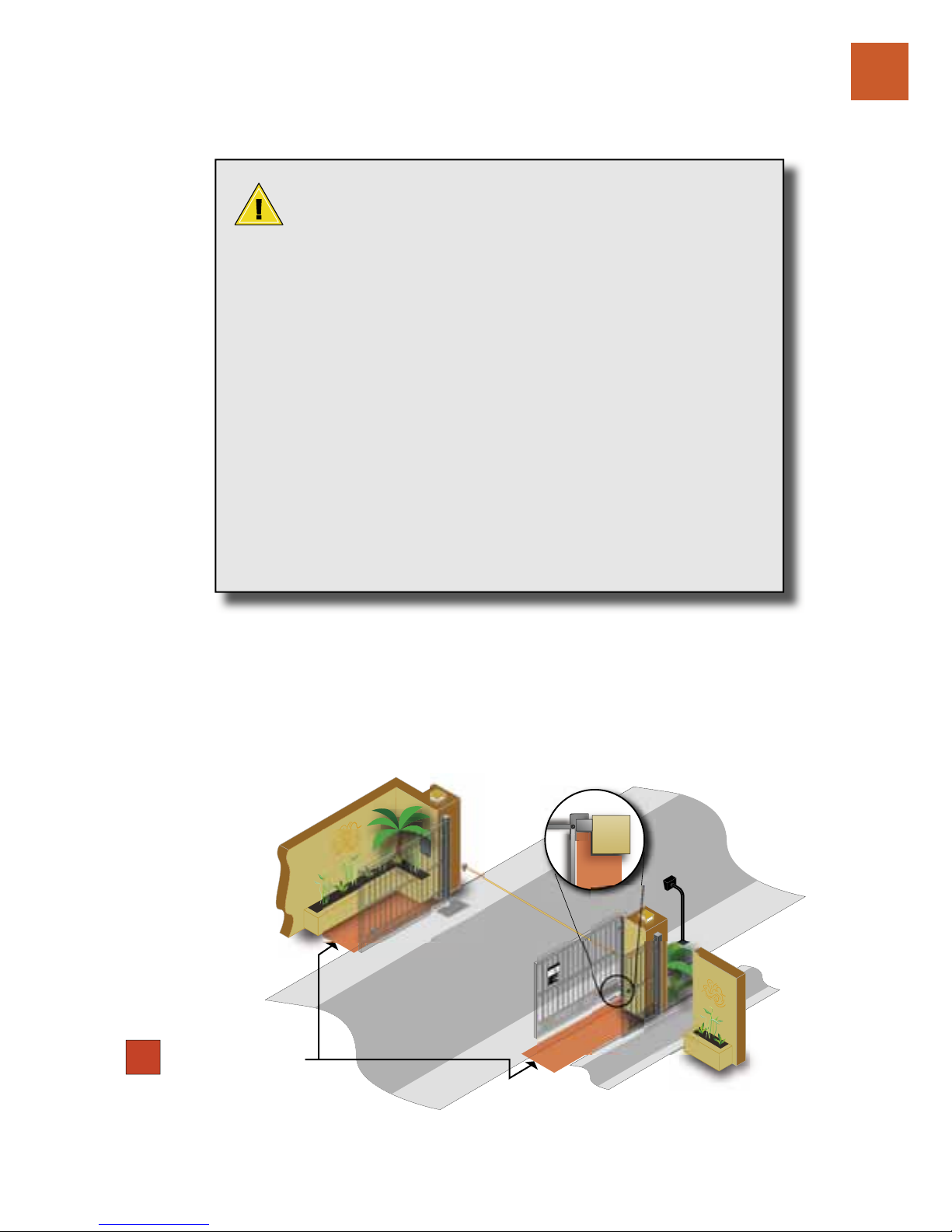

HAZARD ZONE
general information / safety instructions
1
Residents should be familiar
with proper use of gate, gate-
operator and possible hazards
associated with the gate system.
Eliminate or guard all exposed pinch points
and rollers.
Keep children away from gate controls.
Keep remote control away from children.
Security features should be installed to
avoid unauthorized use.
Controls must be installed away from the
gate (min. 10’ ft. away from gate) to avoid any
contact when operating the gate controls.
Keep adults, children and objects away from
the gate and HAZARD ZONES while in motion.
Speed limit through gate area is 5 MPH.
Install speed bumps and warning signs where
visible in the area of the gate. Failure to do so
may result in damage to the gate, gate-operator
and vehicle.
Gate operator is intended for installation on
gates used ONLY FOR VEHICULAR TRAFFIC.
Pedestrians must be provided with a separate
access and must stay out of the HAZARD
ZONE.
When removing the gate operator set to
the full open position and shut off power at the
service panel.
Vehicular gates should be constructed and
installed in accordance with ASTM F2200-
02, Standard Specification for Automated
Vehicular Gate Construction. Contact ASTM at
610.832.9585 or www.astm.org.
Gates should be properly installed,
move freely and maintained following the
recommended service schedule. Contact your
service dealer for any maintenance or repairs.
User should be familiar with the following
functions:
Gate Operating System
Reversing Functions and Testing
Reversing Loops
Inherent Reversing System
Electric Edges
Photoelectric Cells
Related External Devices
Vehicular gate systems can produce high
levels of force; therefore it is important that you
are aware of possible hazards.
Pinch Points
Entrapment
Absence of Controlled Pedestrian Access
Traffic Backup
6400-065-C-10-06 6400 installation guide 5
COLUMM /
PILASTER
ENTRAPMENT
ZONE
general information / entrapment protection 1
This vehicular gate operator
is equipped with an inherent
adjustable current sensing system
(Type A). This system will sense
an obstruction in both the opening and closing
cycles causing the gate to reverse direction
should an obstruction be encountered. If the
system detects a second obstruction before
reaching the full open or close limit after the
initial reversal, an alarm will activate and the
operator will need to be reset before resuming
normal operation (see page. 21-22).
Test the gate operator monthly, the gate
MUST reverse or stop on contact when an object
activates the inherent sensing system. After
adjusting the force or the limit of travel, retest
the gate operator. Failure to adjust and retest
the gate operator properly can increase the
risk of injury or death. If any of these functions
operate improperly, remove the operator from
service immediately and contact your service
dealer.
Loops and loop detectors, photo-cells and
other devices must be installed with this gate
operator to prevent the gate from closing on
vehicular traffic.
Sufficient clearance should be available
between the gate and adjacent structures
when opening and closing to reduce the risk
of entrapment. Gates should not swing into
pedestrian access zones.
If entrapment zone is greater than 4” inches,
secondary entrapment protection is required.
If entrapment zone is less than 16” inches,
secondary entrapment protection is required.
If clearance between the gate and adjacent
structure is less than 16” inches, entrapment
protection is required, if clearance is more
than 16” inches, entrapment protection is not
required.
6400-065-C-10-06
6 6400 installation guide
1general information / glossary
GATE - A moving barrier such as a swinging, sliding, raising, lowering, or similar
barrier, that is a stand-alone passage barrier or a portion of a wall or fence system
that controls entrance and/or exit by persons or vehicles and completes the perimeter
of a defined area.
RESIDENTIAL VEHICULAR GATE OPERATOR-CLASS I - A vehicular gate
operator (or system) intended for use in a home of one-to-four single family dwelling,
garage or parking area associated therewith.
COMMERCIAL / GENERAL ACCESS VEHICULAR GATE OPERATOR-CLASS II
-A vehicular gate operator (or system) intended for use in a commercial location or
building such as a multi-family housing unit (five or more single family units), hotels,
garages, retail store or other building servicing the general public.
INDUSTRIAL / LIMITED ACCESS VEHICULAR GATE OPERATOR-CLASS III -
A vehicular gate operator (or system) intended for use in an industrial location or
building such as a factory or loading dock area or other locations not intended to
service the general public.
RESTRICTED ACCESS VEHICULAR GATE OPERATOR-CLASS IV - A vehicular
gate operator (or system) intended for use in a guarded industrial location or building
such as an airport security area or other restricted access locations not servicing the
general public, were unauthorized access is prevented via supervision by security
personnel.
SYSTEM - In the context of these requirements, a system refers to a group of
interacting devices intended to perform a common function.
WIRED CONTROL - Acontrol implemented in a form of fixed physical interconnections
between the control, associated devices and an operator to perform predetermined
functions in response to input signals.
WIRELESS CONTROL - A control implemented in means other than fixed physical
interconnections (such as radio waves or infrared beams) between the control, the
associated devices and an operator to perform predetermined functions in response
to input signals.
INHERENT ENTRAPMENT SENSOR SYSTEM - An automatic sensor system that
senses entrapment of a solid object and is incorporated as a permanent and integral
part of the operator.
ENTRAPMENT - The condition when an object is caught or held in a position that
increases the risk of injury.
6400-065-C-10-06 6400 installation guide 7
Class of Operation:
Class I, Underground Residential Swing Gate
Actuator
Type of Gate:
Residential Swing Gates Only
Max Torque:
300Nm
Input Voltage / Operator Voltage:
24 VAC Single Phase Power Input (transformer
provided)
24 VDC
Current:
3 amps
Max Gate Length:
10 Ft.
Max Gate Weight:
750Lb.
Cycles / Hr:
20/Hr with AC Power Transformer Connected
Speed:
90° in approximately 20 seconds
Entrapment Protection:
Primary - Inherent adjustable current sensor (Type A)
Secondary - Provision for connection of non-contact
(Type B1) sensors.
Operator
Cover Plate
Gate Support Bracket
Cover Plate Hinges
general information / specifications 1
Foundation Box
Pinion
Release Arm
Limit Switch Plate
Crank Connecting Assembly
Locking Bracket
Conduit Hole
Drain Pipe Hole
Lubrication Slot
6400-065-C-10-06
8 6400 installation guide
2underground operator installation / enclosure hole
BEFORE INSTALLING THE GATE OPERATOR
Review the operator specifications on page 7.
Review the operator installation dimensions.
Operator and gate should be installed in conjunction to ensure proper alignment
when opening.
Gate should be mounted on heavy-duty ball bearing hinges.
Gate MUST swing freely without binding.
Never attempt to manually operate any gate until the power has been shut-off
unless otherwise specified.
17.6
6.25
12.6
1
2
Dig a hole for the enclosure box
using the gate hinge as a center line,
see illustration for dimensions.
Remove components from
the foundation box before
setting in to place.
NOTE: Dimensions
may differ slightly
when fitting in the
enclosure.
Gate Hinge
NOTE: Depending on soil
conditions a concrete base
may need to be applied to
avoid run-off.
6400-065-C-10-06 6400 installation guide 9
2
3
Install electrical and drainage PVC conduits:
Run ectrical conduit from the foundation box to the
control/junction box.
Run drainage conduit from the foundation box to the
nearest drain.
underground operator installation / enclosure hole
Place the enclosure box inside the
hole ensuring it is leveled and the gate
hinge is centered with the operator
pivot.
4
Pour concrete around the
enclosure box to set in place:
Cover exposed holes
avoiding any concrete to
seep inside the enclosure
box.
Confirm the operator pivot
and door hinge are centered
and conduits are in position.
5
NOTE: Concrete base
should be fully cured
before setting the
foundation box.
Gate Hinge
Centered With
Operator Pivot.
Operator Pivot
Drainage Conduit
Electrical Conduit
Pour Concrete
Around the
Edge of the
Foundation
Box.
NOTE: Concrete should
be fully cured before
installing motor.
NOTE: Improper drainage will
result in stagnant water leading to
component failure.
6400-065-C-10-06
10 6400 installation guide
2underground operator installation / gate mount
Reinstall the motor assembly.
1
Pivot and
Bearing
NOTE: Locking bracket
and gate support should
be in place at 90 degrees.
Weld the gate U-Channel onto the
gate support bracket.
Weld on both sides.
Cover the components avoiding
weld scale damage.
2
Install the crank connecting assembly.
Gate MUST be closed or at the 90
degree position when installing the
crank connecting assembly.
3
Install the gate on to the hinge and the
U-Channel.
Gate should swing freely 90
degrees.
4
Crank Connecting
Assembly
Grease the pivot, and bearing
and set components in place
(see illustration for assembly
installation).
DoorKing does not
provide the U-CHANNEL,
it must be fabricated
according to existing
gate dimensions.
5
Altri manuali per 6400
2
Indice
Altri manuali DoorKing Apricancello
DoorKing
DoorKing 6003 Manuale utente
DoorKing
DoorKing 9150 Series Istruzioni operative
DoorKing
DoorKing 1175 Guida all'installazione
DoorKing
DoorKing 9245 Manuale utente
DoorKing
DoorKing Series 9500 Istruzioni per l'installazione
DoorKing
DoorKing Series 9500 Istruzioni operative
DoorKing
DoorKing 1601 Series Manuale utente
DoorKing
DoorKing 9245 Istruzioni operative
DoorKing
DoorKing 9150-084 Istruzioni operative
DoorKing
DoorKing 1603 Istruzioni operative
DoorKing
DoorKing 9000-080 Istruzioni operative
DoorKing
DoorKing 9150 Series Manuale utente
DoorKing
DoorKing 9150 Series Istruzioni operative
DoorKing
DoorKing 1601 Series Istruzioni operative
DoorKing
DoorKing 1602-162 Manuale utente
DoorKing
DoorKing Series 9500 Manuale utente
DoorKing
DoorKing 6400 Manuale utente
DoorKing
DoorKing 1601-235 Manuale utente
DoorKing
DoorKing 6004 Manuale utente
DoorKing
DoorKing 6400 Manuale utente
