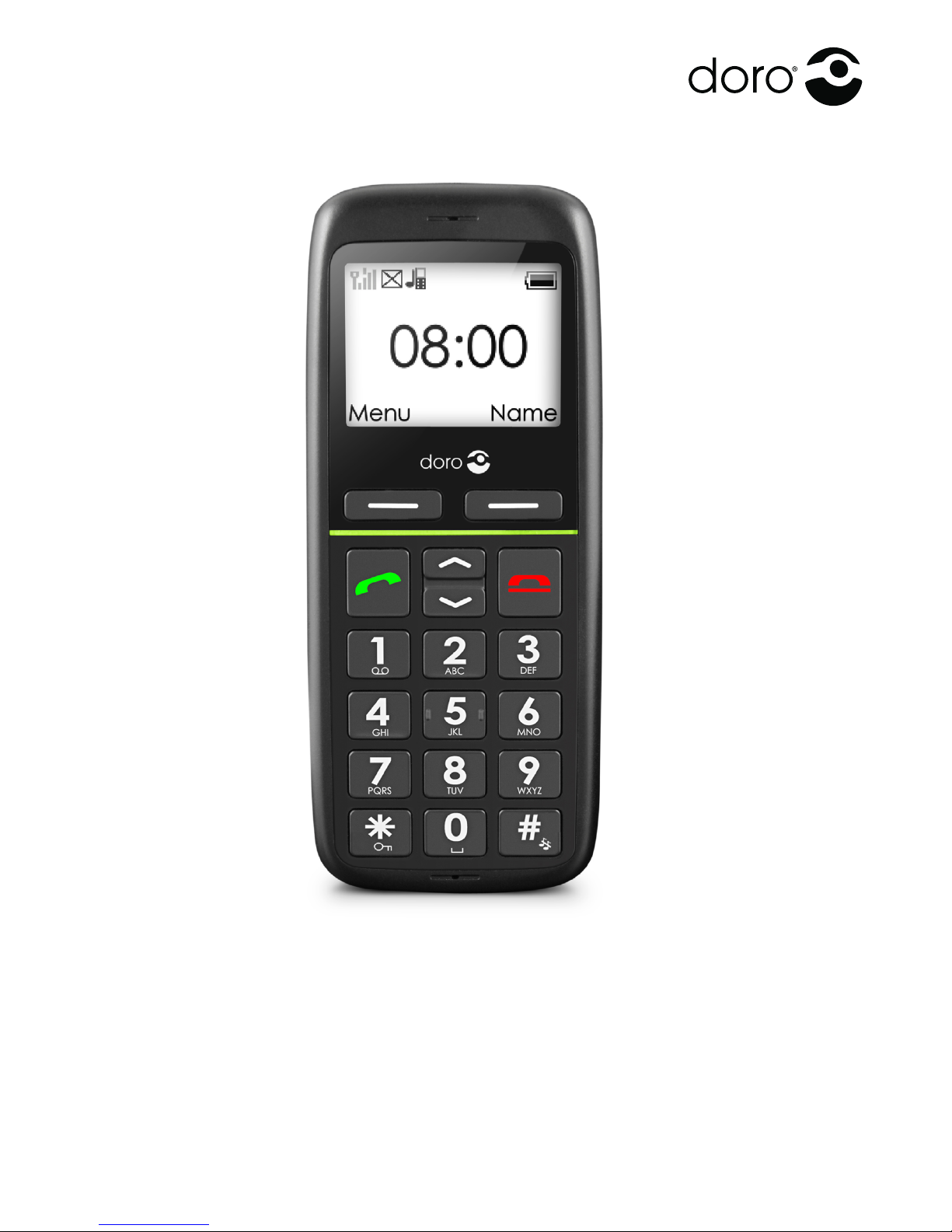

Doro PhoneEasy 341gsm Manuale utente

PhoneEasy

341gsm

Encender/apagar

Pantalla

Tecla programable izquierda

Tecla de llamada

1/ Buzón de voz

Teclado numérico

*/ Bloqueo de teclado

# / Cambiar perl

Fin. llamada

Teclas de echa

10.

Tecla programable derecha

Contactos de carga (para

utilizar con soporte de carga)

Tecla de llamada de

emergencia

Tapa de la batería

Toma para auriculares

Toma para el cargador

Altavoz

Micrófono

Collar porta teléfono

11.

12.

13.

14.

15.

16.

17.

18.

19.

Español

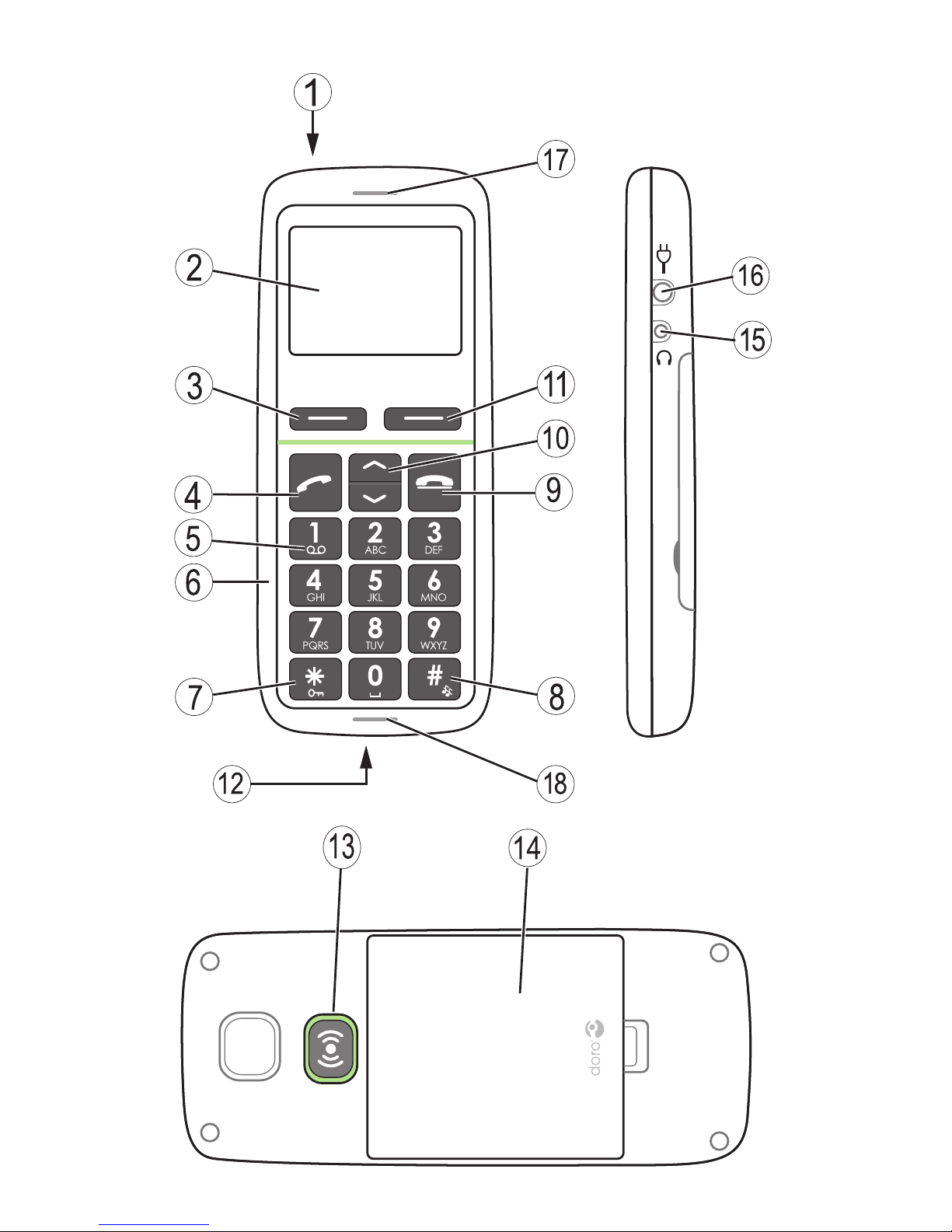

Power on/off

Display

Left soft key

Call key

1/ Voice mail

Numeric keypad

*/ Key lock

# / Change prole

End call

Arrow keys

10.

Right soft key

Charging contacts (for use

with charging stand)

Emergency call key

Battery cover

Headset socket

Charging socket

Loudspeaker

Microphone

Lanyard

11.

12.

13.

14.

15.

16.

17.

18.

19.

English

Contents

Installation .................................... 3

Installing the SIM card and battery. . . . . . . . . . . . . . . . . . 3

Charging .................................... 4

Operation...................................... 5

Activatingthephone............................ 5

Makingacall................................. 6

Making a call from the Phonebook . . . . . . . . . . . . . . . . . . 6

Receivingacall ............................... 6

Volumecontrol................................ 6

DisplaySymbols................................. 7

AdditionalFunctions.............................. 8

Calloptions .................................. 8

Callwaiting .................................. 9

Callinformation ............................... 9

Calllog ..................................... 9

Phonebook.................................. 10

Keylock.................................... 12

Headset.................................... 12

Silentmode................................. 12

SOScalls................................... 13

EmergencyCallkey............................ 14

Textinput................................... 15

SMSMessaging................................ 16

Creating and sending messages . . . . . . . . . . . . . . . . . . . 16

Outgoing messages (Outbox) . . . . . . . . . . . . . . . . . . . . . 16

Incoming messages (Inbox) . . . . . . . . . . . . . . . . . . . . . . 17

Settings...................................... 19

Time&date................................. 19

User proles (rings & tones) ...................... 20

Usersetup.................................. 22

Blockingfunctions ............................ 23

Emergency.................................. 23

Voicemail .................................. 24

Speeddial.................................. 25

Callsetup................................... 25

SMSsettings ................................ 27

Networksetup ............................... 28

Services.................................... 28

Securitysettings.............................. 29

Alarm...................................... 30

Taskreminders............................... 31

Calculator................................... 31

Troubleshooting ................................ 32

SafetyInstructions.............................. 34

Disclaimer and Limitation of Liability . . . . . . . . . . . . . . . . . 40

CareandMaintenance ........................... 42

TechnicalData................................. 43

English

Installation

Warning!

Turn off the phone and disconnect the charger before removing

the battery cover.

Installing the SIM card and battery

The SIM card holder is located behind the battery.

Remove the battery cover and the battery if it is already

installed.

Insert the SIM card by carefully sliding it into the holder.

Make sure that the SIM card’s contacts are facing inwards

and that the cut-off corner is pointing upwards. Take care not

to scratch or bend the contacts on the SIM card.

Insert the battery by sliding it into the battery compartment

with the contacts facing upwards to the right.

Replace the battery cover.

English

Charging

Warning!

Only use batteries, charger and accessories that have been

approved for use with this particular model. Connecting

other accessories may be dangerous and may invalidate the

phone’s type approval and guarantee.

When the battery is running low, is displayed and a warning

signal is heard. To charge the battery, connect the mains adapter

to the wall socket and to the charging socket y.

If the phone is turned on when the charger is connected to the

phone is displayed briey in the display and when it

is disconnected. The battery charge indicator is displayed while

charging.

If the phone is turned off when the charger is connected to the

phone only the battery charge status indicator will be shown in

the display.

It takes approximately 3 hours to fully charge the battery.

is displayed when charging is completed.

Note!

To save power the LCD backlight goes off after a short while

but the phone is still charging. Press any key to illuminate the

display.

Full battery capacity will not be reached until the battery has

been charged 3–4 times.

The ambient temperature must be in the range 0 °C to +40 °C

when charging.

Batteries degrade over time, which means that call time and

standby time will normally decrease with regular use.

English

Operation

Activating the phone

Press and hold 1on the top of the phone to turn it on/off. The

following messages may be displayed:

SIM card missing or

incorrectly inserted.

SIM card damaged or not

valid.

If the SIM card is valid but protected with a PIN code (Personal

Identication Number), PIN: is displayed. Enter the PIN code

and press OK ( upper left corner of keypad).

Delete with Clear ( upper right corner of keypad).

Note!

If PIN and PUK codes were not provided with your SIM card,

please contact your network operator.

Trials: # shows the number of PIN attempts left. When no

more attempts remain, SIM blocked is displayed. The SIM

card must now be unlocked with the PUK code (Personal

Unblocking Key).

1. Enter the PUK code and conrm with OK.

2. Enter a new PIN code and conrm with OK.

Changing the language, time and date

The default language is determined by the SIM card. See Settings

on how to change language, time and date.

English

Making a call

Enter the phone number. Delete with Clear.

Press qto dial. Press Abort to cancel dialling.

Press Lto end the call.

Note!

When making international calls, press *twice for the

international prex "+". Always use ”+” before the country

code (instead of 00 or similar) for best operation.

Making a call from the Phonebook

Press Name to open the phonebook.

Use the arrow keys / to scroll through the

phonebook, or quick search by pressing the key corresponding

to the rst letter of the entry, see Text input.

Press Call to dial the selected entry, or press Back to return

to standby mode.

Receiving a call

Press qto answer, or press Silent to switch off the ring

signal and then Reject to reject the call (busy signal).

Alternately, press Lto reject the call directly.

Press Lto end the call.
